John Boos

John Boos E-Series 3-Compartment Stainless Steel Sink with Legs and 9-3/4" Backsplash, 35" W x 19-1/2" D

SKU: E3S8-1014-10
GTIN: 662969305949
$1,019.96
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

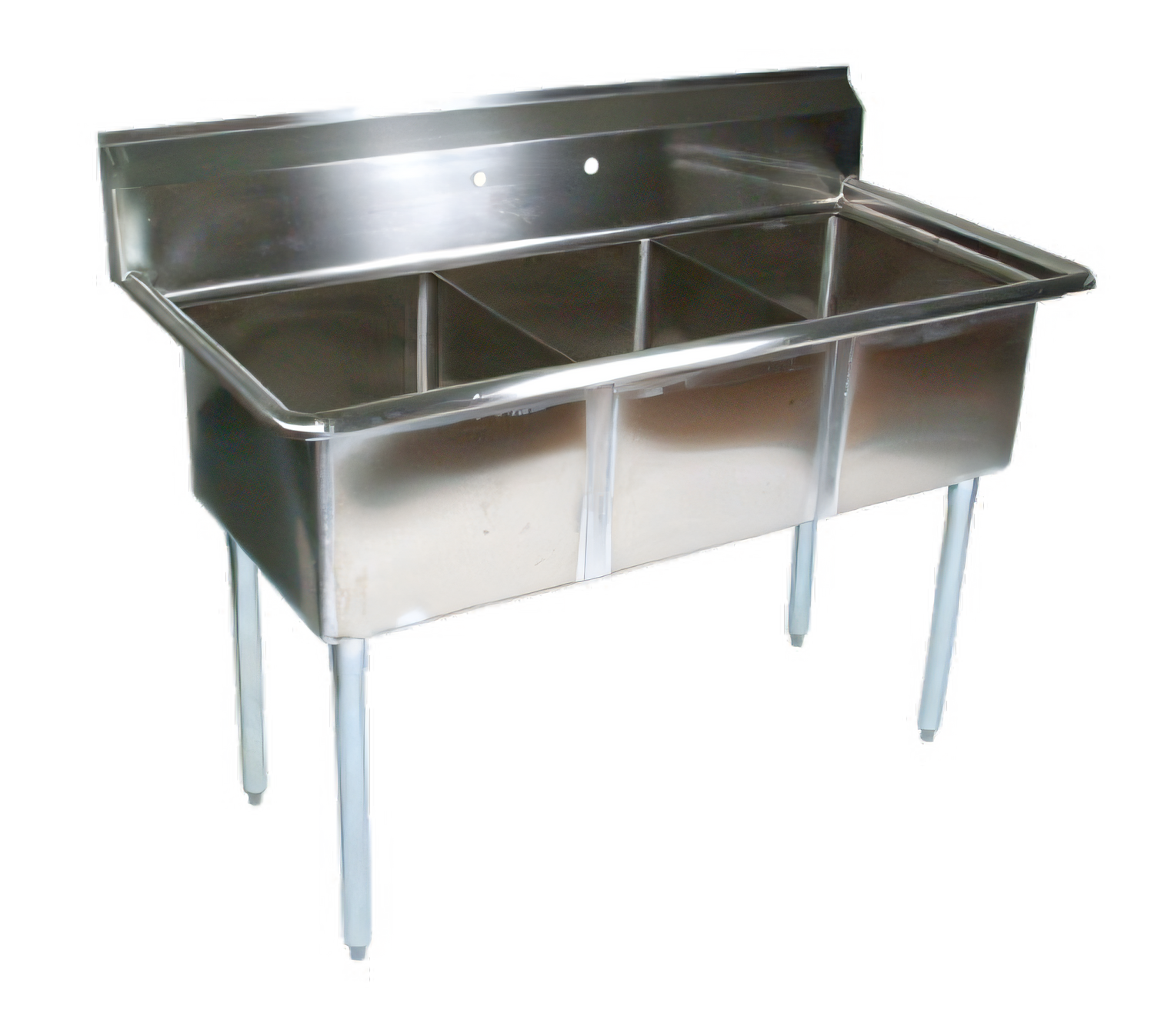

John Boos E-Series 3-Compartment Stainless Steel Sink with Legs and 9-3/4" Backsplash, 35" W x 19-1/2" D

3 Equal Compartments, 18 Gauge Top, Galvanized Legs

Built for efficient wash-rinse-sanitize workflows, this compact three-compartment sink combines a tall boxed backsplash, splash-mount faucet openings, and durable galvanized leg support.

  • Three 10" x 14" x 10" compartments support wash, rinse, and sanitize tasks.
  • 9-3/4" boxed backsplash includes 8" center splash-mount faucet holes.
  • 18 gauge stainless steel top and galvanized legs/gussets are designed for daily commercial use.
  • Adjustable plastic bullet feet help level the sink on uneven floors.
  • 3-1/2" die-stamped drain openings and no drainboards keep the footprint compact and efficient.

Overall Dimensions:

35.0"W x 19.5"D x 43.75"H

Product Weight:

48.0 lb

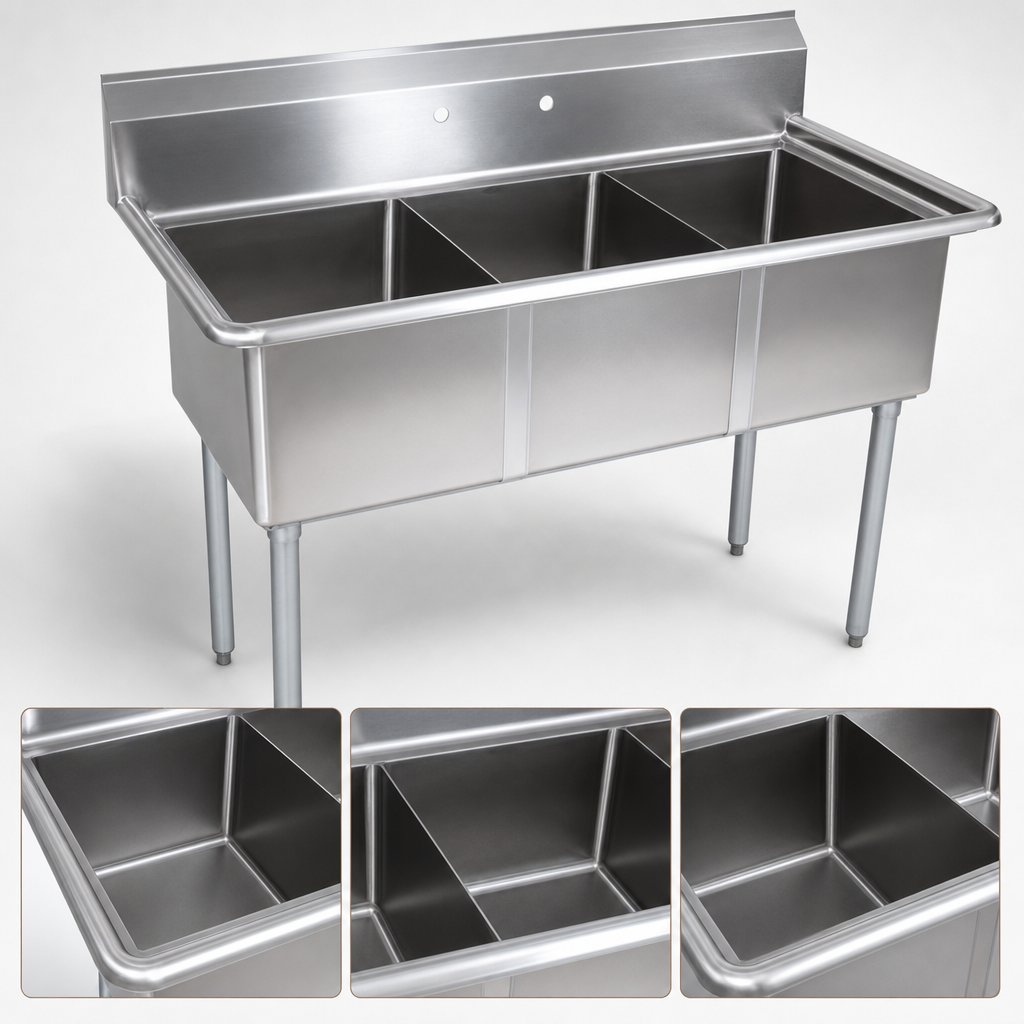

Three Equal Compartments

Three individual sink bowls provide dedicated spaces for washing, rinsing, and sanitizing.

Boxed Backsplash

The 9-3/4" backsplash includes a 45° top and 2" return to help protect the wall.

Splash-Mount Faucet Holes

One set of faucet holes on 8" centers is built into the backsplash.

Die-Stamped Drain Openings

3-1/2" diameter drain openings are pre-formed for standard sink drainage.

18 Gauge Stainless Steel Top

Stainless steel construction helps provide durability for commercial foodservice use.

Galvanized Legs and Gussets

Galvanized support components add stability beneath the sink.

Adjustable Bullet Feet

Plastic bullet feet help level the sink and simplify installation.

Without Drainboards

Open side layout keeps the sink compact for tight prep and utility areas.

Compartments 3
Type 3-Compartment Sink
Style Box Backsplash
Installation Type Floor Model
Material 300 Series Stainless Steel
Top Gauge 18 Gauge
Base Type Legs
Base Construction Galvanized Steel
Drainboards Without Drainboards
Compartment Width 10 Inches
Compartment Depth 14 Inches
Sink Depth 10 Inches
Splash Height 9-3/4 Inches
Mounting Type Splash Mount
Faucet Hole Centers 8 Inches
Drain Opening Diameter 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 35 Inches
Shipping Depth 20 Inches
Shipping Height 44 Inches
Shipping Weight 48 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has 3 compartments, each measuring 10" wide x 14" front-to-back x 10" deep.
No, this model is supplied without drainboards.
It includes one set of splash-mount faucet holes on 8" centers.
It has a 9-3/4" boxed backsplash with a 45° top and 2" return.
The sink uses galvanized legs and gussets with adjustable plastic bullet feet.
