Key specifications

Dimensions
75.0"W × 29.5"D × 43.75"H
Type
3-Compartment Sink
Style
Corner
Installation Type
Floor Model
Material
Stainless Steel
Finish
#4 Satin
Spec sheet
John Boos SKU: E3BCS-244-2D24-X

John Boos E3BCS-244-2D24-X 3-Compartment Corner Sink

$2,261.16
/each
Estimated to ship in 8–11 business days
Factory Add-Ons
Included: John Boos warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $209/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type 3-Compartment Sink
Style Corner
Installation Type Floor Model
Material Stainless Steel
Finish #4 Satin
Compartments 3
Compartment Width 24 Inches
Compartment Front-To-Back 24 Inches
Compartment Depth 14 Inches
Drainboard Count 2
Drainboard Width 24 Inches
Top Gauge 18 Gauge
Stainless Series 300 Series
Backsplash Height 9 Inches
Backsplash Return 2 Inches
Backsplash Angle 45 Degrees
Faucet Hole Sets 2
Faucet Hole Centers 8 Inches
Faucet Hole Diameter 1-1/8 Inches
Drain Opening Diameter 3-1/2 Inches
Bowl Corner Radius 3/4 Inch
Base Material Galvanized Steel
Leg Material Galvanized Steel
Leg Diameter 1-5/8 Inches
Bracing Material Stainless Steel
Bracing Diameter 1-1/4 Inches
Foot Type Adjustable Plastic Bullet Feet

Description

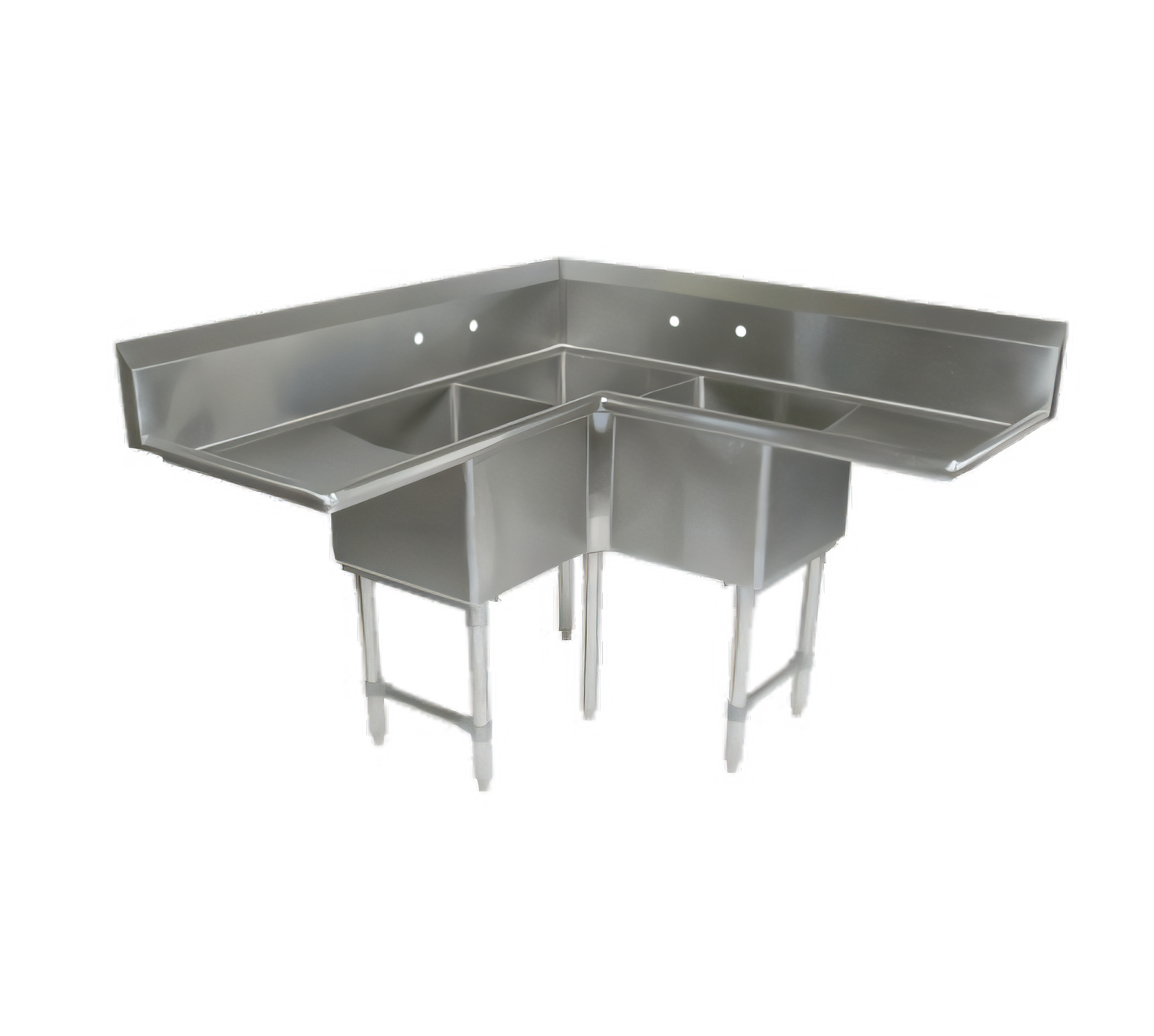

The John Boos E3BCS-244-2D24-X is a 3-compartment corner sink with dual 24-inch drainboards, an 18-gauge Type 300 stainless steel top and bowls, and a 9-inch boxed backsplash.

  • Three compartments measure 24 x 24 x 14 inches.
  • Two 24-inch drainboards provide adjoining work surfaces.
  • The top and bowls have a #4 satin finish.
  • The backsplash is 9 inches high with a 2-inch return at 45 degrees.
  • Includes two sets of splash-mount faucet holes with 8-inch centers and 1-1/8-inch holes.
  • Galvanized legs and gussets, stainless steel bracing, and adjustable plastic bullet feet support the sink.
  • Overall dimensions are 75 inches wide, 29-1/2 inches deep, and 43-3/4 inches high.

Overall Dimensions:

75.0"W x 29.5"D x 43.75"H

Product Weight:

134.0 lb

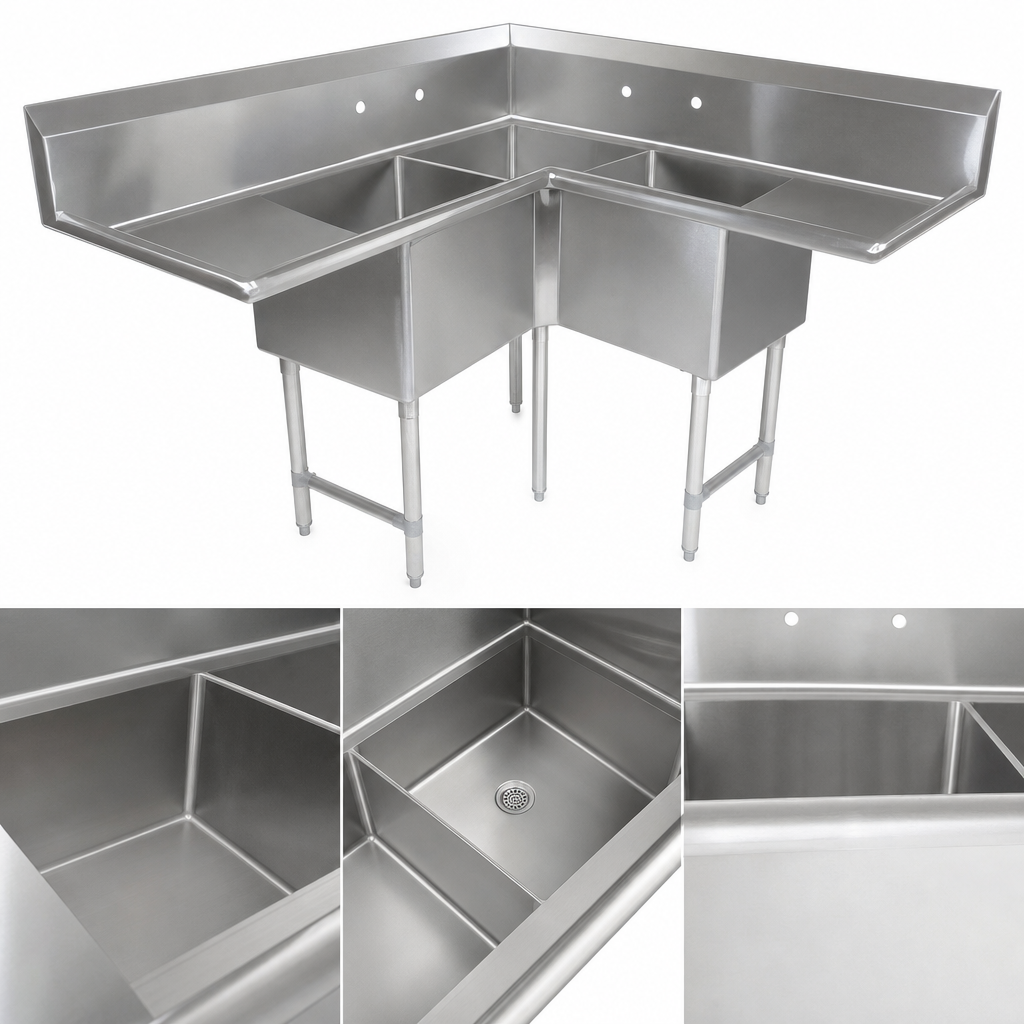

Three sink compartments

The sink has three compartments, each measuring 24 x 24 x 14 inches.

Dual drainboards

Two 24-inch drainboards are included on the left and right sides.

Stainless steel construction

The top and bowls are made from 18-gauge Type 300 stainless steel with a #4 satin finish.

Boxed backsplash

The backsplash is 9 inches high and has a 2-inch return to the wall at 45 degrees.

Faucet hole sets

Two sets of splash-mount faucet holes are provided with 8-inch centers and 1-1/8-inch hole diameters.

Coved corners

Vertical and horizontal corners are coved at a 3/4-inch radius.

Adjustable support components

The sink has galvanized legs and gussets, stainless steel bracing, and adjustable plastic bullet feet.

Frequently Asked Questions

It has three compartments, each measuring 24 x 24 x 14 inches.
Yes. It has two 24-inch drainboards, one on each side.
The sink is 75 inches wide, 29-1/2 inches deep, and 43-3/4 inches high overall.
It has a 9-inch-high boxed backsplash with a 2-inch return at 45 degrees.
It has two sets of splash-mount faucet holes with 8-inch centers and 1-1/8-inch hole diameters.
The top and bowls are made from 18-gauge Type 300 stainless steel with a #4 satin finish.
