Key specifications

Dimensions
57.0"W × 23.5"D × 43.75"H
Type
3-Compartment Sink
Style
Corner
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: E3BCS-184-2D18-X

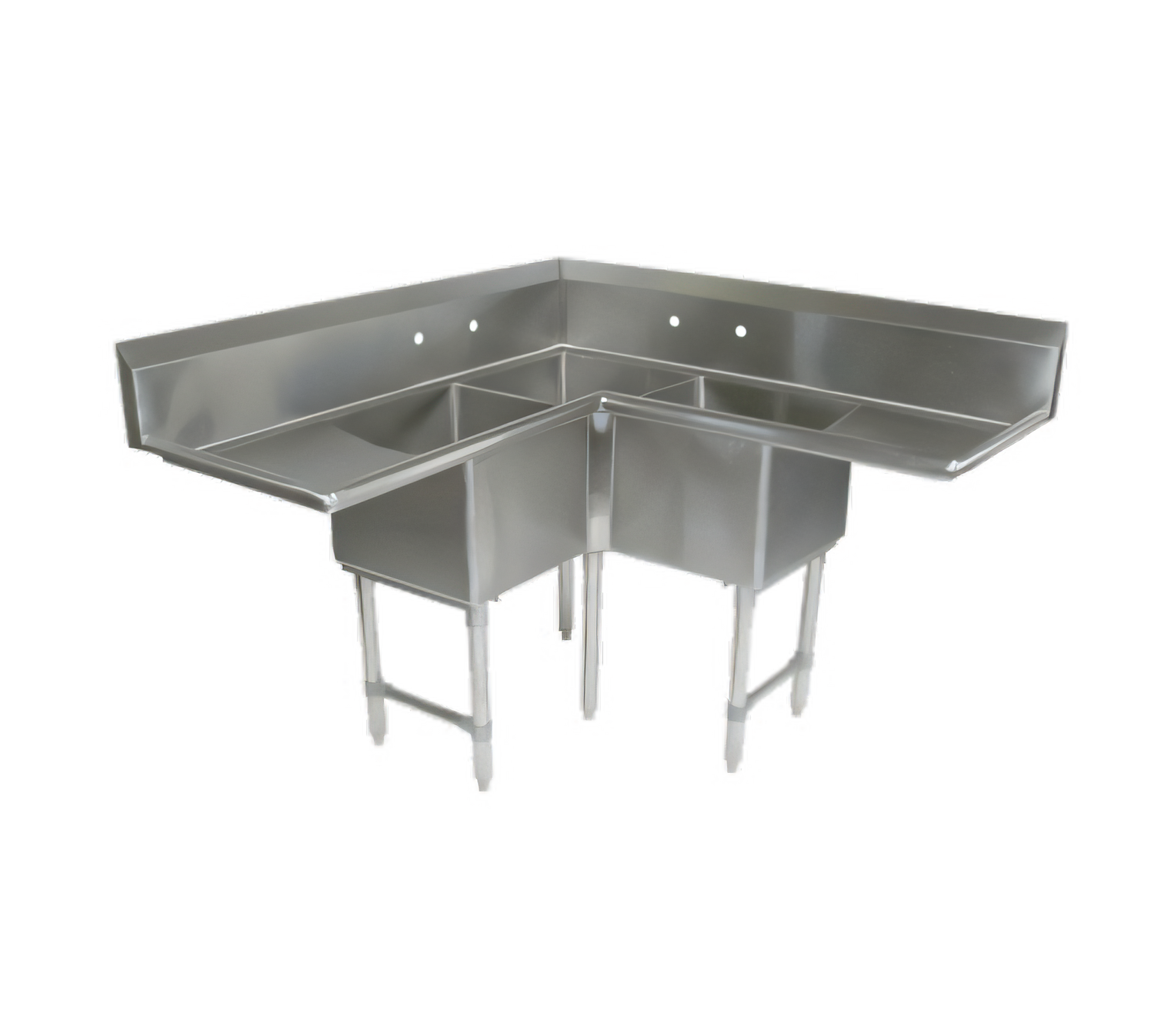

John Boos E3BCS-184-2D18-X 57-Inch 3-Compartment Corner Sink

$1,483.02
/each
Estimated to ship in 8–11 business days
Factory Add-Ons
Included: John Boos warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $137/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type 3-Compartment Sink
Style Corner
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 3
Compartment Size 18 in W x 18 in F-B x 14 in D
Drainboard Count 2
Drainboard Length 18 in
Splash Height 9 in
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Base Construction Galvanized
Bracing Material Stainless Steel
Faucet Hole Sets 2
Faucet Hole Spacing 8 in
Faucet Hole Diameter 1.125 in
Drain Opening Diameter 3.5 in
Corner Radius 0.75 in
Backsplash Return 2 in
Feet Type Adjustable Plastic Bullet

Description

The John Boos E3BCS-184-2D18-X is a 3-compartment corner sink with three 18 in x 18 in x 14 in compartments and 18 in drainboards on the left and right.

It features an 18-gauge Type 300 stainless steel top and bowls with a satin finish, a 9 in boxed backsplash with a 2 in return at 45 degrees, and two sets of splash-mount faucet holes on 8 in centers.

  • Three compartments formed for drainage to 3.5 in die-stamped drain openings
  • Coved vertical and horizontal corners with a 0.75 in radius
  • Galvanized legs and gussets with stainless steel bracing
  • Adjustable plastic bullet feet
  • NSF and CSA-Sanitation certifications

Overall Dimensions:

57.0"W x 23.5"D x 43.75"H

Product Weight:

98.0 lb

Three Compartments

Three compartments measure 18 in wide x 18 in front-to-back x 14 in deep.

Side Drainboards

Two 18 in drainboards are positioned on the left and right sides.

Stainless Steel Construction

The top and bowls are 18-gauge Type 300 stainless steel with a satin finish.

Boxed Backsplash

The backsplash is 9 in high with a 45-degree top and 2 in return to the wall.

Faucet Holes

Two sets of splash-mount faucet holes have 8 in centers and 1.125 in hole diameters.

Drain Opening

The bowls are formed for drainage to 3.5 in die-stamped drain openings.

Base and Bracing

The base uses galvanized legs and gussets with stainless steel bracing.

Adjustable Feet

Adjustable plastic bullet feet are provided.

Frequently Asked Questions

It has three compartments.
Each compartment measures 18 in wide, 18 in front-to-back, and 14 in deep.
Yes. It has two 18 in drainboards, one on the left and one on the right.
The sink measures 57 in wide, 23.5 in deep, and 43.75 in high.
It has two sets of splash-mount faucet holes with 8 in centers and 1.125 in hole diameters.
The product is specified with NSF and CSA-Sanitation certifications.
