John Boos E2S8-24-14R24-X Compartment Sinks
Description

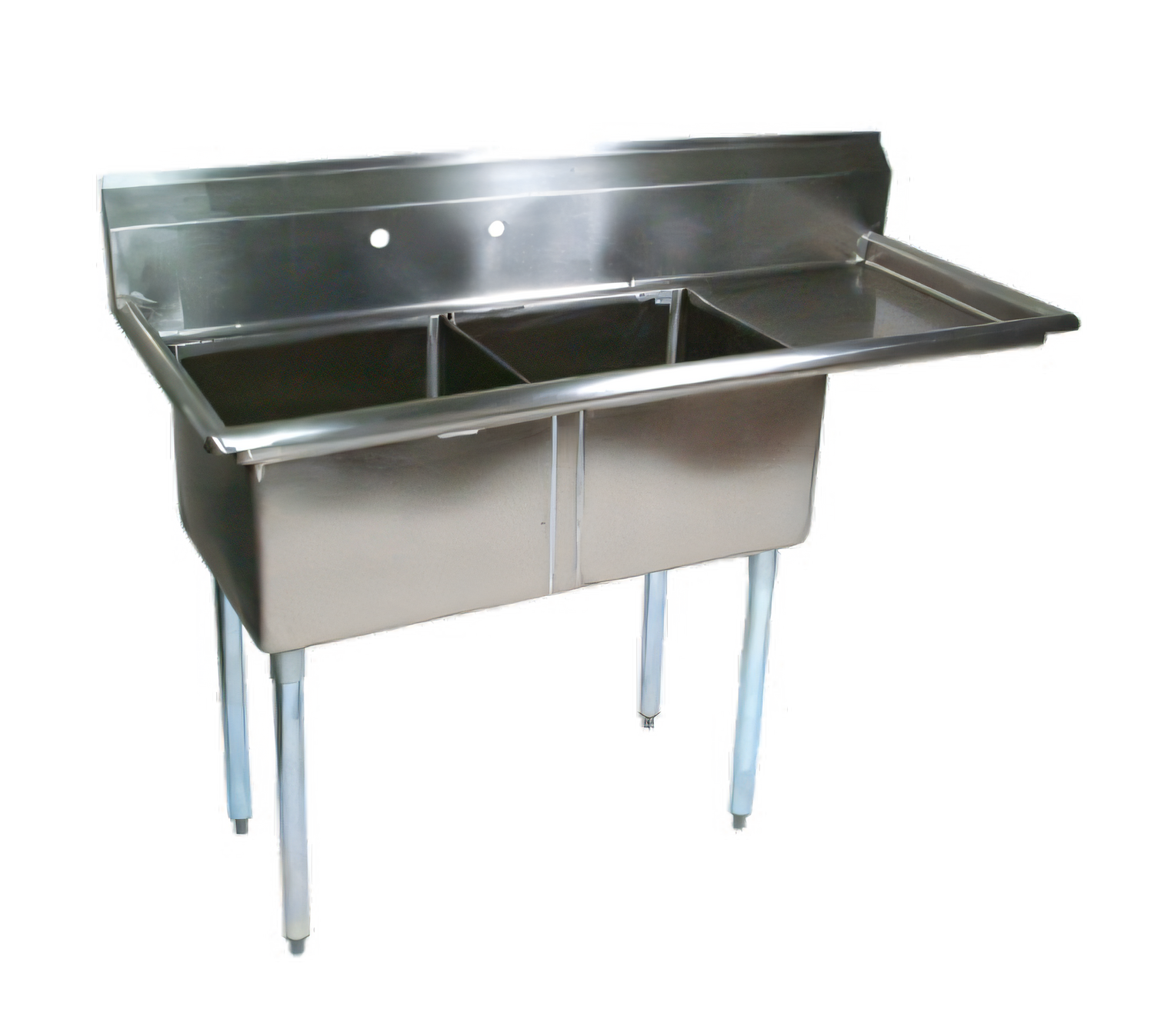

John Boos E-Series 2-Compartment Sink with Right Drainboard
Model E2S8-24-14R24 | 74-1/2" W x 29-1/2" D x 43-3/4" HEngineered for everyday efficiency and long-term durability, the John Boos E-Series 2-compartment sink is the workhorse your commercial kitchen, café, bar, or bakery can count on. Two spacious 14-inch-deep bowls speed through prep and cleanup, while a generous 24-inch right-side drainboard keeps the workflow organized and sanitary.
Key Features
- Two 24" W x 24" F-B x 14" D compartments handle large stock pots, sheet pans, and bulky wares.
- 24" right drainboard with integral pitch directs runoff straight to the bowl.
- 18 ga, type 300 stainless steel top & bowls with #4 satin finish resist corrosion and are easy to wipe clean.
- 9-3/4" boxed backsplash with 45° top & 2" return protects your walls and simplifies cleanup.
- Pre-punched 1-1/8" faucet holes on 8" centers – ready for your splash-mount faucet (sold separately).
- 3-1/2" die-stamped drain openings are compatible with most commercial basket strainers & disposers.
- Coved 3/4" radius interior corners expedite rinsing and meet health-code requirements.
- TIG-welded construction; exposed welds polished to match surrounding finish.
- 1-5/8" O.D. galvanized legs & gussets with adjustable 1" plastic bullet feet for rock-solid, level placement.
- NSF & CSA-Sanitation listed for worry-free code compliance.
At-a-Glance Specs
| Overall size (W × D × H) | 74-1/2" × 29-1/2" × 43-3/4" |
|---|---|
| Work-height to sink roll | 36" |
| Bowl dimensions (each) | 24" W × 24" F-B × 14" D |
| Drainboard | 24" right-side, integrally pitched |
| Backsplash | 9-3/4" H boxed, 45° top, 2" return, 1" tile edge |
| Faucet holes | (2) 1-1/8" Ø, 8" centers, splash mount |
| Drain openings | (2) 3-1/2" die-stamped |
| Material / gauge | 18 ga type 300 stainless steel (top & bowls) |
| Legs / gussets | 1-5/8" Ø galvanized steel legs & gussets |
| Feet | Adjustable plastic bullet feet |
| Certifications | NSF / CSA-Sanitation |
| Ship weight | Approx. 96 lb |
Perfect For
- Restaurants & ghost kitchens needing a reliable 2-comp ware-washing station
- Artisan bakeries & commissaries rinsing full-size sheet pans
- Brewpubs & taprooms handling kegs, pitchers, and glass racks
- School and hospital kitchens that must meet strict sanitation codes
Maintain the sink’s like-new shine by cleaning with non-chloride stainless-safe cleansers and soft cloths. Rinse and dry promptly after use.
