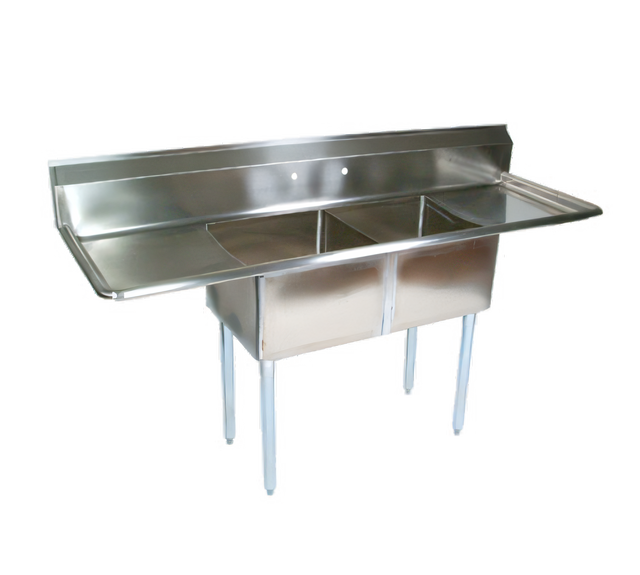

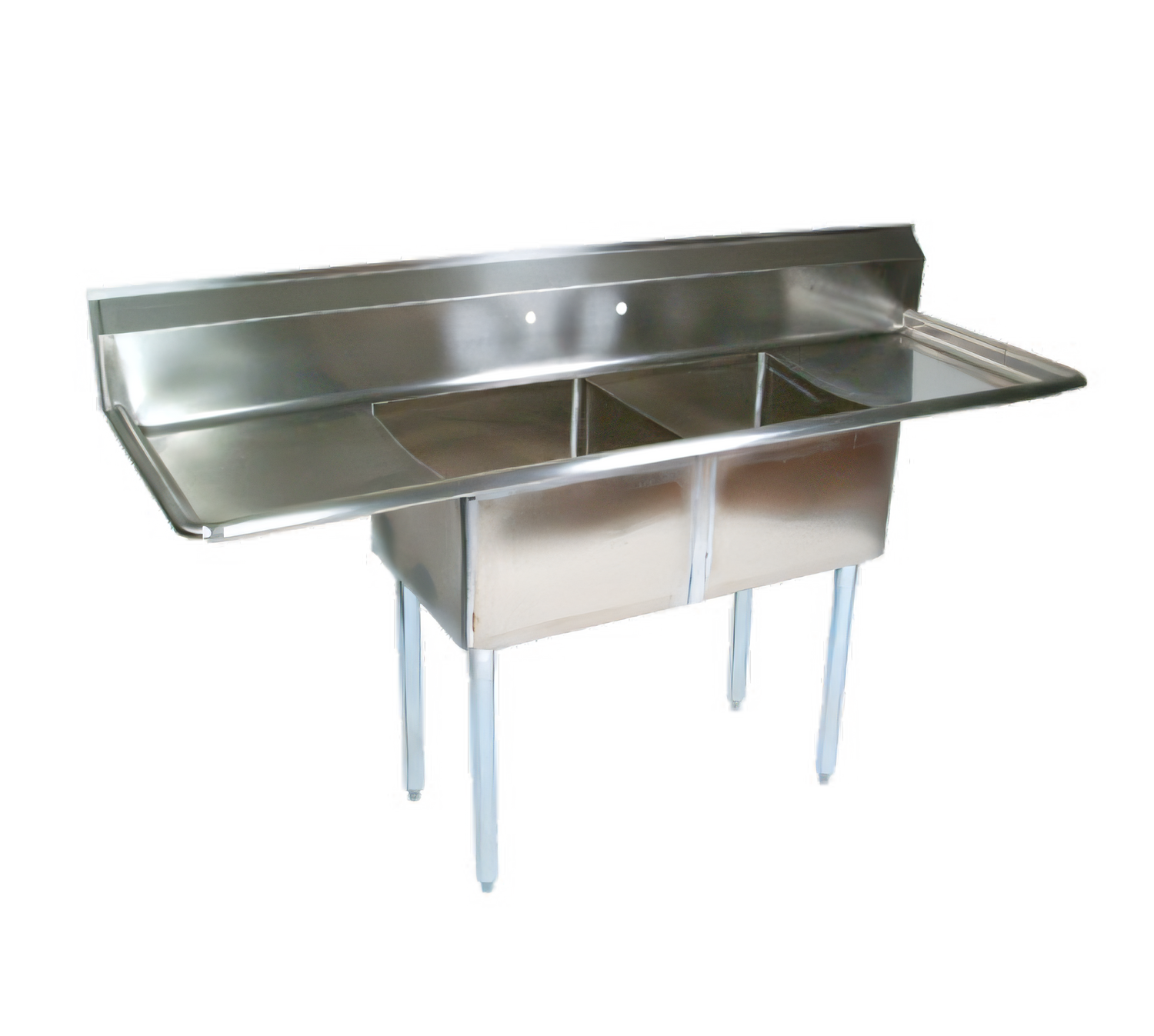

John Boos E-Series 2-Compartment Sink with Left and Right Drainboards, 72 Inch

18-Gauge Type 300 Stainless Steel, 12-Inch Deep Bowls, Galvanized Legs

Built for busy commercial kitchens, this 72-inch sink pairs dual deep bowls with left and right drainboards and a rugged stainless steel build.

  • Two 18" x 18" x 12" compartments provide room for washing, prep, and cleanup tasks.
  • 18" left and right drainboards add convenient landing space on both sides of the sink.
  • 18-gauge Type 300 stainless steel top and bowls deliver durable, commercial-grade performance.
  • 9-3/4" boxed backsplash helps protect the wall from splashes and spills.
  • Galvanized steel legs and gussets provide sturdy support, while adjustable plastic bullet feet help with leveling.
  • 3-1/2" die-stamped drain openings support reliable drainage.

Overall Dimensions:

72.0"W x 23.5"D x 43.75"H

Product Weight:

75.0 lb

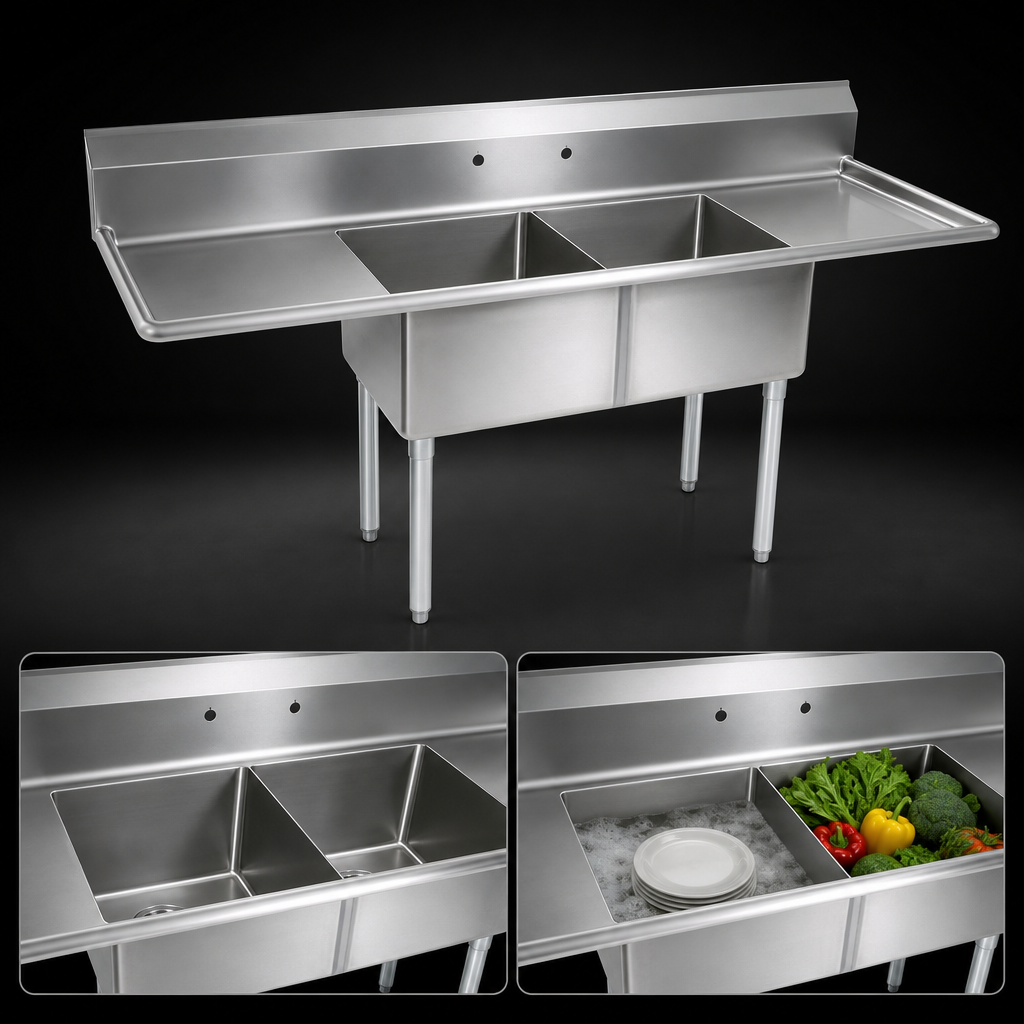

Dual Compartment Layout

Includes two 18" wide x 18" front-to-back x 12" deep bowls for multitasking in prep and wash areas.

Left and Right Drainboards

Two 18" drainboards provide extra landing space and help streamline workflow on both sides of the sink.

Boxed Backsplash

A 9-3/4" high boxed backsplash with a 45-degree top and 2" return helps contain splashes and protects the wall.

Splash-Mount Faucet Holes

Provided with one set of splash-mount faucet holes on 8-inch centers.

Stainless Steel Construction

Made with 18-gauge Type 300 stainless steel bowls and top for commercial durability and a clean finish.

Coved and Bullnosed Edges

Coved bowl corners and bullnosed outside corners help improve cleanability and provide smoother edges.

Galvanized Support Base

Galvanized steel legs and gussets provide a sturdy foundation for floor placement.

Adjustable Bullet Feet

Plastic bullet feet help with leveling and final installation adjustments.

Die-Stamped Drain Openings

Each bowl includes a 3-1/2" die-stamped drain opening for standard drainage setup.

Type Compartment Sink
Style 2 Compartment with Left and Right Drainboards
Installation Type Floor Model
Compartments 2
Compartment Width 18 Inches
Compartment Depth 18 Inches
Bowl Depth 12 Inches
Drainboards Left and Right
Backsplash Height 9-3/4 Inches
Material Stainless Steel
Interior Finish Type 300 Stainless Steel
Finish Satin Finish
Top Gauge 18 Gauge
Base Construction Galvanized Steel
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 75 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Video assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 18" wide x 18" front-to-back x 12" deep.
Yes. It includes 18" drainboards on both the left and right sides.
The top and bowls are made from 18-gauge Type 300 stainless steel.
The sink has a 9-3/4" boxed backsplash with a 45-degree top and 2" return.
It uses 3-1/2" die-stamped drain openings.
