John Boos E2S8-18-12R18 Compartment Sinks
Description

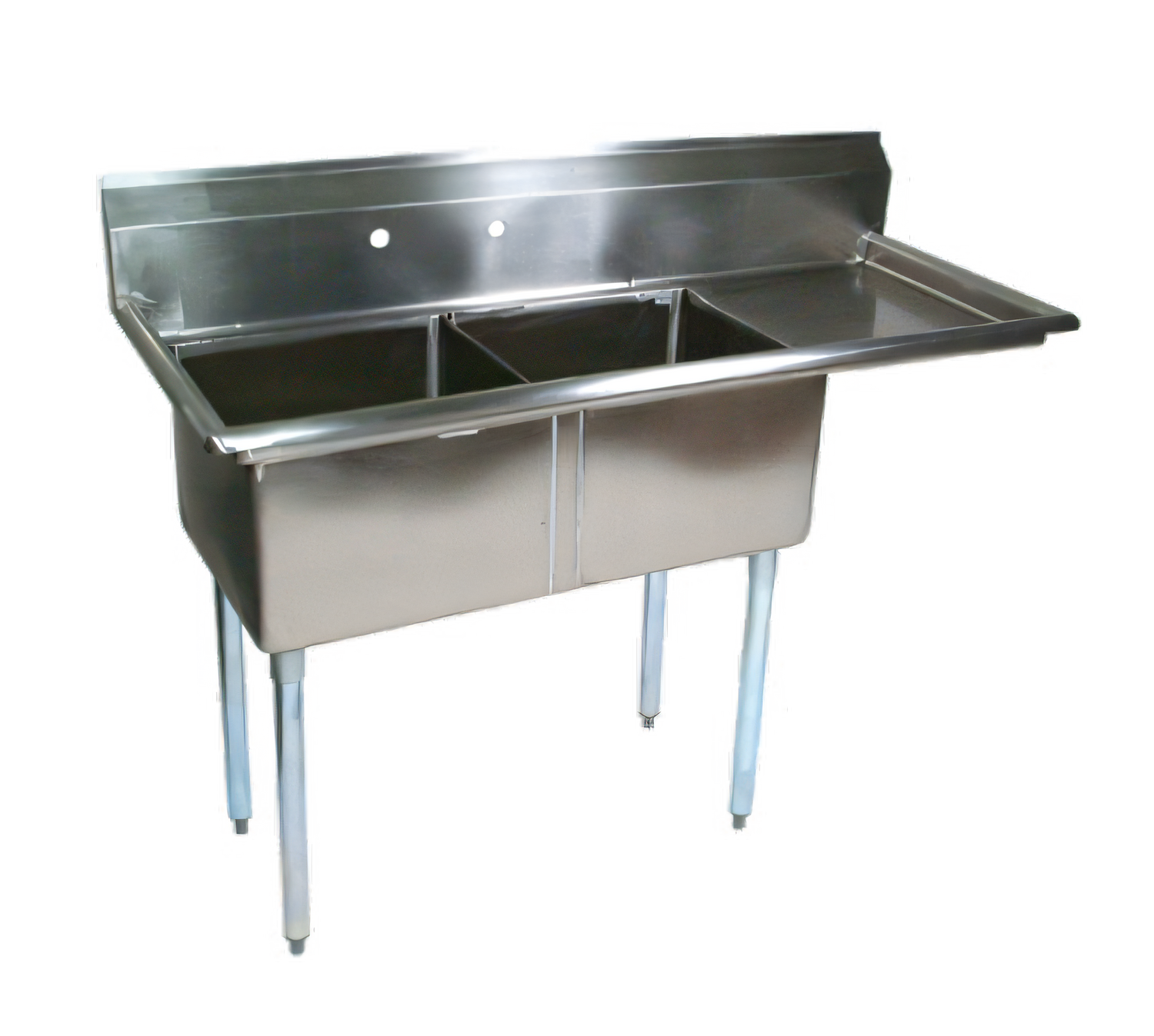

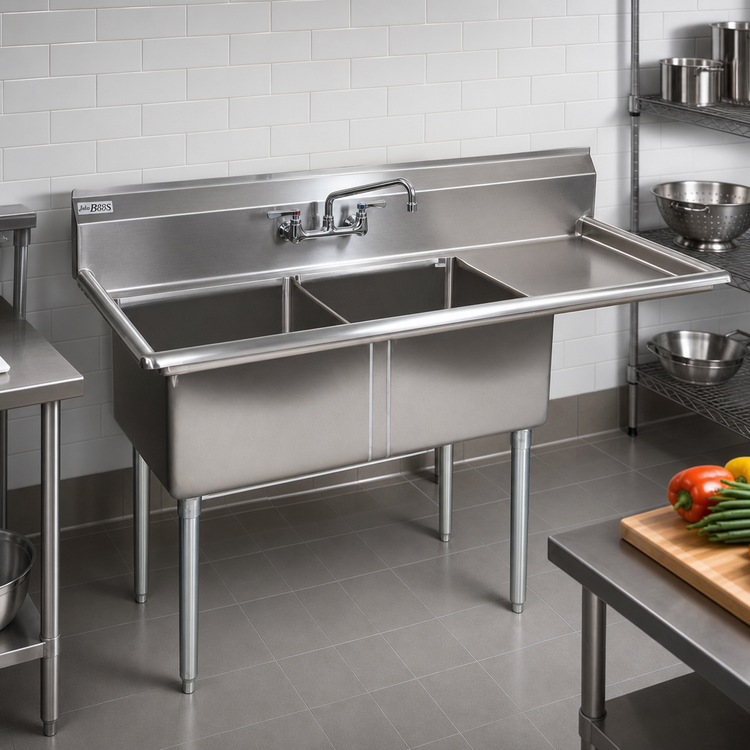

John Boos E-Series 2-Compartment Sink with 18" Right Drainboard – 56-1/2"
Model E2S8-18-12R18 | 18 GA Type 300 Stainless SteelBuilt for everyday prep and cleanup, the John Boos E-Series 2-Compartment Sink delivers professional performance in a space-saving footprint. Two roomy 18" × 18" bowls handle washing and rinsing while the integrated 18" right-side drainboard keeps dishes, utensils, and sheet pans organized and off the worktop. NSF and CSA-Sanitation certifications make this sink an easy approval for health inspectors and facility managers alike.
Features at a Glance
- 18 GA (1.2 mm) Type 300 stainless steel top & bowls with #4 satin polish

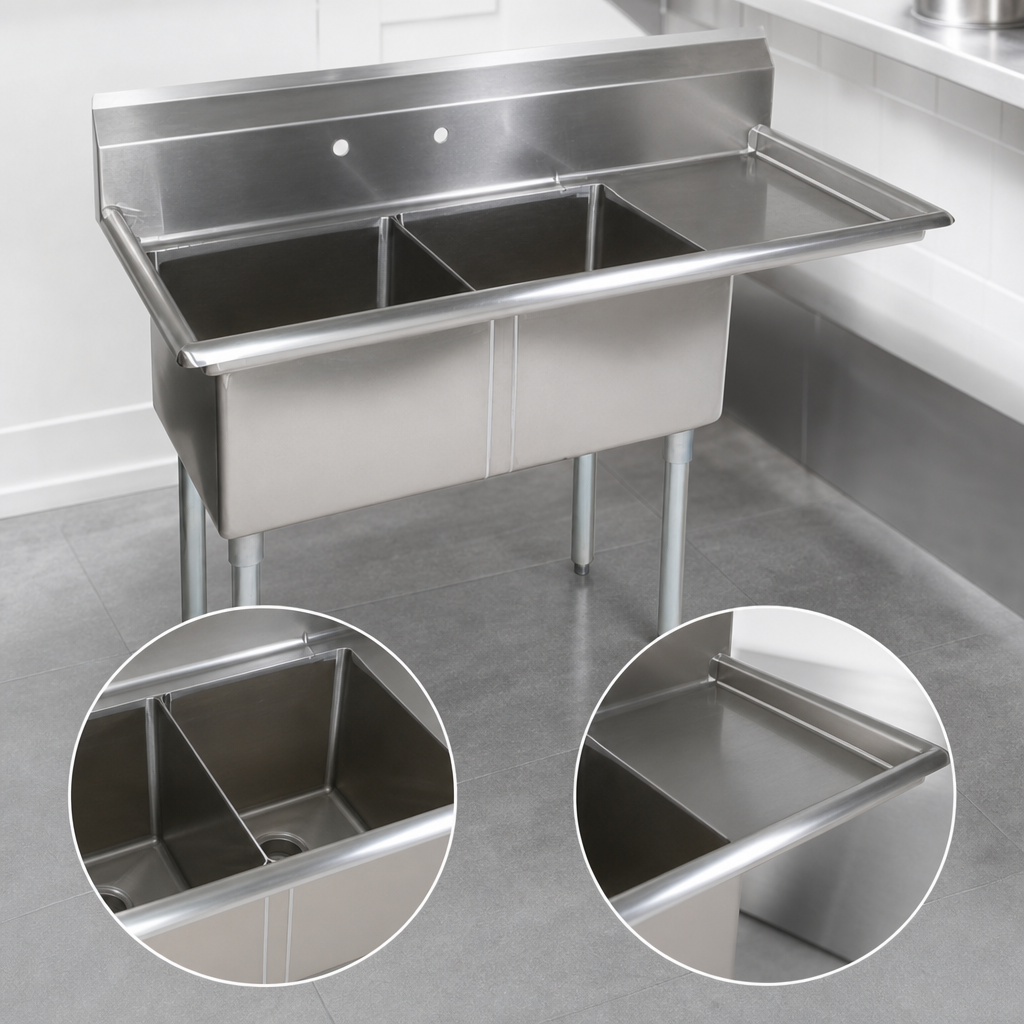

- (2) 18" W × 18" F/B × 12" D compartments – coved 3/4" radius corners for fast wash-downs
- 18" right drainboard with positive pitch for rapid drainage
- 9-3/4" boxed backsplash with 45° top, 2" rear return, and 1" tile edge
- Pre-punched splash-mount faucet holes on 8" centers (1 set)
- 3-1/2" die-stamped drain openings accept standard basket strainers
- 1-5/8" O.D. galvanized legs & gussets with adjustable plastic bullet feet
- All outer edges bull-nosed for a safer, polished finish
- NSF & CSA-Sanitation listed for commercial use
Technical Specifications
| Model | E2S8-18-12R18 (right drainboard) |
|---|---|
| Overall Dimensions (W × D × H) | 56-1/2" W × 23-1/2" D × 43-3/4" H *to top of backsplash* |
| Compartment Size (ea.) | 18" W × 18" F/B × 12" D |
| Drainboard | 18" W, right side, integrally welded |
| Backsplash Height | 9-3/4" |
| Faucet Holes | 1-1/8" dia. on 8" centers, splash mount |
| Material Thickness | 18 GA stainless steel (top & bowls) |
| Leg Construction | Galvanized steel, 1-5/8" round O.D. |
| Feet | Adjustable plastic bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping Weight | Approx. 68 lb |
Made to Work Longer
- Engineered drainage – Bowl bottoms are pitched toward the outlet so water never pools.
- Tool-free leveling – Oversized bullet feet adjust easily on uneven floors.
- Bulletproof welds – TIG-welded seams are ground & polished to match the surrounding finish.
- Legendary Boos build – Manufactured in Effingham, Illinois since 1887.
Simple Care Tips
- Clean daily with mild, non-chloride detergent and a soft cloth or plastic scouring pad.
- Always wipe in the direction of the grain to preserve the satin finish.
- Rinse and dry after each use to maintain the protective chromium oxide layer.
- Restore luster periodically with John Boos Stainless Steel Cleaner or Bar Keepers Friend.
Avoid abrasive pads, wire brushes, or cleaners containing bleach, which can damage stainless steel.
