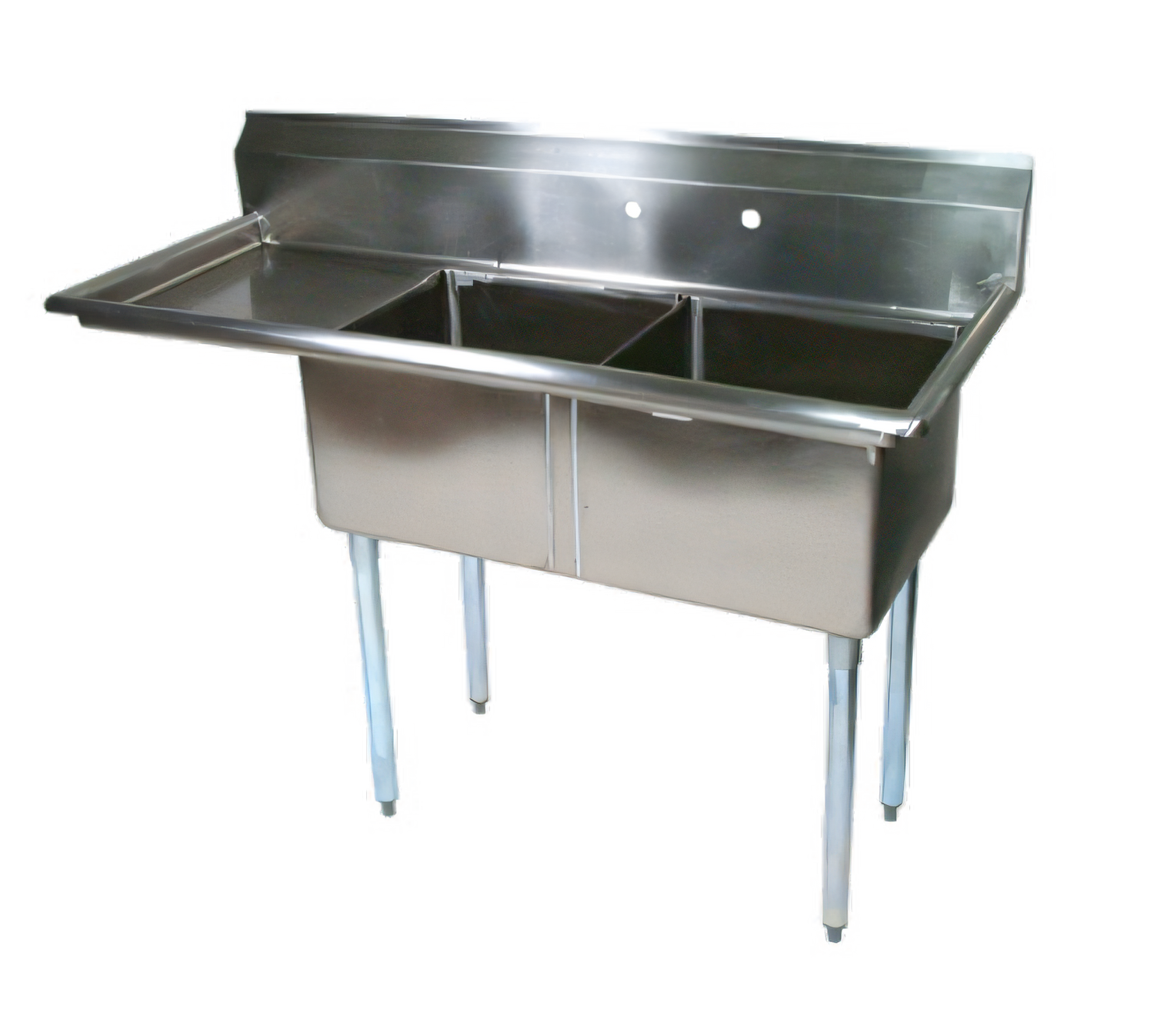

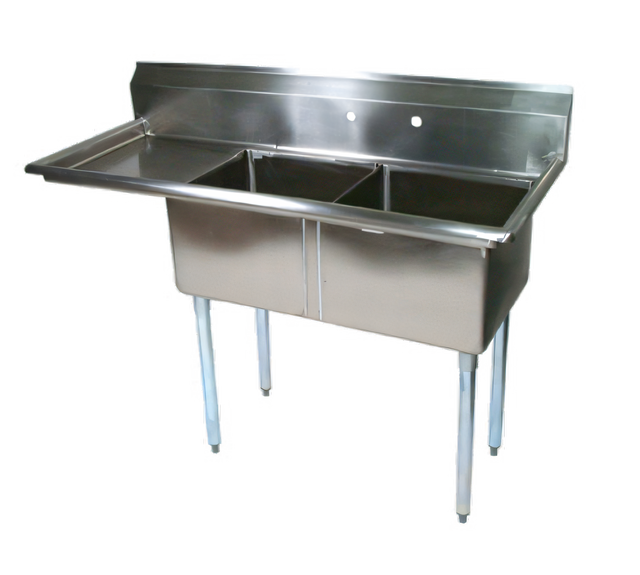

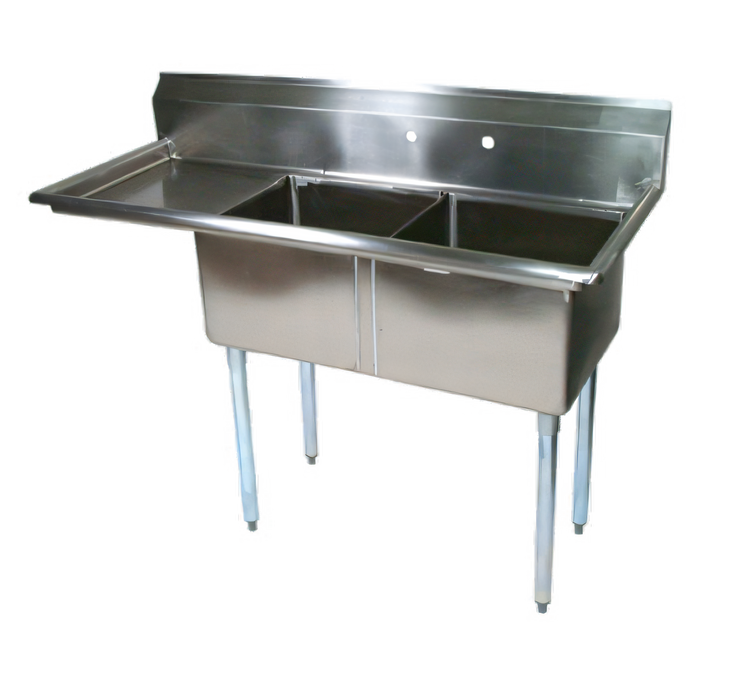

John Boos E-Series 2-Compartment Floor Model Stainless Steel Sink with Left Drainboard and Backsplash

56-1/2"W x 23-1/2"D x 43-3/4"H overall; 18" x 18" x 12" compartments

This heavy-duty two-compartment sink pairs a left drainboard, tall backsplash, and galvanized support base for efficient commercial prep and cleanup.

  • Two-compartment floor sink design separates washing and rinsing tasks.
  • Includes an 18-inch left drainboard for staging, draining, or air-drying items.
  • 18" x 18" x 12" compartments provide generous bowl space for everyday kitchen use.
  • 9-3/4" boxed backsplash helps protect the wall and contains splashes.
  • Built with 18/300 stainless steel, galvanized legs, and gussets for durability.
  • Adjustable plastic bullet feet help level the sink on uneven floors.

Overall Dimensions:

56.5"W x 23.5"D x 43.75"H

Product Weight:

68.0 lb

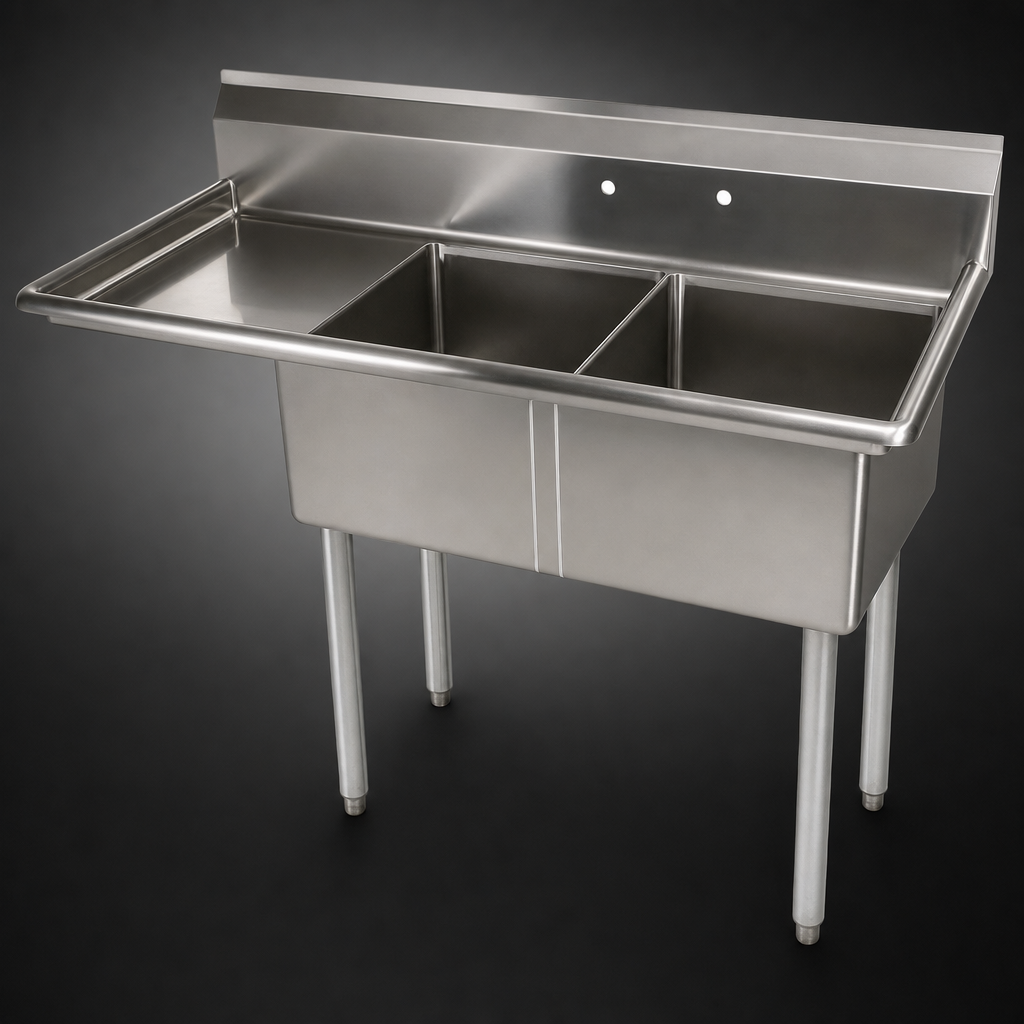

Two Compartment Bowls

Includes two 18" front-to-back by 18" wide compartments, each 12" deep, for separating sink tasks.

Left Drainboard

An 18-inch left-hand drainboard provides extra surface area for staging and drying.

Boxed Backsplash

The 9-3/4" high backsplash has a 45° top and 2" return to help reduce splashing against the wall.

Splash-Mount Faucet Holes

One set of faucet holes with 8" centers supports standard splash-mount faucet installation.

Die-Stamped Drain Openings

3-1/2" die-stamped drain openings provide a clean, formed drain connection area.

Stainless Steel Construction

Constructed from 18/300 stainless steel for durable commercial performance and easier cleaning.

Galvanized Support Base

Galvanized legs and gussets add structural support, while adjustable plastic bullet feet help with leveling.

Type Sink
Style Left Drainboard Sink
Installation Type Floor Model
Compartments 2
Material Stainless Steel
Finish Stainless Steel
Base Type Legs
Base Construction Galvanized Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Splash Height 9-3/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 57 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 68 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Assembly instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has 2 compartments.
Each compartment measures 18" wide x 18" front-to-back x 12" deep.
Yes, it includes an 18" left drainboard.
It has a 9-3/4" boxed backsplash with a 45° top and 2" return.
It includes one set of splash-mount faucet holes with 8" centers.
The sink uses galvanized legs and gussets with adjustable plastic bullet feet.
