John Boos E2S8-18-12L18 Compartment Sinks
Description

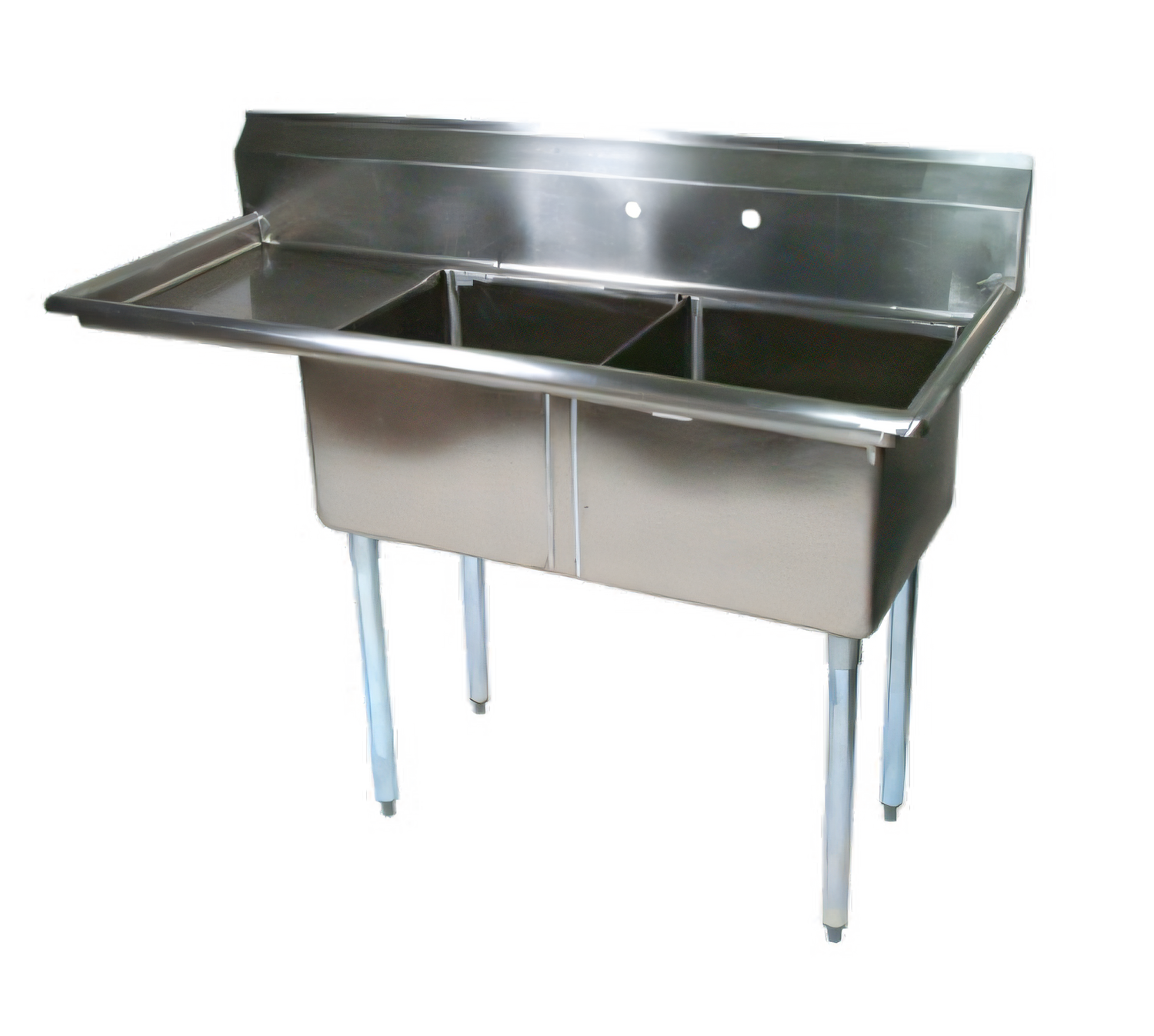

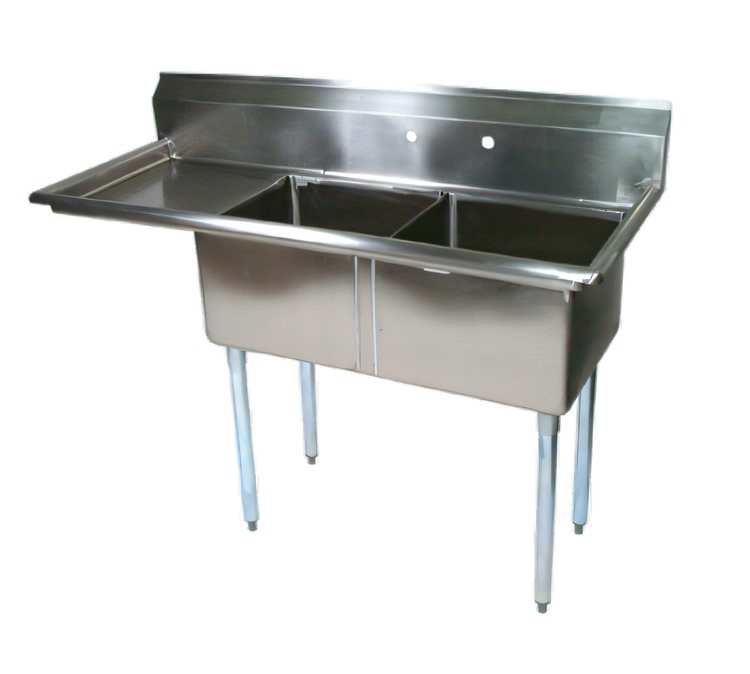

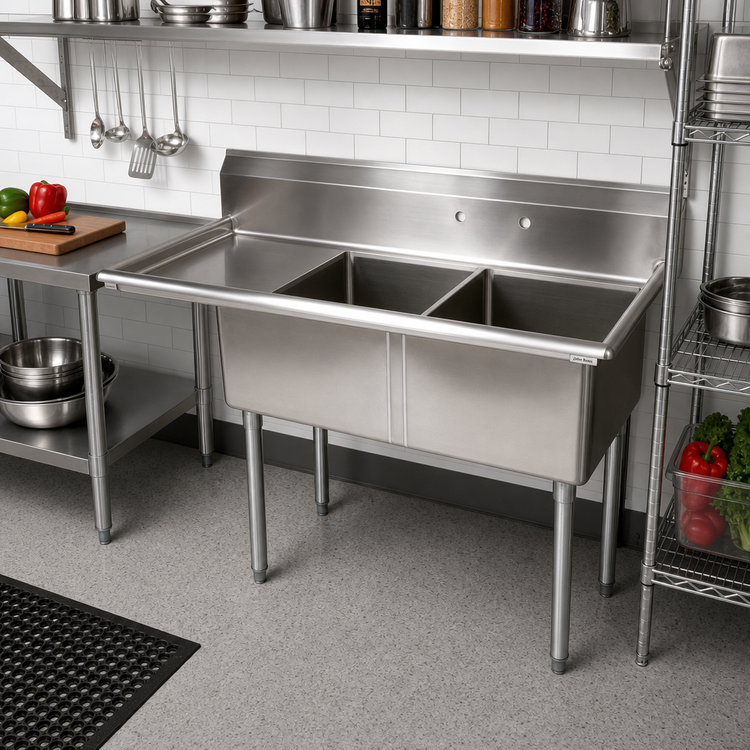

John Boos E-Series 2-Compartment Sink with 18" Left Drainboard
Model E2S8-18-12L18 | 18-Gauge 300 Series Stainless SteelGive your dish room or prep area a space-saving workhorse. This John Boos E-Series sink features two generous 18" × 18" bowls, a built-in left drainboard, and the rugged reliability of #4 satin-polished stainless steel—everything you need to keep workflows smooth and sanitary.
Standard Features

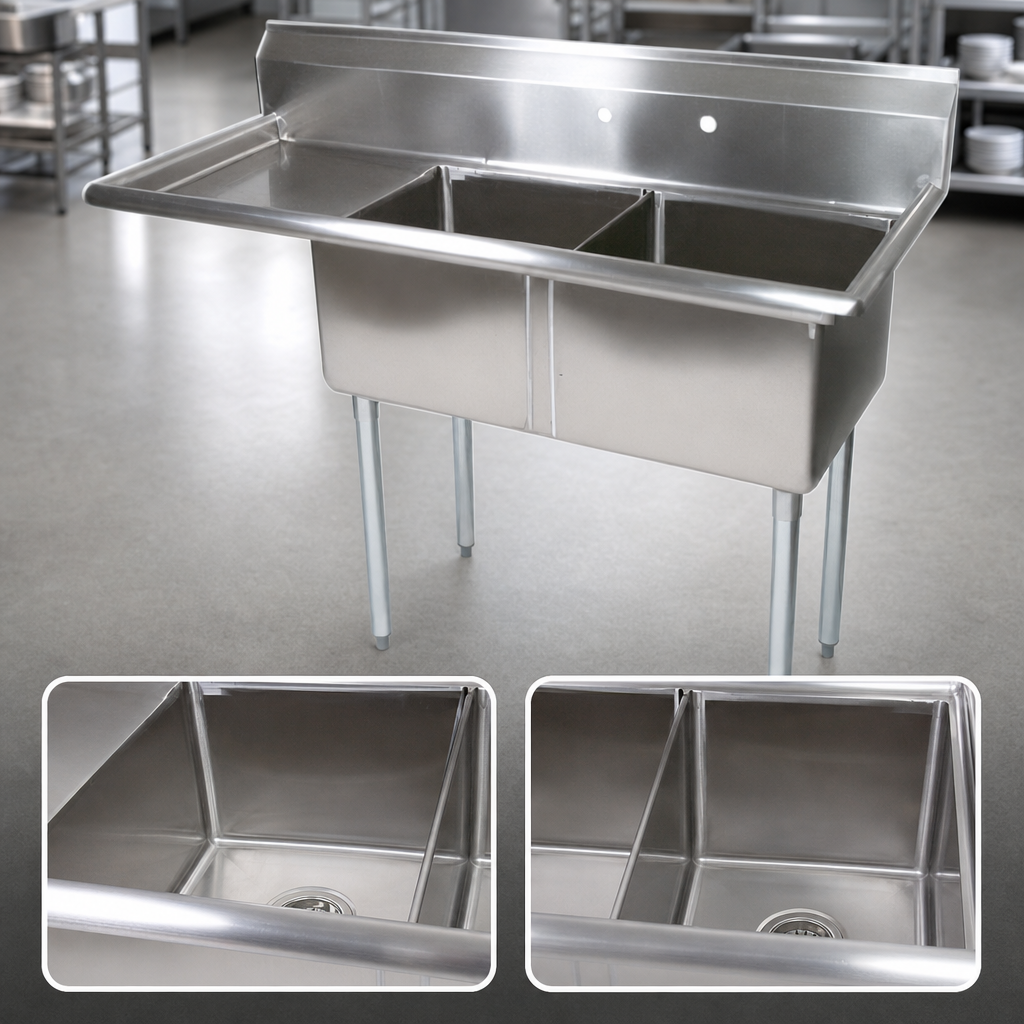

- (2) 18" W × 18" F/B × 12" D bowls for separate wash & rinse zones
- 18" left-hand drainboard with positive pitch for quick water run-off
- 9-3/4" boxed backsplash with 45° top, 2" return & 1" tile edge
- Splash-mount faucet holes: 1-1/8" Ø on 8" centers
- 3-1/2" die-stamped drain openings accept standard strainers/disposers
- 18-ga, Type 300 stainless steel top & bowls, #4 satin finish
- TIG-welded seams polished to match adjacent surfaces
- 3/4" radius interior corners; bull-nosed exterior edges for safety
- 1-5/8" Ø galvanized legs & gussets with 1" adjustable plastic bullet feet
- NSF & CSA-Sanitation listed for commercial food-service use
Technical Specifications
| Overall dimensions | 56-1/2" W × 23-1/2" D × 43-3/4" H (to top of backsplash) |
|---|---|
| Working height | 36" (to sink rim) |
| Bowl size (each) | 18" W × 18" F/B × 12" D |
| Drainboard | 18" L, left side |
| Backsplash | 9-3/4" H boxed, 45° top, 2" return, 1" tile edge |
| Faucet centers | 8" (splash-mount) |
| Drain openings | 3-1/2" Ø (per bowl) |
| Material / gauge | 18-ga Type 300 stainless steel (top & bowls) |
| Legs / feet | 1-5/8" Ø galvanized legs, galvanized gussets, 1" plastic bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Net weight | Approx. 68 lb |
Easy Stainless Steel Care
- Clean daily with mild soap or a non-chloride stainless steel cleanser
- Wipe in the direction of polish lines using a soft towel or plastic pad
- Rinse and dry thoroughly to preserve the protective chromium film
- Restore sheen periodically with John Boos Stainless Steel Cleaner
Need a right-hand drainboard or additional accessories? Chat with us—our team will help configure the perfect John Boos sink for your kitchen.
