Key specifications

Dimensions
68.0"W × 25.5"D × 43.75"H
Type
Compartment Sink
Installation Type
Floor Model
Material
Stainless Steel
Base Material
Galvanized Steel
Finish
Satin Finish
Spec sheet
John Boos SKU: E2S8-1620-12T18 UPC: 662969009465

John Boos E2S8-1620-12T18 68-Inch 2-Compartment Sink

$1,038.51
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $96/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Installation Type Floor Model
Material Stainless Steel
Base Material Galvanized Steel
Finish Satin Finish
Compartments 2
Compartment Width 16 in
Compartment Front-To-Back 20 in
Compartment Depth 12 in
Drainboards Left & Right
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Backsplash Height 9-3/4 in
Backsplash Return 2 in
Faucet Hole Centers 8 in
Faucet Mounting Splash Mount
Drain Opening Diameter 3-1/2 in
Foot Type Adjustable Plastic Bullet

Description

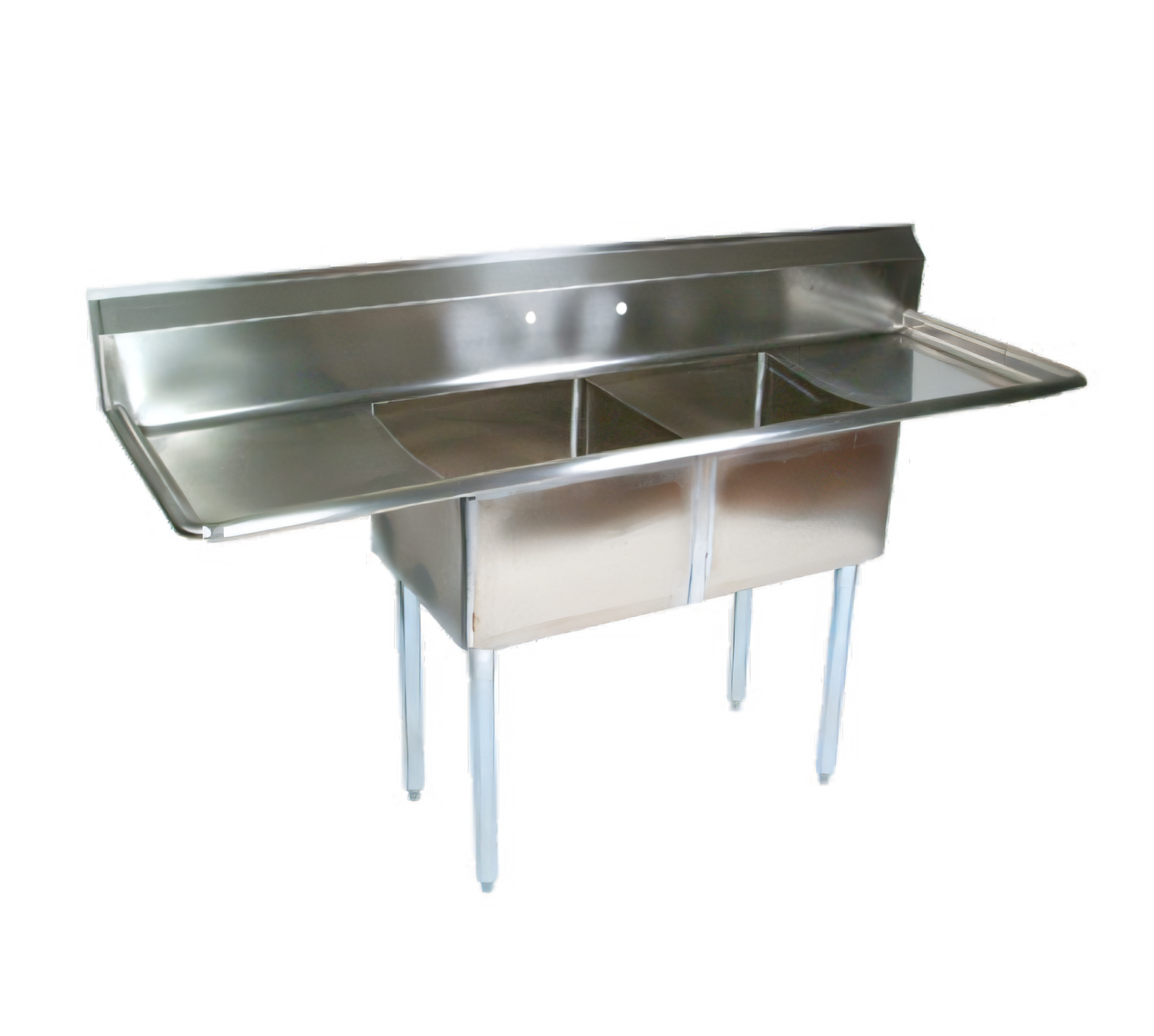

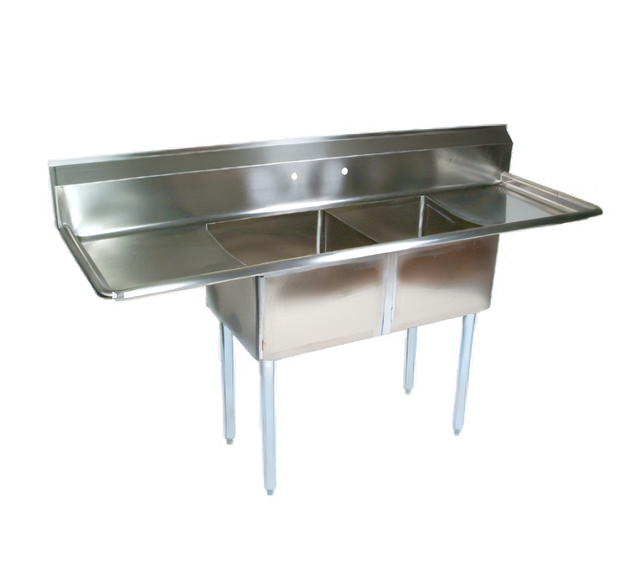

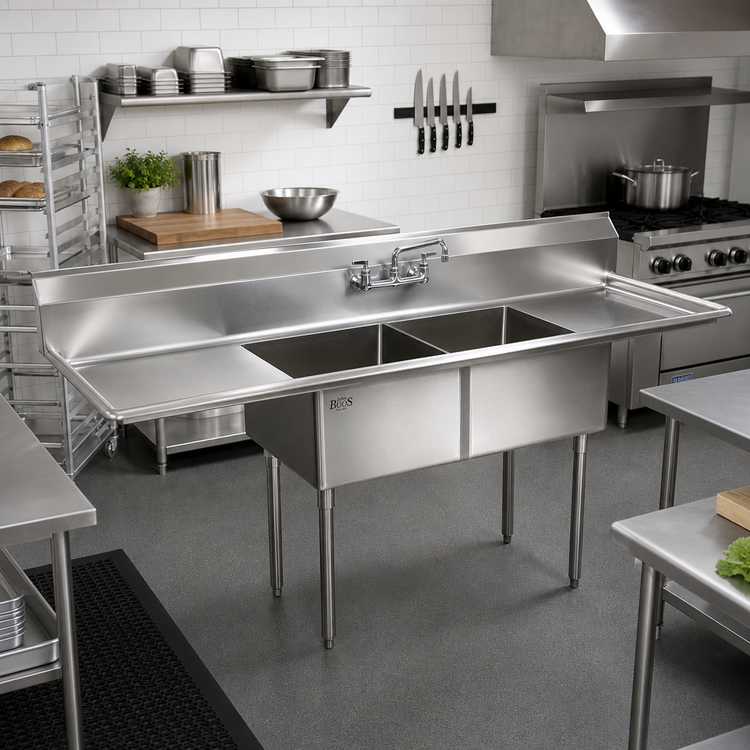

The John Boos E2S8-1620-12T18 is a floor-model, two-compartment sink with an 18 in drainboard on each side.

  • Each compartment measures 16 in wide x 20 in front-to-back x 12 in deep.
  • The top and bowls are 18 Gauge Type 300 stainless steel with a satin finish.
  • The 9-3/4 in boxed backsplash has a 45° top and 2 in return.
  • Galvanized legs and gussets include adjustable plastic bullet feet.
  • A set of splash-mount faucet holes is positioned on 8 in centers.
  • The compartments have 3-1/2 in die-stamped drain openings.

Overall Dimensions:

68.0"W x 25.5"D x 43.75"H

Product Weight:

75.0 lb

Two Compartments

Each compartment measures 16 in wide x 20 in front-to-back x 12 in deep.

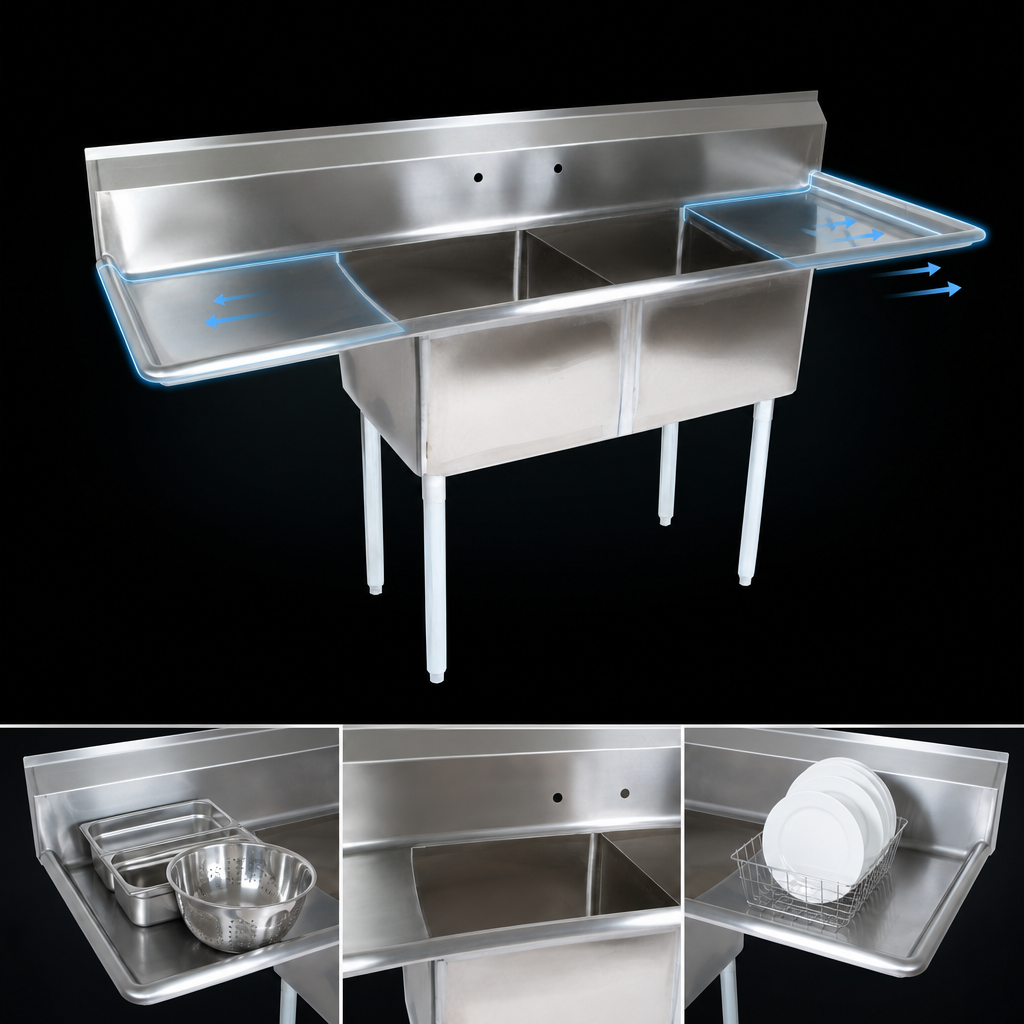

Left and Right Drainboards

Includes an 18 in drainboard on each side of the sink.

Stainless Steel Top and Bowls

The top and bowls are 18 Gauge Type 300 stainless steel with #4 polish and satin finish.

Galvanized Base

The legs and gussets are galvanized steel and include adjustable plastic bullet feet.

Boxed Backsplash

The backsplash is 9-3/4 in high with a 45° top and 2 in return.

Splash-Mount Faucet Holes

A set of faucet holes is positioned on 8 in centers.

Die-Stamped Drain Openings

The sink has 3-1/2 in die-stamped drain openings.

Frequently Asked Questions

The overall dimensions are 68 in W x 25.5 in D x 43.75 in H.
Each of the two compartments is 12 in deep and measures 16 in W x 20 in front-to-back.
Yes. It has an 18 in drainboard on both the left and right sides.
The top and bowls are 18 Gauge Type 300 stainless steel with #4 polish and satin finish. The legs and gussets are galvanized steel.
Yes. It includes a set of splash-mount faucet holes on 8 in centers.
The product has NSF and CSA-Sanitation certifications.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery
