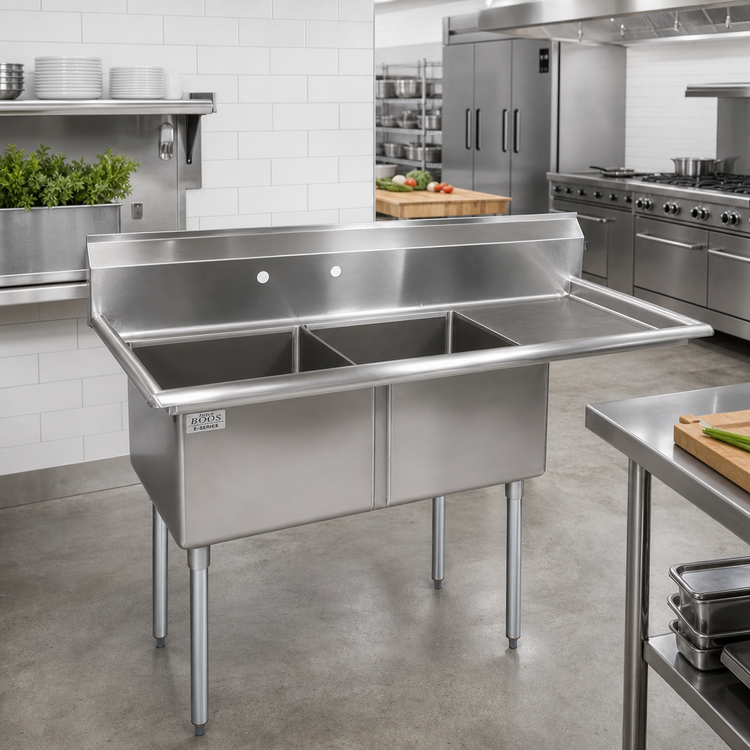

John Boos E-Series 2-Compartment Stainless Steel Sink with Right Drainboard

16" x 20" x 12" Compartments, 52-1/2" W x 25-1/2" D x 43-3/4" H

Built from 18/300 stainless steel with deep dual compartments and a right-hand drainboard, this sink streamlines wash, rinse, and drain tasks in one compact floor model.

  • Two 16" x 20" x 12" compartments provide separate space for washing and rinsing.
  • 18" right-hand drainboard adds a convenient landing area for dishes and prep items.
  • 9-3/4" boxed backsplash with 45° top and 2" return helps contain splashes.
  • 18/300 stainless steel construction with galvanized legs and gussets is built for demanding kitchens.
  • Adjustable plastic bullet feet help level the sink on uneven floors.
  • 3-1/2" die-stamped drain openings and splash-mount faucet holes support straightforward installation.

Overall Dimensions:

52.5"W x 25.5"D x 43.75"H

Product Weight:

67.0 lb

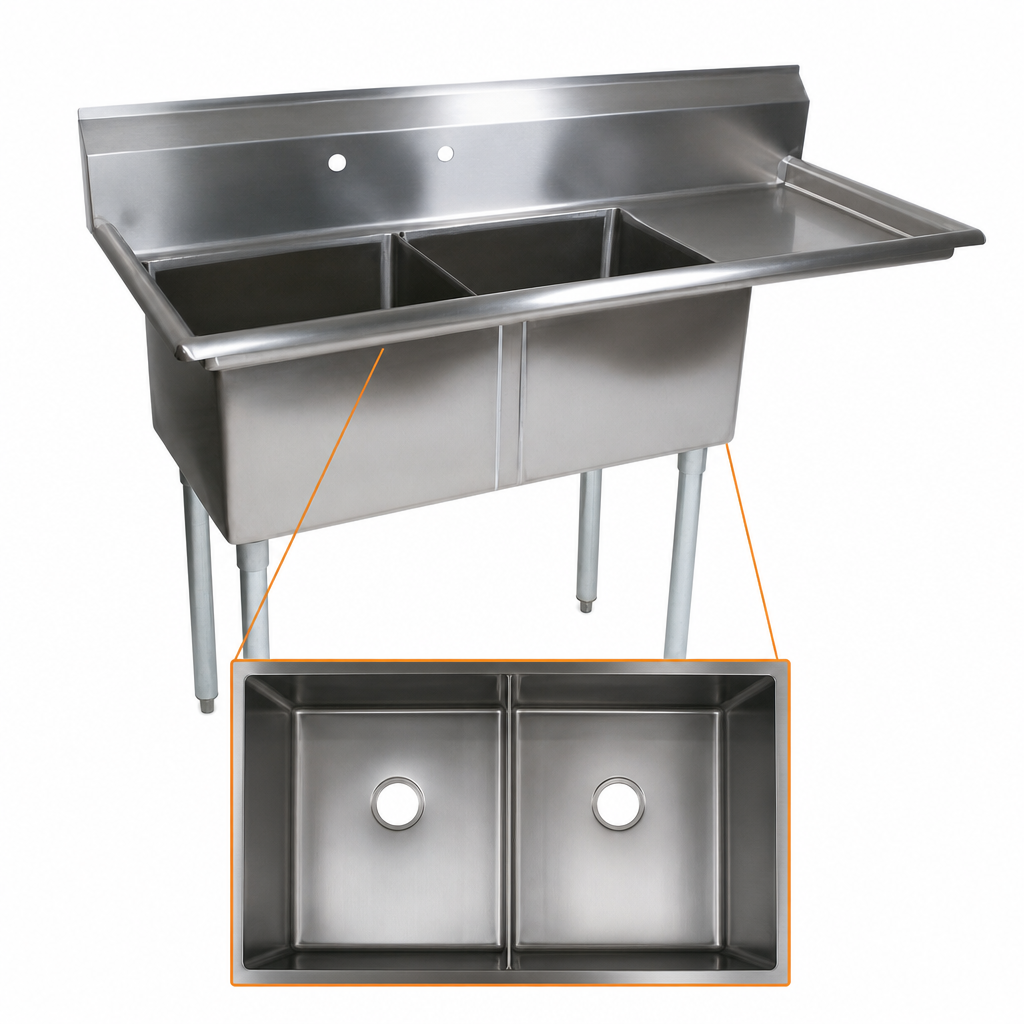

Two Compartment Bowl

Two 16" wide x 20" front-to-back x 12" deep compartments create separate wash and rinse areas.

Right-Hand Drainboard

An 18" drainboard on the right provides space for stacking, draining, or staging items.

Boxed Backsplash

The 9-3/4" backsplash includes a 45° top and 2" return to help reduce wall splash.

Splash-Mount Faucet Holes

One set of faucet holes on 8" centers is provided for a splash-mount faucet setup.

Stainless Steel Construction

18/300 stainless steel construction offers durable performance in commercial settings.

Galvanized Support Base

Galvanized legs and gussets add stability, while adjustable plastic bullet feet help with leveling.

Die-Stamped Drain Openings

3-1/2" die-stamped drain openings are formed for drainage connections.

Type Sink
Style 2 Compartment Sink with Right Drainboard
Installation Type Floor Model
Compartments 2
Compartment Width 16 Inches
Compartment Depth 20 Inches
Compartment Height 12 Inches
Drainboard Position Right
Drainboard Length 18 Inches
Backsplash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Material Stainless Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Construction Galvanized Steel
Base Type Legs
Selling Unit Each
Units Per Case 1
Shipping Width 53 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 67 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Each compartment measures 16" wide x 20" front-to-back x 12" deep.
Yes. It includes an 18" right-hand drainboard.
It has a 9-3/4" boxed backsplash with a 45° top and 2" return.
The sink includes one set of splash-mount faucet holes with 8" centers.
The sink uses galvanized legs and gussets with adjustable plastic bullet feet.
