Key specifications

Dimensions
52.5"W × 25.5"D × 43.75"H
Type
Compartment Sink
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Compartments
2
Spec sheet
John Boos SKU: E2S8-1620-12R18 UPC: 662969009380

John Boos E2S8-1620-12R18 2-Compartment Sink with Right Drainboard

$767.90
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $71/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 2
Compartment Width 16 Inches
Compartment Front-To-Back 20 Inches
Compartment Depth 12 Inches
Drainboard Side Right
Drainboard Width 18 Inches
Backsplash Height 9-3/4 Inches
Backsplash Return 2 Inches
Backsplash Top Angle 45 Degrees
Faucet Hole Centers 8 Inches
Drain Opening Diameter 3-1/2 Inches
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Material Galvanized Steel
Leg Material Galvanized Steel
Foot Type Adjustable Plastic Bullet Feet

Description

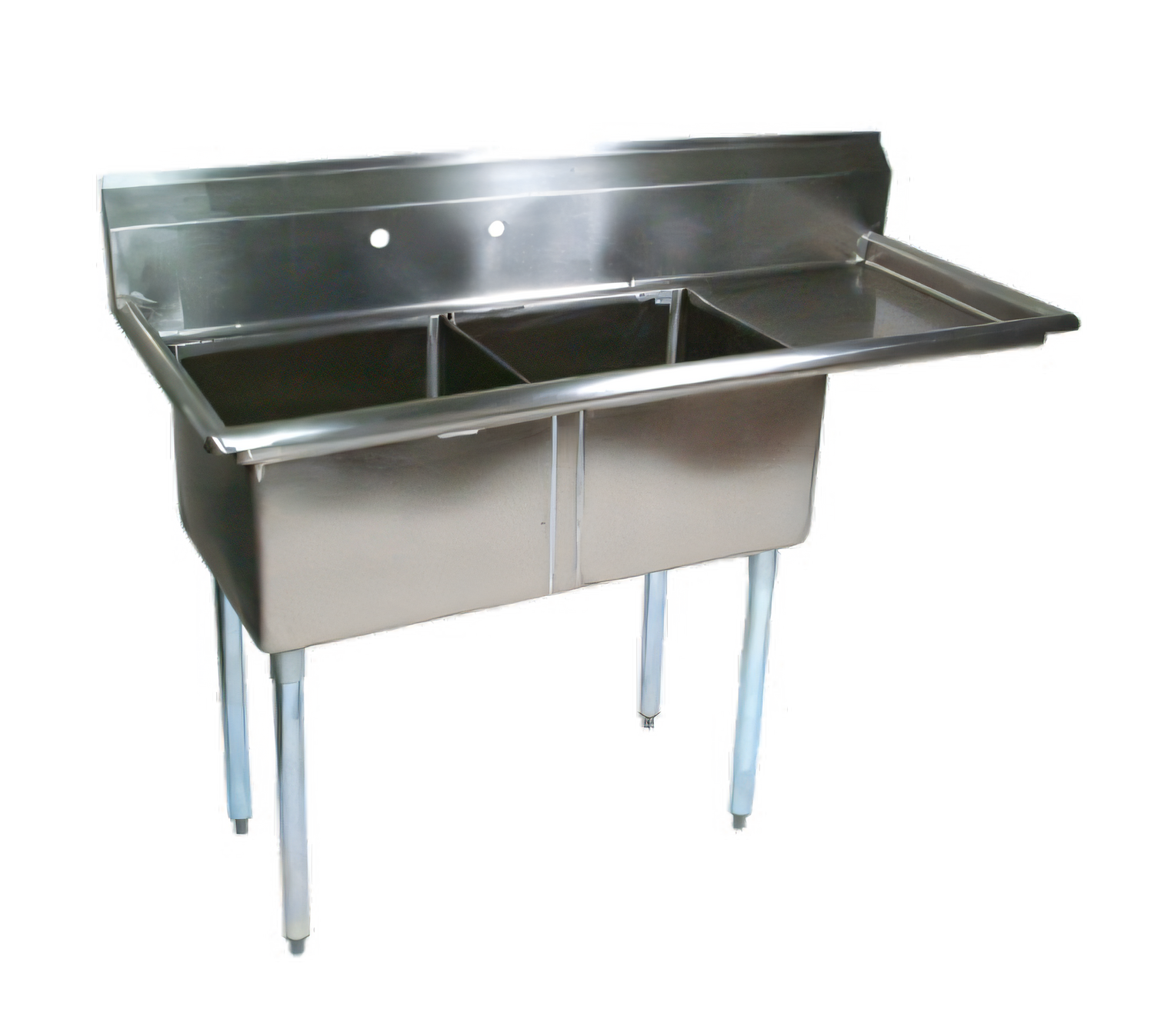

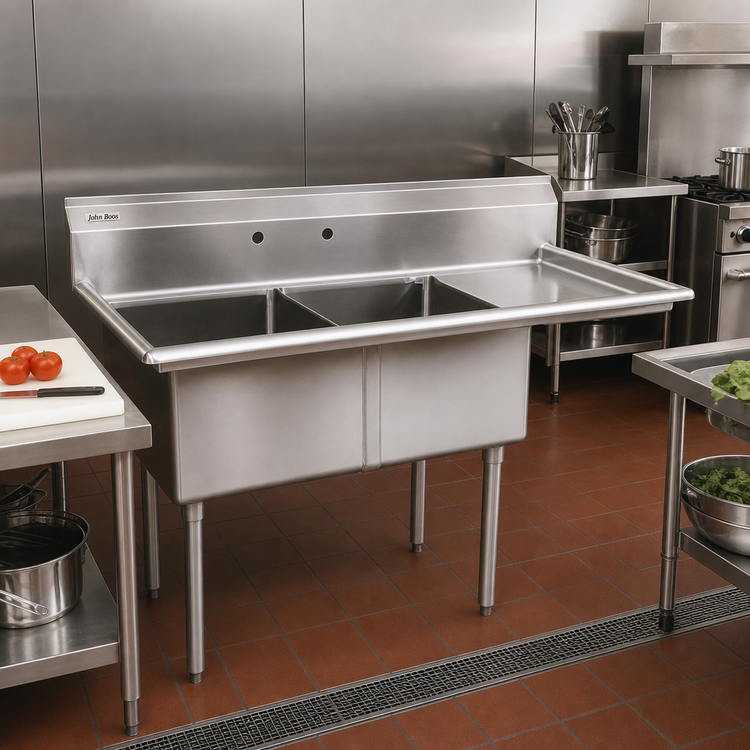

The John Boos E2S8-1620-12R18 is a 2-compartment floor-model sink with 12-inch-deep compartments, an 18-inch right drainboard, and a 9-3/4-inch boxed backsplash.

  • 18-gauge Type 300 stainless steel bowls and top with satin finish.
  • Two compartments measuring 16 inches wide x 20 inches front-to-back x 12 inches deep.
  • Splash-mount faucet holes with 8-inch centers.
  • Galvanized legs and gussets with adjustable plastic bullet feet.
  • 3-1/2-inch die-stamped drain openings.

Overall Dimensions:

52.5"W x 25.5"D x 43.75"H

Product Weight:

67.0 lb

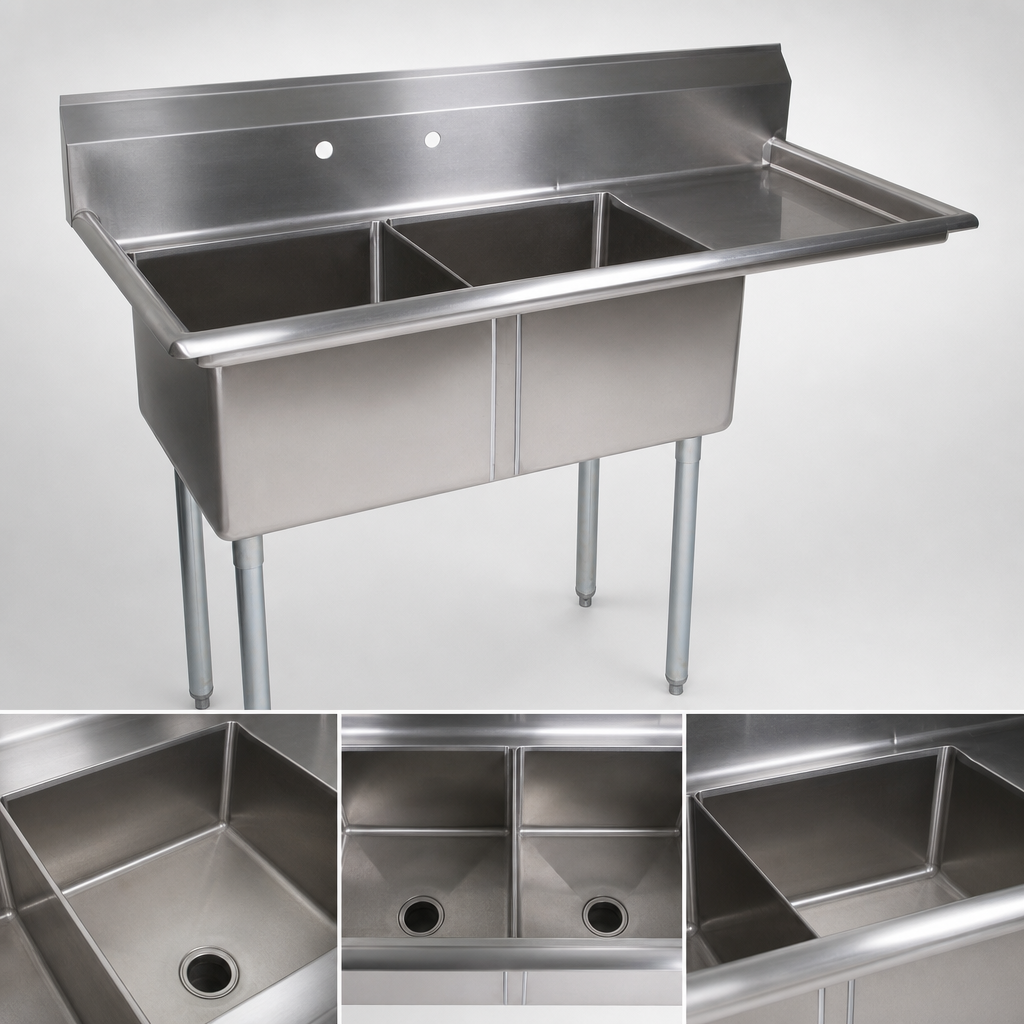

Two Compartments

Two compartments measure 16 inches wide x 20 inches front-to-back x 12 inches deep.

Right Drainboard

An 18-inch drainboard is positioned on the right side.

Stainless Steel Top and Bowls

The top and bowls are 18-gauge Type 300 stainless steel with a satin finish.

Boxed Backsplash

The 9-3/4-inch-high backsplash has a 45-degree top and 2-inch return.

Splash-Mount Faucet Holes

The sink has splash-mount faucet holes with 8-inch centers.

Galvanized Base

The legs and gussets are galvanized steel.

Adjustable Plastic Bullet Feet

The sink has adjustable plastic bullet feet.

Die-Stamped Drain Openings

The compartments have 3-1/2-inch die-stamped drain openings.

Frequently Asked Questions

The sink is 52-1/2 inches wide x 25-1/2 inches deep x 43-3/4 inches high.
Each compartment is 16 inches wide x 20 inches front-to-back x 12 inches deep.
The 18-inch drainboard is on the right side.
The top and bowls are 18-gauge Type 300 stainless steel with a satin finish.
Yes. It has splash-mount faucet holes with 8-inch centers.
The sink is certified to CSA-Sanitation and NSF.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
