John Boos

John Boos E-Series 2-Compartment Stainless Steel Floor Model Sink with Left Drainboard

SKU: E2S8-1620-12L18-X
$755.92
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

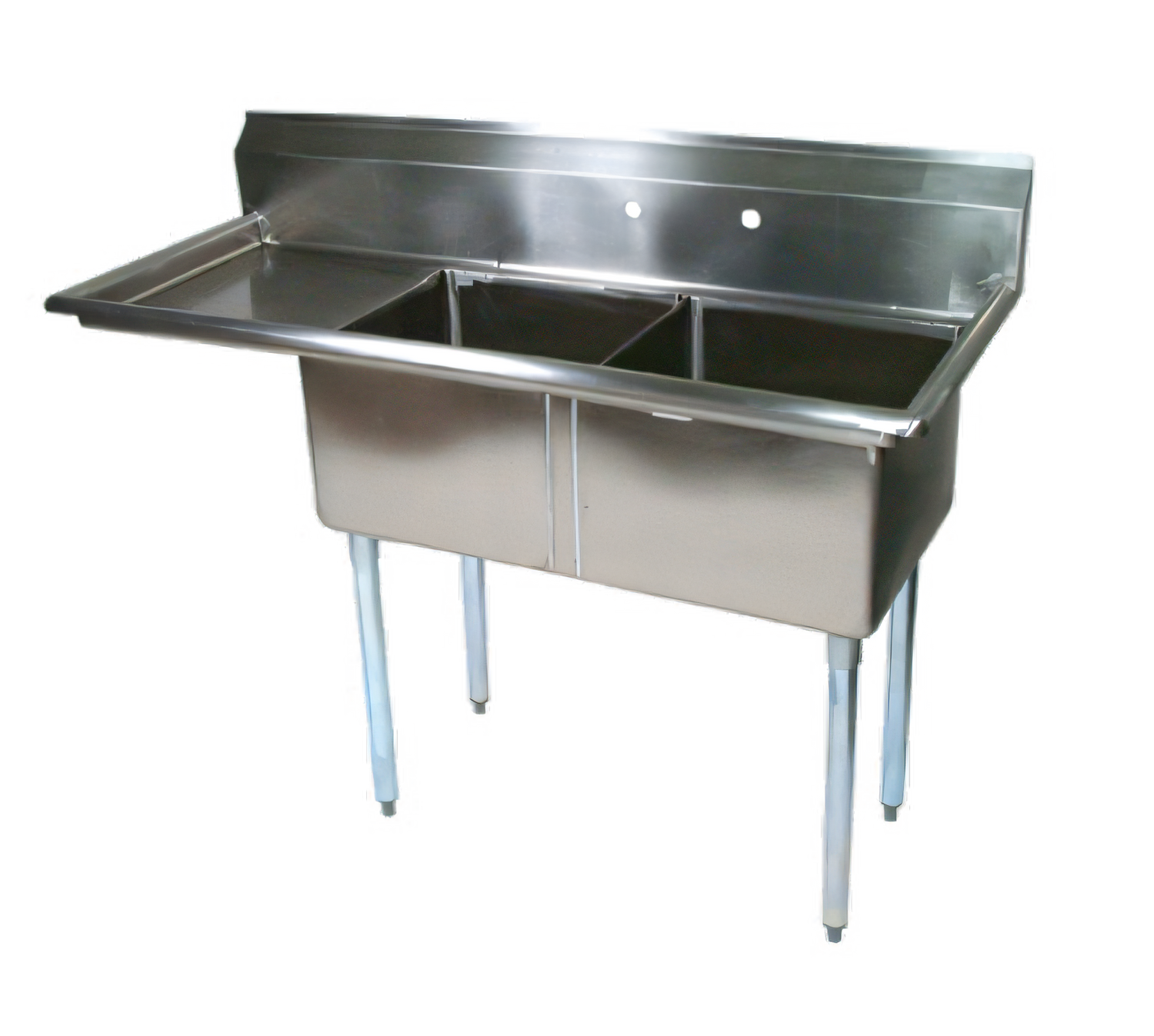

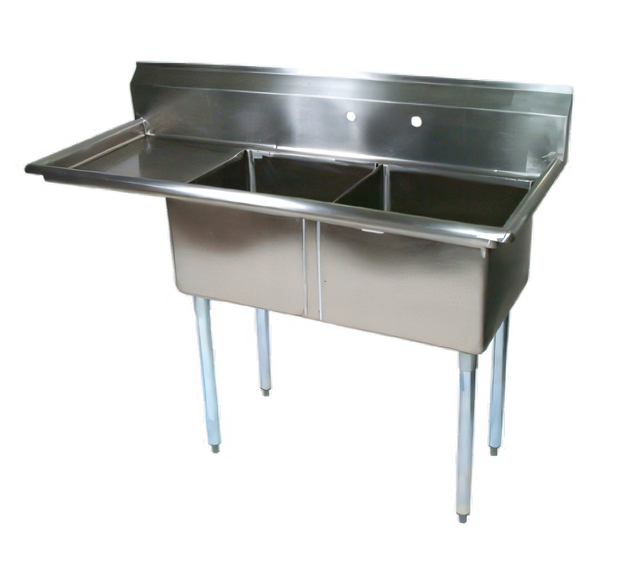

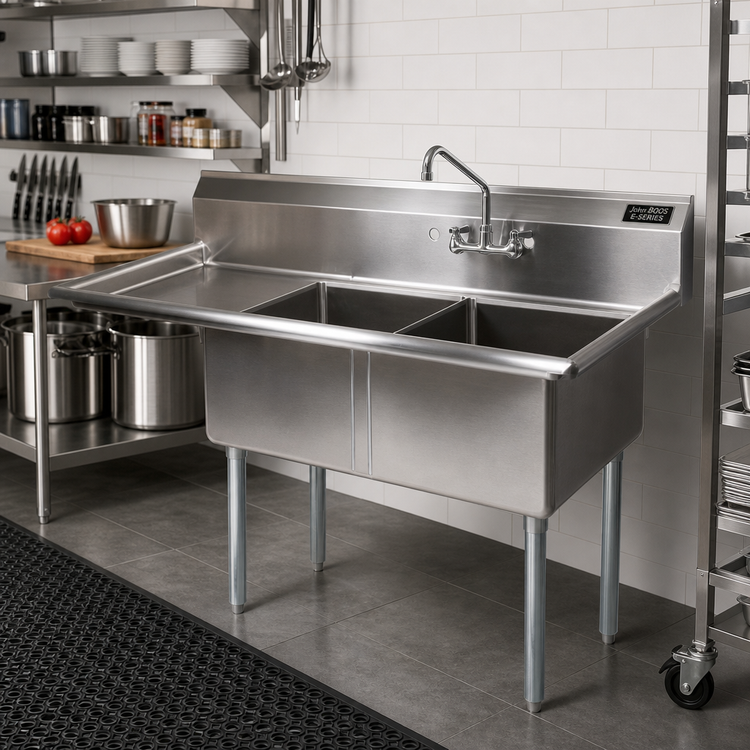

John Boos E-Series 2-Compartment Stainless Steel Floor Model Sink with Left Drainboard

52-1/2" W x 25-1/2" D x 43-3/4" H Overall, 18-Gauge 300 Series Stainless Steel

Built for busy prep stations, this two-compartment sink combines durable stainless steel construction, a left drainboard, and a tall backsplash for efficient cleaning and rinsing.

  • Two 16" x 20" x 12" compartments provide generous wash and rinse space.
  • 18" left drainboard adds convenient landing space for dishes and prep items.
  • 9-3/4" boxed backsplash with a 45° top and 2" return helps contain splashes.
  • Splash-mount faucet holes on 8" centers and 3-1/2" die-stamped drain openings simplify installation.
  • Made with 18-gauge 300 series stainless steel, galvanized legs and gussets, and adjustable plastic bullet feet.

Overall Dimensions:

52.5"W x 25.5"D x 43.75"H

Product Weight:

67.0 lb

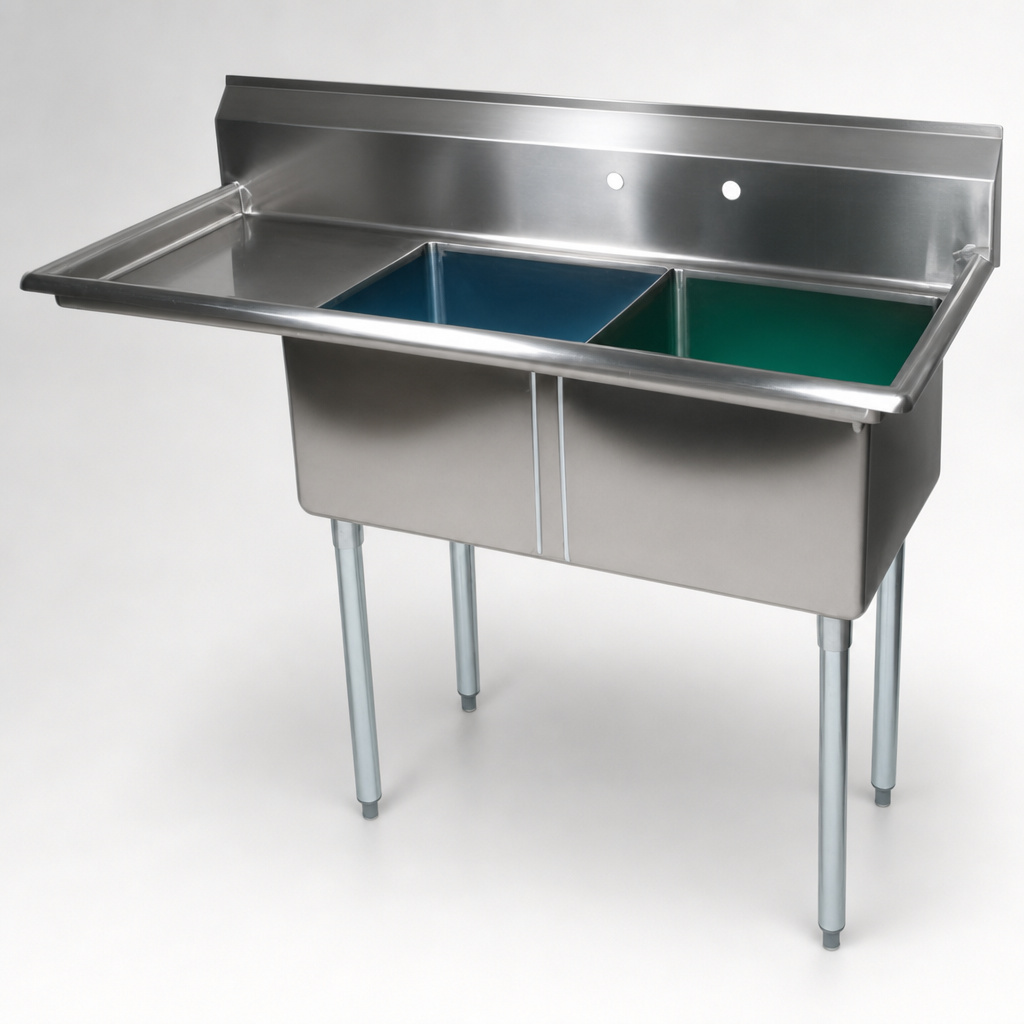

Two-Compartment Design

Provides separate wash and rinse areas for efficient commercial sink workflow.

Left Drainboard

Includes an 18-inch left-side drainboard for drying, staging, or draining items.

Boxed Backsplash

The 9-3/4-inch backsplash has a 45° top and 2-inch return to help reduce splash-out.

Splash-Mount Faucet Holes

One set of faucet holes is provided on 8-inch centers for straightforward faucet mounting.

Die-Stamped Drain Openings

3-1/2-inch die-stamped drain openings support standard sink drainage.

Stainless Steel Top Construction

Built from 18-gauge 300 series stainless steel for durability in commercial use.

Galvanized Support Base

Galvanized legs and gussets add support and corrosion resistance.

Adjustable Bullet Feet

Plastic bullet feet allow for leveling on uneven floors.

Type Sink
Style 2-Compartment Sink with Left Drainboard
Installation Type Floor Model
Material 300 Series Stainless Steel
Top Gauge 18 Gauge
Compartments 2
Compartment Width 16 Inches
Compartment Length 20 Inches
Compartment Depth 12 Inches
Drainboard Length 18 Inches
Backsplash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Base Construction Galvanized Steel
Base Type Legs
Shipping Width 53 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 67 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has 2 compartments.
Each compartment measures 16 inches wide by 20 inches front-to-back by 12 inches deep.
Yes, it includes an 18-inch left drainboard.
It includes one set of splash-mount faucet holes on 8-inch centers.
The boxed backsplash is 9-3/4 inches high and includes a 45° top with a 2-inch return.
The sink top is 18-gauge 300 series stainless steel, and the base uses galvanized legs and gussets with adjustable plastic bullet feet.
