Key specifications

Dimensions
52.5"W × 25.5"D × 43.75"H
Type
Compartment Sink
Style
2-Compartment
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Spec sheet
John Boos SKU: E2S8-1620-12L18 UPC: 662969009366

John Boos E2S8-1620-12L18 2-Compartment Sink, Left Drainboard

$767.90
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $71/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style 2-Compartment
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 2
Compartment Width 16 Inches
Compartment Front-To-Back 20 Inches
Compartment Depth 12 Inches
Drainboard Side Left
Drainboard Length 18 Inches
Backsplash Type Boxed
Backsplash Height 9-3/4 Inches
Backsplash Return 2 Inches
Faucet Hole Type Splash Mount
Faucet Hole Centers 8 Inches
Drain Opening 3-1/2 Inches
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Leg Material Galvanized Steel
Gusset Material Galvanized Steel
Foot Type Adjustable Plastic Bullet Feet

Description

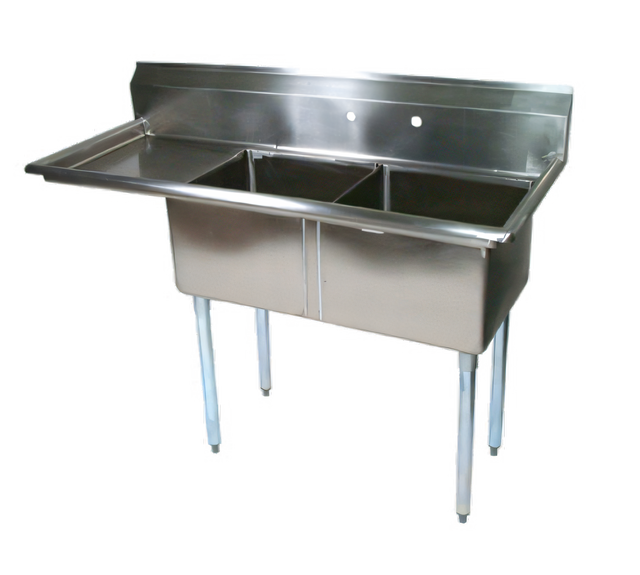

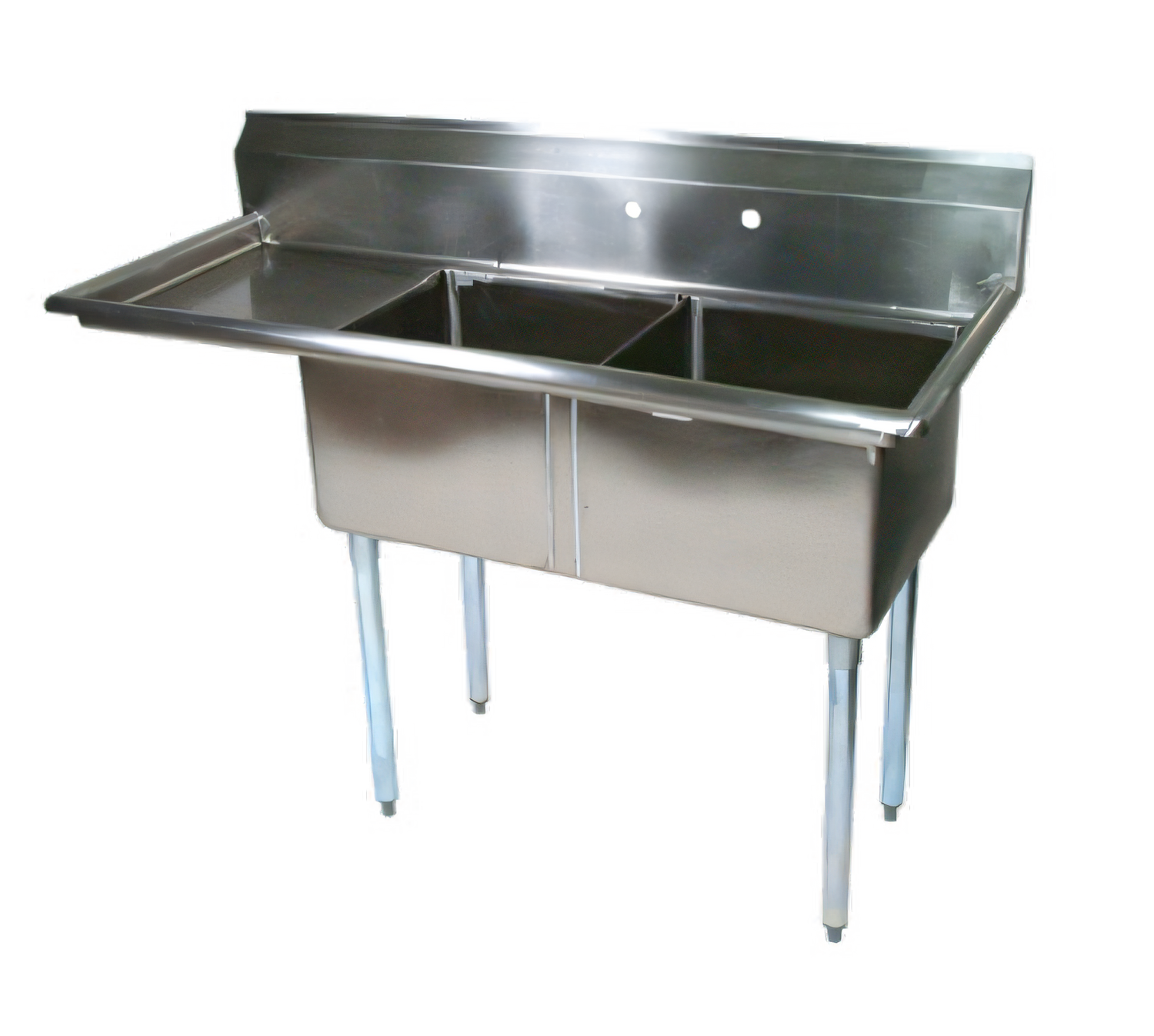

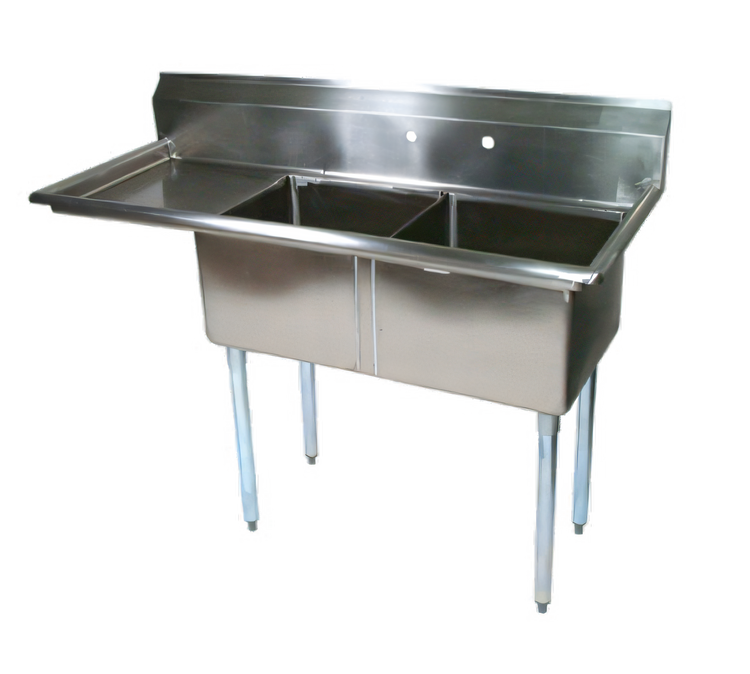

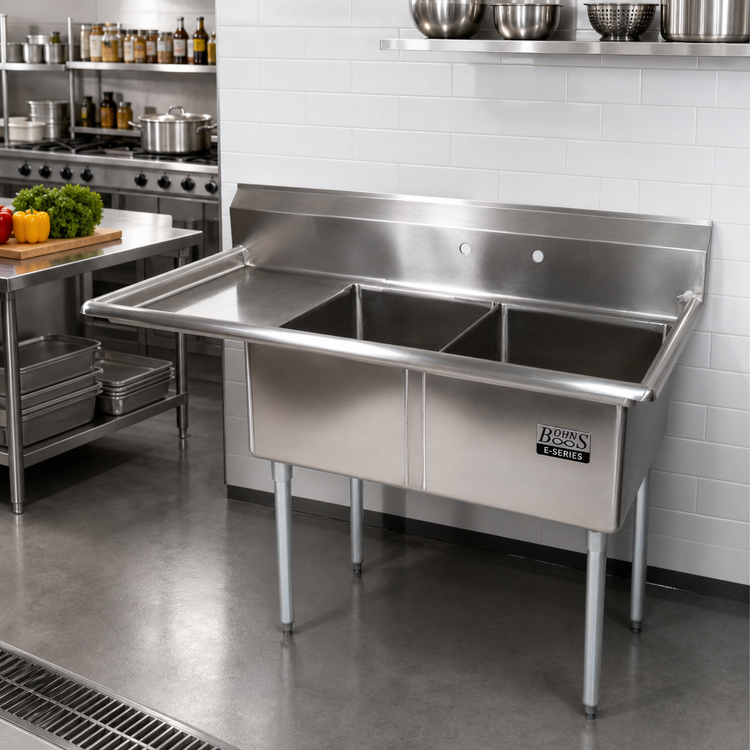

The John Boos E2S8-1620-12L18 is a two-compartment stainless steel floor sink with an 18-inch left drainboard and a 9-3/4-inch boxed backsplash.

  • Two compartments measure 16 inches wide by 20 inches front-to-back by 12 inches deep.
  • 18-gauge Type 300 stainless steel bowls and top feature a satin finish with #4 polish.
  • The backsplash has a 45-degree top and 2-inch return.
  • Splash-mount faucet holes are positioned on 8-inch centers, and each compartment has a 3-1/2-inch die-stamped drain opening.
  • Galvanized steel legs and gussets are fitted with adjustable plastic bullet feet.

The sink is NSF and CSA-Sanitation certified.

Overall Dimensions:

52.5"W x 25.5"D x 43.75"H

Product Weight:

67.0 lb

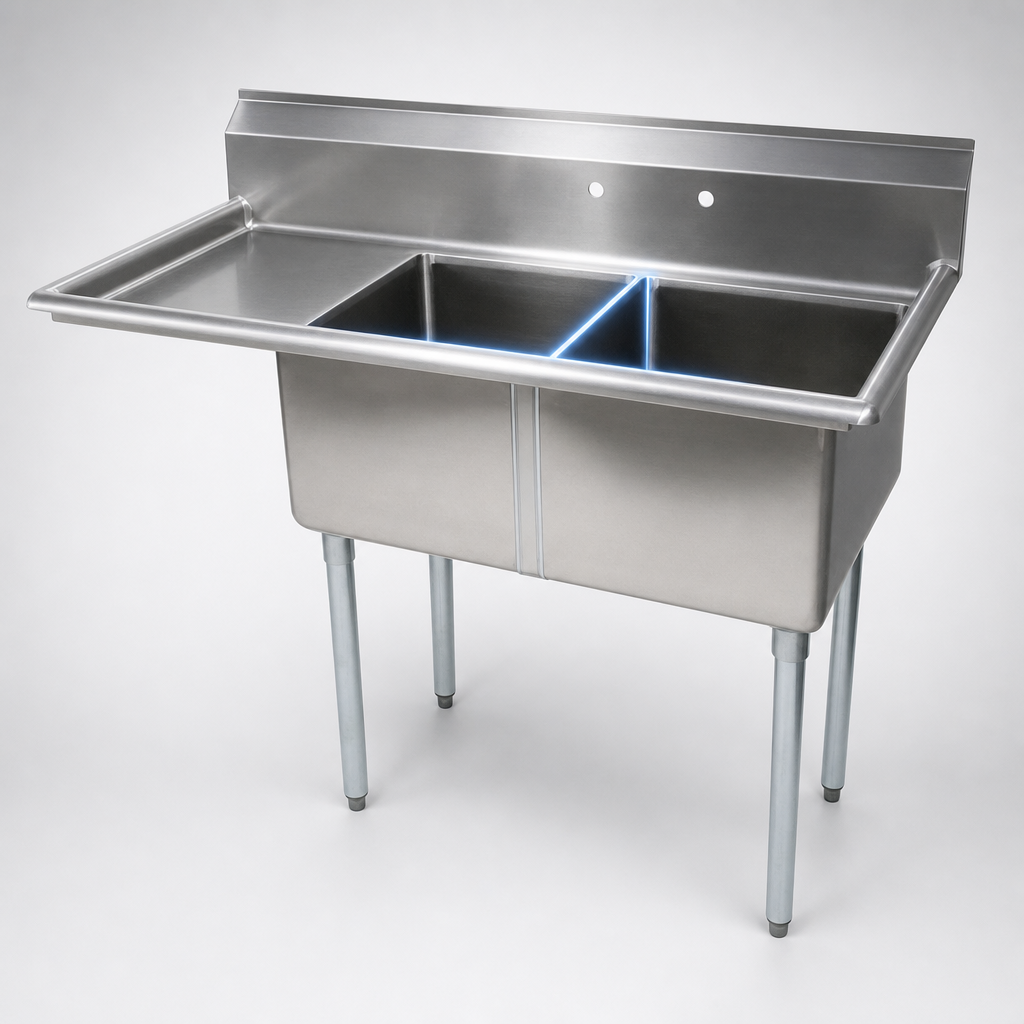

Two Compartments

Each compartment measures 16 inches wide by 20 inches front-to-back by 12 inches deep.

Left Drainboard

An 18-inch drainboard is positioned on the left side.

Boxed Backsplash

The 9-3/4-inch-high backsplash has a 45-degree top and 2-inch return.

Stainless Steel Construction

The bowls and top use 18-gauge Type 300 stainless steel with a satin finish and #4 polish.

Faucet Holes

Splash-mount faucet holes are arranged on 8-inch centers.

Drain Openings

The compartments have 3-1/2-inch die-stamped drain openings formed for drainage.

Galvanized Base

The legs and gussets are galvanized steel, with adjustable plastic bullet feet.

Frequently Asked Questions

The sink measures 52.5 inches wide by 25.5 inches deep by 43.75 inches high.
It has two compartments, each measuring 16 inches wide by 20 inches front-to-back by 12 inches deep.
The 18-inch drainboard is on the left side.
It has a 9-3/4-inch boxed backsplash with a 45-degree top and 2-inch return.
The bowls and top are 18-gauge Type 300 stainless steel. The legs and gussets are galvanized steel, and the feet are adjustable plastic bullet feet.
Yes. It has splash-mount faucet holes with 8-inch centers.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
