Key specifications

Dimensions
37.0"W × 25.5"D × 43.75"H
Type
Compartment Sink
Installation Type
Floor Model
Material
Stainless Steel
Compartments
2
Compartment Width
16 in
Spec sheet
John Boos SKU: E2S8-1620-12-X

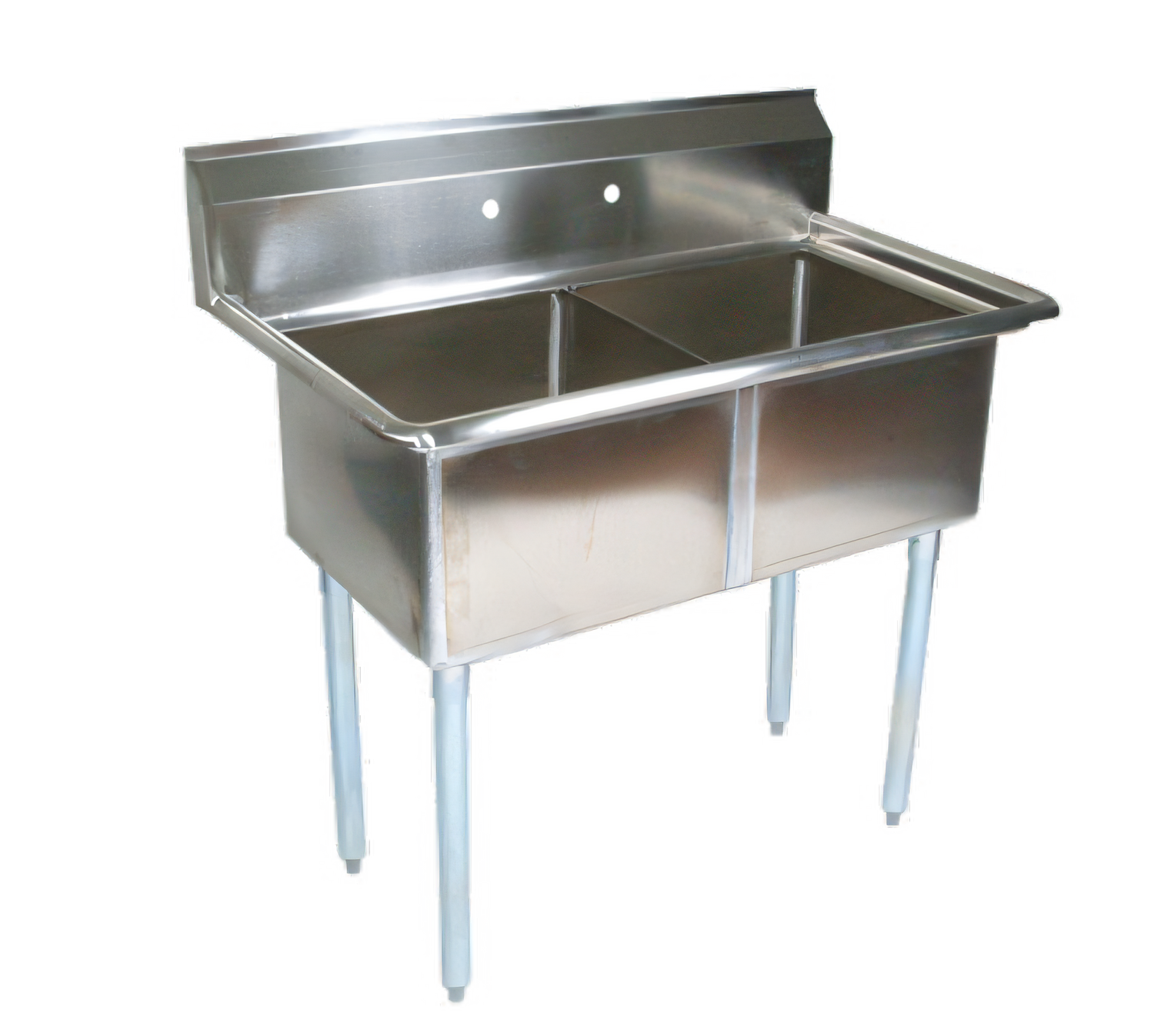

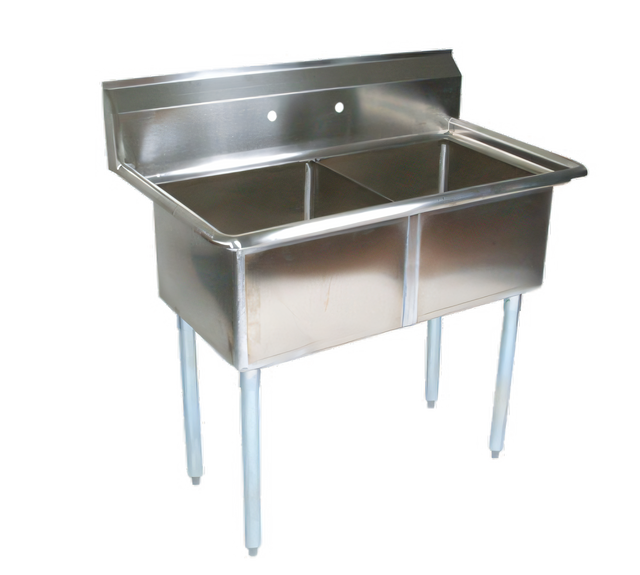

John Boos E2S8-1620-12-X 2-Compartment Sink, 12" Deep Bowls

$651.42
/each
Estimated to ship in 8–11 business days
Factory Add-Ons
Included: John Boos warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $60/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Installation Type Floor Model
Material Stainless Steel
Compartments 2
Compartment Width 16 in
Compartment Front-To-Back 20 in
Compartment Depth 12 in
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Finish Satin
Polish #4
Backsplash Height 9-3/4 in
Backsplash Return 2 in
Backsplash Angle 45°
Faucet Hole Type Splash Mount
Faucet Hole Count 1 Set
Faucet Hole Centers 8 in
Drain Opening Size 3-1/2 in
Drainboards Without Drainboards
Base Material Galvanized Steel
Base Type Legs
Feet Adjustable Plastic Bullet Feet
Overall Width 37 in
Overall Depth 25.5 in
Overall Height 43.75 in
Weight 56 lb

Description

John Boos E2S8-1620-12-X is an E-Series, two-compartment sink with 18-gauge, 300-series stainless steel top and bowls, galvanized legs and gussets, and adjustable plastic bullet feet.

Each compartment measures 16 in wide x 20 in front-to-back x 12 in deep. The sink has a 9-3/4 in boxed backsplash with a 45-degree top and 2 in return, one set of splash-mount faucet holes on 8 in centers, and 3-1/2 in die-stamped drain openings.

Overall dimensions are 37 in wide x 25.5 in deep x 43.75 in high. The sink is specified without drainboards.

Overall Dimensions:

37.0"W x 25.5"D x 43.75"H

Product Weight:

56.0 lb

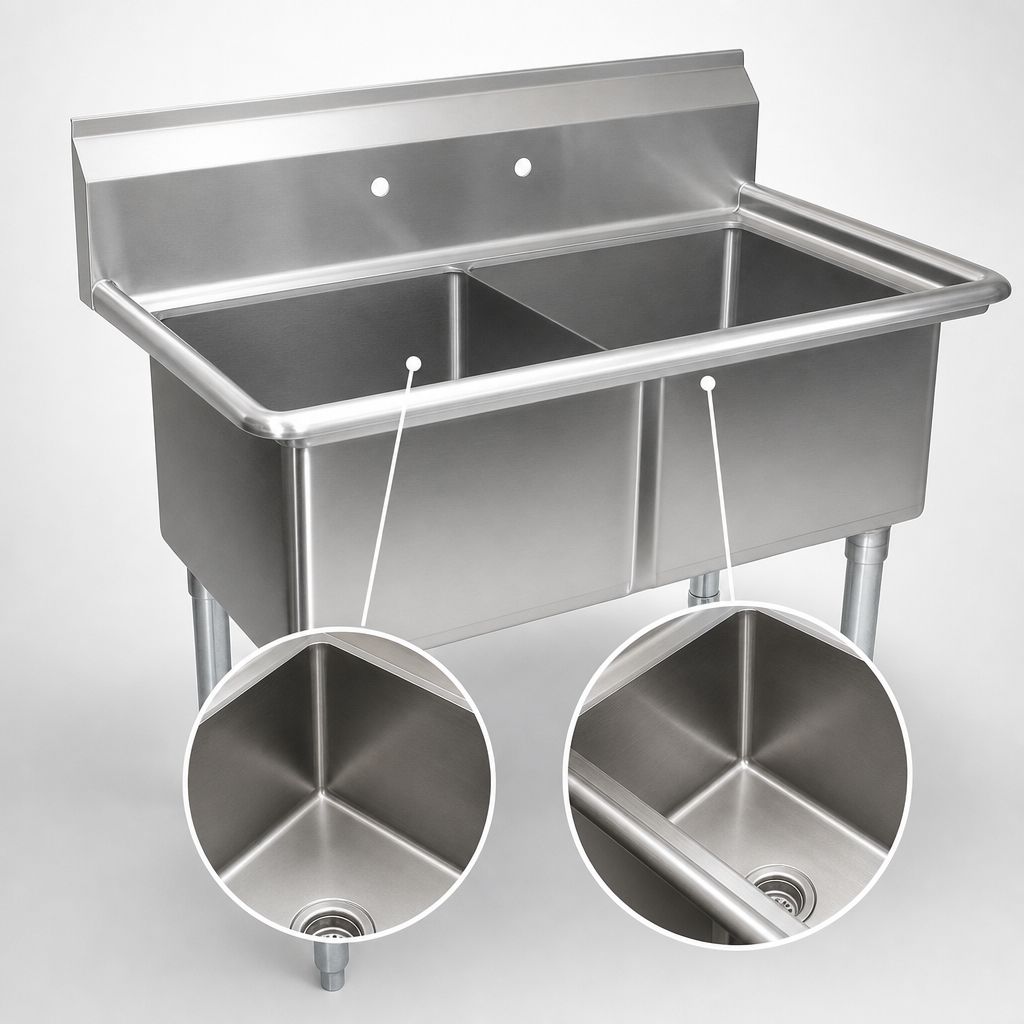

Two Compartments

Each compartment measures 16 in wide x 20 in front-to-back x 12 in deep.

Stainless Steel Construction

The top and bowls are 18-gauge, 300-series stainless steel with a #4 polish and satin finish.

Boxed Backsplash

The 9-3/4 in backsplash has a 45-degree top and a 2 in return.

Splash-Mount Faucet Holes

One set of faucet holes is provided in the backsplash with 8 in centers.

Die-Stamped Drain Openings

The compartments have 3-1/2 in die-stamped drain openings.

Galvanized Base

The sink has galvanized legs and gussets with adjustable plastic bullet feet.

No Drainboards

The sink is specified without drainboards.

Frequently Asked Questions

It has two compartments.
Each compartment measures 16 in wide x 20 in front-to-back x 12 in deep.
The overall dimensions are 37 in wide x 25.5 in deep x 43.75 in high.
Yes. It has a 9-3/4 in boxed backsplash with a 45-degree top and 2 in return.
Yes. It has one set of splash-mount faucet holes with 8 in centers.
No. It is specified without drainboards.
The legs and gussets are galvanized steel, and the sink has adjustable plastic bullet feet.
