John Boos E1S8-24-14T24 Compartment Sinks
Description

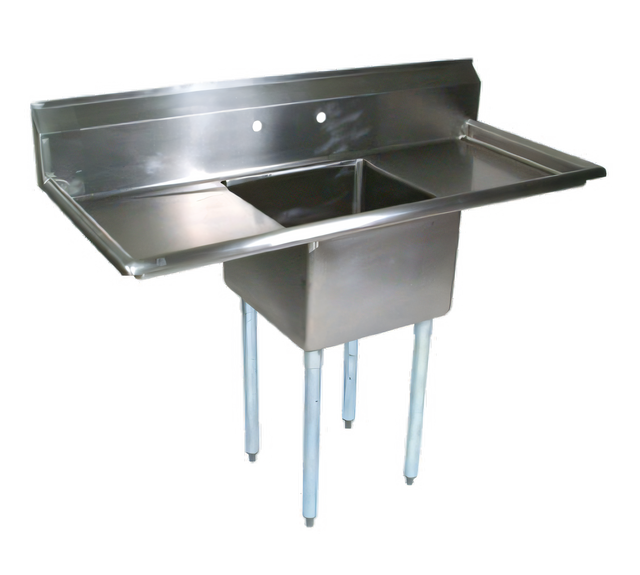

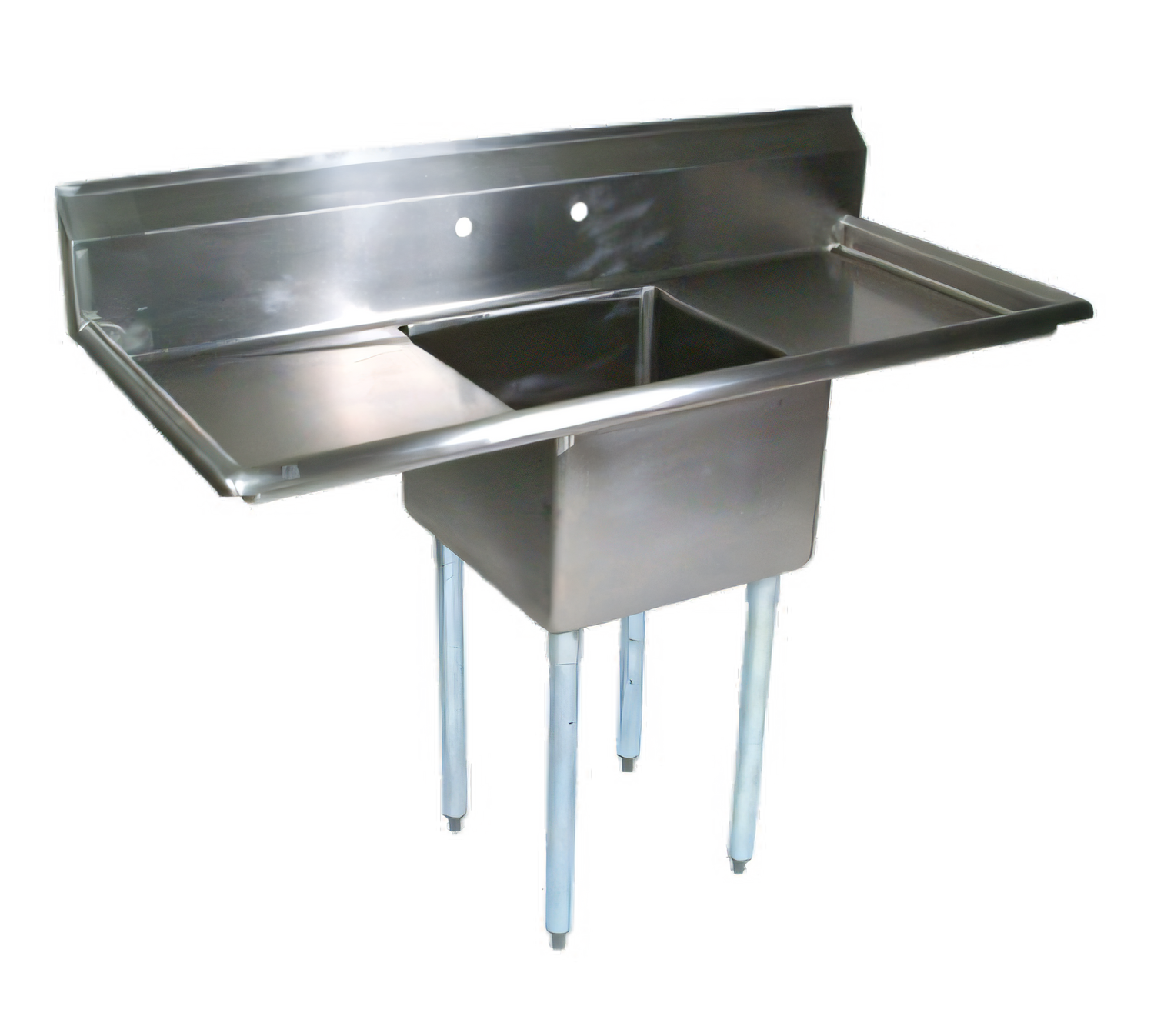

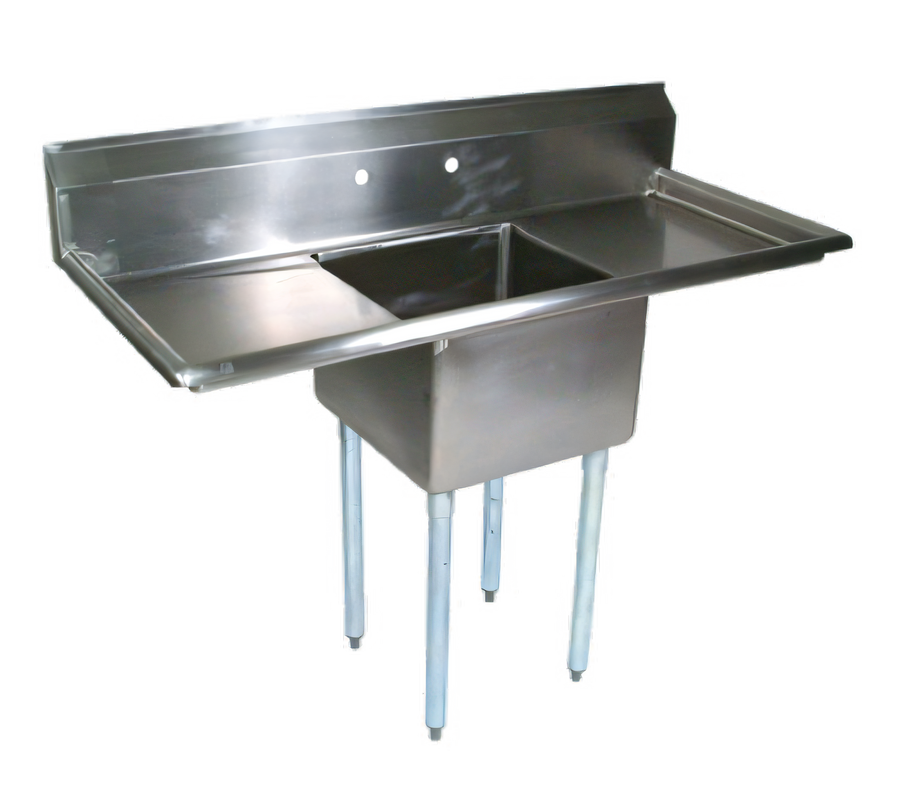

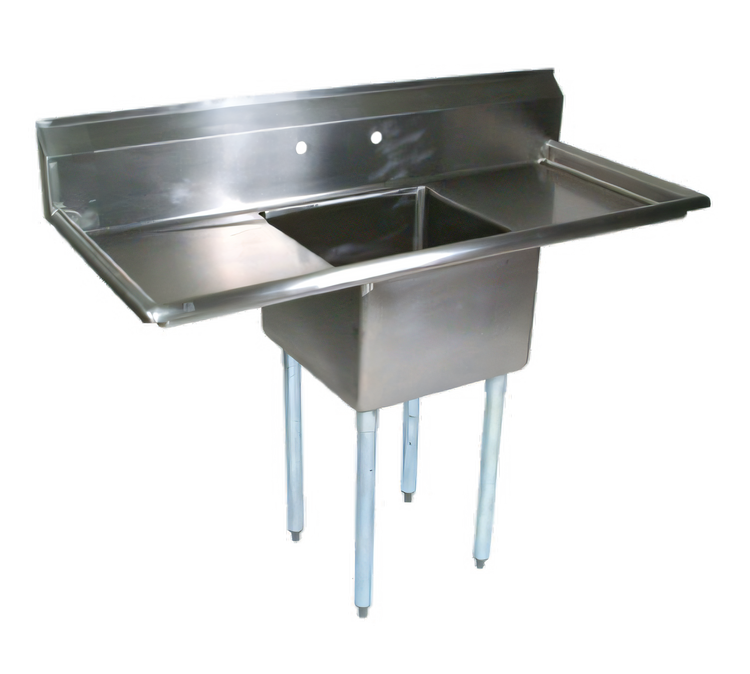

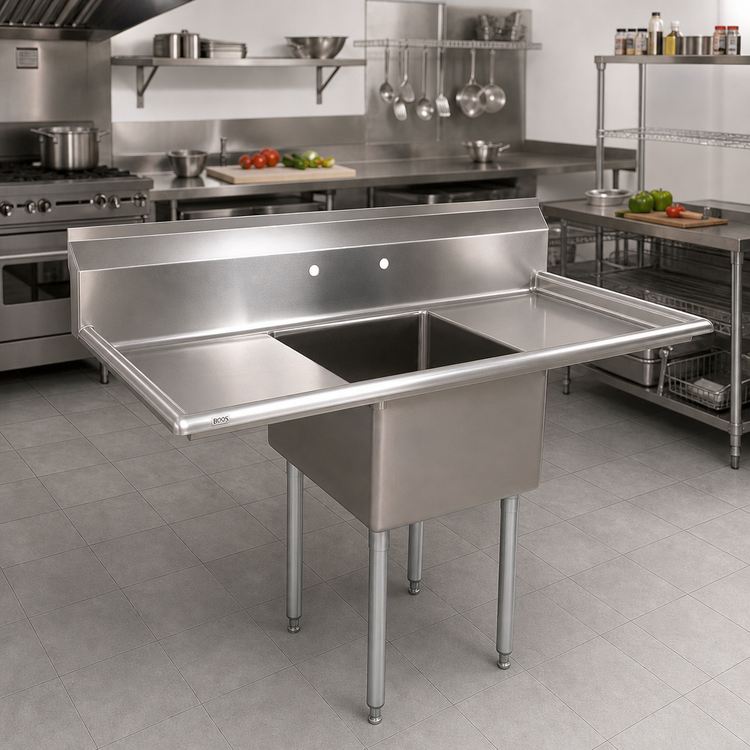

John Boos E1S8-24-14T24 E-Series One-Compartment Sink – 72"
Heavy-duty 18 ga. Type 300 stainless steel with dual 24" drainboardsBuilt to take on the daily demands of commercial kitchens, the John Boos E-Series compartment sink delivers dependable performance without the premium price tag of heavier-gauge models. A spacious 24" × 24" bowl handles oversized pots and sheet pans, while left- and right-hand 24" drainboards keep workflow fast and sanitary.
Key Features
- Single 24" W × 24" F/B × 14" D compartment – perfect for soaking and rinsing large wares

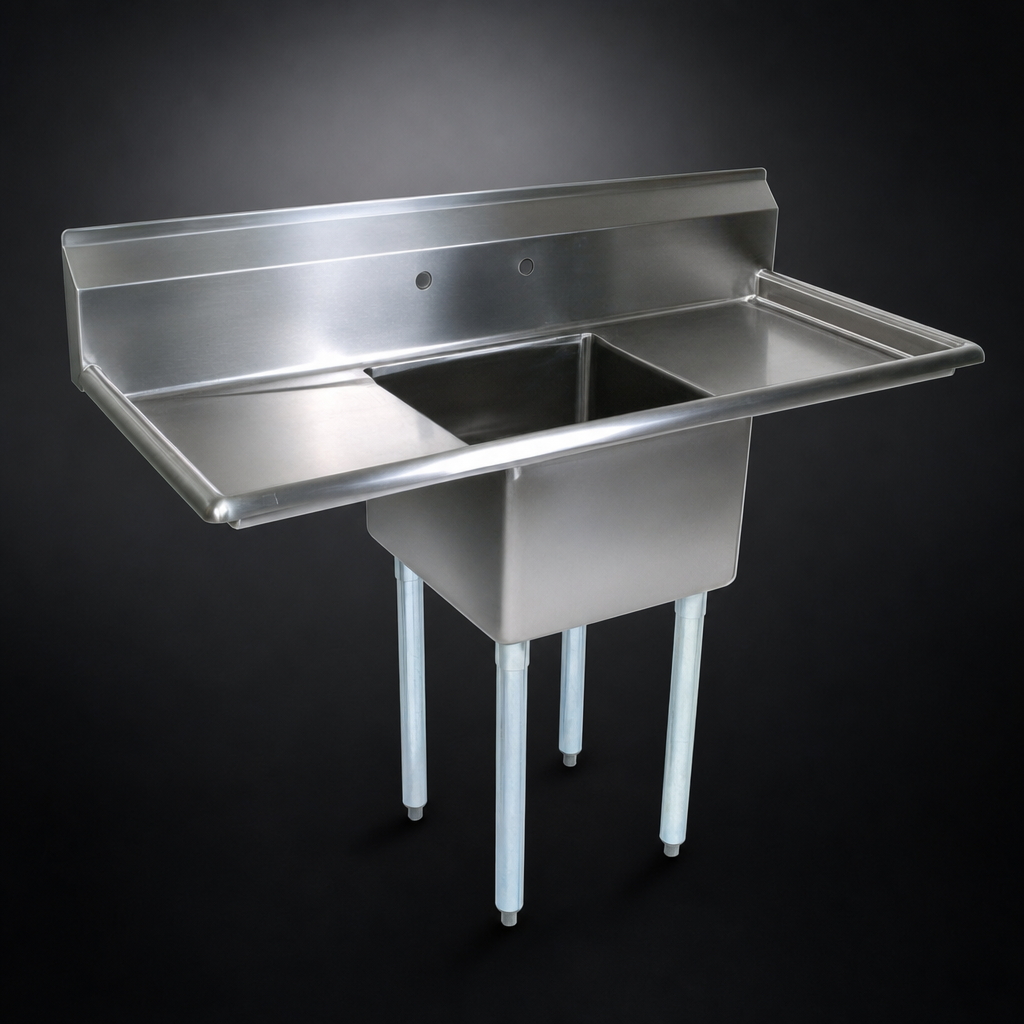

- (2) 24" integrated drainboards with pitched surfaces for efficient water run-off
- 18 ga. Type 300 stainless steel top & bowl with #4 satin polish for easy cleanup
- 9-3/4" boxed backsplash with 45° top cap and 2" return – protects walls from splashes
- Pre-drilled splash-mount faucet holes – 8" on-center, 1-1/8" diameter
- 3-1/2" die-stamped drain opening (basket strainer sold separately)
- Galvanized 1-5/8" Ø legs and gussets for rock-solid stability
- Adjustable 1" plastic bullet feet level the sink on uneven floors
- Coved 3/4" radius interior & bull-nosed exterior edges for safety and sanitation
- NSF & CSA-Sanitation listed – meets stringent food-service codes
Technical Specifications
| Model | E1S8-24-14T24 |
|---|---|
| Overall size (W × D × H) | 72" W × 29-1/2" D × 43-3/4" H (to top of backsplash) |
| Bowl interior (L × W × D) | 24" × 24" × 14" |
| Drainboard size (each) | 24" W |
| Backsplash height | 9-3/4" |
| Faucet holes | (2) 1-1/8" Ø, 8" centers – splash mount |
| Material / Finish | 18 ga. Type 300 stainless steel, #4 satin |
| Legs / Feet | Galvanized steel legs & gussets, adjustable plastic bullet feet |
| Drain opening | 3-1/2" die-stamped |
| Shipping weight | Approx. 76 lb. |
| Certifications | NSF, CSA-Sanitation |
Why Choose the E-Series?
- Budget-friendly 18-gauge construction without compromising on John Boos quality
- Factory TIG-welded seams are polished to match adjacent surfaces for a seamless look
- Quick to install – pre-cut faucet holes and adjustable feet minimize job-site labor
- Backed by more than 135 years of John Boos craftsmanship
Need help selecting compatible accessories? Contact our food-service experts at any time.
Care & Maintenance
Maintain the sink’s protective chrome oxide layer by cleaning routinely with non-chloride detergents and a soft cloth or sponge. Avoid abrasive pads or cleaners that contain chlorides. For stubborn stains, use Bar Keepers Friend® followed by a water rinse and John Boos Stainless Steel Polish.
