John Boos  |  SKU: E1S8-24-14L24-X

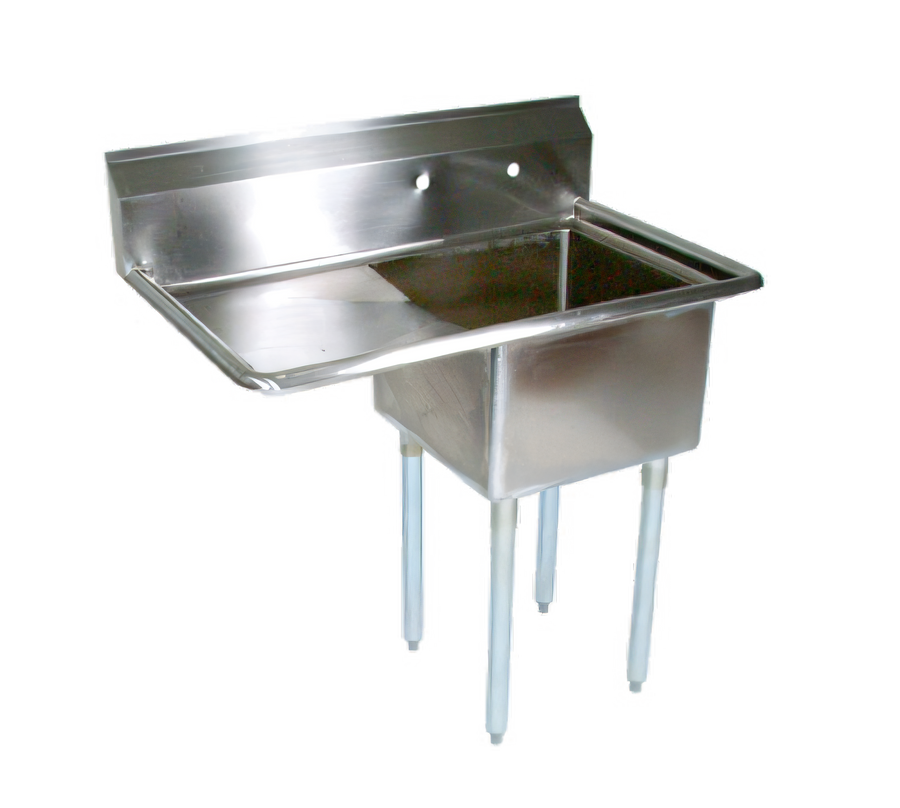

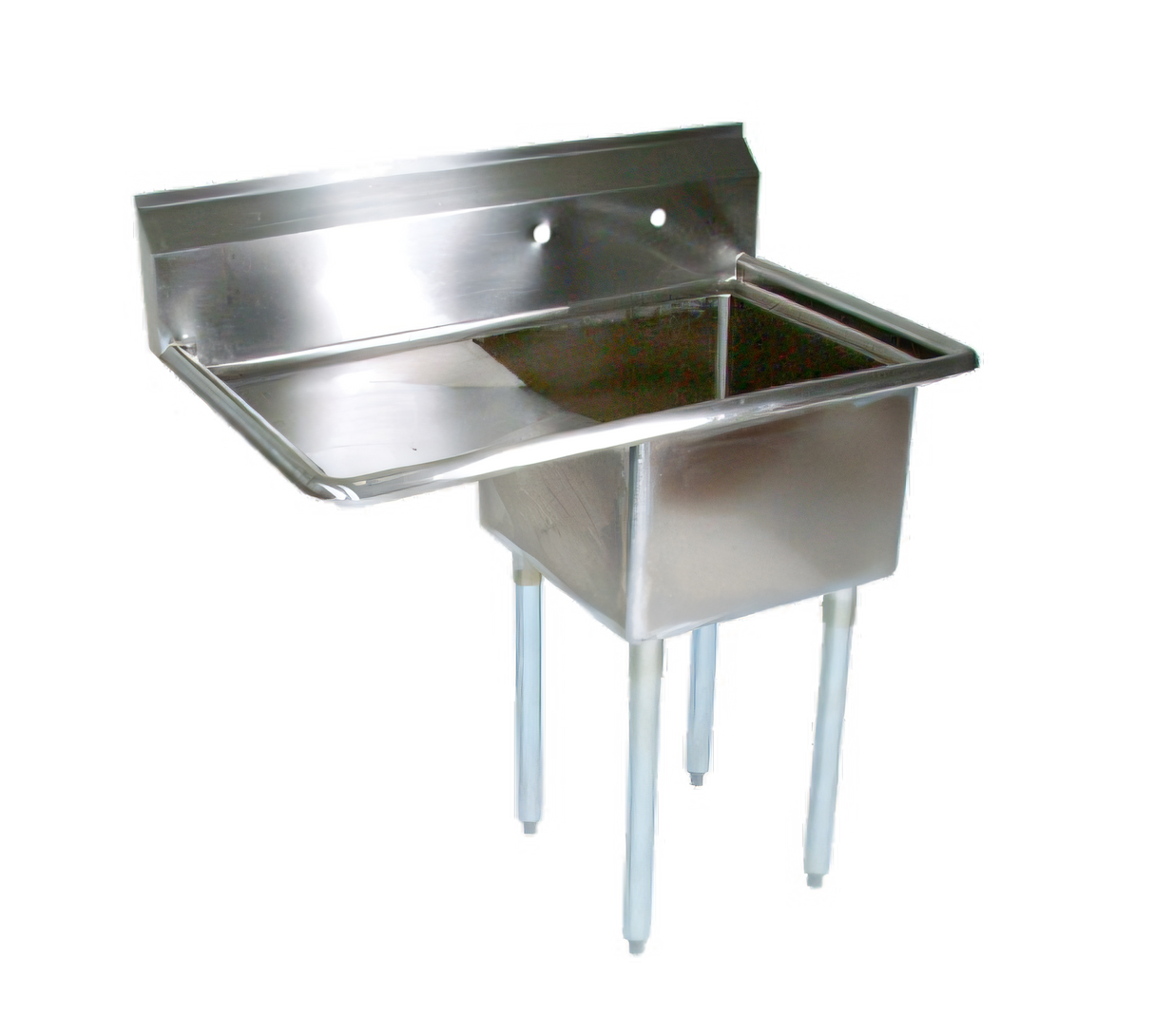

John Boos E1S8-24-14L24-X Compartment Sinks

$865.26
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instructions Care & maintenance
Related Searches
1-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

E-Series Sink, 1-compartment, 50-1/2"W x 29-1/2"D x 43-3/4"H overall size, (1) 24"W x 24" front-to-back x 14" deep compartment, (1) 24" left drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)

Features & Specs

Manufacturer

John Boos

Certifications

NSF, CSA-Sanitation

Height

43.75in

Width

50.5in

Depth

29.5in

Shipping Weight

64.0lbs

Base Type

legs

Overall Length

40" - 53"

Base Construction

galvanized

Compartment (front - back)

24"

Drainboards

with left-hand drainboard

Compartment Width (side - side)

24"

Top Stainless Series

300 series

Sink Depth (rim - drain)

14"

Top Gauge

18 gauge

Splash Height

9-3/4"

Specifications

E-Series Sink, 1-compartment, 50-1/2"W x 29-1/2"D x 43-3/4"H overall size, (1) 24"W x 24" front-to-back x 14" deep compartment, (1) 24" left drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation (Available in Effingham)
