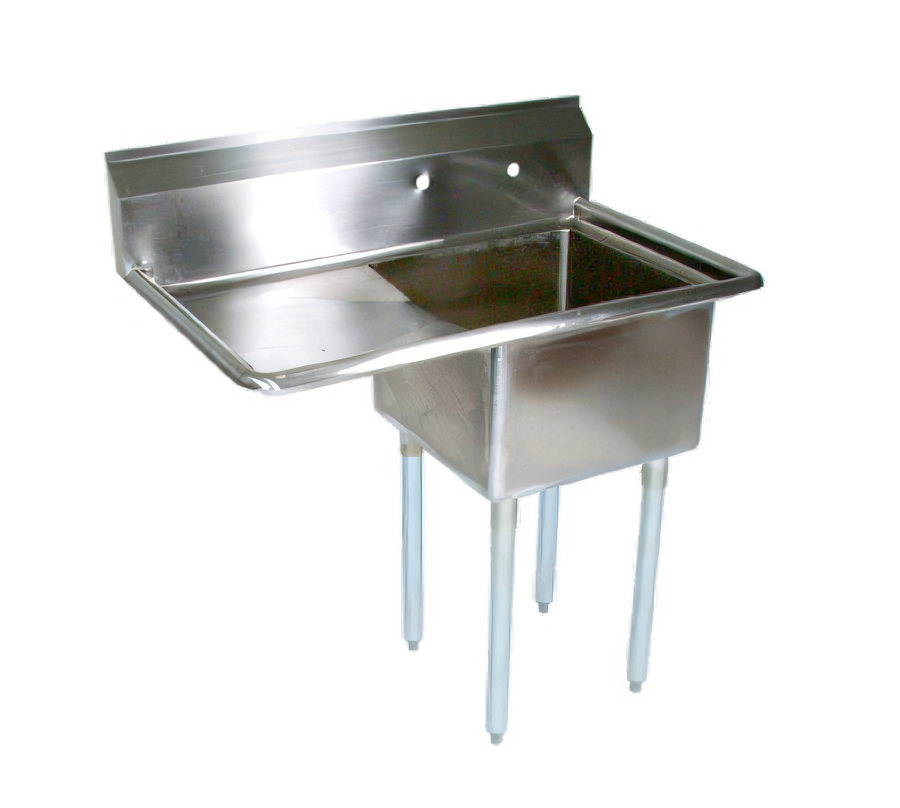

John Boos E1S8-24-14L24 E-Series 1-Compartment Sink with 24" Left Drainboard
50-1/2" W × 29-1/2" D × 43-3/4" H • NSF & CSA-Sanitation ListedOutfit your dish room, prep area or utility space with the reliability of John Boos. This E-Series compartment sink features a roomy 24" × 24" bowl, an integrated 24" left drainboard and rugged 18-gauge, 300 series stainless steel construction—everything you need for efficient, code-compliant cleanup at an unbeatable value.
Why You’ll Love It
- 18-gauge type 300 stainless steel top, bowl & backsplash with #4 satin polish
- Spacious 1-compartment bowl: 24" wide × 24" front-to-back × 14" deep
- Full-length 24" left-side drainboard speeds drying & staging
- 9-3/4" boxed backsplash with 2" 45° return helps contain splashes
- Splash-mount faucet holes pre-punched on 8" centers (1 1/8" Ø)
- 3-1/2" die-stamped drain opening for standard basket strainer
- Safe, easy-to-clean 3/4" radius interior & exterior corners
- Galvanized 1-5/8" O.D. legs & gussets with adjustable plastic bullet feet
- NSF & CSA-Sanitation certified for regulated food-service operations
Quick Specs
| Model | E1S8-24-14L24 (Left drainboard) |
|---|---|
| Overall Dimensions | 50-1/2" W × 29-1/2" D × 43-3/4" H |
| Compartment Size (WxDxH) | 24" × 24" × 14" |
| Drainboard Size | 24" W (left side) |
| Backsplash Height | 9-3/4" boxed, 2" return |
| Faucet Mounting | 8" centers, 1 1/8" dia. holes (splash mount) |
| Drain Opening | 3-1/2" die-stamped |
| Material | 18 GA type 300 SS, #4 satin finish |
| Legs / Feet | Galvanized legs & gussets, adjustable plastic bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Weight | Approx. 64 lb |
Care & Maintenance
Keep the passive protective film on your stainless steel intact:
- Clean daily with a soft cloth or plastic scouring pad and non-chloride cleanser.
- Avoid abrasive powders, steel wool or wire brushes.
- Rinse and wipe dry after each use; do not allow standing water or food acids.
- For restoration, John Boos Stainless Steel Cleaner or Bar Keepers Friend is recommended.
Note: Faucet, drain assembly and other accessories are sold separately.
Confirm left-hand drainboard orientation before ordering.
$1,199.94
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
John Boos E1S8-24-14L24 1-compartment stainless steel sink with left drainboard — heavy-duty 18/300 construction, 24" x 24" x 14" deep basin, and 50-1/2" W overall. Features a 9-3/4" boxed backsplash with 45° top, 8" center splash-mount faucet holes, 3-1/2" die-stamped drains, galvanized legs with gussets and adjustable bullet feet. NSF and CSA-Sanitation certified for commercial kitchens.
Manufacturer
John Boos
Certifications
NSF, CSA-Sanitation
Height
43.75in
Width
50.5in
Depth
29.5in
Shipping Weight
64.0lbs
Base Type
legs
Top Stainless Series
300 series
Base Construction
galvanized
Compartment (front - back)
24"
Top Gauge
18 gauge
Splash Height
9-3/4"
Overall Length
40" - 53"
Sink Depth (rim - drain)
14"
Drainboards
with left-hand drainboard
Compartment Width (side - side)
24"
Specifications
E-Series Sink, 1-compartment, 50-1/2"W x 29-1/2"D x 43-3/4"H overall size, (1) 24"W x 24" front-to-back x 14" deep compartment, (1) 24" left drainboard, 9-3/4"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 18/300 stainless steel, galvanized legs & gussets, adjustable plastic bullet feet, NSF, CSA-Sanitation
