Key specifications

Dimensions
29.0"W × 29.5"D × 43.75"H
Type
Compartment Sink
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin
Compartments
1
Spec sheet
John Boos SKU: E1S8-24-14-X

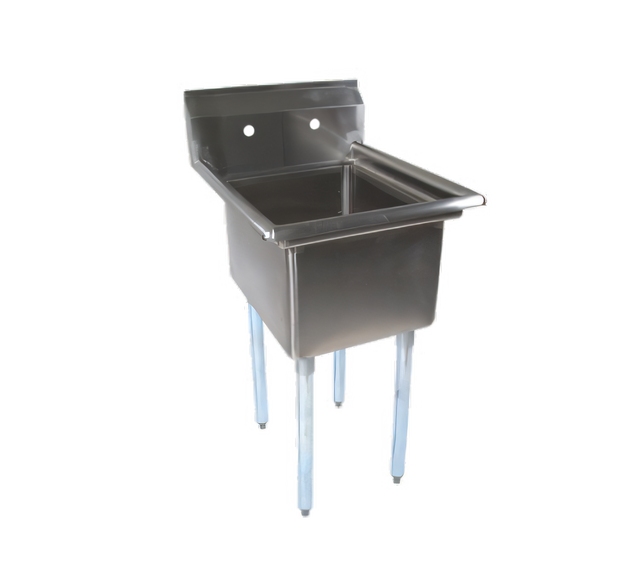

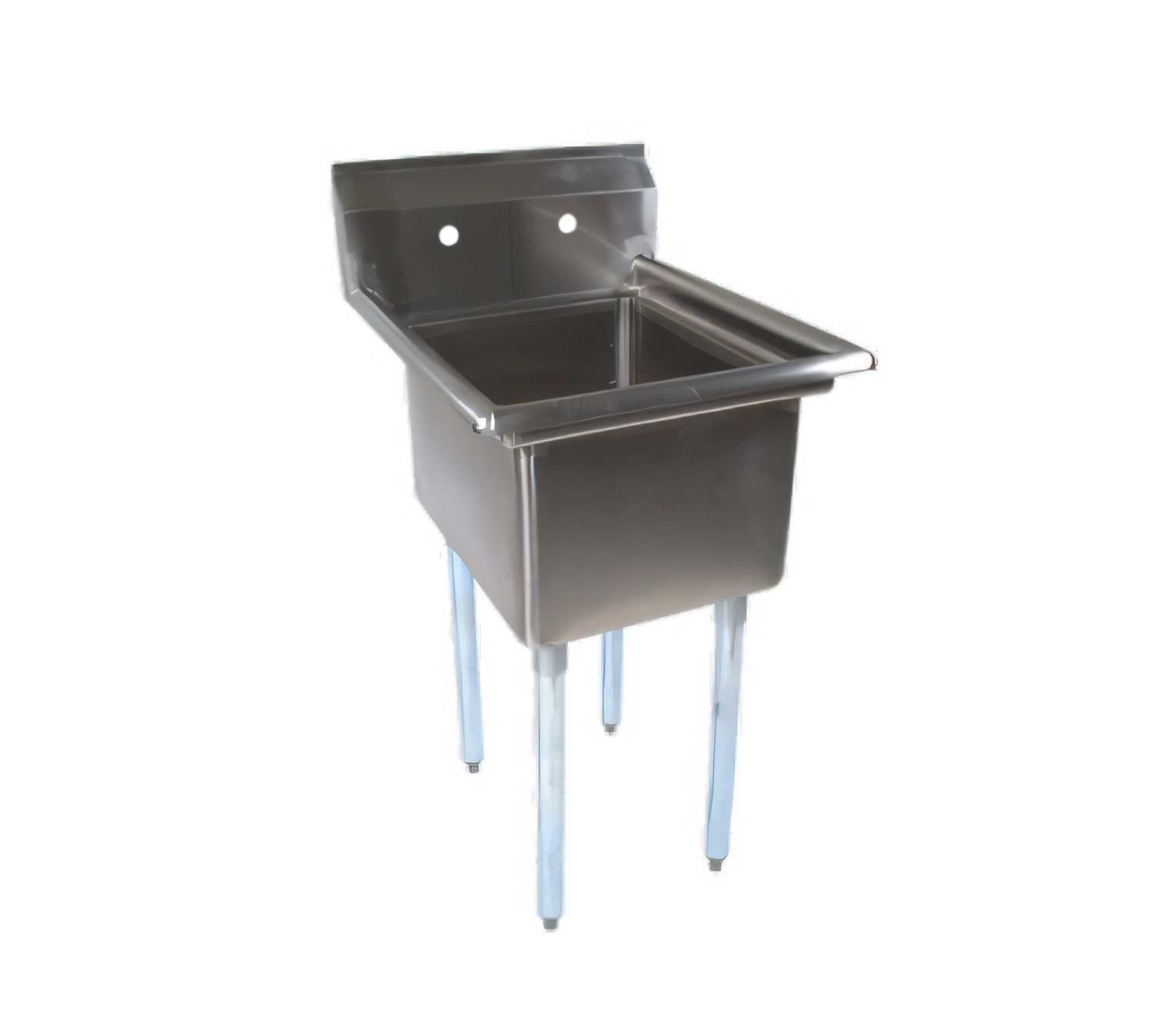

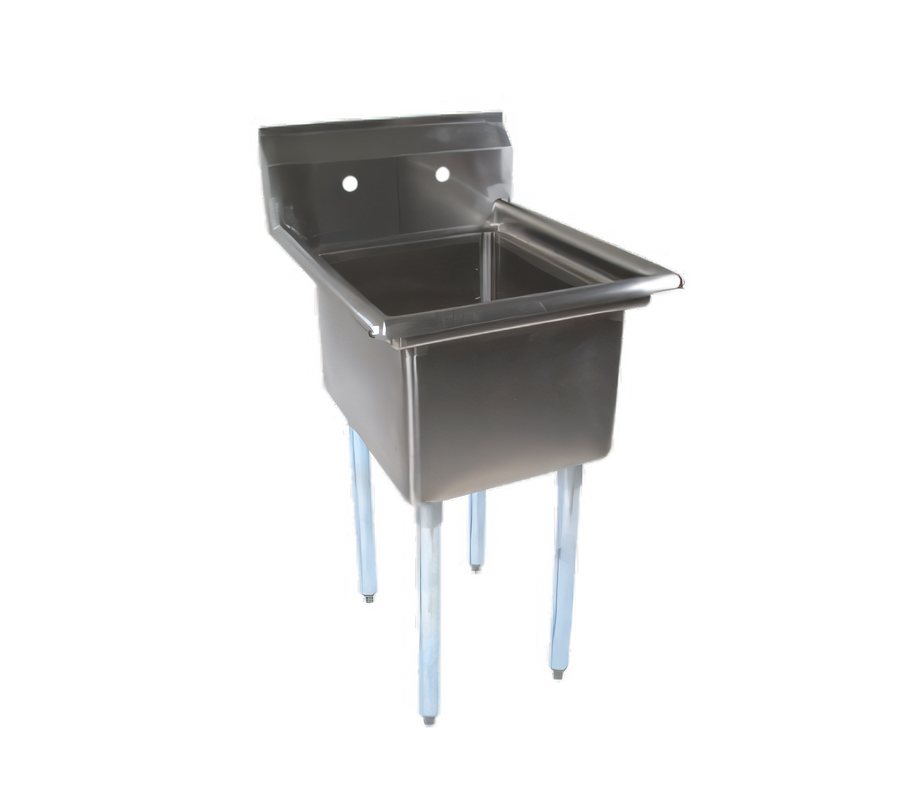

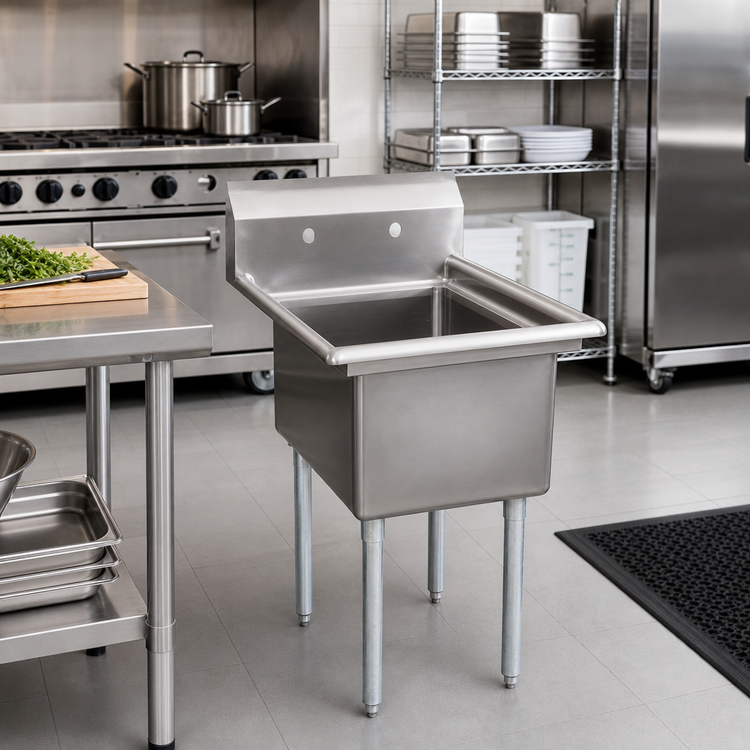

John Boos E1S8-24-14-X 24 x 24 x 14 Inch Single Compartment Sink

$498.96
/each
Estimated to ship in 8–11 business days
Factory Add-Ons
Included: John Boos warranty 1-year warranty against manufacturing defects

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $46/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Installation Type Floor Model
Material Stainless Steel
Finish Satin
Compartments 1
Compartment Width 24 in
Compartment Front-To-Back 24 in
Bowl Depth 14 in
Overall Width 29 in
Overall Depth 29.5 in
Overall Height 43.75 in
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Base Type Legs
Base Material Galvanized Steel
Foot Type Adjustable Plastic Bullet Feet
Backsplash Type Boxed
Backsplash Height 9.75 in
Backsplash Top Angle 45°
Backsplash Return 2 in
Faucet Hole Centers 8 in
Faucet Hole Diameter 1-1/8 in
Drain Opening 3.5 in
Drainboard None
Weight 48 lb

Description

The John Boos E1S8-24-14-X is a one-compartment floor model sink with an 18-gauge Type 300 stainless steel top and bowl, galvanized steel legs and gussets, and adjustable plastic bullet feet.

  • The compartment measures 24 in wide x 24 in front-to-back x 14 in deep.
  • The sink has a 9.75 in boxed backsplash with a 45-degree top and 2 in return.
  • Features include splash-mount faucet holes with 8 in centers and a 3.5 in die-stamped drain opening.
  • Overall dimensions are 29 in wide x 29.5 in deep x 43.75 in high.

Overall Dimensions:

29.0"W x 29.5"D x 43.75"H

Product Weight:

48.0 lb

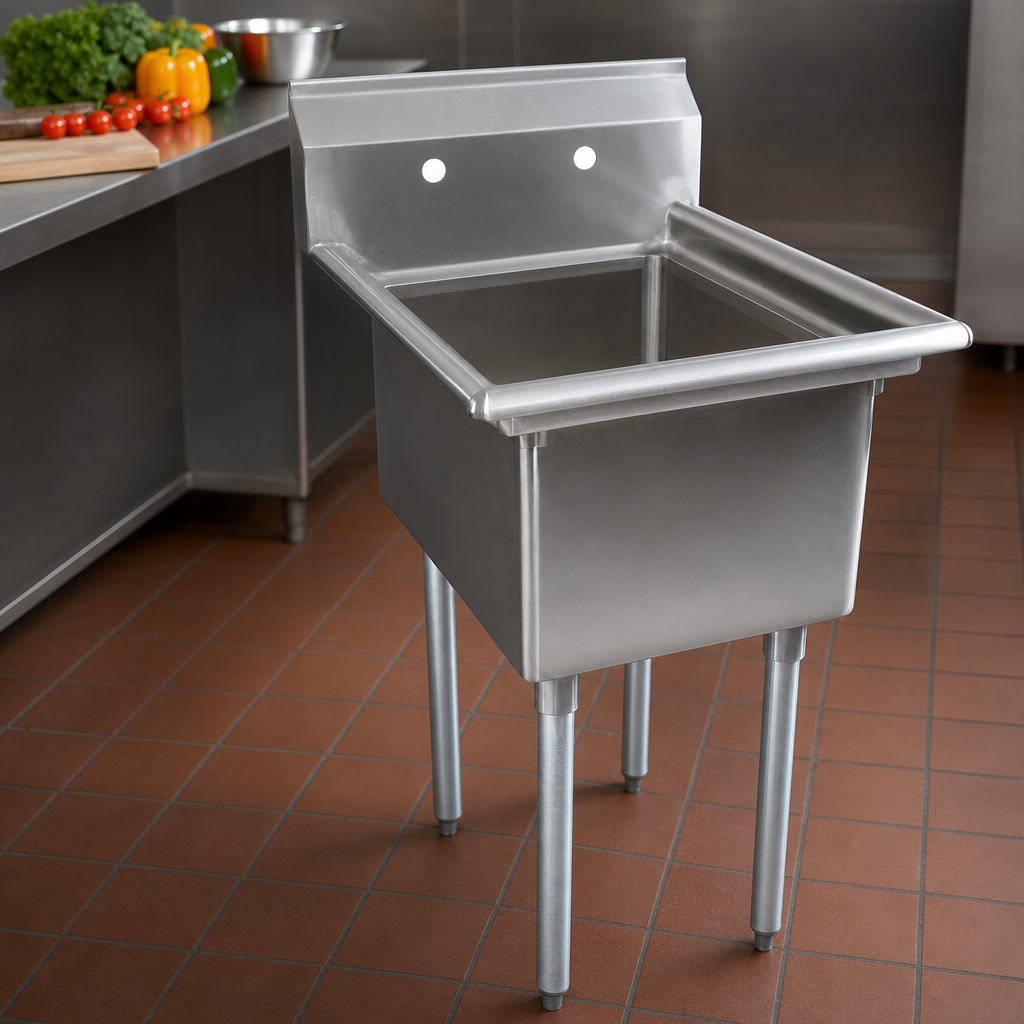

One Compartment

The compartment measures 24 in wide x 24 in front-to-back x 14 in deep.

Stainless Steel Top and Bowl

The top and bowl use 18-gauge Type 300 stainless steel with a #4 polish and satin finish.

Galvanized Base

The sink has galvanized steel legs and gussets.

Boxed Backsplash

The 9.75 in high backsplash has a 45-degree top and 2 in return.

Faucet Holes

Includes splash-mount faucet holes with 8 in centers and 1-1/8 in hole diameter.

Drain Opening

The bowl forms drainage to a 3.5 in die-stamped drain opening.

Adjustable Feet

The sink has adjustable plastic bullet feet.

Certifications

Certifications are NSF and CSA-Sanitation.

Frequently Asked Questions

It has one compartment.
The overall dimensions are 29 in wide x 29.5 in deep x 43.75 in high.
The compartment measures 24 in wide x 24 in front-to-back x 14 in deep.
The top and bowl are 18-gauge Type 300 stainless steel. The legs and gussets are galvanized steel.
Yes. It has a 9.75 in boxed backsplash with a 45-degree top and 2 in return.
Yes. It has splash-mount faucet holes with 8 in centers and 1-1/8 in hole diameter.
It is specified without drainboards.
