John Boos

John Boos E-Series 1-Compartment Sink with Right Drainboard, 18 Gauge Stainless Steel

SKU: E1S8-1824-14R24-X
$597.36
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

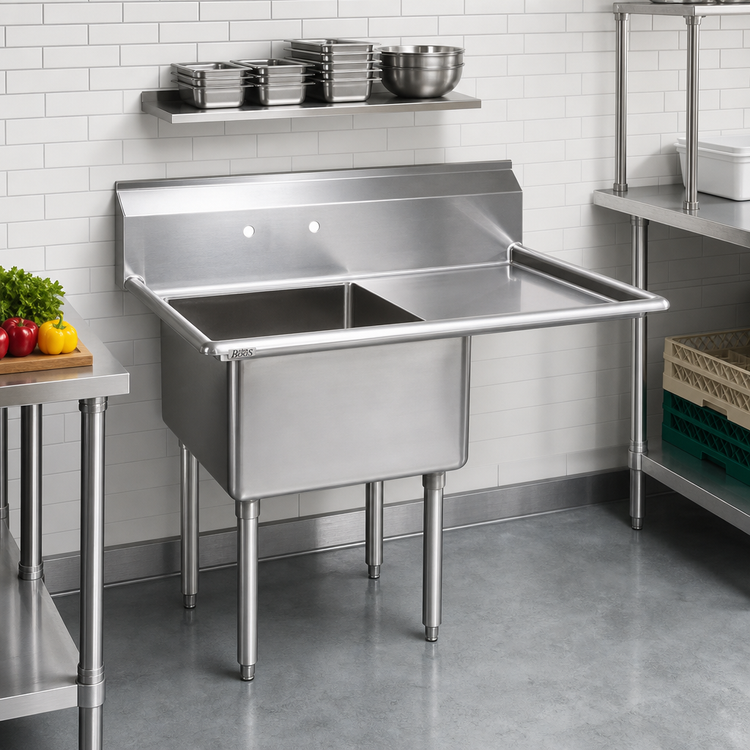

John Boos E-Series 1-Compartment Sink with Right Drainboard, 18 Gauge Stainless Steel

44-1/2 in. W x 29-1/2 in. D x 43-3/4 in. H, 14-in. Deep Compartment, Galvanized Legs

A rugged, space-saving prep sink with a right-hand drainboard, deep compartment, and heavy-duty galvanized support base.

  • Right-hand drainboard adds extra space for draining, drying, and staging tasks.
  • 18-gauge Type 300 stainless steel top and bowl deliver dependable durability.
  • 18 in. x 24 in. x 14 in. compartment provides a practical work area for prep and cleanup.
  • 9-3/4 in. boxed backsplash with a 2 in. return helps protect walls from splashes.
  • Splash-mount faucet holes on 8 in. centers simplify faucet installation.
  • Galvanized legs, gussets, and adjustable plastic bullet feet provide stable support.

Overall Dimensions:

44.5"W x 29.5"D x 43.75"H

Product Weight:

58.0 lb

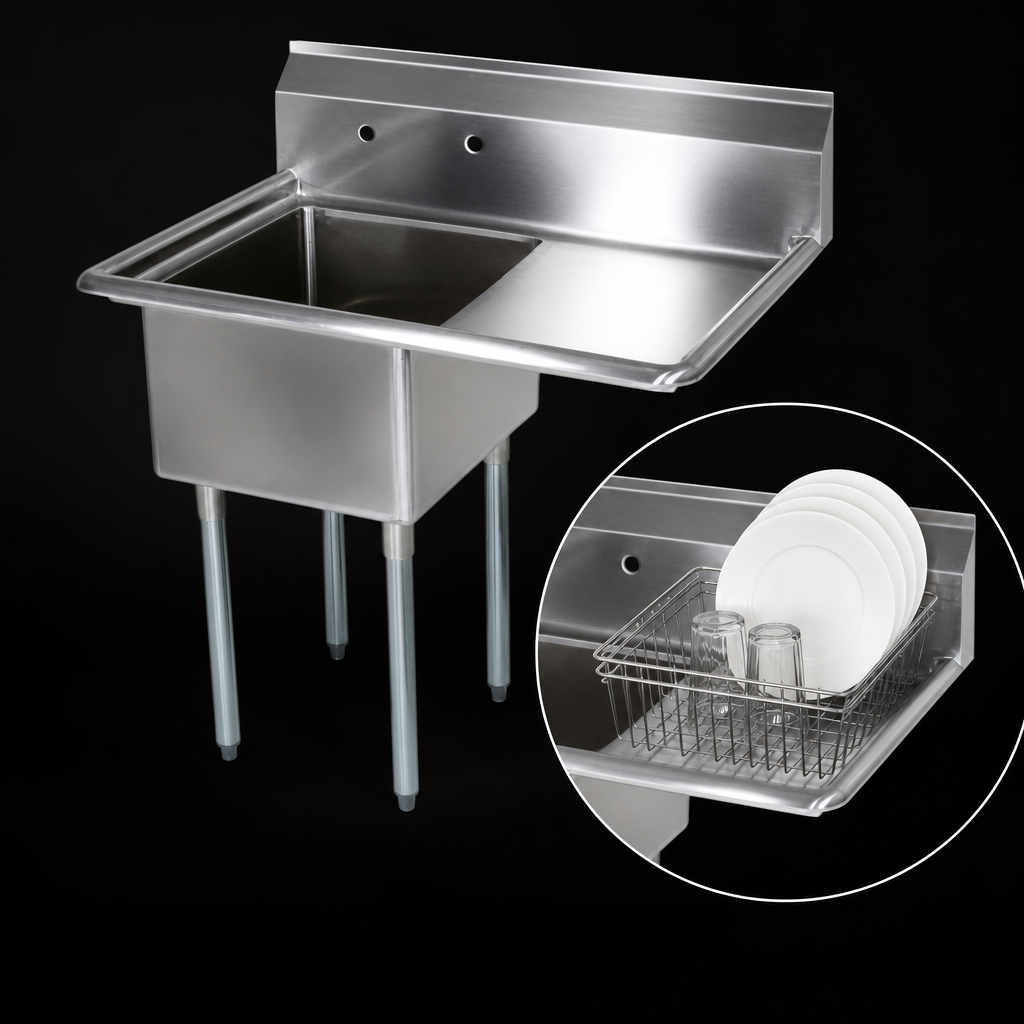

Right-Hand Drainboard

24-inch drainboard provides added space for draining dishes and staging items.

18-Gauge Stainless Steel Construction

Top and bowl are made from 18-gauge Type 300 stainless steel with a #4 polish, satin finish.

14-Inch Deep Compartment

Single compartment measures 18 inches wide x 24 inches front-to-back x 14 inches deep.

Boxed Backsplash With Return

9-3/4-inch high backsplash includes a 2-inch return to the wall at 45 degrees and a 1-inch tile edge.

Splash-Mount Faucet Holes

Includes one set of 1-1/8-inch faucet holes on 8-inch centers in the backsplash.

Sanitary Drain Opening And Corners

Die-stamped 3-1/2-inch drain opening, coved bowl corners, and bullnosed outside corners support easy cleaning and safe handling.

Galvanized Support Base

Galvanized steel legs and gussets with adjustable plastic bullet feet provide stable, adjustable support.

Type Compartment Sink
Style 1 Compartment
Installation Type Floor Model
Compartments 1
Drainboard Side Right
Compartment Width 18 Inches
Compartment Length 24 Inches
Compartment Depth 14 Inches
Splash Height 9-3/4 Inches
Top Gauge 18 Gauge
Base Construction Galvanized Steel
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Finish Satin Finish
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 58 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

This model has a right-hand drainboard.
The compartment measures 18 inches side-to-side, 24 inches front-to-back, and 14 inches deep.
Yes. It includes a 9-3/4-inch boxed backsplash with one set of splash-mount faucet holes on 8-inch centers.
The top and bowl are 18-gauge Type 300 stainless steel with a satin finish, and the legs and gussets are galvanized steel.
The bowl uses a 3-1/2-inch die-stamped drain opening.
It sits on galvanized legs with adjustable plastic bullet feet.
