John Boos E-Series 1-Compartment Sink with Right-Hand Drainboard, 18-Gauge Stainless Steel, 14-Inch Deep Bowl

44-1/2 x 29-1/2 x 43-3/4 in. overall; 18 x 24 in. compartment; galvanized legs

A durable floor-mounted sink for busy prep areas, combining a deep single bowl, right-hand drainboard, and stainless steel construction in a compact footprint.

  • Right-hand drainboard provides a dedicated landing area for draining, sorting, and staging.
  • 18" x 24" x 14" deep compartment offers generous wash space for daily kitchen tasks.
  • 18-gauge Type 300 stainless steel top and bowl with #4 polish satin finish for durability.
  • 9-3/4" boxed backsplash with 2" return helps protect walls from splashes.
  • Galvanized legs, gussets, and adjustable plastic bullet feet provide stable floor support.
  • Splash-mount faucet holes on 8-inch centers simplify faucet installation.

Overall Dimensions:

44.5"W x 29.5"D x 43.75"H

Product Weight:

58.0 lb

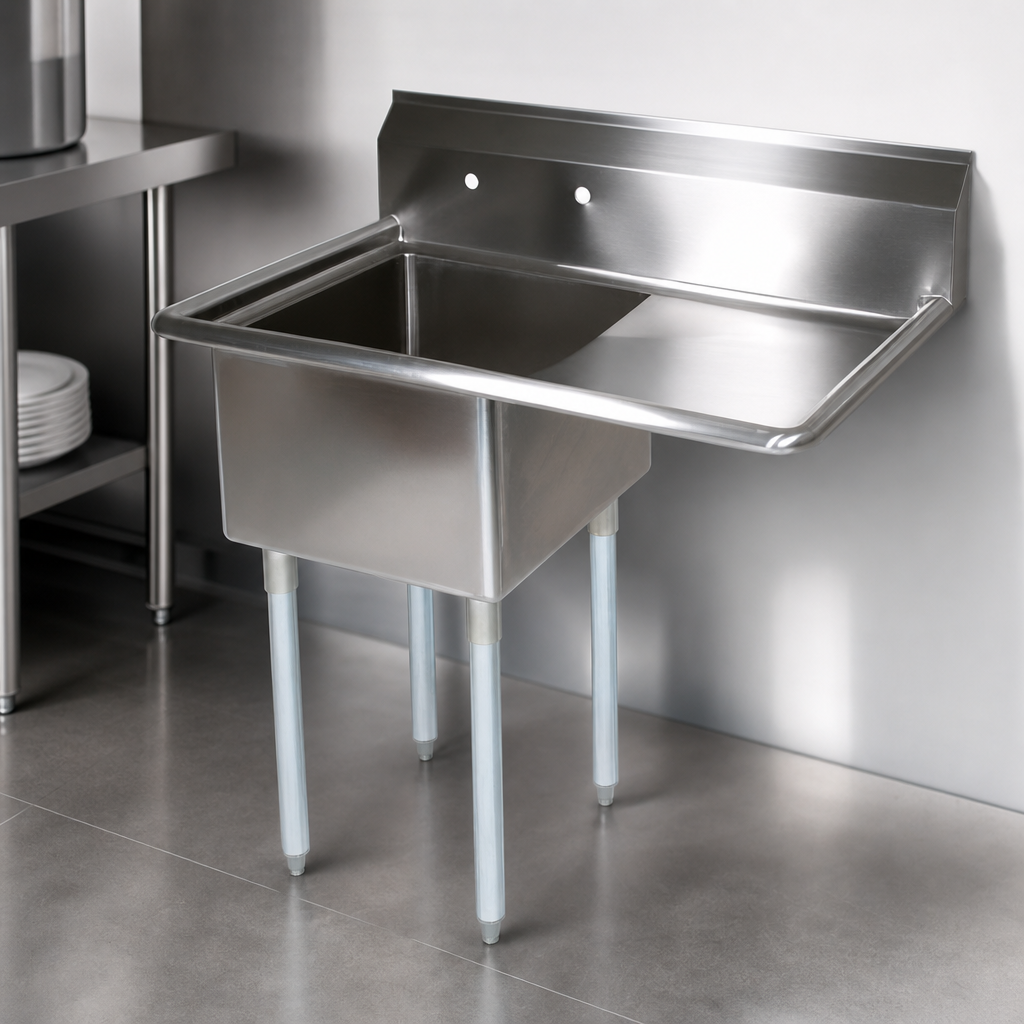

Right-Hand Drainboard

Integrated 24-inch drainboard gives you extra space beside the sink for wet dishes and prep items.

Single Deep Compartment

18-inch wide x 24-inch front-to-back x 14-inch deep bowl handles washing and prep work in one station.

18-Gauge Stainless Steel Top And Bowl

Built from Type 300 stainless steel with a #4 polish and satin finish for long-lasting commercial use.

Coved Bowl Corners

3/4-inch coved vertical and horizontal corners help make cleaning easier and faster.

Boxed Backsplash

Full-length 9-3/4-inch backsplash includes a 2-inch 45-degree return and 1-inch tile edge for wall protection.

Splash-Mount Faucet Holes

One set of backsplash faucet holes on 8-inch centers.

Die-Stamped Drain Opening

3-1/2-inch drain opening is formed for drainage.

Galvanized Support Base

Galvanized steel legs and gussets with adjustable plastic bullet feet provide stable support.

Type Compartment Sink
Style Drainboard Sink
Installation Type Floor Model
Compartments 1
Material Stainless Steel
Finish Satin Finish
Base Construction Galvanized Steel
Compartment Width 18 Inches
Compartment Depth 24 Inches
Bowl Depth 14 Inches
Drainboard Side Right
Drainboard Length 24 Inches
Backsplash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Shipping Width 45 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 58 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Yes. Model E1S8-1824-14R24 is the right-hand drainboard version.
The compartment measures 18 inches wide by 24 inches front-to-back by 14 inches deep.
It uses 18-gauge Type 300 stainless steel with a #4 polish satin finish.
The sink has a full-length 9-3/4-inch boxed backsplash with a 2-inch return to the wall at 45 degrees and a 1-inch tile edge.
The sink includes galvanized steel legs and gussets with adjustable plastic bullet feet.
The bowl uses a 3-1/2-inch die-stamped drain opening.
