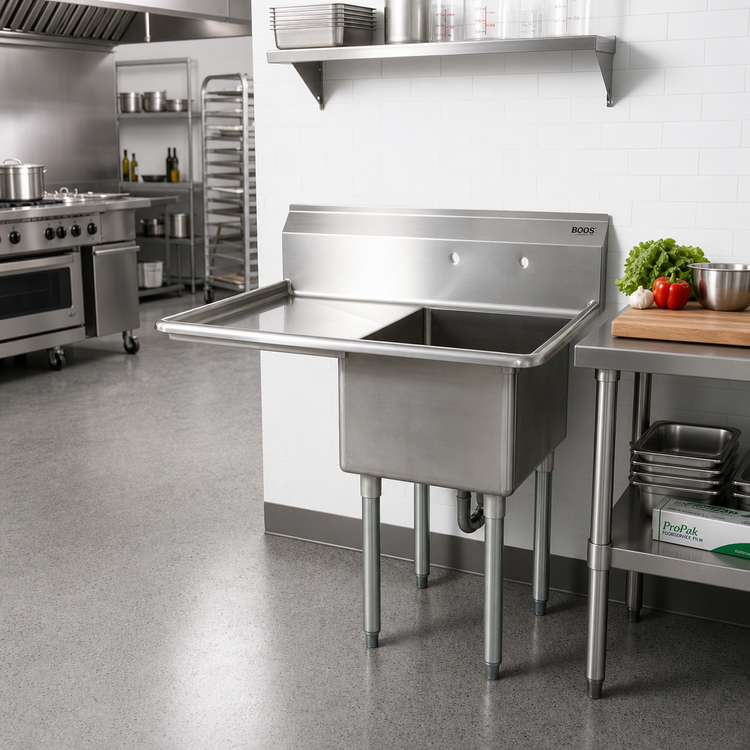

John Boos E-Series 1-Compartment Stainless Steel Sink with Left Drainboard

SKU: E1S8-1824-14L24-X
$597.36
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 1-Compartment Stainless Steel Sink with Left Drainboard

18-Gauge, 14-Inch Deep Bowl, Floor Model, 44-1/2 x 29-1/2 x 43-3/4 Inches

A durable one-compartment sink with a left drainboard, heavy-duty stainless steel construction, and a tall boxed backsplash for efficient commercial prep and cleanup.

  • 1-compartment sink with an 18" x 24" x 14" bowl and a 24" left drainboard
  • Made from 18-gauge Type 300 stainless steel with a satin finish
  • 9-3/4" boxed backsplash with 45° return helps protect the wall behind the sink
  • 3-1/2" die-stamped drain opening supports efficient drainage
  • Galvanized steel legs and gussets add durability, with adjustable plastic bullet feet for leveling
  • Coved corners and bullnosed outer edges promote safer handling and easier cleaning
  • Includes splash-mount faucet holes with 8" centers

Overall Dimensions:

44.5"W x 29.5"D x 43.75"H

Product Weight:

58.0 lb

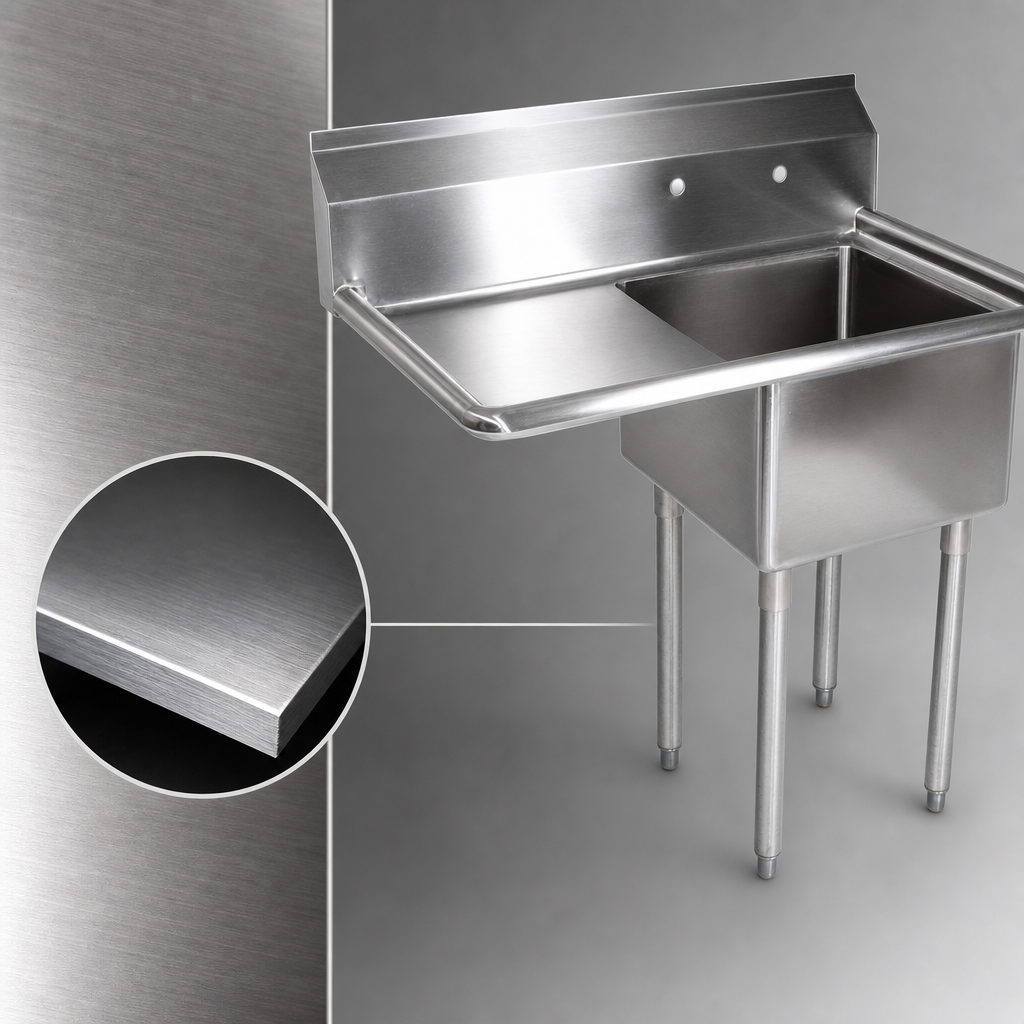

18-Gauge Stainless Steel Construction

Built with 18-gauge Type 300 stainless steel for dependable strength and corrosion resistance in commercial use.

Single Bowl Layout

One 18" wide x 24" front-to-back x 14" deep compartment provides a practical wash station for prep and cleanup tasks.

Left Drainboard

A 24" left-hand drainboard gives operators a dedicated landing area for dishes, pans, or prep items.

Boxed Backsplash

The 9-3/4" high backsplash includes a 2" return at a 45-degree angle and a 1" tile edge to help protect the wall.

Drainage Design

The bowl is formed for drainage to a 3-1/2" die-stamped drain opening for efficient water runoff.

Sanitary Bowl Construction

Coved vertical and horizontal corners help simplify cleaning and reduce buildup in the bowl.

Galvanized Support Base

Standard galvanized steel legs and gussets provide a sturdy support structure.

Adjustable Feet

1" plastic bullet feet allow for leveling on uneven floors.

Faucet Hole Configuration

Splash-mount faucet holes are included with 8" centers.

Type Compartment Sink
Style Left Drainboard
Installation Type Floor Model
Compartments 1
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Finish Satin Finish
Shipping Width 45 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 58 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

Yes. This model includes a 24" left-hand drainboard.
The sink has one compartment measuring 18" wide x 24" front-to-back x 14" deep.
It has a 9-3/4" boxed backsplash with a 2" return at 45 degrees and a 1" tile edge.
The top and bowl are made from 18-gauge Type 300 stainless steel with a satin finish, and the base uses galvanized steel components.
The bowl includes a 3-1/2" die-stamped drain opening.
Yes. The backsplash includes splash-mount faucet holes with 8" centers.
