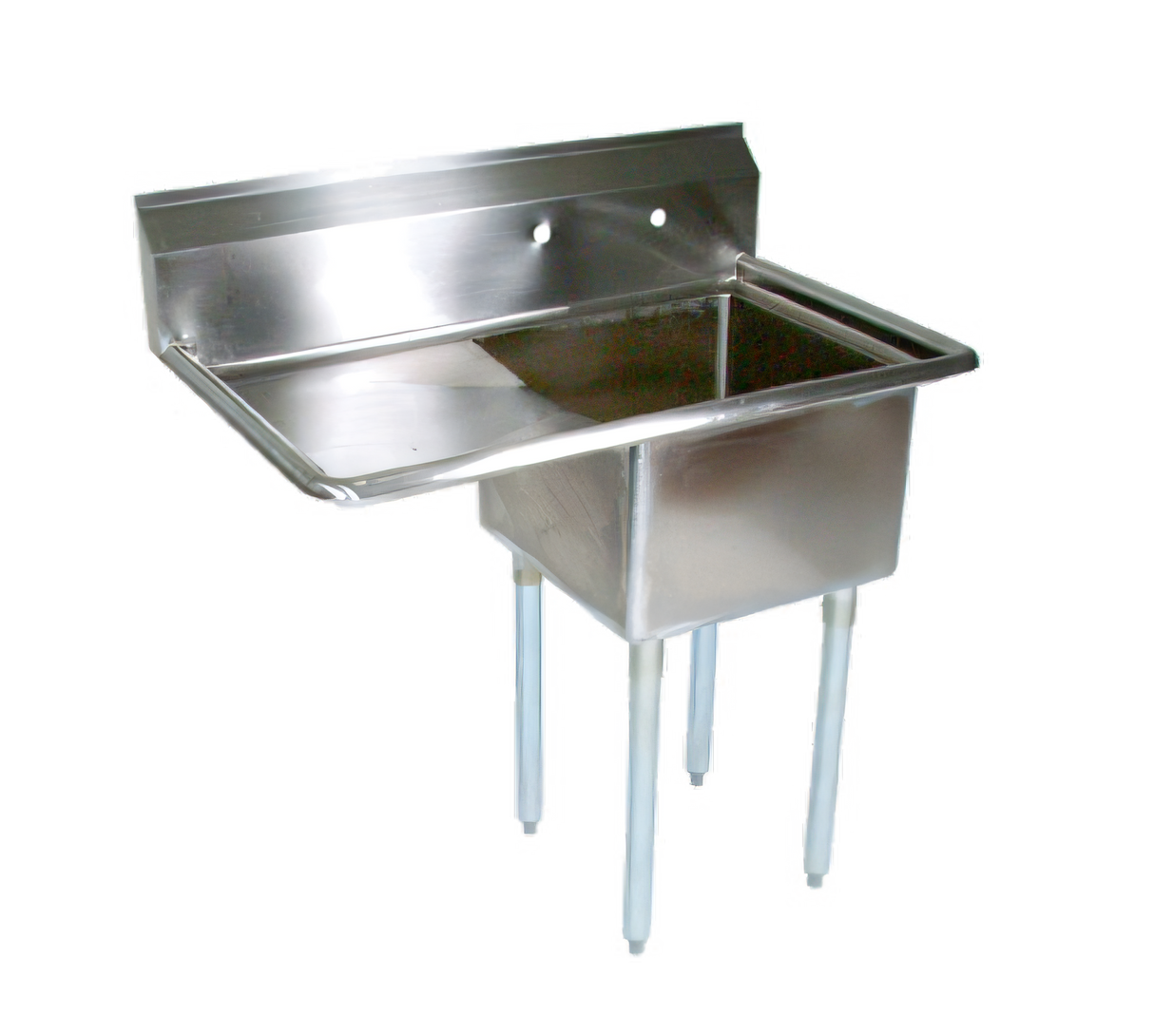

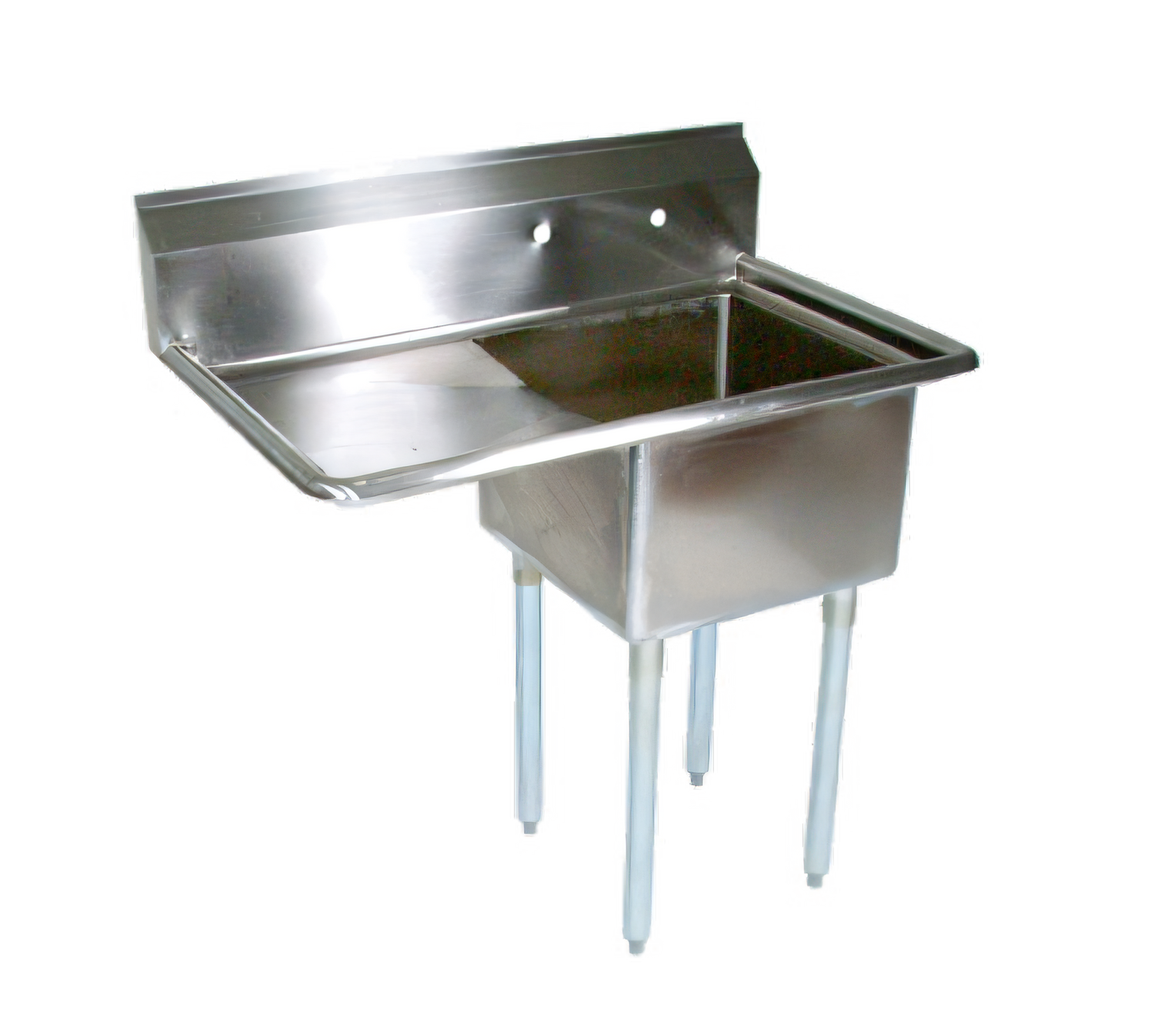

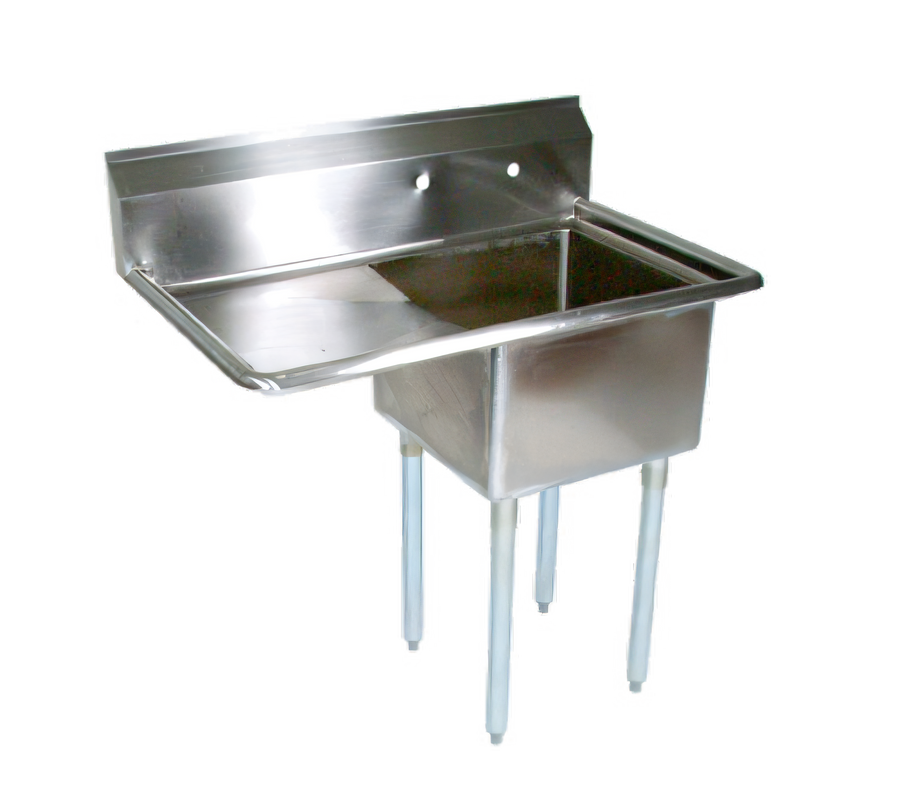

John Boos E-Series 1-Compartment Sink with Left Drainboard, 18-Gauge 300-Series Stainless Steel, 44-1/2 x 29-1/2 x 43-3/4 Inches

14-Inch Deep Bowl, 24-Inch Left Drainboard, 9-3/4-Inch Backsplash

This heavy-duty floor sink combines a deep single bowl, roomy left drainboard, and rugged galvanized-leg construction to streamline prep and cleanup in busy commercial kitchens.

  • 1-compartment sink with a 24-inch left drainboard for prep, draining, and drip-dry space.
  • 18-gauge 300-series stainless steel top is built for daily commercial use.
  • 14-inch deep bowl provides a roomy wash area for pots, pans, and utensils.
  • 9-3/4-inch boxed backsplash helps contain splash and protect the wall.
  • Galvanized steel legs, gussets, and adjustable bullet feet create a stable floor-standing base.
  • Splash-mount faucet holes with 8-inch centers simplify faucet installation.

Overall Dimensions:

44.5"W x 29.5"D x 43.75"H

Product Weight:

58.0 lb

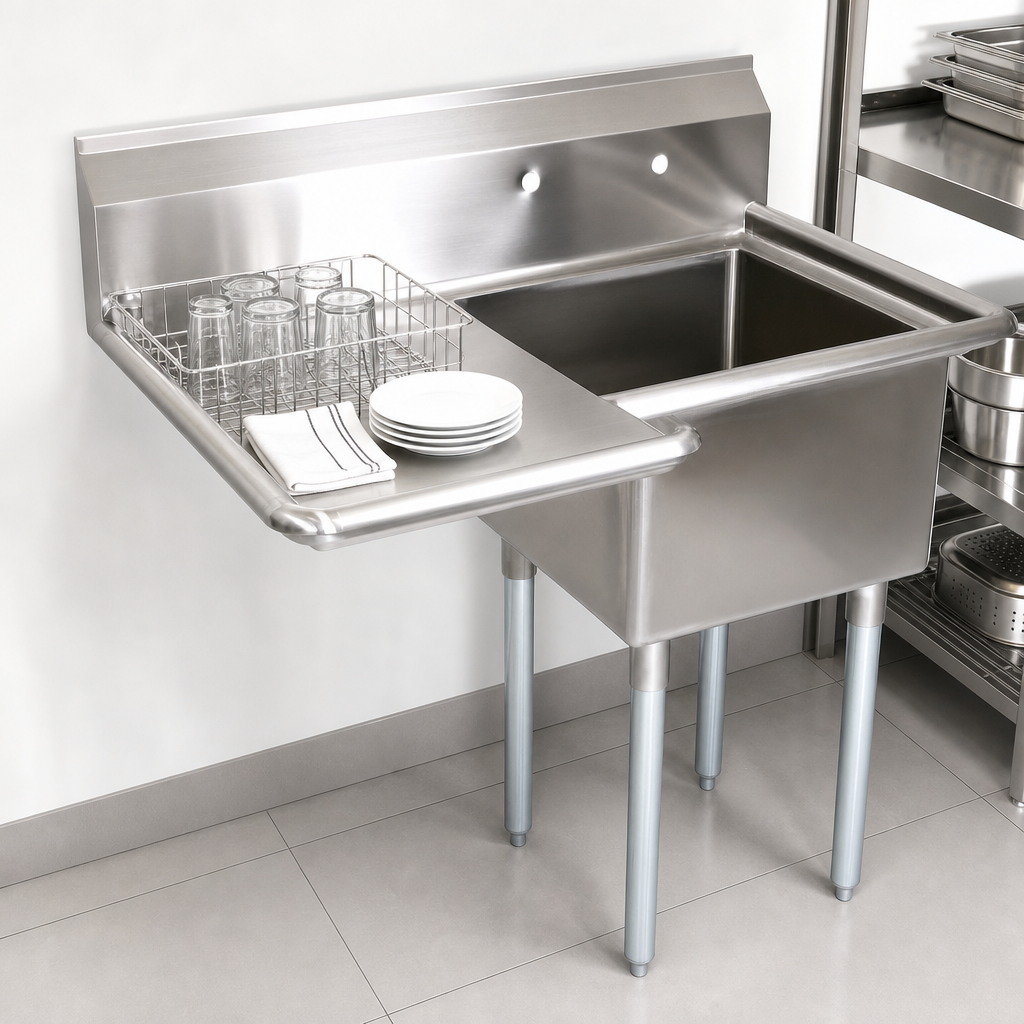

Left Drainboard

A 24-inch left-side drainboard adds workspace for staging, draining, and drying items beside the sink.

18-Gauge Stainless Steel Top

Type 300 stainless steel with #4 polish and a satin finish helps the sink stand up to heavy daily use.

Deep Single Bowl

The 18-inch by 24-inch compartment is 14 inches deep, giving you a practical wash area for larger items.

Coved, Sloped Bowl

Rounded corners and a sloped bottom help guide water toward the drain for easier cleanup and better drainage.

3-1/2-Inch Drain Opening

A die-stamped drain opening supports efficient drainage from the bowl.

Boxed Backsplash

The 9-3/4-inch backsplash with a 2-inch return at 45 degrees and a 1-inch tile edge helps control splashes.

Faucet Mounting Holes

Splash-mount faucet holes on 8-inch centers are ready for standard faucet installation.

Galvanized Base

Galvanized steel legs and gussets, plus adjustable plastic bullet feet, provide stable support and easy leveling.

Type 1-Compartment Sink
Style Left Drainboard
Installation Type Floor Model
Compartments 1
Material 300 Series Stainless Steel
Finish Satin Finish
Top Gauge 18 Gauge
Bowl Depth 14 Inches
Compartment Width 18 Inches
Compartment Depth 24 Inches
Drainboard Length 24 Inches
Splash Height 9-3/4 Inches
Drain Opening Size 3-1/2 Inches
Faucet Hole Centers 8 Inches
Faucet Hole Size 1-1/8 Inches
Base Type Legs
Base Construction Galvanized Steel
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 58 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The overall size is 44-1/2 inches wide, 29-1/2 inches deep, and 43-3/4 inches high.
The compartment is 14 inches deep.
This model is the left-hand drainboard version. The series documentation also lists right-hand versions.
It uses 18-gauge type 300 stainless steel for the top and bowl, with galvanized steel legs and gussets.
It includes splash-mount faucet holes on 8-inch centers, with 1-1/8-inch holes in the backsplash.
Yes, it uses adjustable plastic bullet feet for leveling.
