John Boos

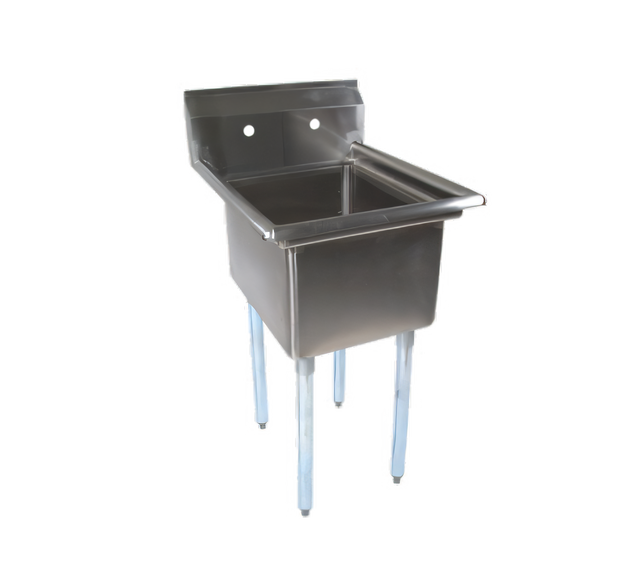

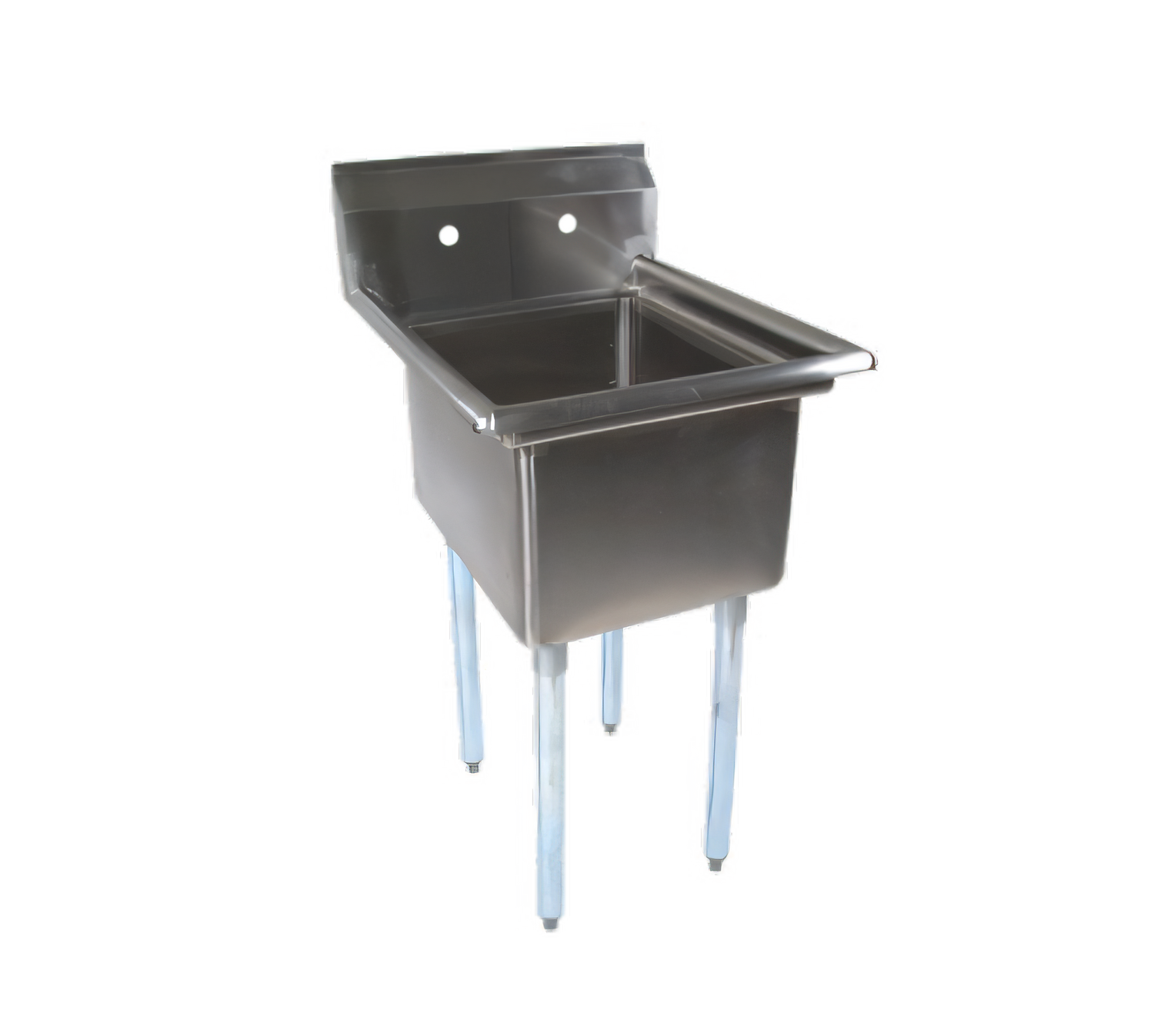

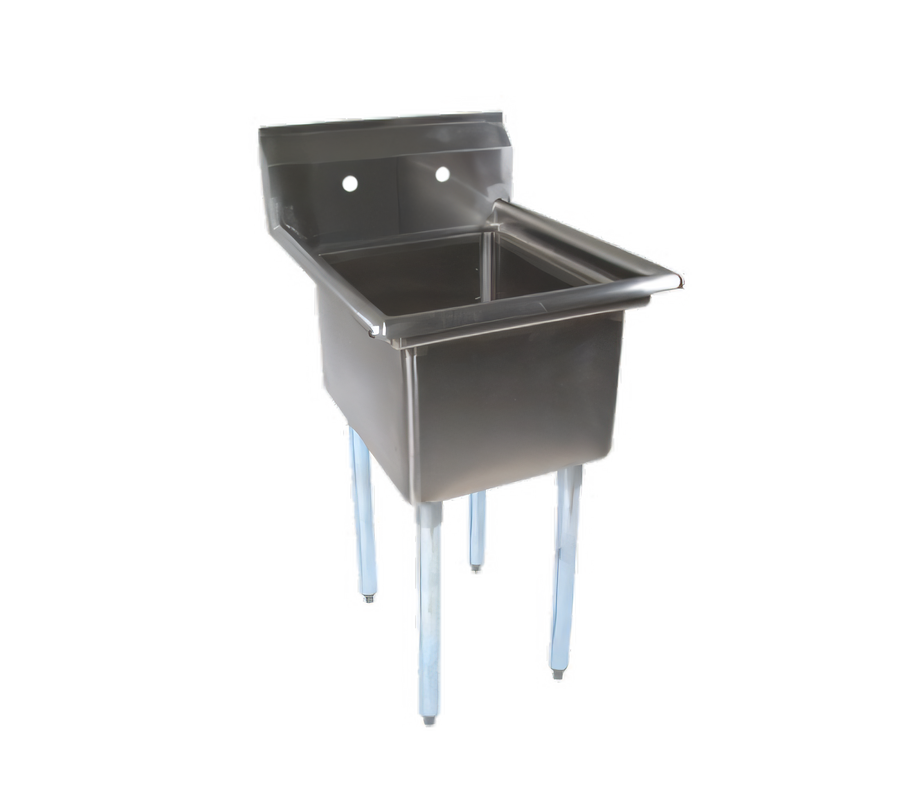

John Boos E-Series 1-Compartment Stainless Steel Sink with 18" x 24" x 14" Bowl and 9-3/4" Backsplash

SKU: E1S8-1824-14-X
$492.48
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

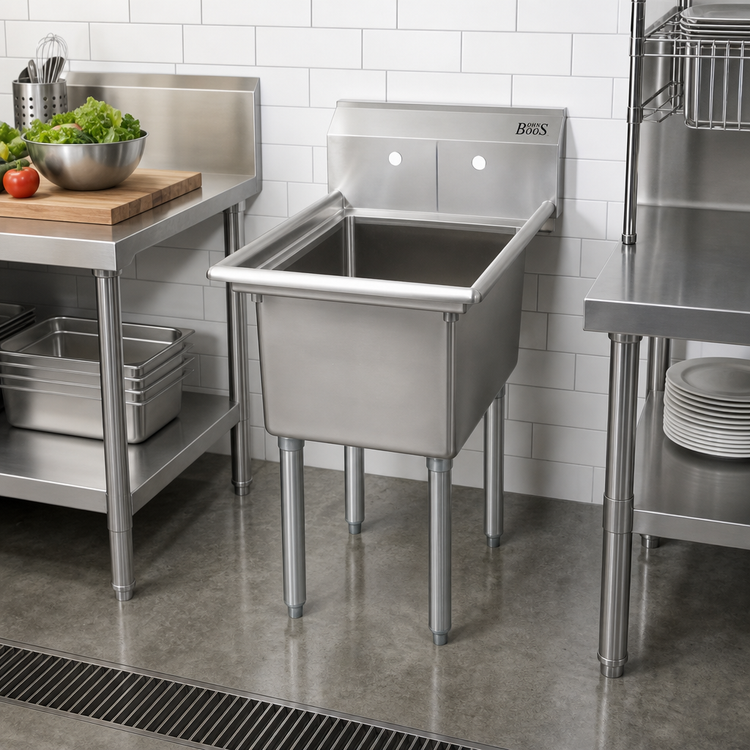

John Boos E-Series 1-Compartment Stainless Steel Sink with 18" x 24" x 14" Bowl and 9-3/4" Backsplash

Freestanding, Galvanized Legs & Gussets, 8" Faucet Centers

Built for busy prep and cleanup stations, this E-Series sink combines a deep single bowl, a protective boxed backsplash, and rugged stainless steel construction for dependable daily use.

  • Single-compartment sink with an 18" x 24" x 14" bowl for commercial washing and prep tasks.
  • 18-gauge Type 300 stainless steel construction with a #4 polish, satin finish.
  • 9-3/4" boxed backsplash with a 2" return and 45° top helps protect walls from splashes.
  • Splash-mount faucet holes on 8" centers simplify faucet installation.
  • Galvanized steel legs and gussets with adjustable plastic bullet feet provide stable support.
  • 3-1/2" die-stamped drain opening and coved bowl corners support drainage and easier cleanup.
  • NSF and CSA-Sanitation listed for commercial foodservice use.

Overall Dimensions:

23.0"W x 29.5"D x 43.75"H

Product Weight:

42.0 lb

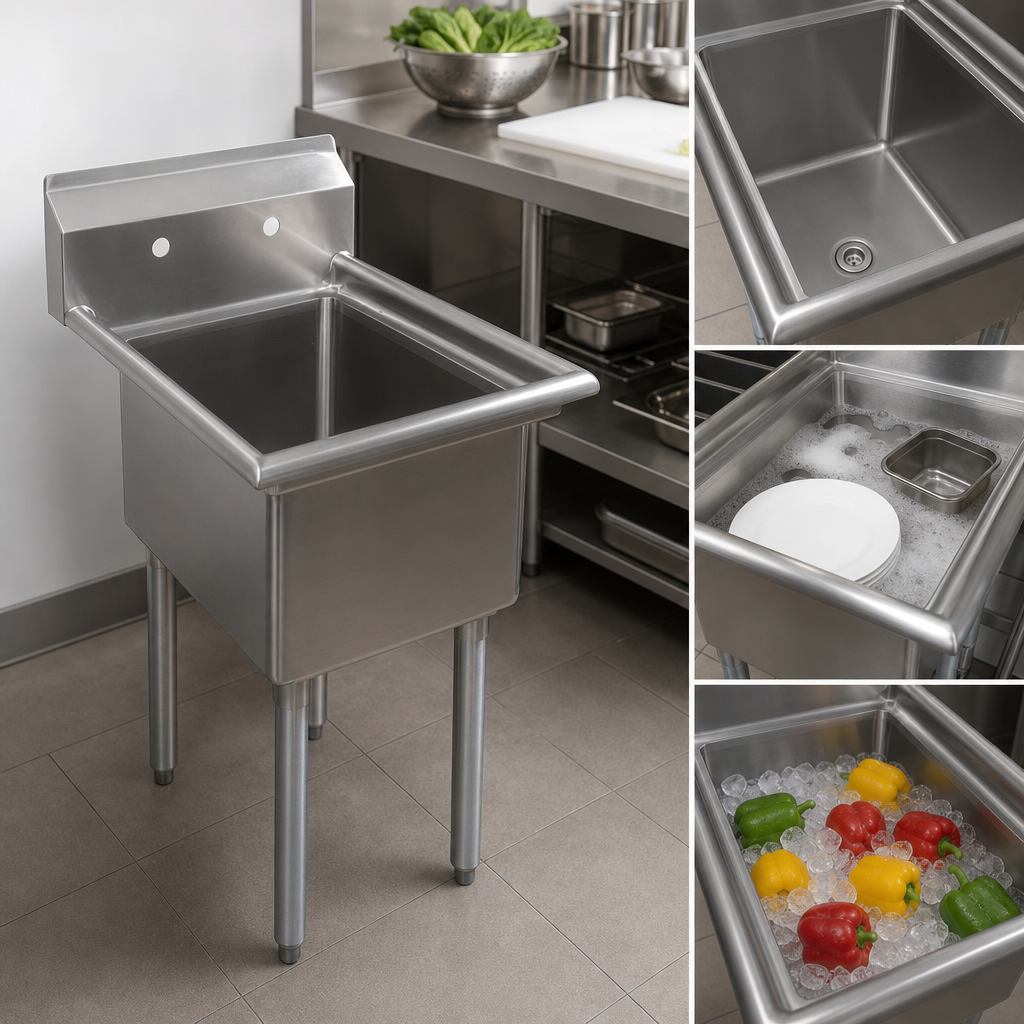

Single Bowl Work Area

One 18" W x 24" front-to-back x 14" deep compartment provides room for washing, rinsing, and prep.

Stainless Steel Construction

18-gauge Type 300 stainless steel top and bowl with a #4 polish, satin finish for durability and a clean appearance.

Boxed Backsplash

9-3/4" high backsplash includes a 2" return to the wall at a 45° angle plus a 1" tile edge.

Faucet Mounting

Includes splash-mount faucet holes with 8" centers and 1-1/8" openings in the backsplash.

Drainage Design

Bottom is formed for drainage to a 3-1/2" die-stamped drain opening.

Sturdy Base

Galvanized steel legs and gussets with adjustable plastic bullet feet help keep the sink stable.

Easy-Clean Details

Coved bowl corners and bullnosed outside corners promote safer handling and simpler cleaning.

Sanitation Listing

NSF and CSA-Sanitation listed.

Type Compartment Sink
Style E-Series
Installation Type Freestanding (With Legs)
Compartments 1
Compartment Width 18 Inches
Compartment Depth 24 Inches
Bowl Depth 14 Inches
Top Gauge 18 Gauge
Material 300 Series Stainless Steel
Finish Satin Finish
Base Construction Galvanized Steel
Base Type Legs
Backsplash Height 9-3/4 Inches
Faucet Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Shipping Width 23 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 42 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has one 18" W x 24" front-to-back x 14" deep compartment.
The boxed backsplash is 9-3/4" high with a 2" return to the wall at 45 degrees.
Yes. It includes splash-mount faucet holes with 8" centers and 1-1/8" openings.
The top and bowl are 18-gauge Type 300 stainless steel, and the base uses galvanized steel legs and gussets.
Yes. The sink includes adjustable plastic bullet feet.
Yes. It is NSF and CSA-Sanitation listed.
