John Boos

John Boos E-Series 1-Compartment Sink with Right Drainboard, 18" x 18" x 12" Bowl, 18 Gauge Stainless Steel

SKU: E1S8-18-12R18-X
$530.10
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

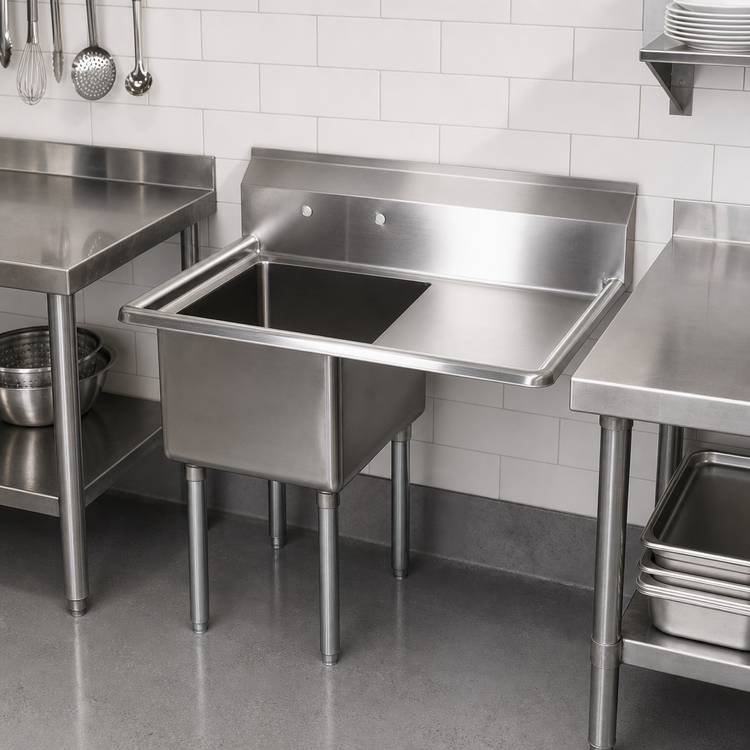

John Boos E-Series 1-Compartment Sink with Right Drainboard, 18" x 18" x 12" Bowl, 18 Gauge Stainless Steel

Galvanized Legs, Boxed Backsplash, Floor Model

A compact floor-standing sink that combines a deep single bowl, right-hand drainboard, and rugged galvanized base for efficient commercial prep and cleanup.

  • Single-compartment sink with a right-hand drainboard for efficient prep and drying.
  • 18" x 18" x 12" bowl built from 18-gauge Type 300 stainless steel.
  • 9-3/4" boxed backsplash helps protect the wall behind the sink.
  • Galvanized legs, gussets, and adjustable plastic bullet feet provide sturdy support.
  • Die-stamped drain opening, coved corners, and faucet-ready backsplash support easy use and cleaning.

Overall Dimensions:

38.5"W x 23.2"D x 43.75"H

Product Weight:

47.0 lb

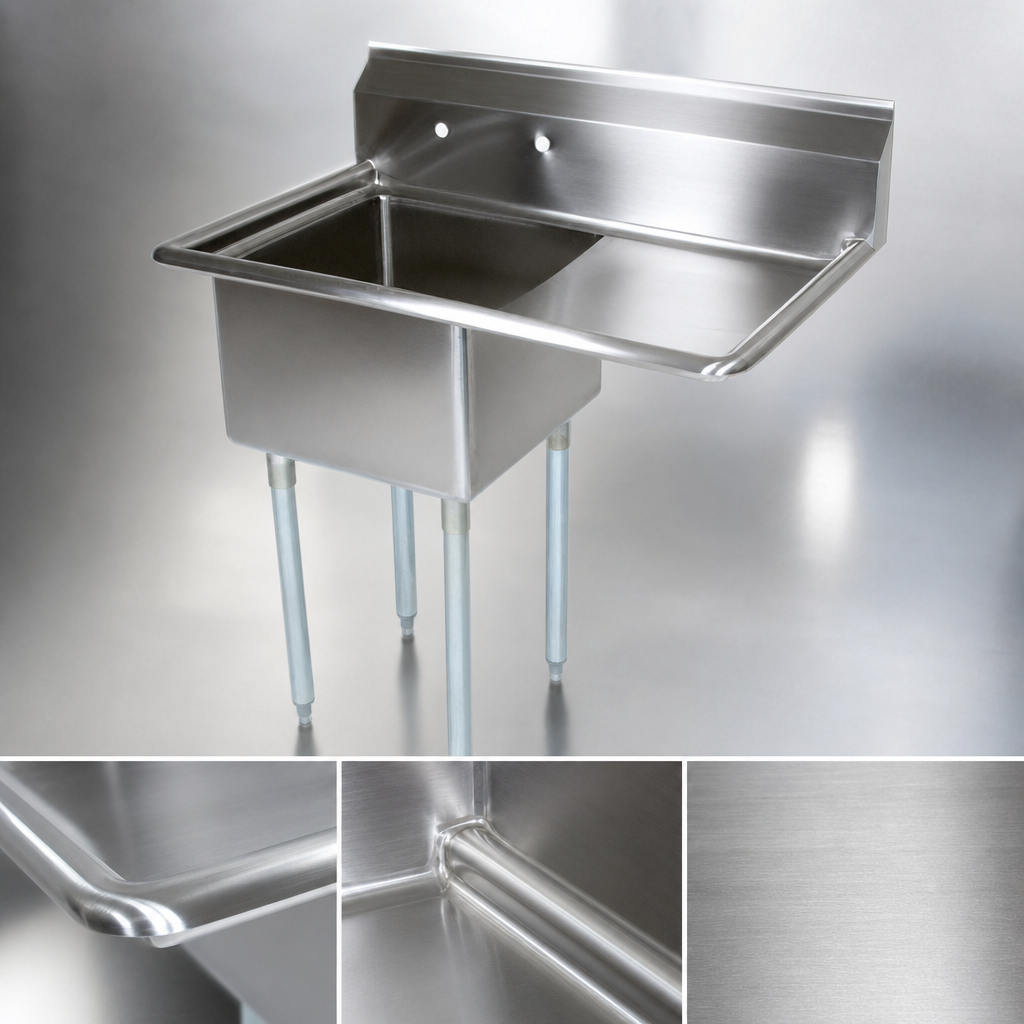

18-Gauge Type 300 Stainless Steel

Durable stainless steel top and bowl construction with a #4 polish, satin finish.

Single 18" x 18" x 12" Compartment

Deep single bowl provides plenty of room for washing, soaking, and prep tasks.

Right-Hand Drainboard

Built-in drainboard adds a convenient landing area on the right side of the sink.

Boxed Backsplash

9-3/4" high backsplash includes a 45° top, 2" return to wall, and 1" tile edge.

Coved Bowl Corners

3/4" radius corners help simplify cleanup and reduce buildup in the bowl.

Die-Stamped Drain Opening

3-1/2" drain opening is formed into the bowl bottom to promote drainage.

Galvanized Steel Base

Galvanized legs and gussets with adjustable plastic bullet feet provide stable support and leveling.

Splash-Mount Faucet Holes

Backsplash includes faucet holes on 8" centers for faucet installation.

Type Compartment Sink
Style E-Series
Installation Type Floor Model (With Legs)
Compartments 1
Compartment Size 18 Inches x 18 Inches x 12 Inches
Drainboard Side Right
Top Gauge 18 Gauge
Material 300 Series Stainless Steel
Finish Satin Finish
Base Construction Galvanized Steel
Splash Height 9-3/4 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Shipping Width 39 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 47 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall size is 38.5" W x 23.2" D x 43.75" H.
The single compartment measures 18" front-to-back x 18" side-to-side x 12" deep.
This model has a right-hand drainboard.
It is built from 18-gauge Type 300 stainless steel with galvanized legs and gussets.
The sink has a 9-3/4" boxed backsplash with a 45° top, 2" return to wall, and splash-mount faucet holes on 8" centers.
