Key specifications

Dimensions
38.5"W × 23.2"D × 43.75"H
Type
Compartment Sink
Style
Right Drainboard
Installation Type
Floor Model
Material
Stainless Steel
Base Material
Galvanized Steel
Spec sheet
John Boos SKU: E1S8-18-12R18 UPC: 662969009786

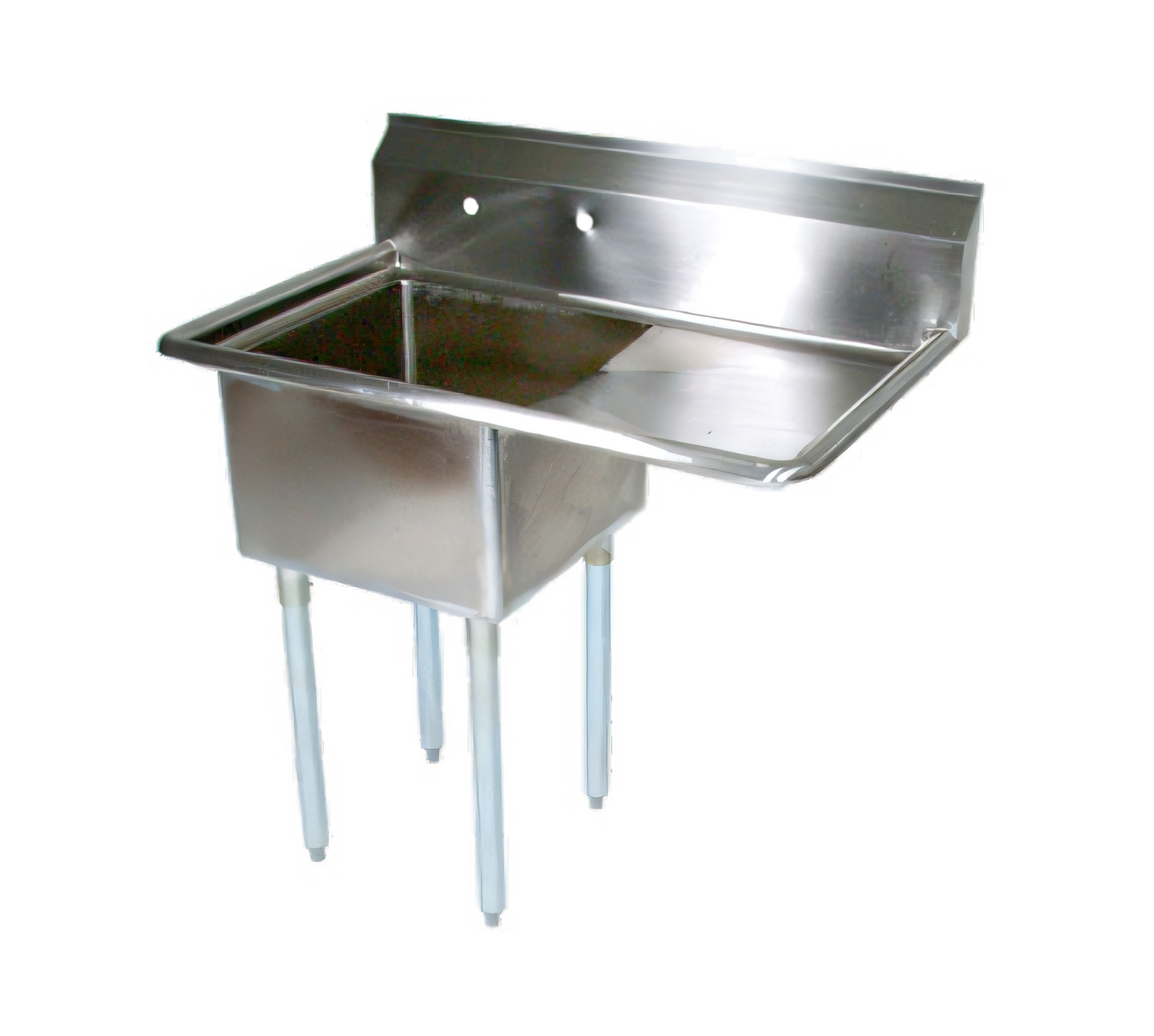

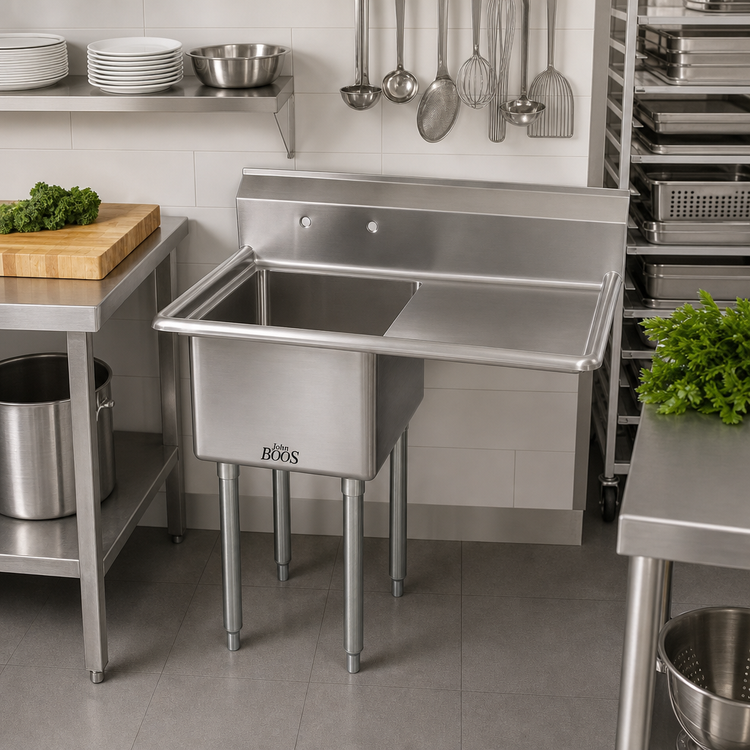

John Boos E1S8-18-12R18 1-Compartment Sink, Right Drainboard

$601.92
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $56/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style Right Drainboard
Installation Type Floor Model
Material Stainless Steel
Base Material Galvanized Steel
Finish Satin
Compartments 1
Compartment Size 18 in W x 18 in D x 12 in Deep
Drainboard Side Right
Drainboard Length 18 in
Top Gauge 18 Gauge
Stainless Steel Series 300 Series
Backsplash Height 9.75 in
Backsplash Return 2 in
Faucet Hole Centers 8 in
Drain Opening 3.5 in
Foot Type Adjustable Plastic Bullet Feet

Description

The John Boos E1S8-18-12R18 is a 1-compartment floor sink with an 18 x 18 x 12 inch bowl and an 18-inch right drainboard.

Its bowl and top are 18-gauge Type 300 stainless steel with a #4 polish and satin finish. The sink has a 9-3/4-inch boxed backsplash with a 45-degree top and 2-inch return, plus galvanized legs and gussets with adjustable plastic bullet feet.

  • Overall size: 38-1/2 in W x 23-1/5 in D x 43-3/4 in H
  • Faucet holes: one set of splash-mount holes on 8-inch centers
  • Drain opening: 3-1/2-inch die-stamped opening
  • Certifications: NSF and CSA-Sanitation

Overall Dimensions:

38.5"W x 23.2"D x 43.75"H

Product Weight:

47.0 lb

Right drainboard

An 18-inch drainboard is positioned on the right side.

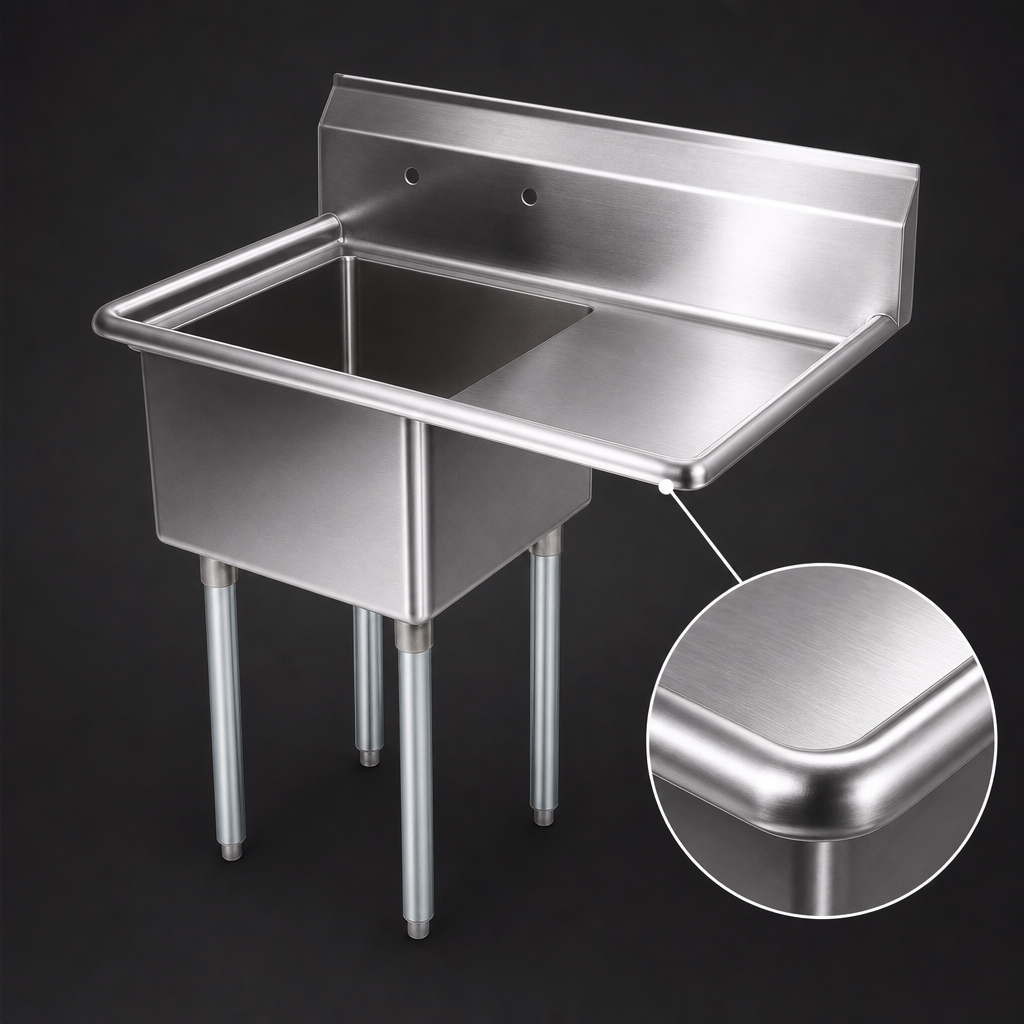

Stainless steel bowl and top

The bowl and top use 18-gauge Type 300 stainless steel with a #4 polish and satin finish.

Boxed backsplash

The 9-3/4-inch backsplash has a 45-degree top and 2-inch return.

Splash-mount faucet holes

One set of faucet holes is provided with 8-inch centers.

Galvanized base

The legs and gussets are galvanized steel, with adjustable plastic bullet feet.

Die-stamped drain opening

The compartment has a 3-1/2-inch die-stamped drain opening.

Frequently Asked Questions

The overall dimensions are 38.5 in W x 23.2 in D x 43.75 in H.
The single compartment measures 18 in wide x 18 in front-to-back x 12 in deep.
The 18-inch drainboard is on the right side.
The bowl and top are 18-gauge Type 300 stainless steel. The legs and gussets are galvanized steel.
Yes. It has one set of splash-mount faucet holes with 8-inch centers.
The sink has NSF and CSA-Sanitation certifications.
