John Boos

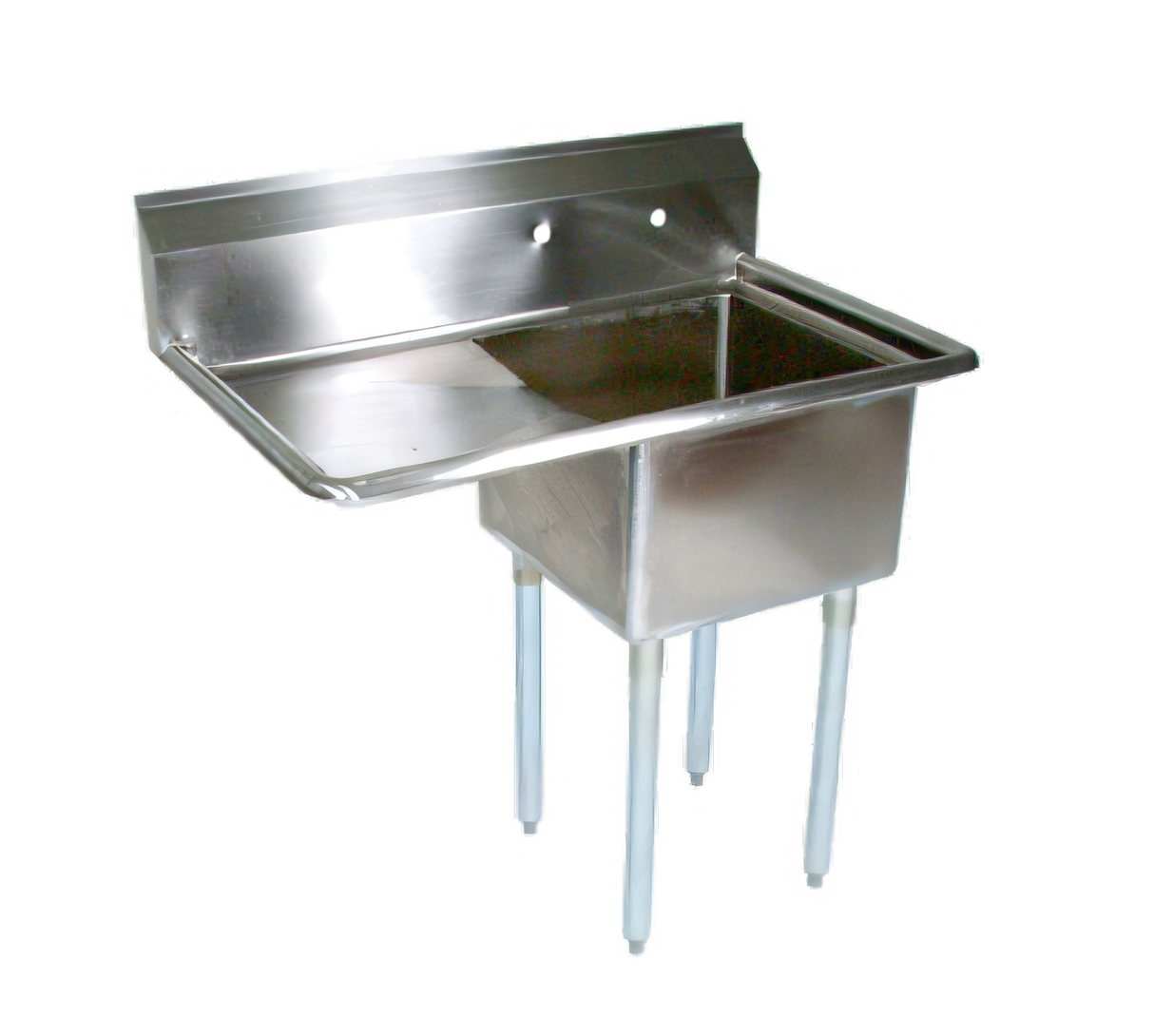

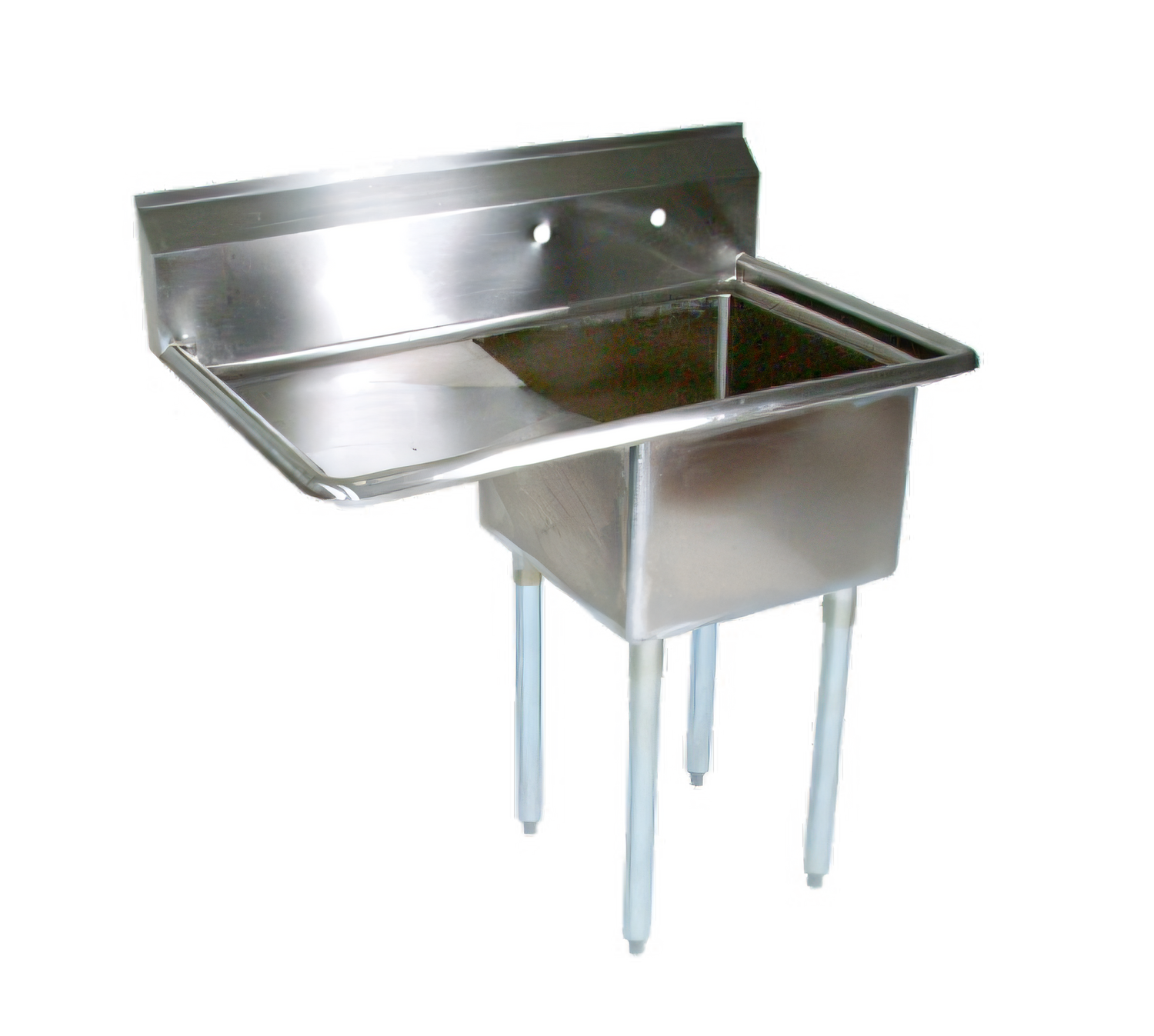

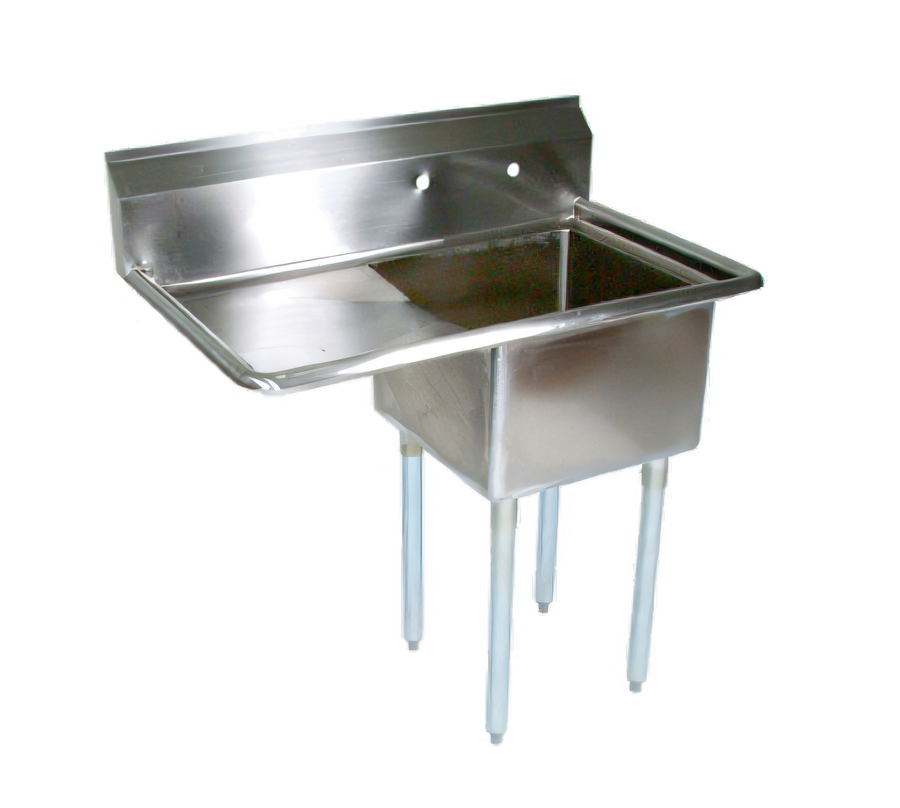

John Boos E-Series 1-Compartment Sink with Left Drainboard, 18" x 18" x 12" Bowl

SKU: E1S8-18-12L18-X
$530.10
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 1-Compartment Sink with Left Drainboard, 18" x 18" x 12" Bowl

38-1/2" W x 23.2" D x 43-3/4" H, 18-Gauge 300 Series Stainless Steel, Galvanized Legs

A durable, space-saving commercial sink with a left drainboard, deep 18-inch bowl, and stainless steel construction for efficient prep and wash stations.

  • Single-compartment sink with an integrated left drainboard for efficient workflow.
  • 18" x 18" bowl is 12" deep for practical washing and prep tasks.
  • 18-gauge Type 300 stainless steel top and bowl with a satin finish.
  • 9-3/4" boxed backsplash with a 45° return helps protect the wall from splashes.
  • Includes 1-1/8" faucet holes on 8" centers and a 3-1/2" die-stamped drain opening.
  • Galvanized steel legs, gussets, and plastic bullet feet provide stable floor support.

Overall Dimensions:

38.5"W x 23.2"D x 43.75"H

Product Weight:

47.0 lb

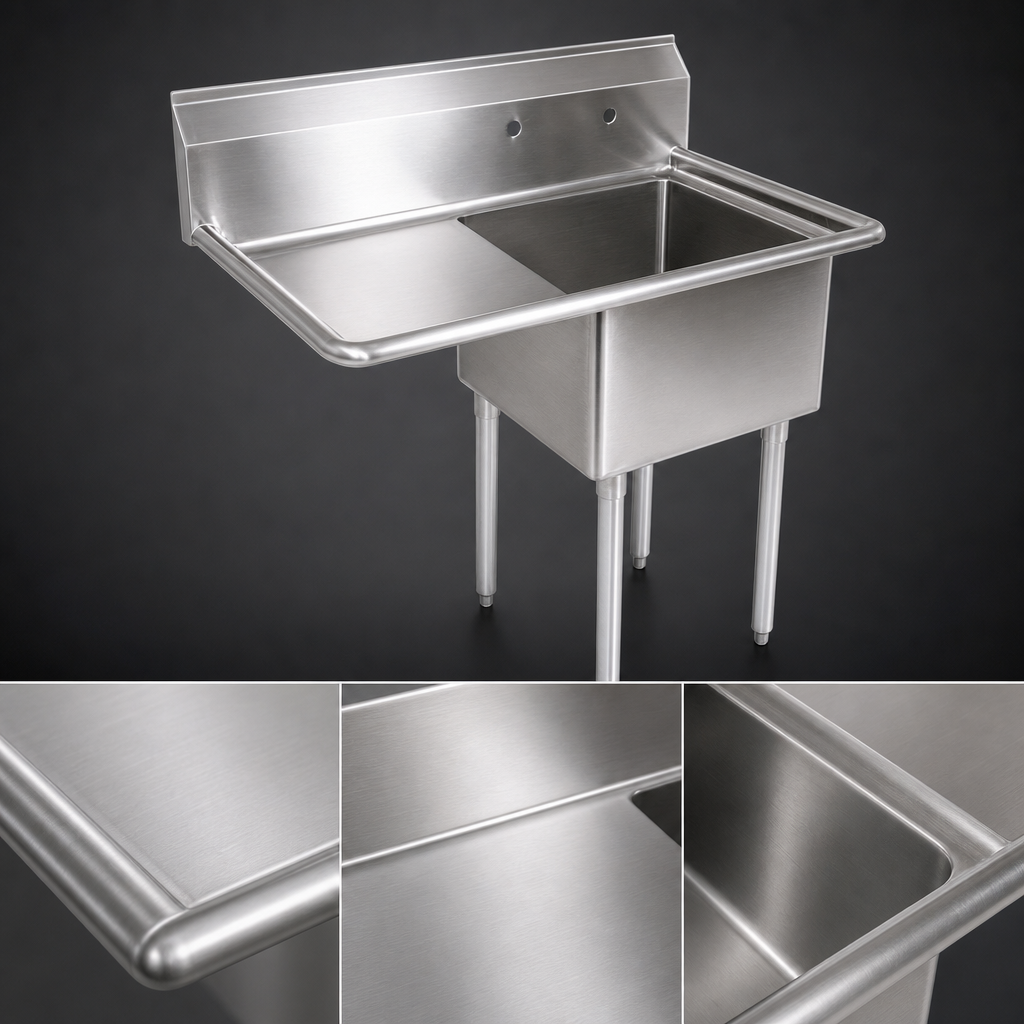

18-Gauge Type 300 Stainless Steel

Durable stainless steel top and bowl construction with a #4 polish and satin finish.

12-Inch Deep Bowl

One 18" x 18" compartment provides a workable basin depth for sink tasks.

Left Drainboard

Built-in 18" drainboard on the left side adds space for draining or staging items.

Boxed Backsplash

9-3/4" high backsplash includes a 45° return to help contain splashes and protect the wall.

Faucet Holes

Splash-mount faucet holes are set on 8" centers with 1-1/8" openings.

Die-Stamped Drain Opening

3-1/2" drain opening supports efficient drainage from the bowl.

Galvanized Support Base

Galvanized steel legs and gussets provide a sturdy base for floor installation.

Adjustable Bullet Feet

Plastic bullet feet make it easier to level the sink on uneven floors.

Coved And Bullnosed Corners

Rounded interior corners and bullnosed outside edges improve cleanability and safety.

Type Compartment Sink
Style 1 Compartment With Left Drainboard
Installation Type Floor Model
Compartments 1
Material Stainless Steel
Base Construction Galvanized Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Selling Unit Each
Units Per Case 1
Shipping Width 39 Inches
Shipping Depth 24 Inches
Shipping Height 44 Inches
Shipping Weight 47 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

This model is configured with a left drainboard.
It has one 18" x 18" compartment that is 12" deep.
Overall size is 38-1/2" W x 23-1/5" D x 43-3/4" H.
The sink uses 18-gauge Type 300 stainless steel with galvanized legs and gussets.
It includes splash-mount faucet holes with 8" centers and 1-1/8" openings.
The bowl has a 3-1/2" die-stamped drain opening.
