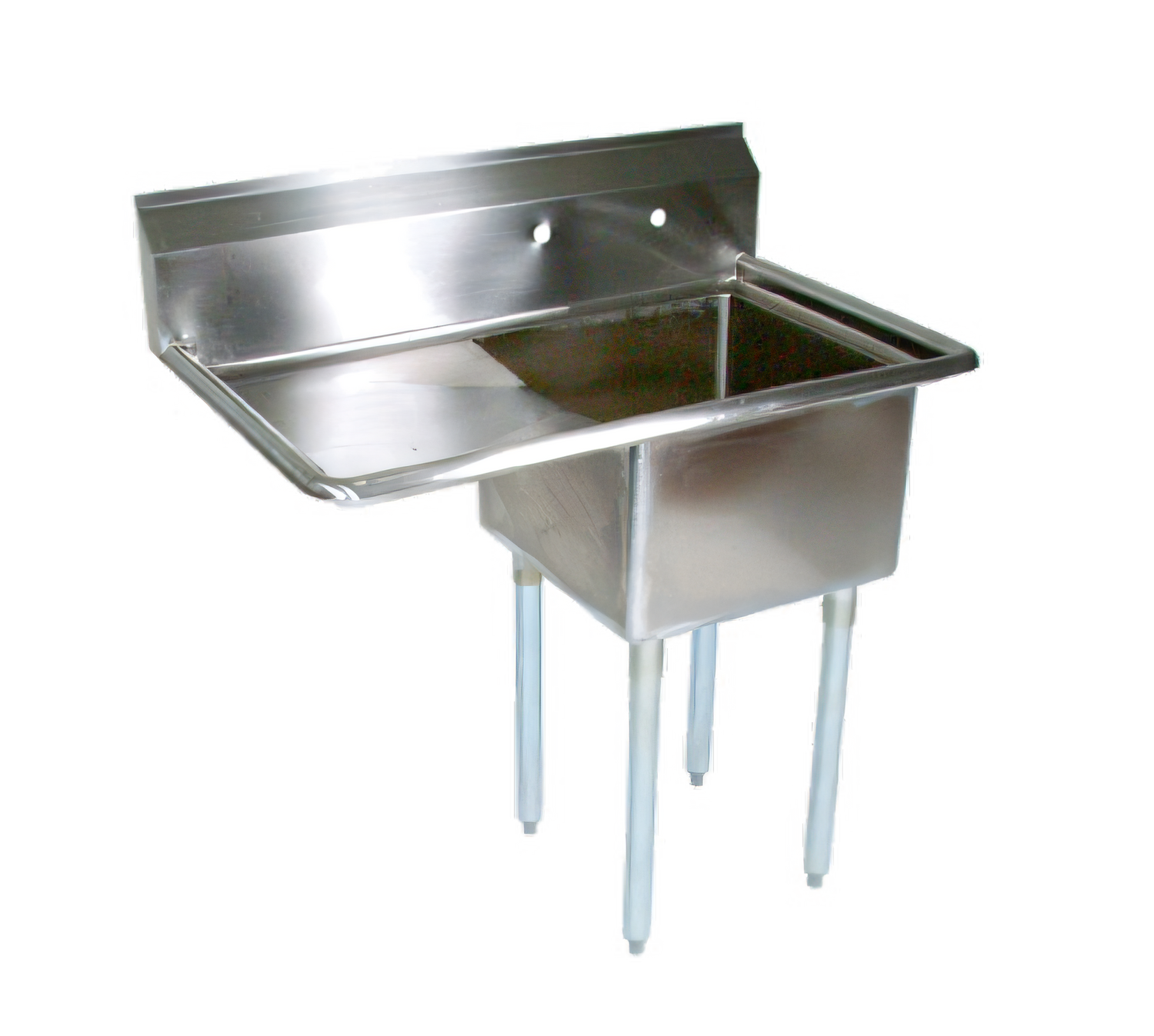

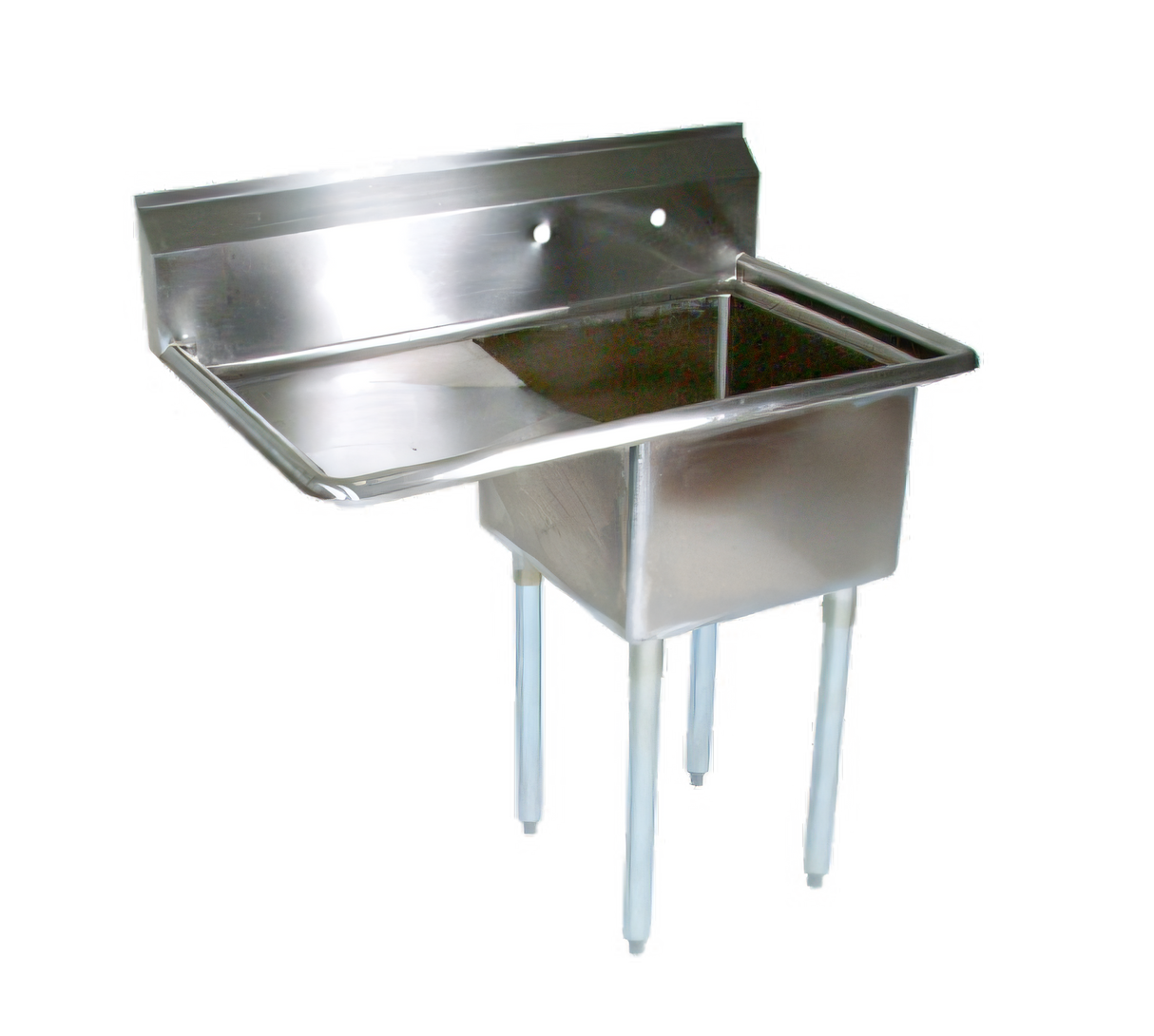

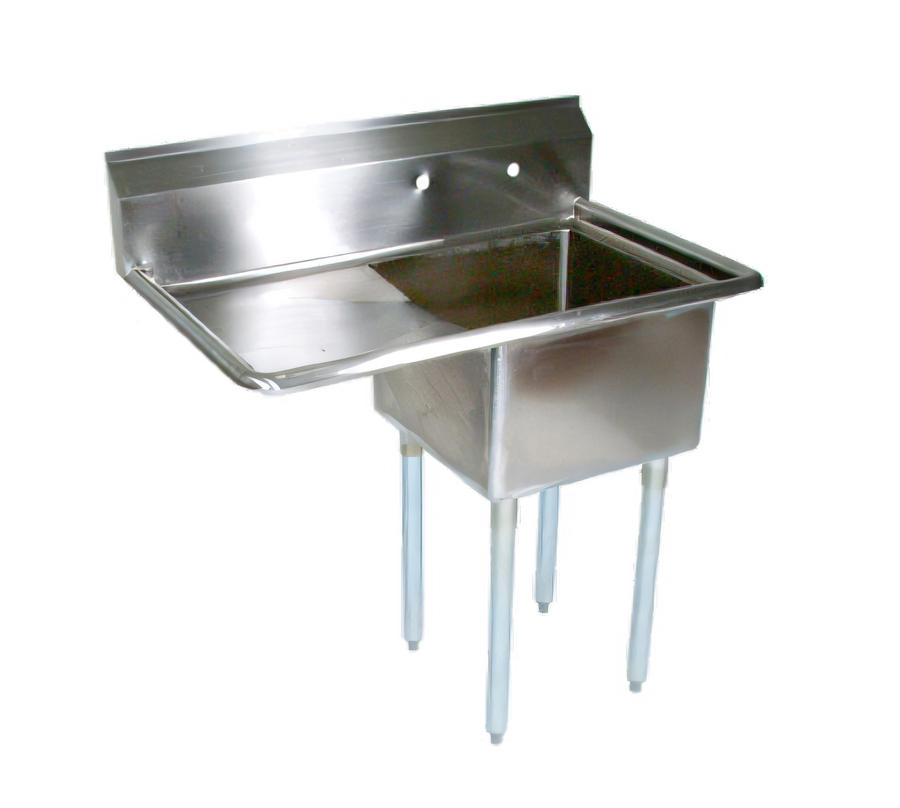

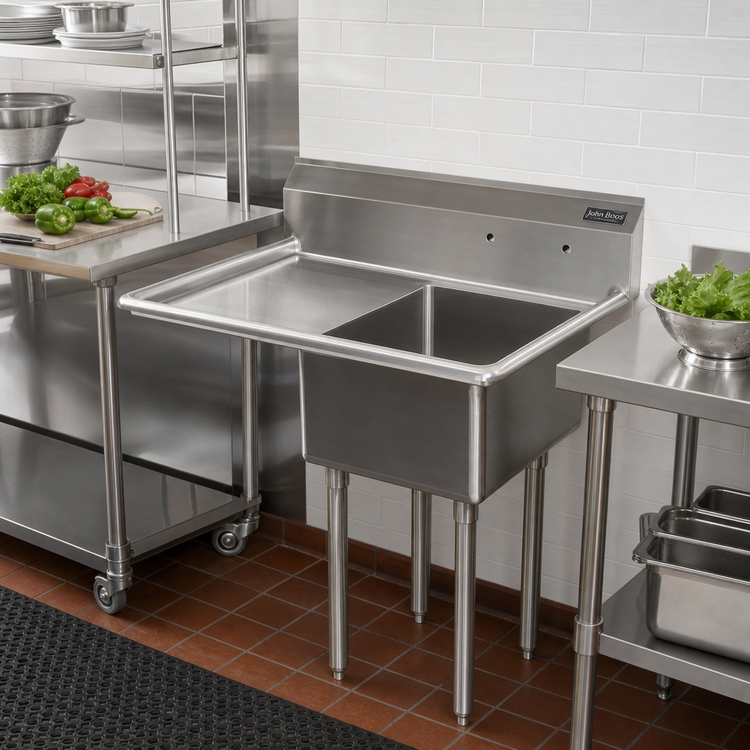

John Boos E-Series 1-Compartment Stainless Steel Sink with Left Drainboard — 18 in x 18 in Bowl, 12 in Deep (38.5 in Overall Width)
John Boos E-Series 1-Compartment Stainless Steel Sink with Left Drainboard — 18 in x 18 in Bowl, 12 in Deep (38.5 in Overall Width)
18-Gauge 300-Series Stainless Steel Top • Galvanized Legs • 9-3/4 in Boxed Backsplash
Commercial-grade 18-gauge 300-series stainless steel sink with left-hand drainboard, 12 in deep bowl, and NSF/CSA sanitation certifications for reliable kitchen performance.
- 18-gauge Type 300 stainless steel top with #4 satin finish for durability and easy cleaning
- Single compartment — 18 in x 18 in inside bowl, 12 in deep with 3/4 in coved corners and 3-1/2 in die-stamped drain
- Left-hand full-length drainboard and 9-3/4 in boxed backsplash with 2 in return at a 45° top
- Galvanized 1-5/8 in round legs, galvanized gussets and 1 in adjustable plastic bullet feet for stable floor mounting
- TIG-welded construction with polished exposed welds; NSF and CSA-Sanitation certified
Overall Dimensions:
38.5"W x 23.2"D x 43.75"HProduct Weight:

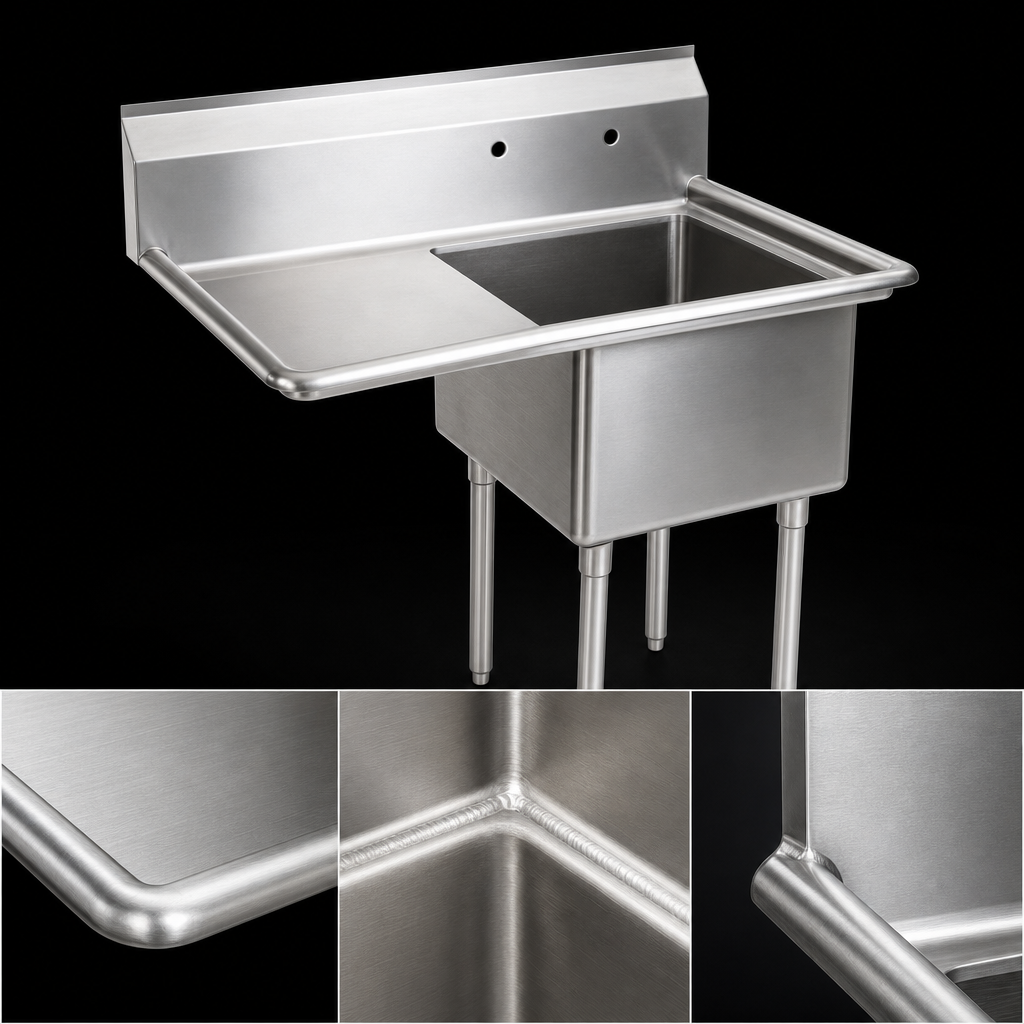

47.0 lbConstruction
18-gauge Type 300 stainless steel top and bowls with #4 satin polish; TIG welded assembly with exposed welds polished to match adjacent surfaces.
Bowl
One compartment with inside dimensions 18 in (side-to-side) x 18 in (front-to-back), 12 in deep; 3/4 in coved radius corners; bowl bottom formed for drainage to a 3-1/2 in die-stamped opening.
Backsplash
Full-length 9-3/4 in boxed backsplash with 2 in return to wall, 45° top and 1 in tile edge; includes 1-1/8 in faucet holes on 8 in centers (splash-mount).
Drainboard
Integral left-hand full-length drainboard for drying and staging.
Base & Legs
Galvanized steel base with galvanized gussets and standard 1-5/8 in round galvanized legs.
Feet
1 in adjustable plastic bullet feet for leveling on uneven floors.
Sanitation & Certification
Designed for commercial use and certified to NSF and CSA-Sanitation standards.
Care & Maintenance
John Boos recommends non-chloride cleaners and provides a stainless steel care kit (Bar Keepers Friend, Scotch-Brite pad, stainless polisher) for restoration and routine maintenance.
