John Boos

John Boos E1S8-18-12-X 1-Compartment Stainless Steel Sink, 18 x 18 x 12 Bowl, 9-3/4-Inch Backsplash, Galvanized Legs

SKU: E1S8-18-12-X
$389.88
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

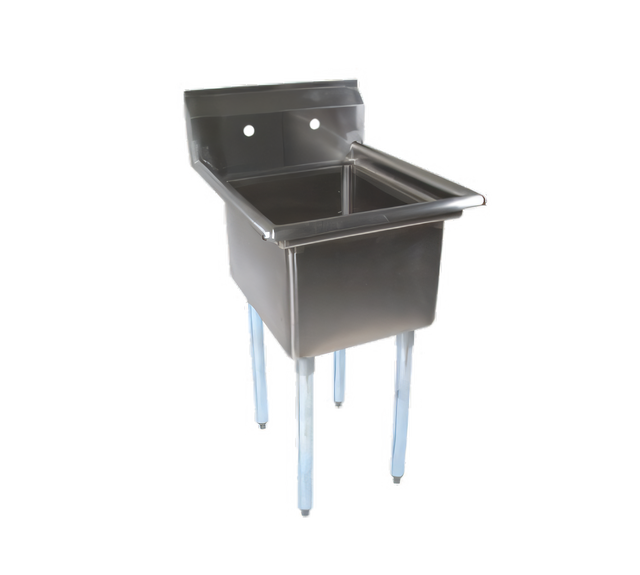

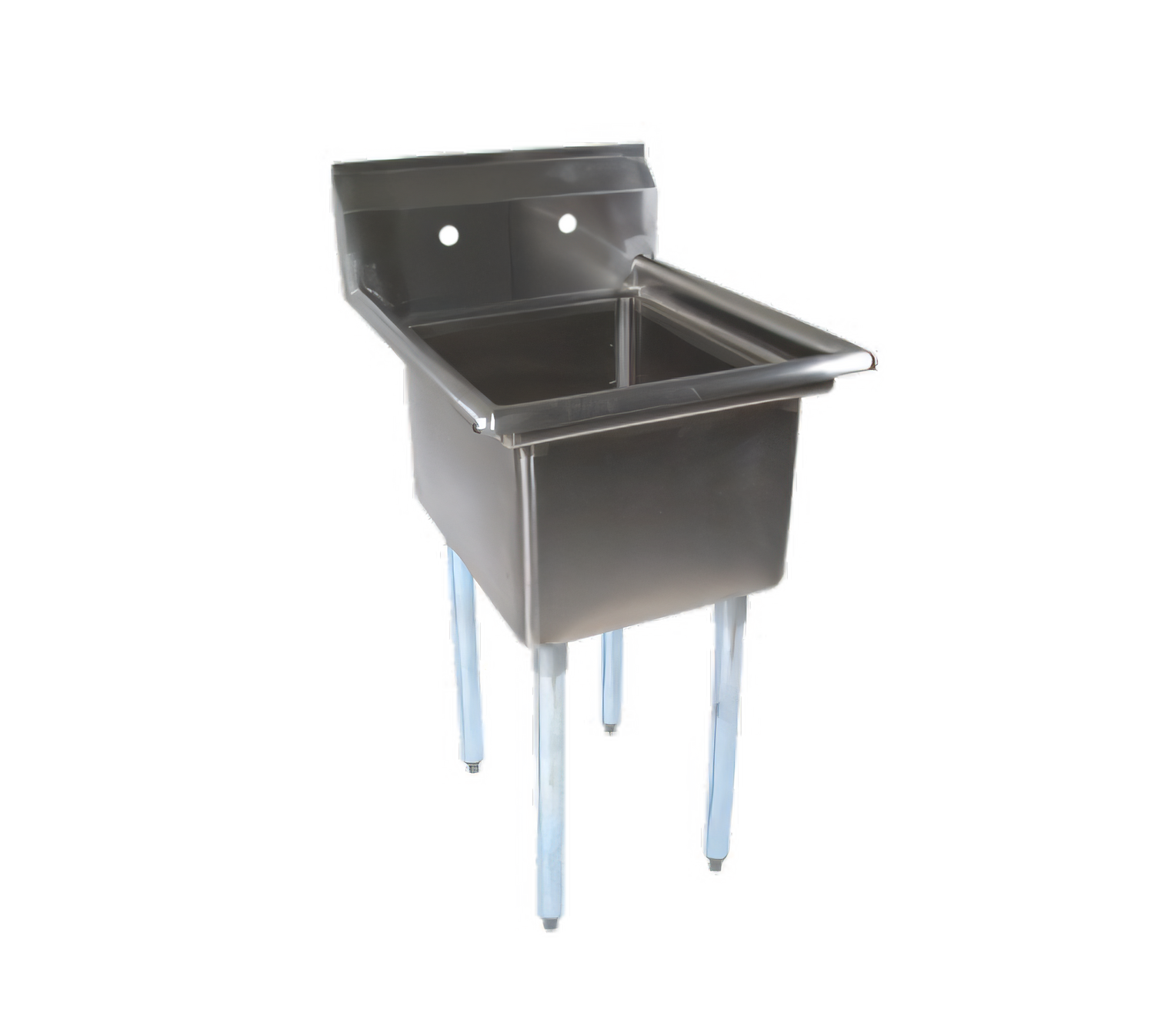

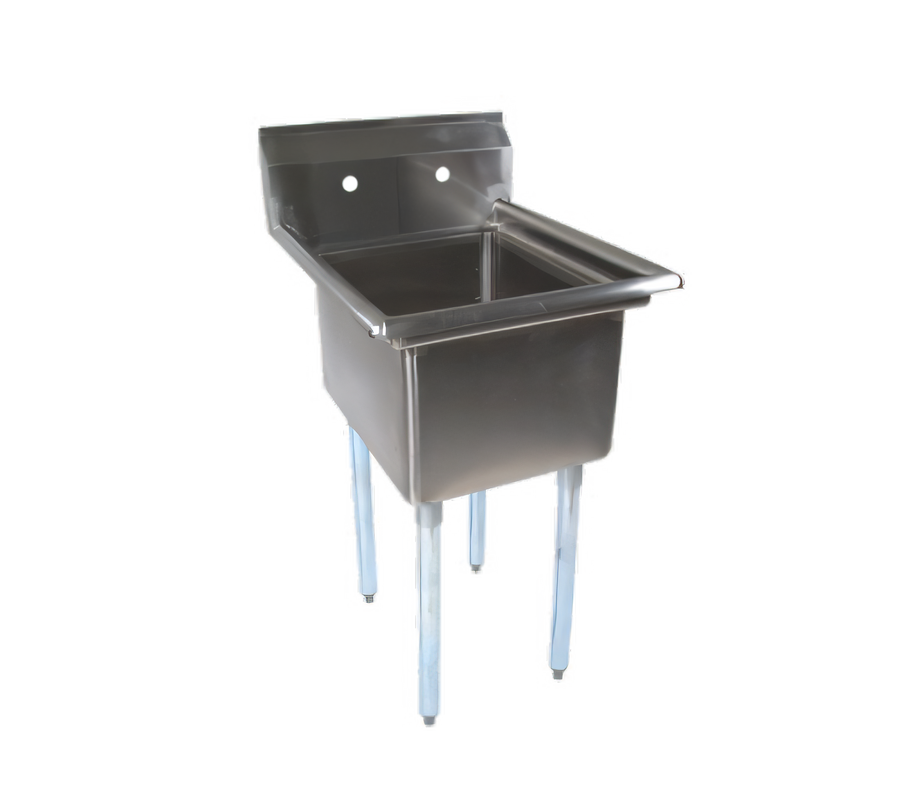

John Boos E-Series 1-Compartment Stainless Steel Sink, 18 x 18 x 12 Bowl, 9-3/4-Inch Boxed Backsplash, Galvanized Legs

18 Gauge, Type 300 Stainless Steel, Floor Model

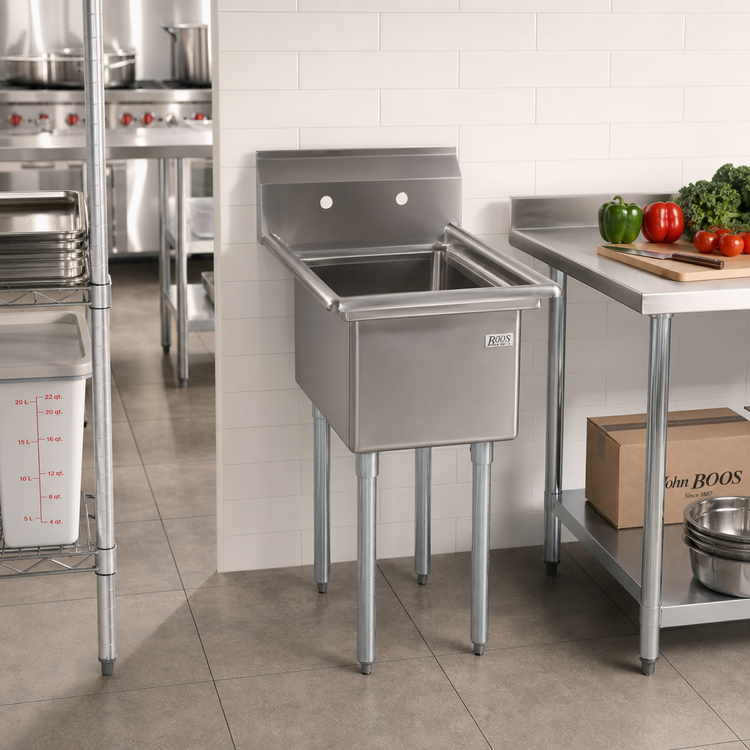

A compact one-compartment sink built from 18-gauge Type 300 stainless steel for dependable commercial prep and wash-up use.

  • Compact one-compartment design delivers an 18 x 18 x 12 bowl without drainboards for a space-saving footprint.
  • 18-gauge Type 300 stainless steel top and bowl with satin finish are built for daily commercial use.
  • 9-3/4-inch boxed backsplash with a 2-inch return helps protect the wall behind the sink.
  • Galvanized steel legs, gussets, and base construction provide sturdy floor-mounted support.
  • One set of splash-mount faucet holes and a 3-1/2-inch die-stamped drain opening support straightforward installation.
  • Coved bowl corners and bullnosed outer edges help improve sanitation and reduce sharp edges.

Overall Dimensions:

23.0"W x 23.2"D x 43.75"H

Product Weight:

36.0 lb

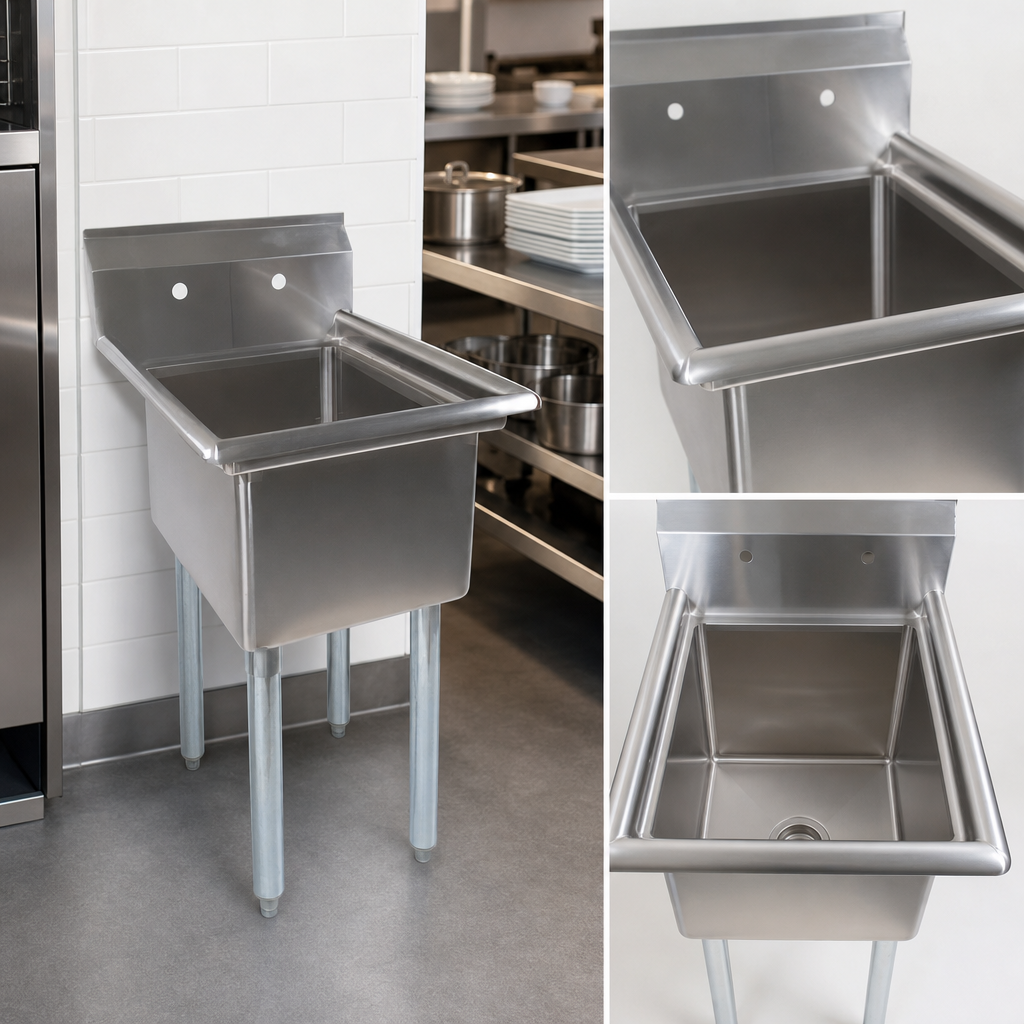

Single 18 x 18 x 12 Compartment

Compact one-bowl sink design provides a practical wash station in a small footprint.

Single 18 x 18 x 12 Compartment

18-Gauge Type 300 Stainless Steel

Top and bowl are built from 18-gauge Type 300 stainless steel with a #4 polish, satin finish, and polished exposed welds.

9-3/4-Inch Boxed Backsplash

Full-length backsplash includes a 2-inch return at 45 degrees and a 1-inch tile edge to help protect the wall.

Splash-Mount Faucet Holes

Includes one set of 1-1/8-inch faucet holes in the backsplash with 8-inch centers.

3-1/2-Inch Die-Stamped Drain Opening

Formed bowl drains efficiently through a die-stamped opening.

Galvanized Steel Base

Galvanized steel legs, gussets, and base construction provide durable floor support.

Adjustable Bullet Feet

1-inch plastic bullet feet help level the sink on uneven floors.

Rounded Corners

Coved bowl corners and bullnosed outside corners improve safety and make cleaning easier.

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment Equipment John Boos New Arrivals Plumbing & Water Treatment Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations
Type Compartment Sink
Style 1-Compartment
Installation Type Floor Model (With Legs)
Compartments 1
Material Stainless Steel
Finish #4 Polish, Satin Finish
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Type Legs
Base Construction Galvanized Steel
Backsplash Height 9-3/4 Inches
Backsplash Return 2 Inches
Faucet Hole Size 1-1/8 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Width 23 Inches
Depth 24 Inches
Height 44 Inches
Weight 36 Pounds

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The sink has one 18-inch front-to-back by 18-inch side-to-side compartment that is 12 inches deep.
Overall size is 23 inches wide x 23-1/5 inches deep x 43-3/4 inches high.
It is made from 18-gauge Type 300 stainless steel with a #4 polish, satin finish.
Yes. It includes a 9-3/4-inch boxed backsplash with a 2-inch return at 45 degrees, plus one set of splash-mount faucet holes with 8-inch centers.
The sink uses galvanized steel legs and gussets with adjustable plastic bullet feet.
The bowl has a 3-1/2-inch die-stamped drain opening.
