John Boos

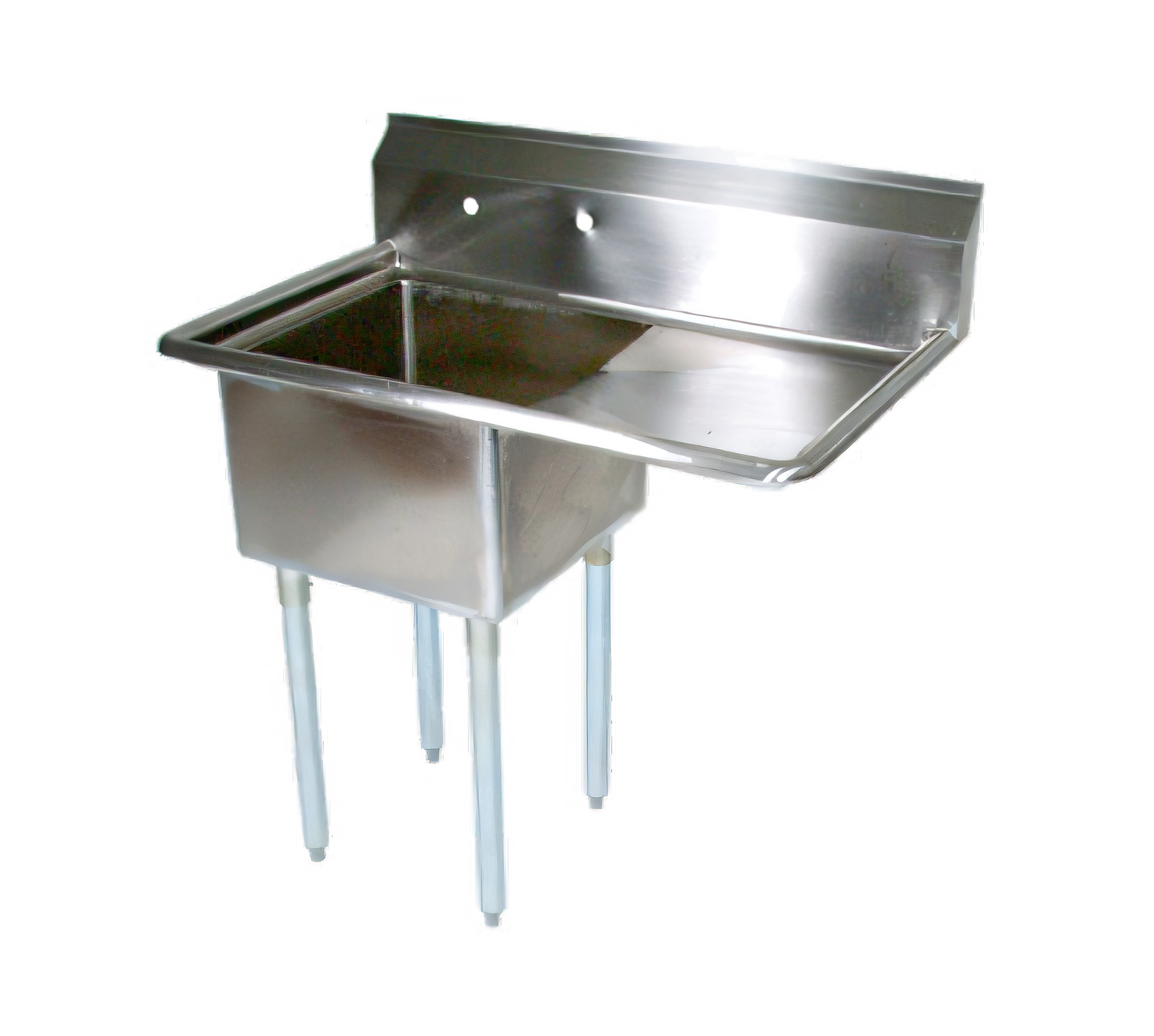

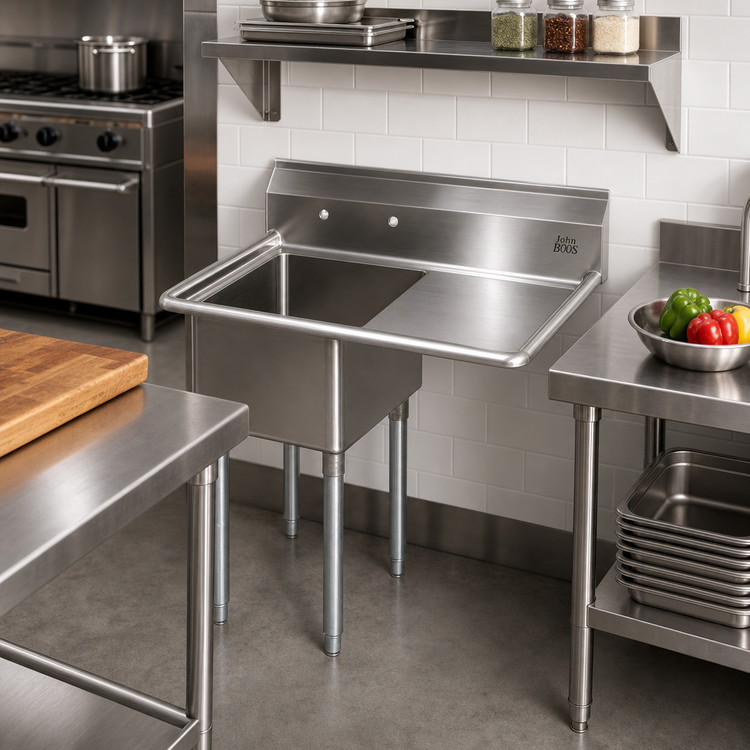

John Boos E-Series 1-Compartment Sink with Right Drainboard, 16 x 20 x 12-Inch Bowl

SKU: E1S8-1620-12R18
GTIN: 662969009120
$695.02
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series 1-Compartment Sink with Right Drainboard, 16 x 20 x 12-Inch Bowl

18-Gauge 300-Series Stainless Steel; Galvanized Legs; Overall Size 36-1/2 Inches W x 25-1/2 Inches D x 43-3/4 Inches H

A durable one-compartment sink with a right-side drainboard, deep 16 x 20 x 12-inch bowl, and heavy-duty galvanized base for busy commercial prep areas.

  • 1-compartment sink with an 18-inch right drainboard for added landing and drip-dry space.
  • 16 x 20 x 12-inch bowl provides a practical work area for washing and prep.
  • 18-gauge Type 300 stainless steel top and bowl with a satin finish.
  • 9-3/4-inch boxed backsplash with 45° top and splash-mount faucet holes on 8-inch centers.
  • Galvanized steel legs and gussets with adjustable plastic bullet feet.
  • Overall size measures 36-1/2 inches wide x 25-1/2 inches deep x 43-3/4 inches high.

Overall Dimensions:

36.5"W x 25.5"D x 43.75"H

Product Weight:

47.0 lb

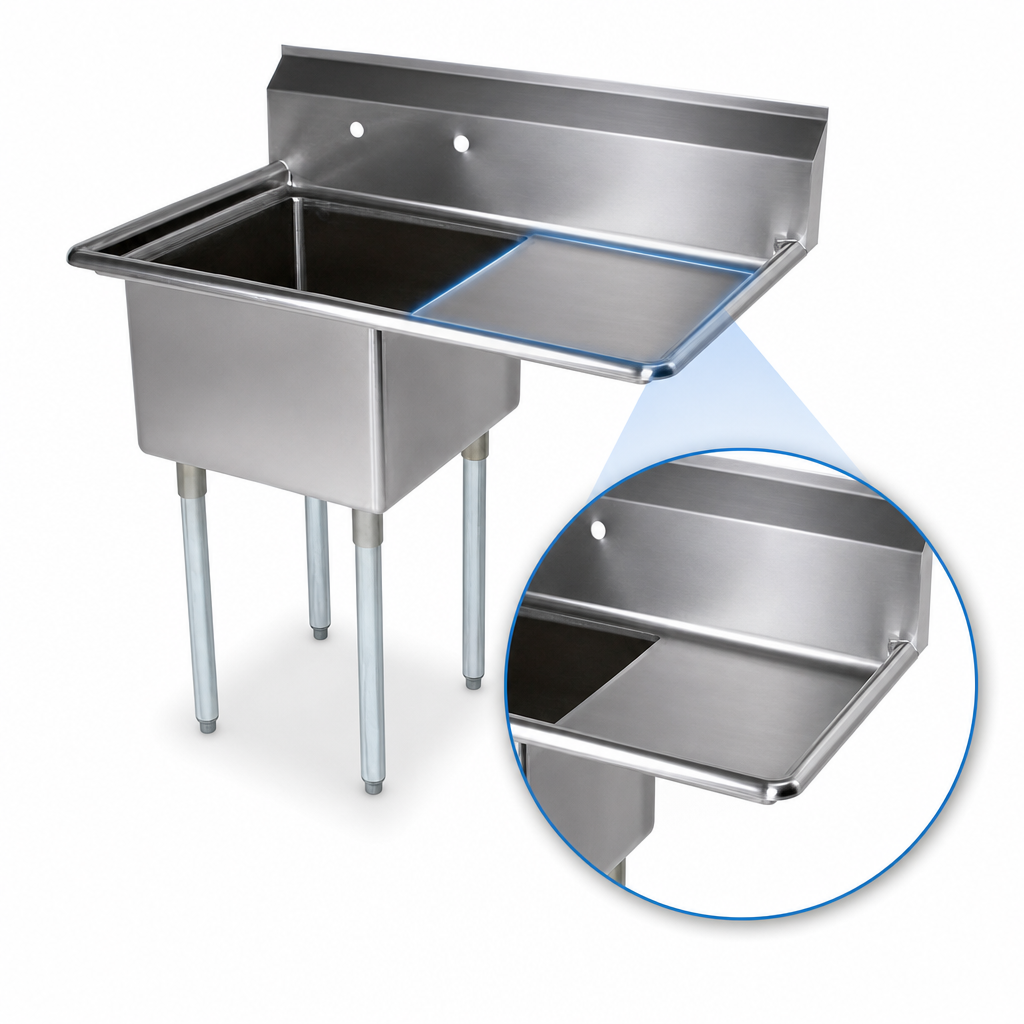

Right-Hand Drainboard

Built with an 18-inch drainboard on the right side to give operators extra landing space and help keep water off the work area.

Single Deep Bowl

Includes one 16-inch wide x 20-inch front-to-back x 12-inch deep compartment for general wash and prep tasks.

18-Gauge Stainless Steel Construction

Made with Type 300 stainless steel top and bowl in 18-gauge thickness for durable commercial use.

Boxed Backsplash

Features a 9-3/4-inch high boxed backsplash with a 45° top and 2-inch return to the wall to help contain splashes.

Splash-Mount Faucet Holes

Backsplash includes faucet holes on 8-inch centers for splash-mount faucet installation.

Galvanized Base With Bullet Feet

Supported by galvanized steel legs and gussets with adjustable plastic bullet feet for leveling.

Die-Stamped Drain Opening

Bowl bottom is formed for drainage to a 3-1/2-inch die-stamped opening.

Type Compartment Sink
Style With Right Drainboard
Installation Type Floor Model
Compartments 1
Drainboard Side Right
Drainboard Length 18 Inches
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 12 Inches
Backsplash Height 9-3/4 Inches
Backsplash Return 2 Inches
Faucet Hole Size 1-1/8 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Material Stainless Steel
Interior Finish Stainless Steel
Finish Satin Finish
Base Construction Galvanized Steel
Shipping Width 37 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 47 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

This model includes an 18-inch drainboard on the right side.
The bowl measures 16 inches wide x 20 inches front-to-back x 12 inches deep.
Overall size is 36-1/2 inches wide x 25-1/2 inches deep x 43-3/4 inches high.
The backsplash has 1-1/8-inch faucet holes on 8-inch centers.
The top and bowl are 18-gauge Type 300 stainless steel, and the base is galvanized steel.
The bowl includes a 3-1/2-inch die-stamped drain opening.
