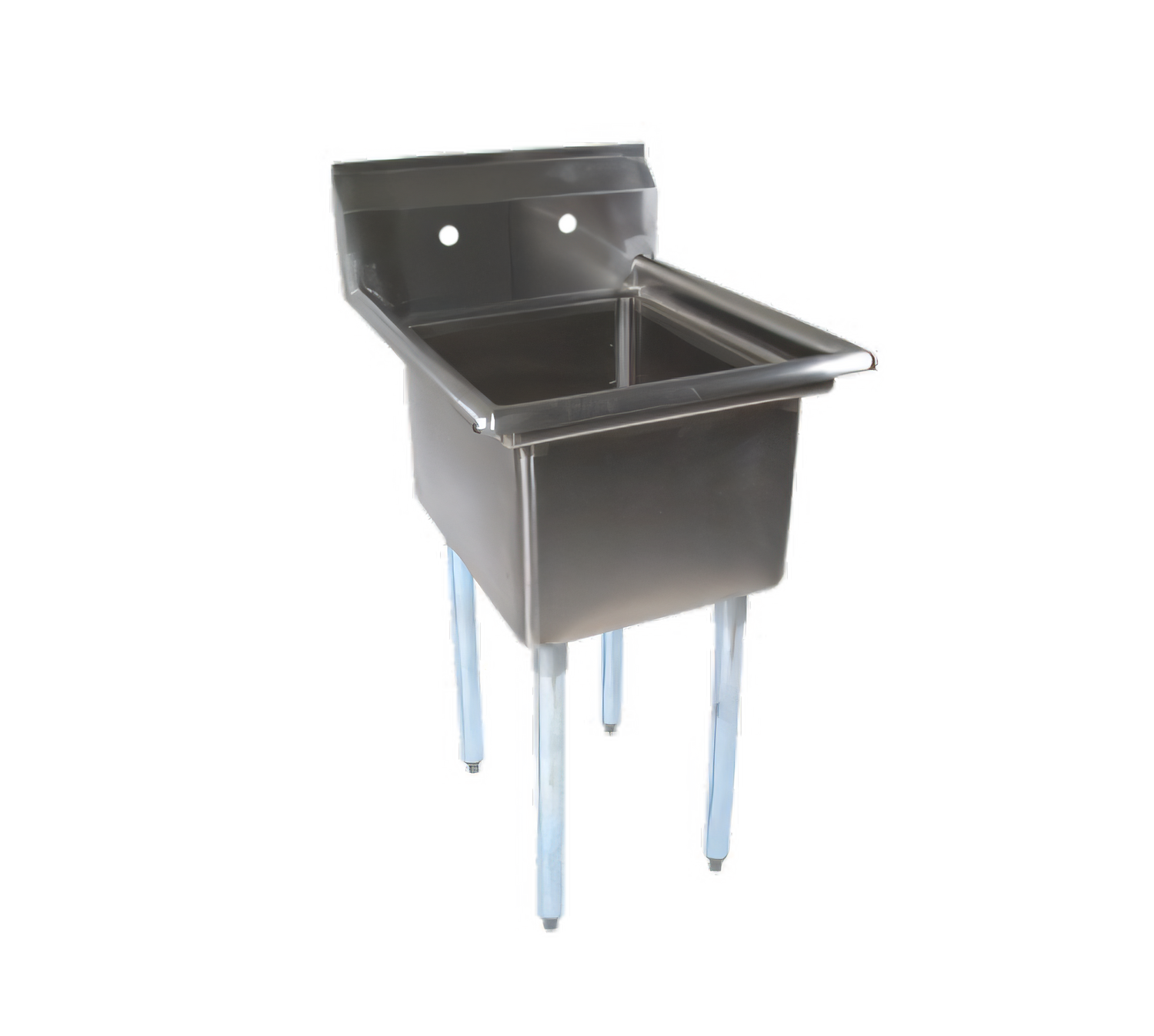

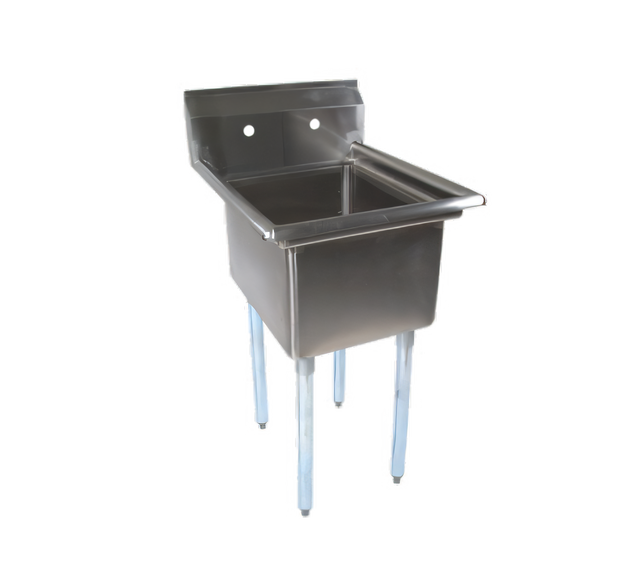

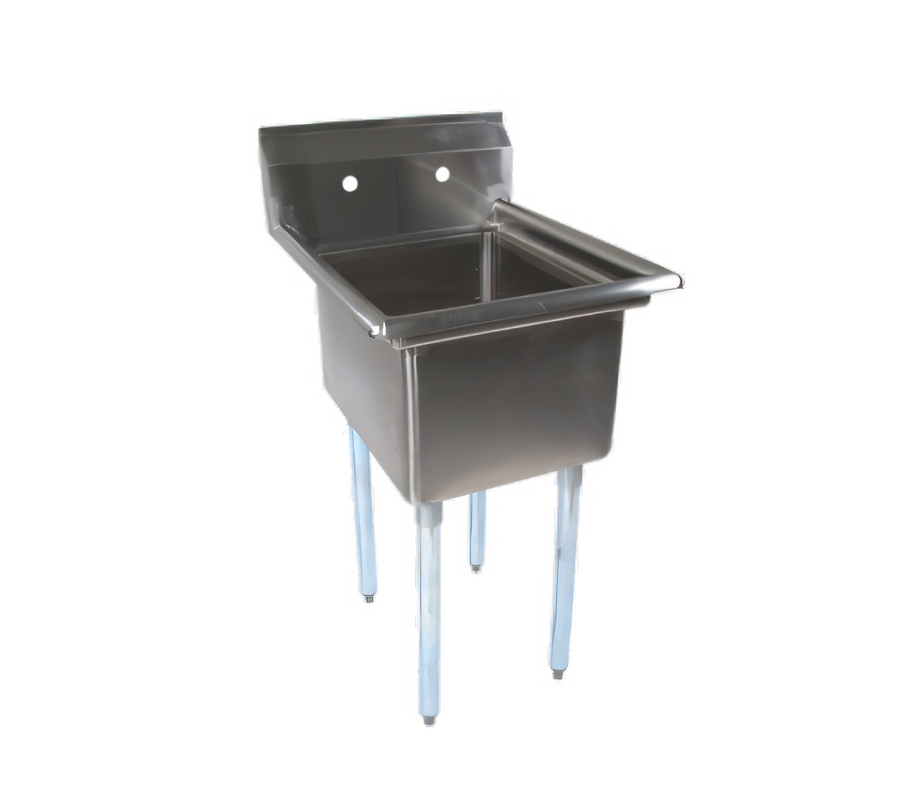

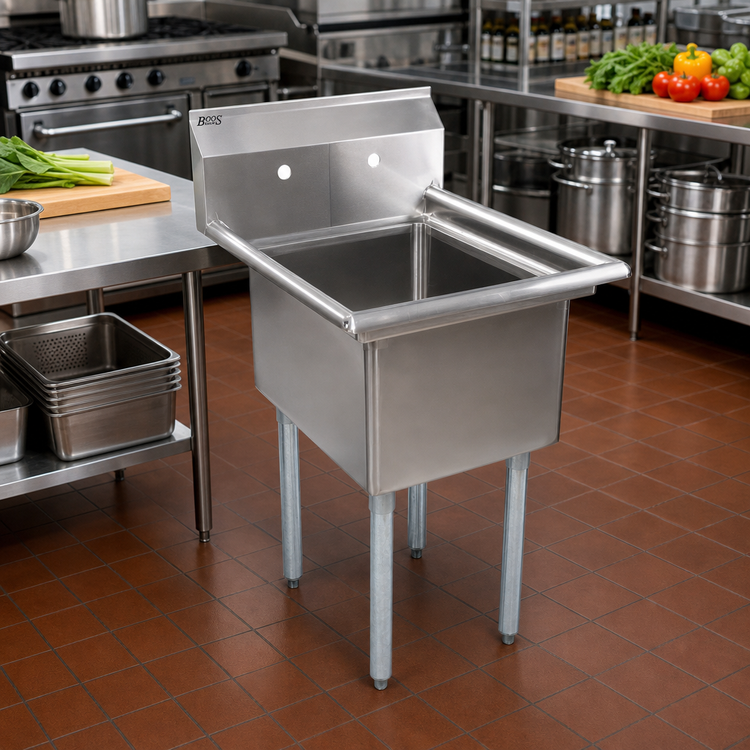

John Boos E-Series 1-Compartment 18-Gauge Type 300 Stainless Steel Sink with 16" x 20" x 12" Bowl and Galvanized Legs
John Boos E-Series 1-Compartment 18-Gauge Type 300 Stainless Steel Sink with 16" x 20" x 12" Bowl and Galvanized Legs
9-3/4" boxed backsplash, splash-mount faucet holes, adjustable plastic bullet feet
A compact, heavy-duty 1-compartment sink with a deep stainless bowl, tall backsplash, and galvanized support frame built for demanding prep areas.
- Space-saving 1-compartment design with a 16" x 20" x 12" bowl.
- 18-gauge Type 300 stainless steel construction for durability and corrosion resistance.
- 9-3/4" boxed backsplash helps protect walls from splashes.
- Galvanized steel legs and gussets provide sturdy floor support.
- Adjustable plastic bullet feet help level the sink on uneven floors.
- No drainboards for a compact footprint in tight kitchen layouts.
Overall Dimensions:
21.0"W x 25.5"D x 43.75"HProduct Weight:

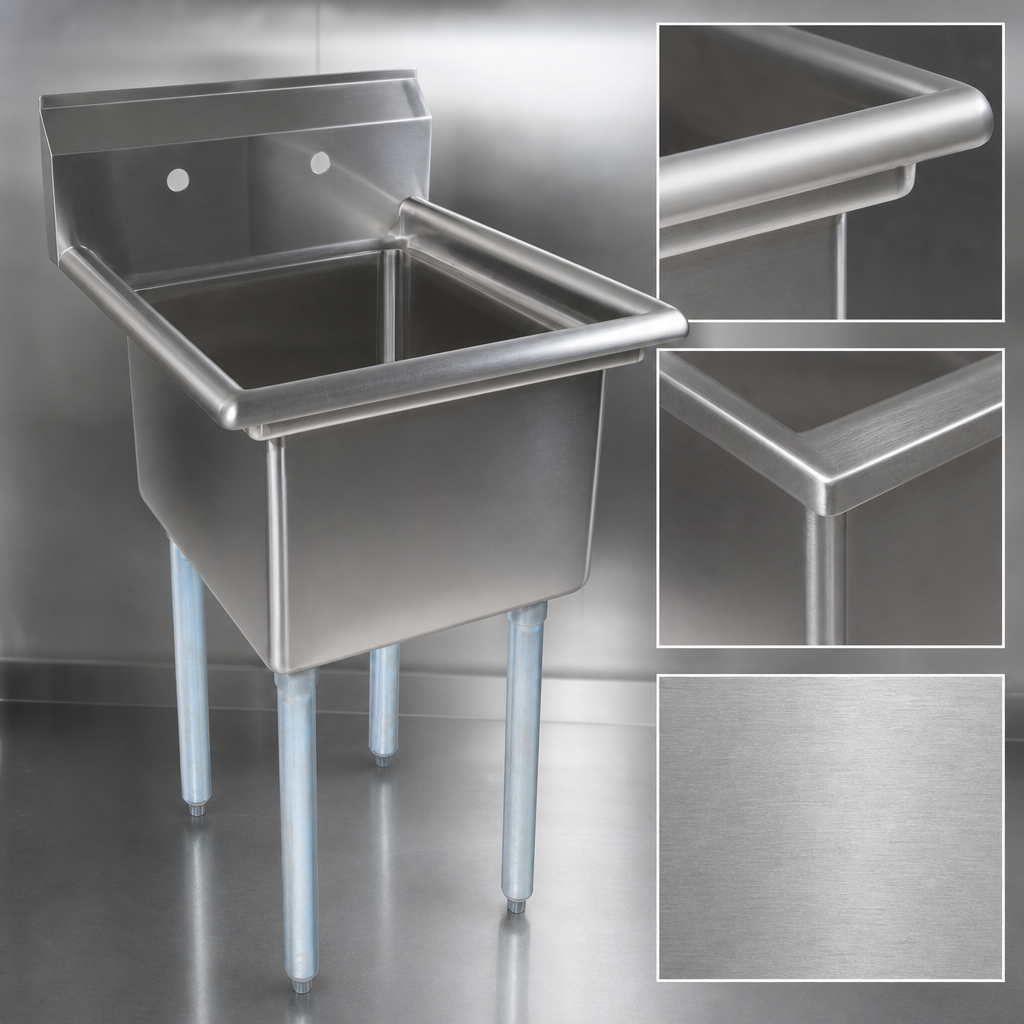

36.0 lb18-Gauge Type 300 Stainless Steel
Top and bowl are built from 18-gauge Type 300 stainless steel for commercial durability.
12-Inch Deep Bowl
Single compartment measures 16" wide by 20" front-to-back by 12" deep for wash and prep tasks.
Boxed Backsplash
9-3/4" high backsplash includes a 2" return to the wall at a 45° angle and a 1" tile edge.
Splash-Mount Faucet Holes
One set of splash-mount faucet holes is provided with 8" centers.
3-1/2-Inch Die-Stamped Drain Opening
Die-stamped drain opening supports efficient drainage from the bowl.
Galvanized Steel Base Support
Galvanized legs and gussets add strength and stability to the sink base.
Adjustable Plastic Bullet Feet
Plastic bullet feet help keep the sink level during installation.
Coved Corners
Coved bowl corners and polished welds help improve cleanability and finished appearance.
