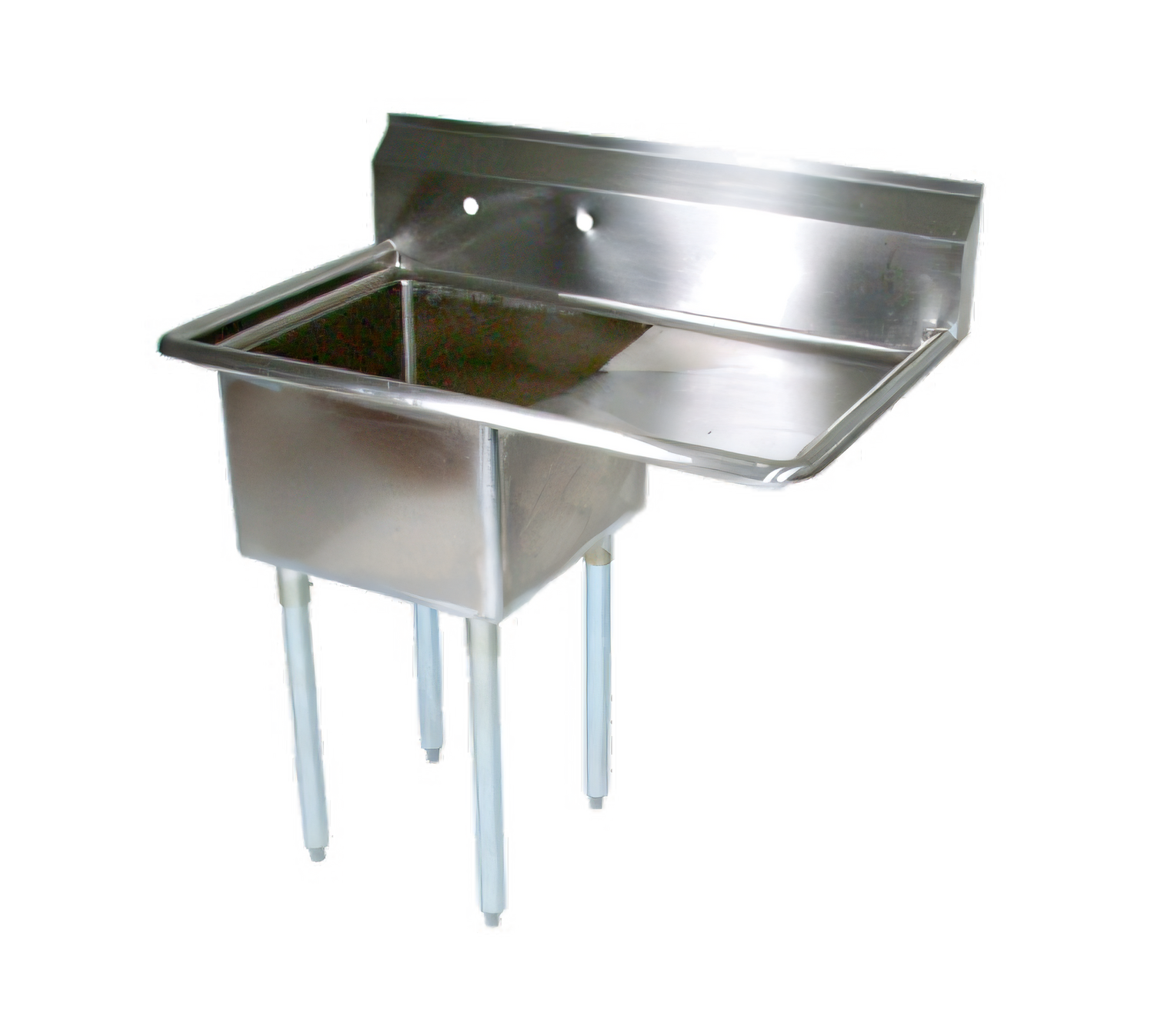

John Boos E-Series 1-Compartment Sink with Right Drainboard, 14-Inch Deep Bowl, 18-Gauge Stainless Steel

32-1/2" W x 20-1/2" D x 43-3/4" H Overall, 15" x 15" Bowl, 9-3/4" Backsplash

Built for compact commercial prep and warewashing areas, this heavy-duty sink combines a deep 1-compartment basin, right-hand drainboard, and tall backsplash in a durable stainless steel frame.

  • 1-compartment sink with a 15" right drainboard for staging and drip-drying.
  • 15" x 15" bowl is 14" deep for everyday wash, rinse, and prep tasks.
  • 18-gauge Type 300 stainless steel top and bowl with a satin finish.
  • 9-3/4" boxed backsplash with splash-mount faucet holes on 8" centers helps protect walls.
  • 3-1/2" die-stamped drain opening and coved corners support drainage and easier cleaning.
  • Galvanized steel legs, gussets, and adjustable plastic bullet feet provide a sturdy, level base.

Overall Dimensions:

32.5"W x 20.5"D x 43.75"H

Product Weight:

36.0 lb

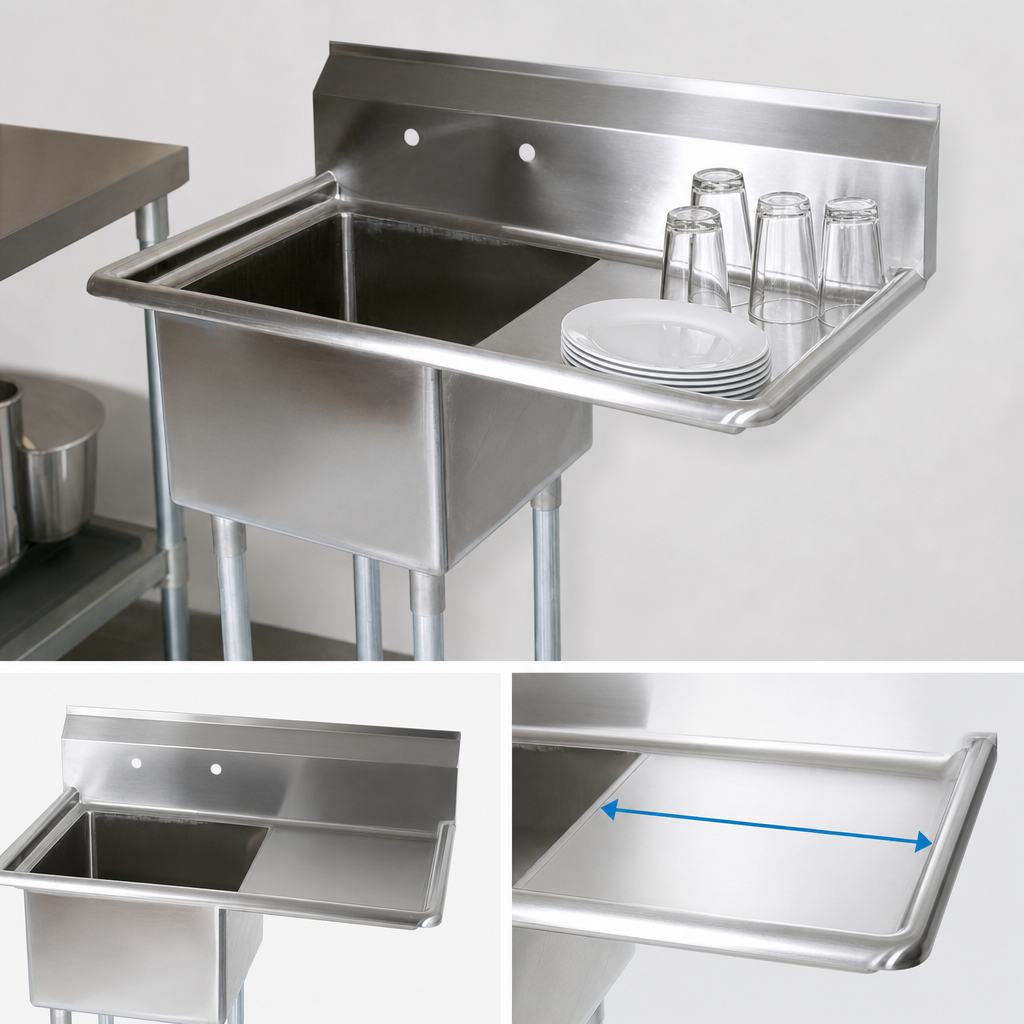

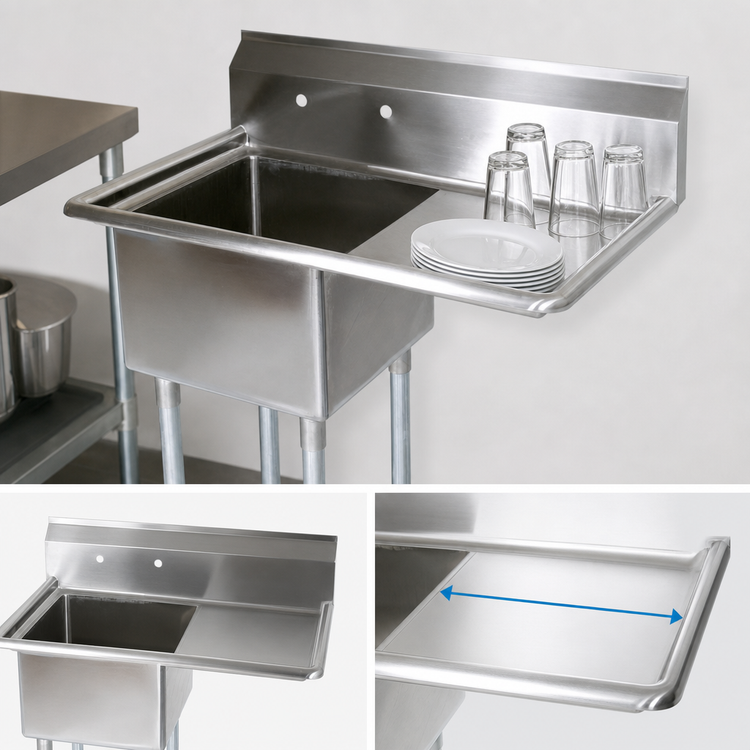

Right-Hand Drainboard

A 15-inch drainboard on the right side gives operators space to stage clean items and let water drain away.

Deep Single Compartment

The bowl measures 15 inches front-to-back by 15 inches side-to-side and 14 inches deep for versatile sink use.

18-Gauge Type 300 Stainless Steel

The top and bowl are made from 18-gauge Type 300 stainless steel with a #4 polish satin finish for commercial durability.

Boxed Backsplash

A full-length 9-3/4-inch-high backsplash includes a 2-inch return at 45 degrees and a 1-inch tile edge to help control splashes.

Efficient Drainage Design

Bowls are formed for drainage to a 3-1/2-inch die-stamped drain opening.

Splash-Mount Faucet Holes

One set of faucet holes is provided in the backsplash on 8-inch centers.

Galvanized Support Base

Galvanized steel legs and gussets, plus adjustable plastic bullet feet, help keep the sink stable and level.

Sanitary Corners and Edges

Coved bowl corners and bullnosed outside corners are designed to help improve cleaning and reduce sharp edges.

Type Compartment Sink
Style 1 Compartment With Right Drainboard
Installation Type Floor Model
Compartments 1
Material Stainless Steel
Finish Satin Finish
Base Construction Galvanized Steel
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Selling Unit Each
Units Per Case 1
Shipping Width 33 Inches
Shipping Depth 21 Inches
Shipping Height 44 Inches
Shipping Weight 36 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This model is the right-drainboard version.
The bowl measures 15 inches front-to-back, 15 inches side-to-side, and 14 inches deep.
It uses 18-gauge Type 300 stainless steel for the top and bowl, with galvanized steel legs and gussets.
Yes. The backsplash has one set of splash-mount faucet holes on 8-inch centers.
It has a full-length 9-3/4-inch boxed backsplash with a 2-inch return at 45 degrees and a 1-inch tile edge.
The sink is supported by galvanized steel legs and gussets with adjustable plastic bullet feet.
