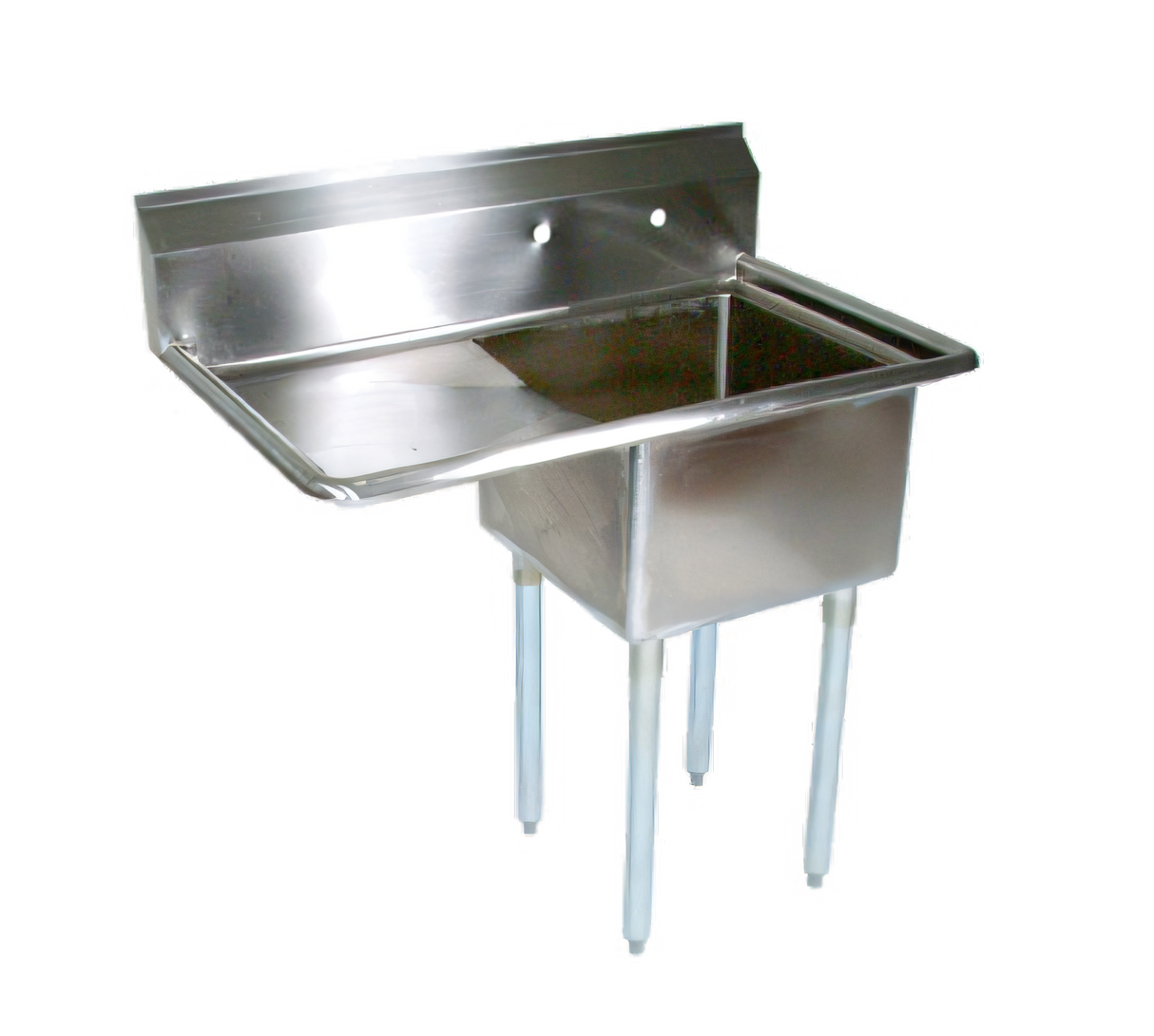

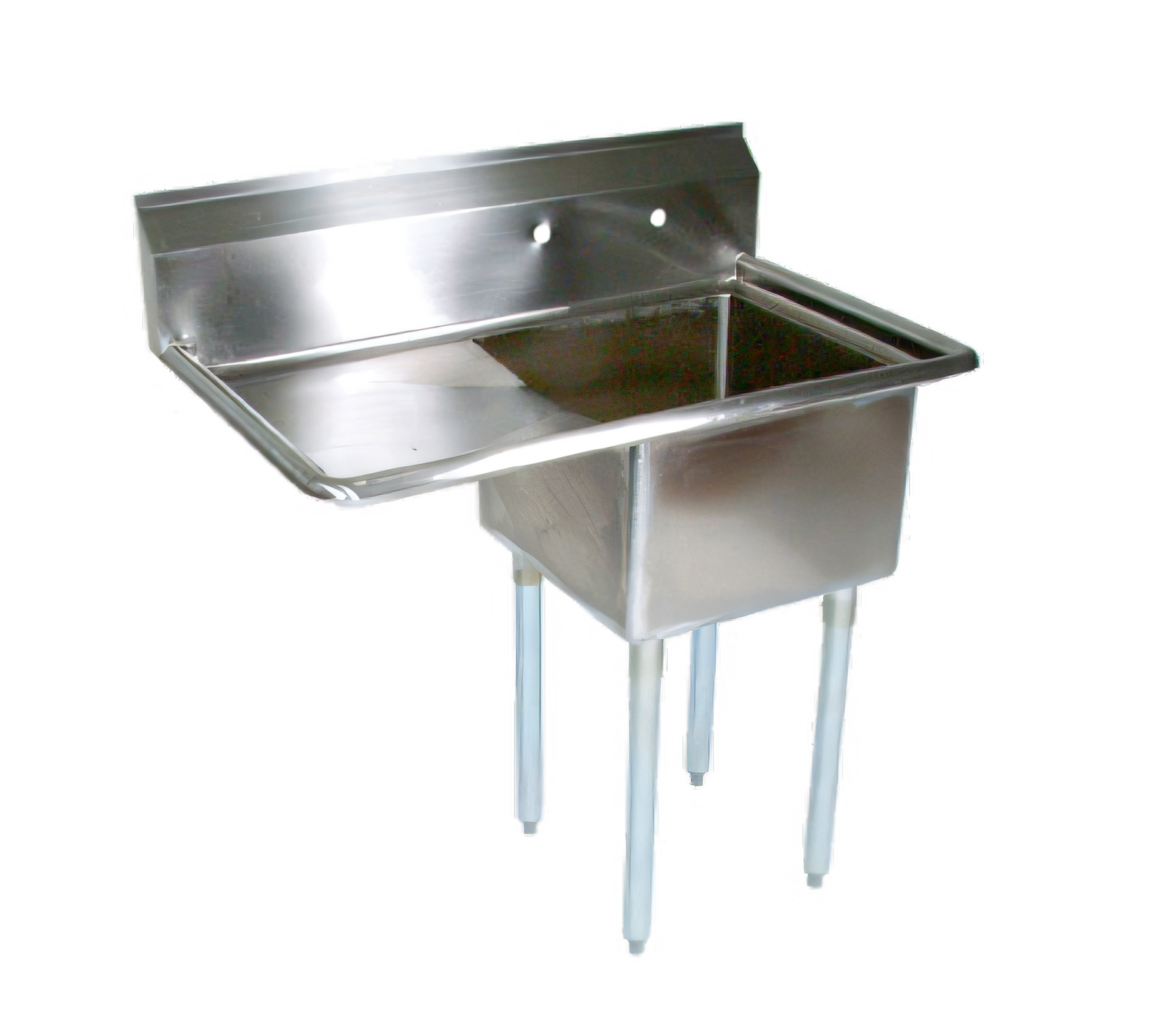

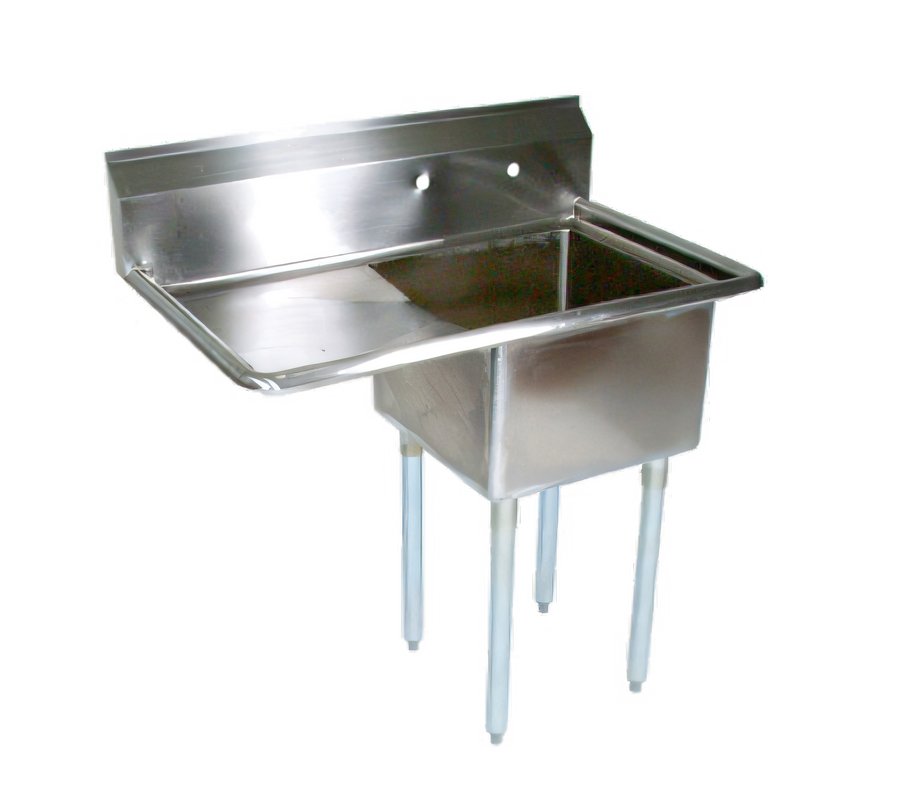

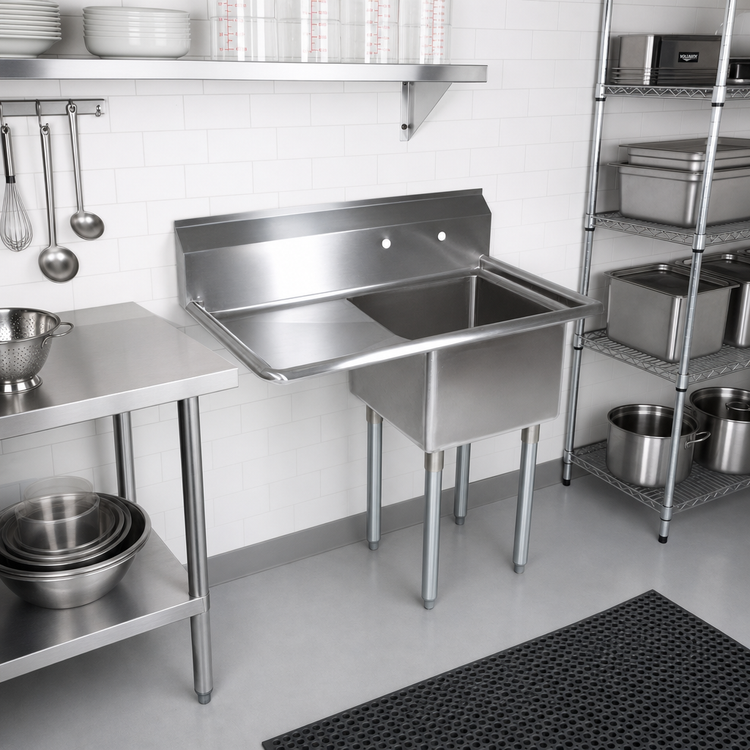

John Boos E-Series 1-Compartment Stainless Steel Sink with Left Drainboard — 15 x 15 x 14 Inches Bowl, 32.5 Inches Wide
John Boos E-Series 1-Compartment Stainless Steel Sink with Left Drainboard — 15 x 15 x 14 Inches Bowl, 32.5 Inches Wide
18-Gauge 300-Series Stainless Steel with #4 Satin Finish; Galvanized Legs
Commercial-grade 18-gauge 300-series stainless steel 1-compartment sink with a 15-inch square, 14-inch deep bowl and integrated left-hand drainboard—NSF and CSA-Sanitation certified.
- 18-gauge Type 300 stainless steel construction with #4 satin finish for durability and easy cleaning.
- Single 15 x 15 x 14 inches compartment with 3/4-inch coved radius corners and bottom formed for positive drainage.
- Integrated 15-inch left-hand drainboard and full-length 9.75-inch boxed backsplash with 45° top and 2-inch return.
- Splash-mount faucet holes with 8-inch centers (1-1/8-inch diameter) and 3.5-inch die-stamped drain opening.
- Galvanized legs and gussets with adjustable 1-inch plastic bullet feet for leveling; NSF and CSA-Sanitation listed.
Overall Dimensions:
32.5"W x 20.5"D x 43.75"HProduct Weight:

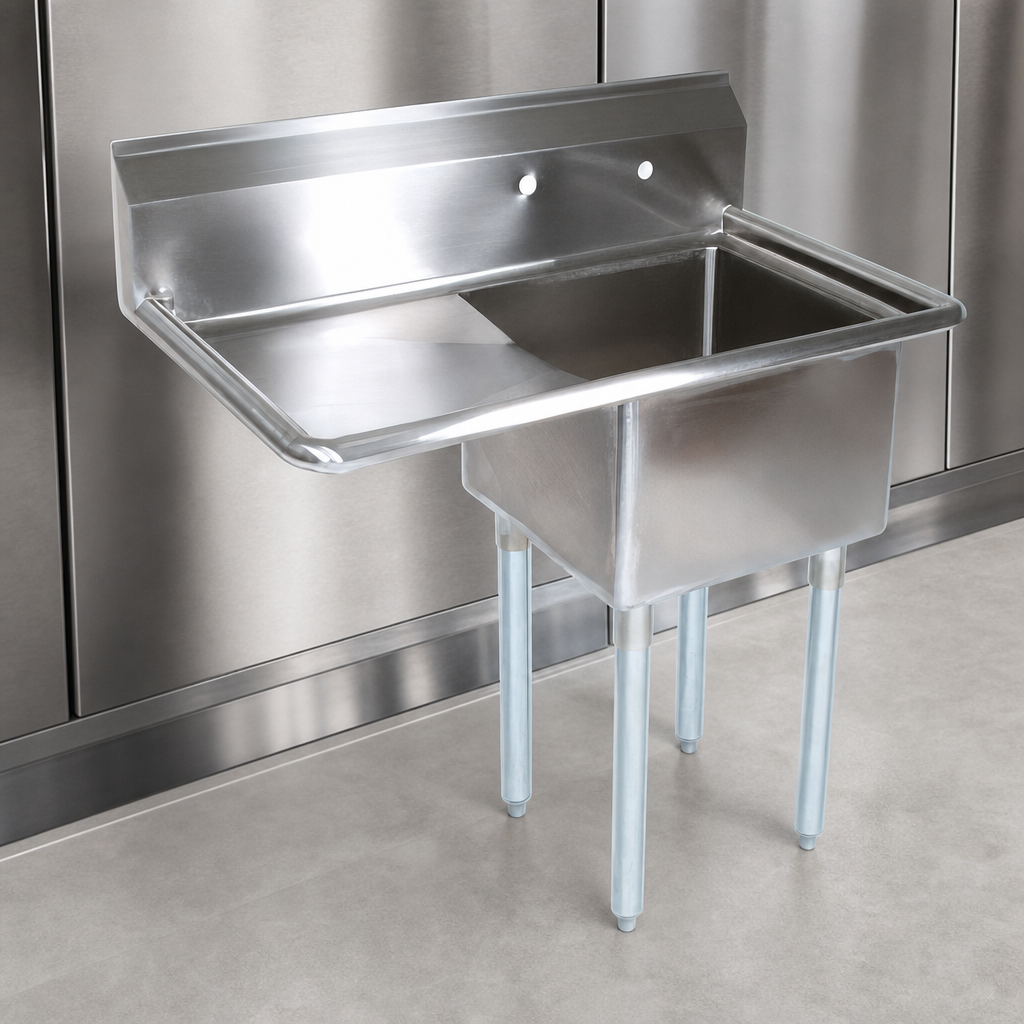

36.0 lbHeavy-Duty Construction
Top, bowls and assembly formed from 18-gauge Type 300 stainless steel with #4 satin polish; tig welded with exposed welds polished to match adjacent surfaces.
Single Bowl
One 15 x 15 inches bowl, 14 inches deep, with 3/4-inch coved radius corners and bowl bottoms formed for drainage to a 3-1/2-inch die-stamped opening.
Drainboard & Backsplash
15-inch left-hand drainboard integrated into top; full-length 9-3/4-inch boxed backsplash with 45° top and 2-inch return to wall.
Faucet & Drain Openings
Splash-mount faucet hole pattern with 8-inch centers (1-1/8-inch hole diameter) in backsplash; 3-1/2-inch die-stamped drain openings.
Rugged Base
Standard 1-5/8-inch O.D. galvanized steel legs with galvanized gussets and adjustable 1-inch plastic bullet feet for stable, level installation.
Sanitation & Serviceability
Coved inside corners, bullnosed outside edges and satin finish for easy cleaning and long-term sanitation; NSF and CSA-Sanitation certified.
Certifications & Compliance
