John Boos

John Boos E-Series 1-Compartment Stainless Steel Sink with Faucet Holes, 15 x 15 x 14 Bowl and Galvanized Legs

SKU: E1S8-15-14-X
$503.88
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

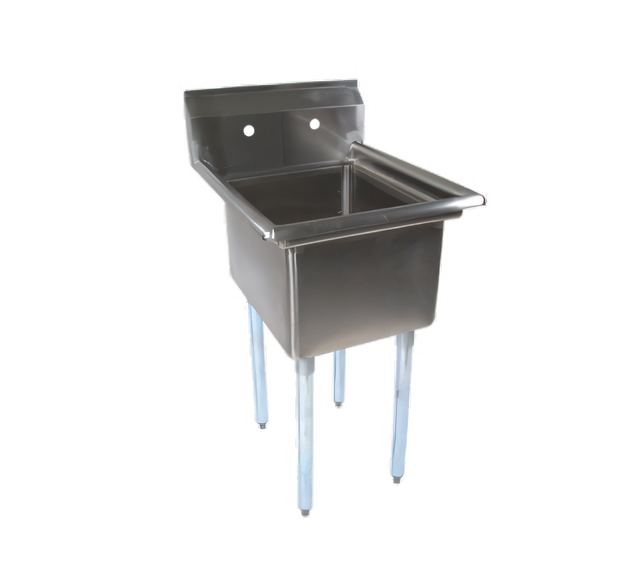

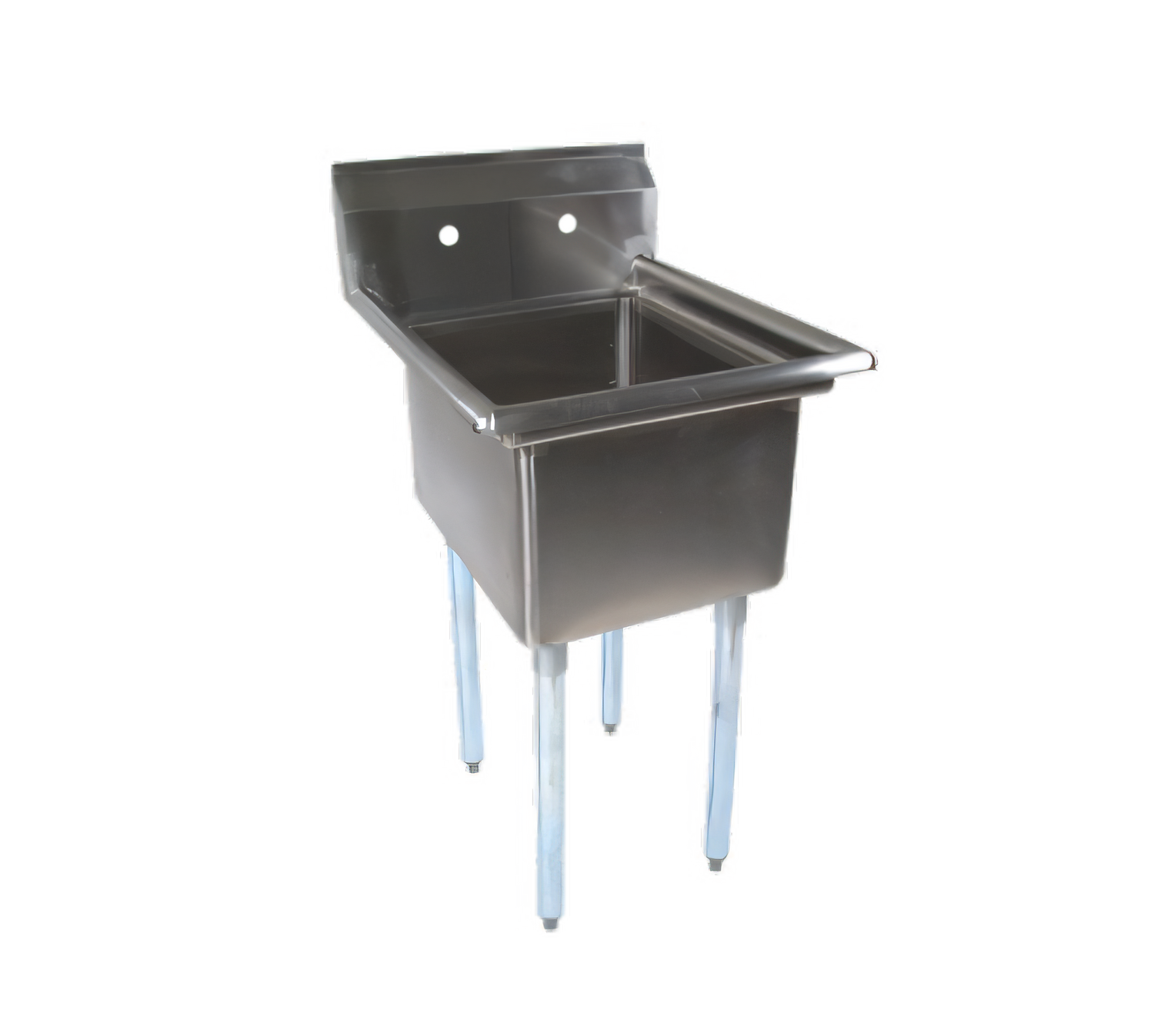

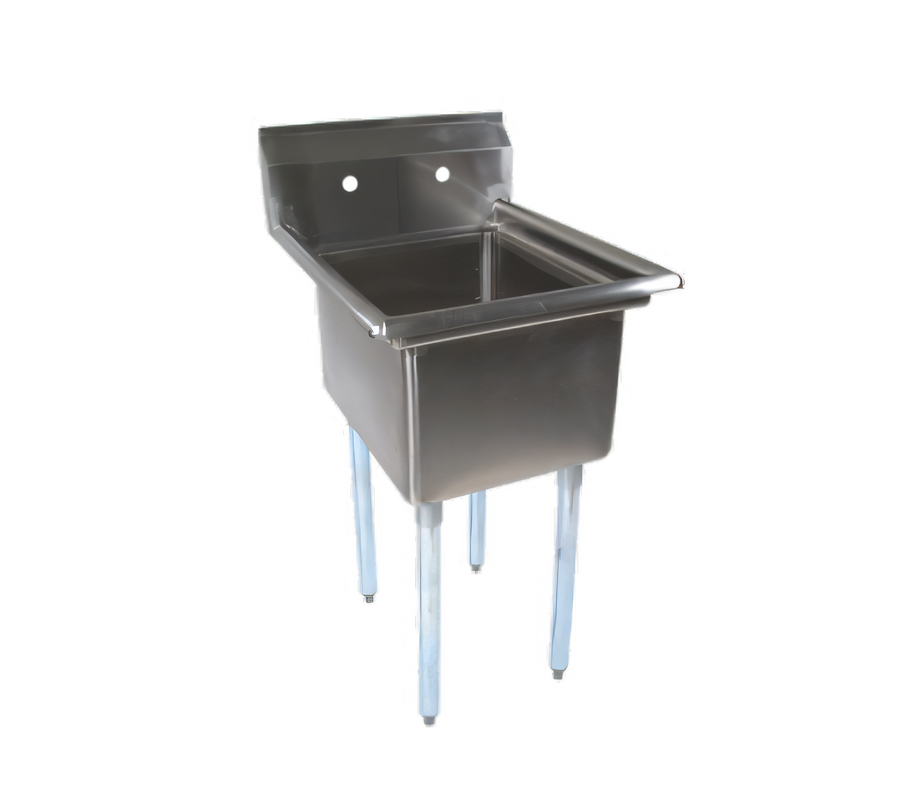

John Boos E-Series 1-Compartment Stainless Steel Sink with Faucet Holes, 15 x 15 x 14 Bowl and Galvanized Legs

20 x 20-1/2 x 43-3/4 overall, 9-3/4 boxed backsplash, 8-inch faucet centers

Built for tight kitchen spaces, this compact 1-compartment sink combines durable stainless steel construction with a tall backsplash and a stable galvanized leg base.

  • Compact 1-compartment design with a 15 x 15 x 14 bowl.
  • 18-gauge Type 300 stainless steel top and bowl with a satin finish.
  • 9-3/4-inch boxed backsplash with a 45-degree return helps protect the wall.
  • Splash-mount faucet holes with 8-inch centers simplify faucet installation.
  • 3-1/2-inch die-stamped drain opening is formed for efficient drainage.
  • Galvanized steel legs, gussets, and adjustable plastic bullet feet provide a stable floor base.
  • NSF and CSA-Sanitation listed.

Overall Dimensions:

20.0"W x 20.5"D x 43.75"H

Product Weight:

31.0 lb

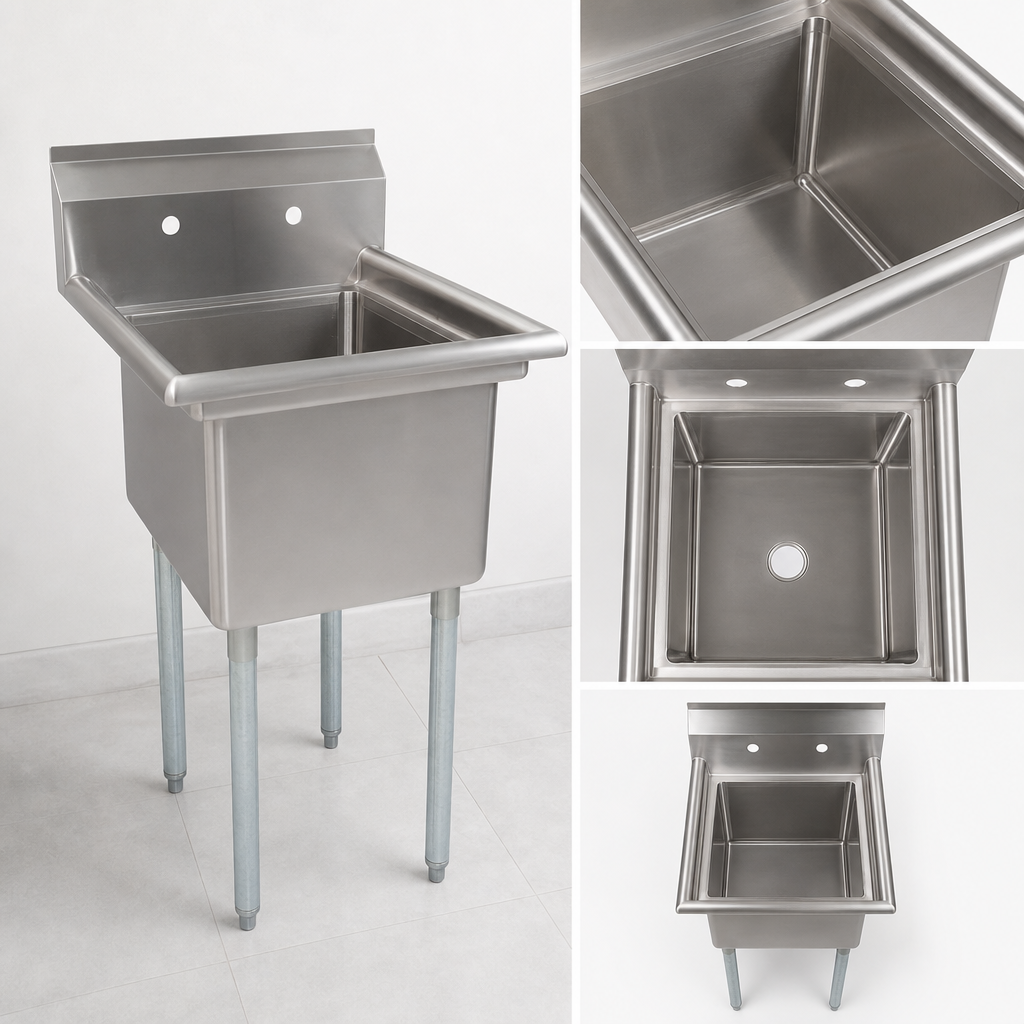

1-Compartment Bowl

Single bowl measures 15 x 15 x 14 for compact wash and prep tasks.

18-Gauge Stainless Steel Top and Bowl

Type 300 stainless steel construction with a #4 polish and satin finish for durability and a clean look.

Coved Bowl Corners

Vertical and horizontal corners are coved at a 3/4-inch radius to help simplify cleaning.

Boxed Backsplash

9-3/4-inch backsplash includes a 45-degree top and 2-inch return to the wall, plus a tile edge.

Splash-Mount Faucet Holes

One set of faucet holes is provided with 8-inch centers for faucet mounting.

Die-Stamped Drain Opening

3-1/2-inch drain opening is die-stamped into the bowl bottom for drainage.

Galvanized Leg Base

Galvanized steel legs and gussets support the sink on a sturdy floor-mounted base.

Adjustable Bullet Feet

Plastic bullet feet help level the sink on uneven floors.

Bullnosed Outside Corners

Assembly corners are bullnosed to provide a safer, polished edge.

Type Compartment Sink
Style 1-Compartment
Installation Type Floor Model
Base Type Legs
Compartments 1
Material Stainless Steel
Finish Satin Finish
Top Gauge 18 Gauge
Top Stainless Series 300 Series
Base Construction Galvanized Steel
Drainboards Without Drainboards
Compartment Width 15 Inches
Compartment Depth 15 Inches
Sink Depth 14 Inches
Splash Height 9-3/4 Inches
Drain Opening 3-1/2 Inches
Faucet Hole Centers 8 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 21 Inches
Shipping Height 44 Inches
Shipping Weight 31 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The overall sink size is 20 x 20-1/2 x 43-3/4, and the single bowl measures 15 x 15 x 14.
It is built from 18-gauge Type 300 stainless steel with galvanized steel legs and gussets.
Yes. It includes one set of splash-mount faucet holes with 8-inch centers.
The sink has a 3-1/2-inch die-stamped drain opening and a 9-3/4-inch boxed backsplash with a 45-degree return and 1-inch tile edge.
Yes. It is a floor model with galvanized legs and adjustable plastic bullet feet.
