John Boos E-Series Commercial 1-Compartment Stainless Steel Sink with Galvanized Legs and 15 x 15 x 14 Inch Bowl

SKU: E1S8-15-14
GTIN: 662969643218
$660.96
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos E-Series Commercial 1-Compartment Stainless Steel Sink with Galvanized Legs and 15 x 15 x 14 Inch Bowl

18-Gauge, 9-3/4 Inch Boxed Backsplash, Splash-Mount Faucet Holes

A compact, rugged single-compartment sink built for dependable commercial wash and prep stations.

  • Single-compartment floor sink with a 15 x 15 x 14 inch bowl for compact back-of-house use.
  • Built from 18-gauge Type 300 stainless steel with a satin finish for durability and easy cleaning.
  • 9-3/4 inch boxed backsplash with a 45-degree top and 2-inch return helps protect the wall behind the sink.
  • Splash-mount faucet holes on 8-inch centers and a 3-1/2 inch die-stamped drain opening simplify installation.
  • Galvanized steel legs, gussets, and adjustable plastic bullet feet provide stable support and leveling.
  • Coved corners and TIG-welded construction support hygienic cleanup and long service life.

Overall Dimensions:

20.0"W x 20.5"D x 43.75"H

Product Weight:

31.0 lb

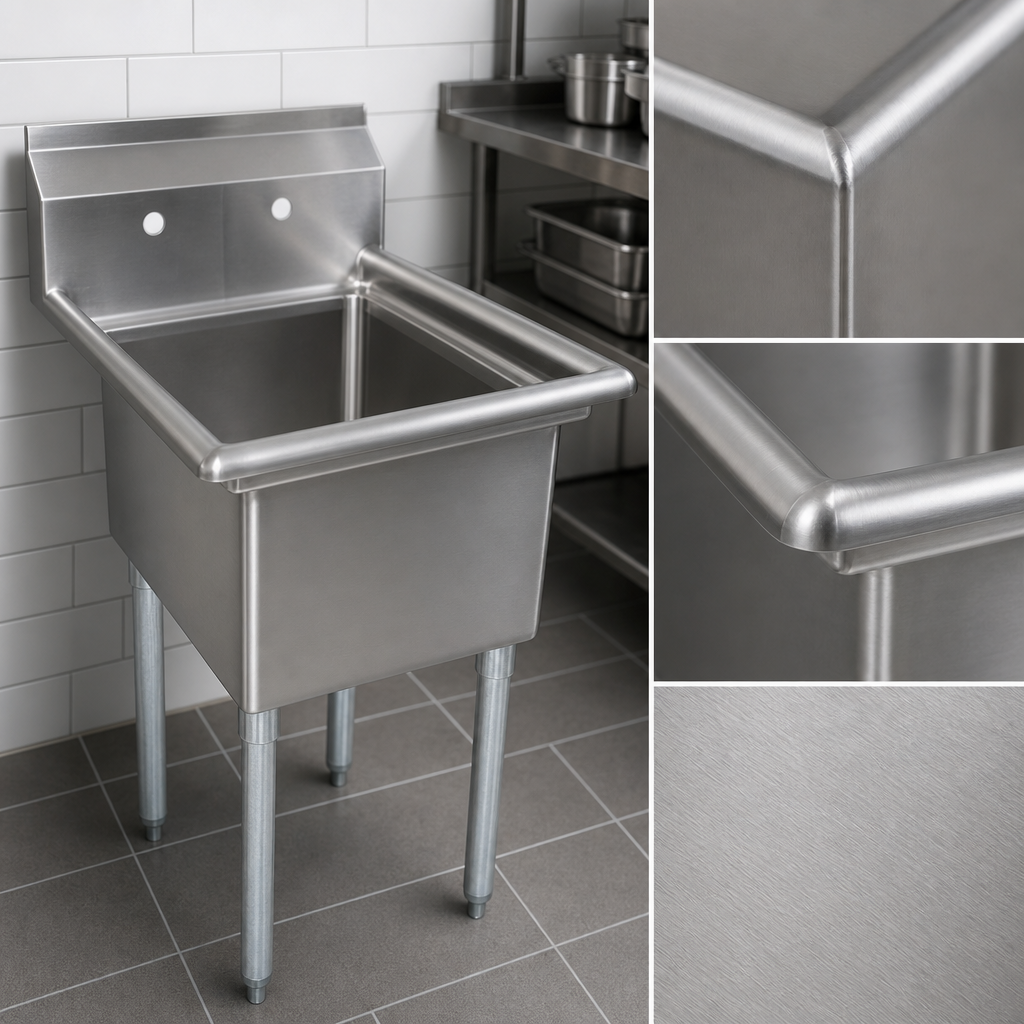

18-Gauge Type 300 Stainless Steel

Durable stainless steel construction with a polished satin finish for commercial service.

15 x 15 x 14 Inch Compartment

Single bowl provides a compact wash area with a deep 14-inch compartment.

9-3/4 Inch Boxed Backsplash

Helps protect the wall behind the sink and includes a 45-degree top with 2-inch return.

Splash-Mount Faucet Holes

Backsplash is prepped with 1-1/8-inch faucet holes on 8-inch centers.

3-1/2 Inch Die-Stamped Drain Opening

Promotes drainage and supports standard drain installation.

Galvanized Steel Legs and Gussets

Rigid support frame designed for stable floor mounting.

Adjustable Plastic Bullet Feet

Helps level the sink on uneven floors.

Coved Bowl Corners

Rounded corners help simplify cleaning and improve sanitation.

Type Sink
Style 1 Compartment
Installation Type Floor Model
Material Stainless Steel
Finish #4 Polish, Satin Finish
Stainless Steel Series 300 Series
Top Gauge 18 Gauge
Base Type Legs
Base Construction Galvanized Steel
Compartments 1
Compartment Width 15 Inches
Compartment Length 15 Inches
Compartment Depth 14 Inches
Backsplash Height 9-3/4 Inches
Backsplash Return 2 Inches
Faucet Hole Size 1-1/8 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Shipping Width 20 Inches
Shipping Depth 21 Inches
Shipping Height 44 Inches
Shipping Weight 31 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This sink has one 15 x 15 x 14 inch compartment.
It includes a 9-3/4 inch boxed backsplash with a 2-inch return at a 45-degree angle.
The sink is built from 18-gauge Type 300 stainless steel with galvanized steel legs and gussets.
Yes. The backsplash has splash-mount faucet holes with 8-inch centers.
It has a 3-1/2 inch die-stamped drain opening.
