John Boos DT3PB244-2D24R Compartment Sinks
Description

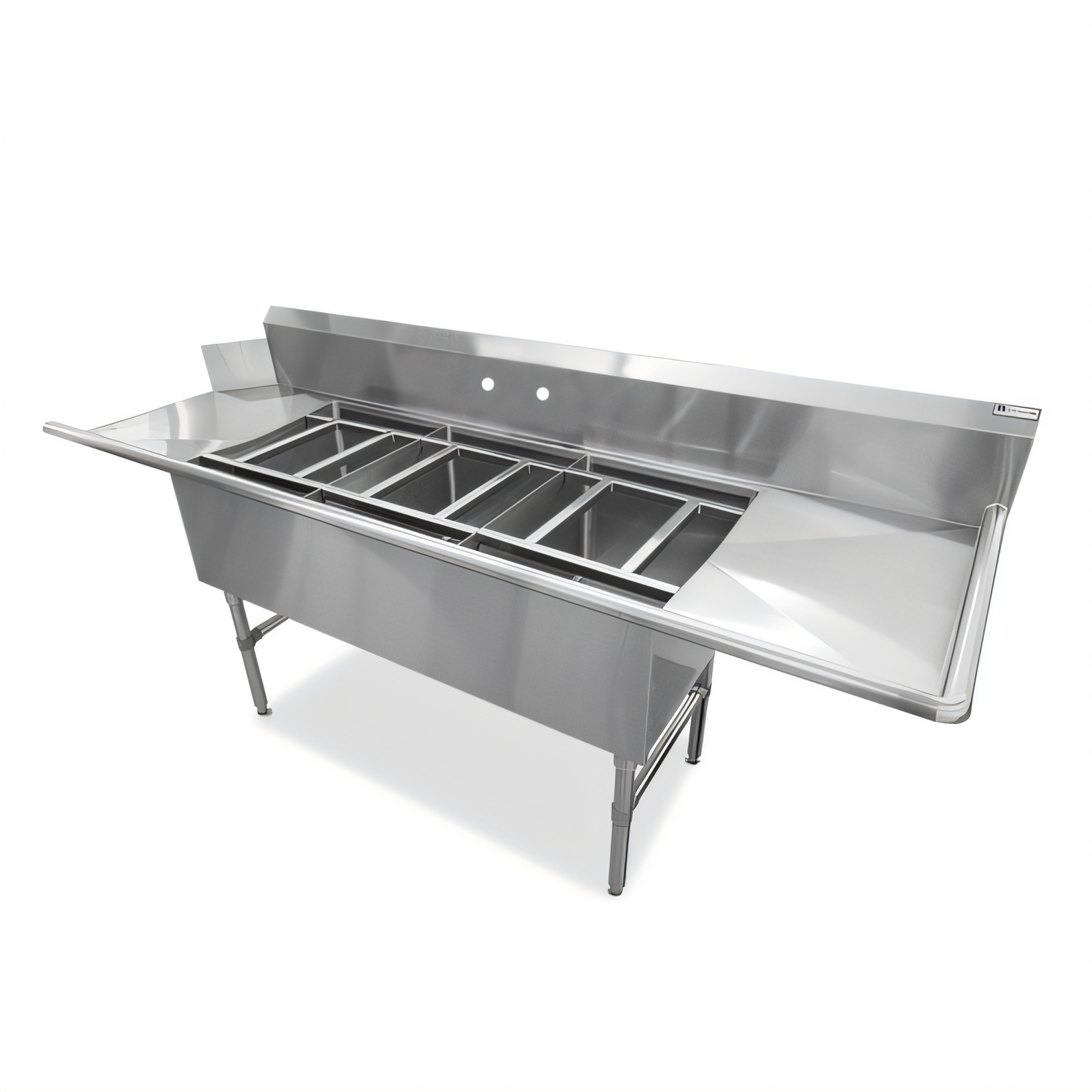

John Boos DT3PB244-2D24L Clean Dishtable / Pot Sink
121-5/8" W • 30-3/8" D • 44-1/16" H • 3-Compartment • Left-Side Dish-Machine AttachmentEngineered for high-volume kitchens that need to rinse, wash, and sanitize fast, the John Boos DT3PB244-2D24L delivers rock-solid durability and a workflow-friendly layout in one easy-to-install unit. Three extra-large sink bowls, dual oversize drainboards, and a dedicated dish-machine cut-out on the left keep dirty and clean wares moving in the right direction—all on a heavy-duty 16-gauge, Type 300 stainless-steel frame that is NSF and CSA-Sanitation certified.
Key Features

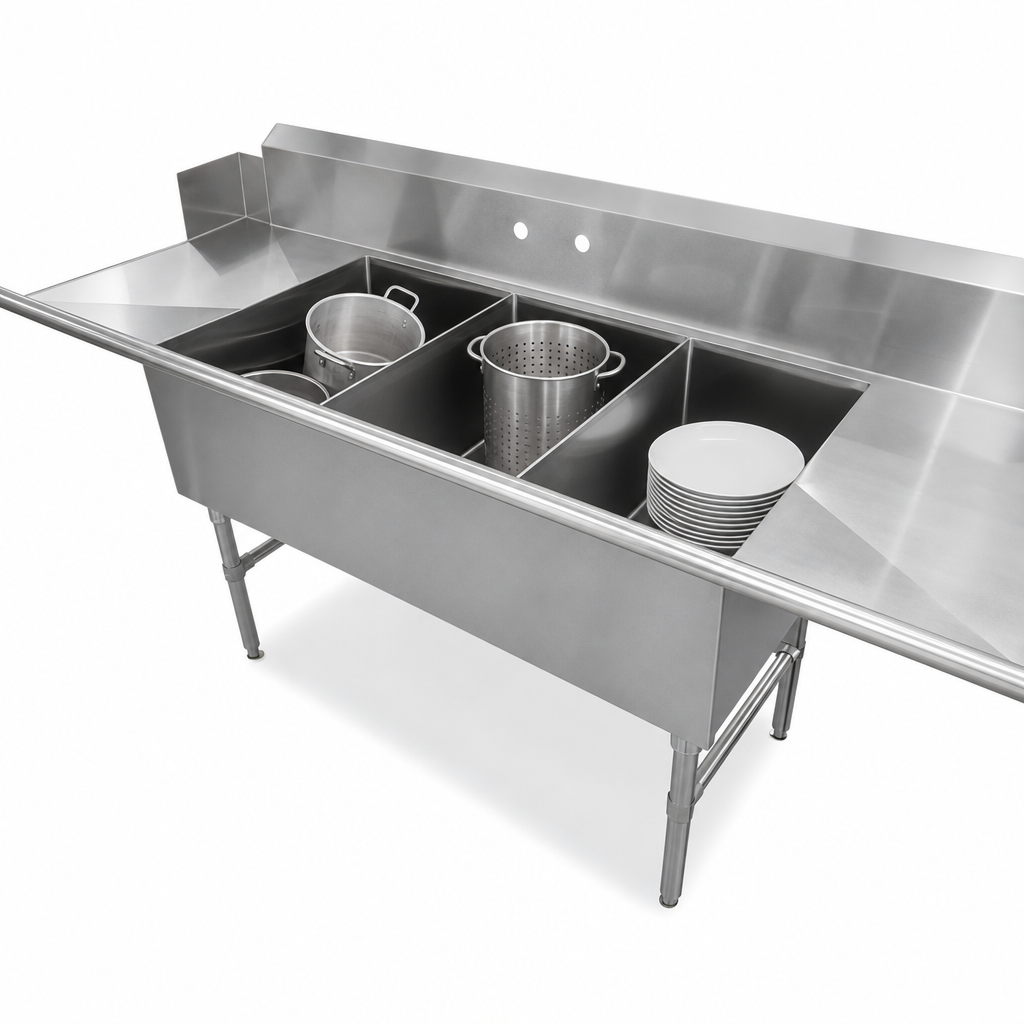

- Three 24" W x 24" F/B x 14" D compartments handle stock pots, sheet pans & bus tubs with ease.
- Left-hand dish-machine attachment streamlines loading and prevents cross-contamination.
- Two 24" drainboards (clean & soiled) provide ample staging space.
- 10" high boxed backsplash with 2" return and 1" turned-down lip keeps walls dry.
- Splash-mount faucet holes on 8" centers for easy fixture installation (faucet sold separately).
- (3) stainless steel rack slides with storage bracket keep dish racks organized and within reach.
- 16-gauge, Type 300 stainless steel top & bowls TIG-welded; exposed welds polished to match #4 satin finish.
- 1-5/8" Ø stainless legs with 1-1/4" Ø bracing and adjustable bullet feet for rock-solid stability.
- All vertical & horizontal corners coved to a 3/4" radius for effortless cleanup.
- NSF & CSA-Sanitation listed—built to pass the toughest health-department inspections.
At-a-Glance Specs
| Overall dimensions (W × D × H) | 121-5/8" × 30-3/8" × 44-1/16" |
|---|---|
| Compartment size (each) | 24" W × 24" F/B × 14" D |
| Number of bowls | 3 |
| Drainboards | 2 × 24" (one clean, one soiled) |
| Backsplash | 10" boxed, 2" return, 1" rolled edge |
| Faucet mounting | 8"-on-center splash-mount holes (1 set) |
| Dish-machine side | Left |
| Material thickness | 16 ga. (1.5 mm) Type 300 stainless steel |
| Legs / bracing / feet | Stainless legs & bracing, adjustable bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Model # | DT3PB244-2D24L |
Faucet, pre-rinse unit, and other accessories sold separately. Some units ship unassembled to reduce freight cost.
