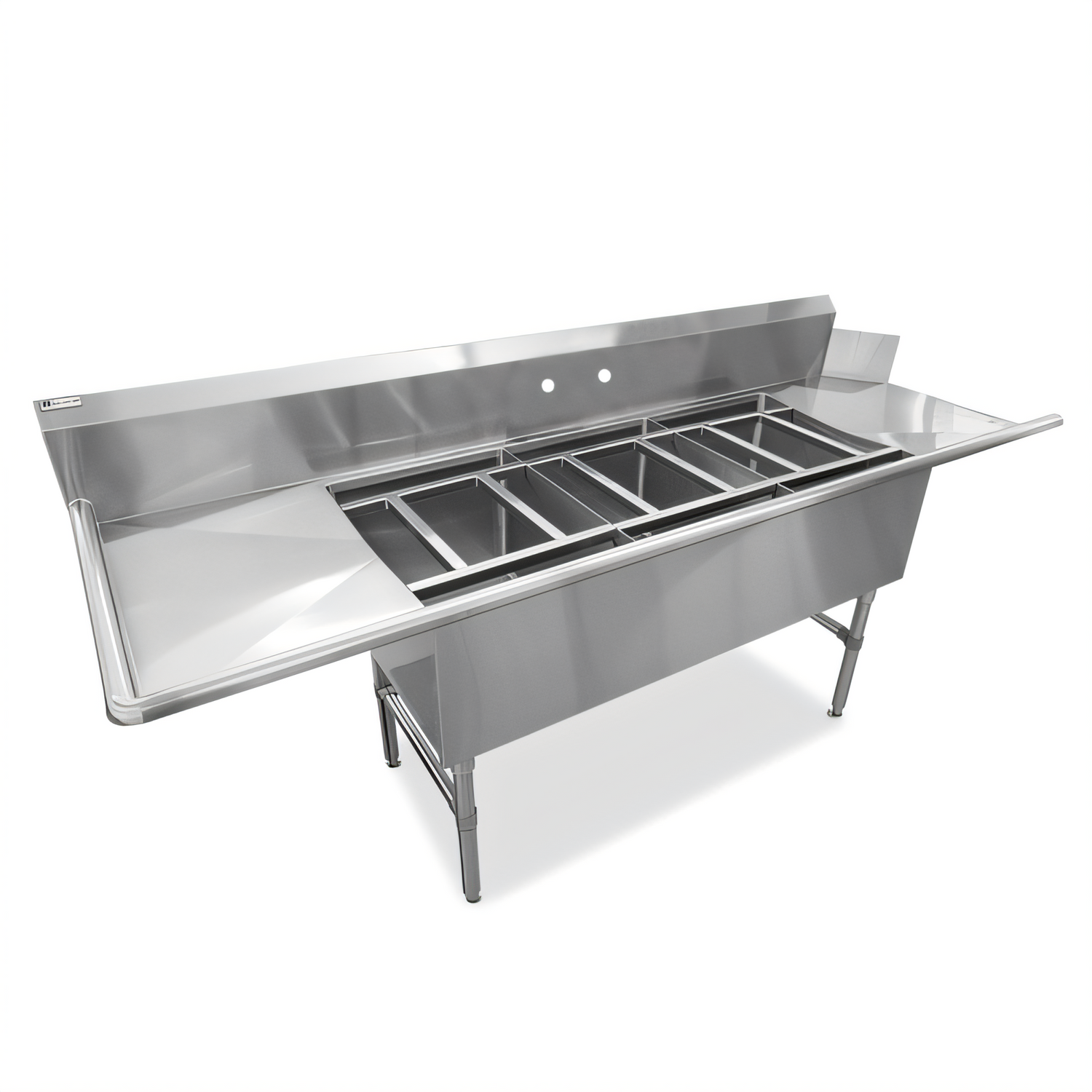

John Boos DT3PB244-2D24L Three-Compartment Clean Dishtable/Pot Sink with 2 Drainboards and Right-Side Dish Machine Attachment
John Boos DT3PB244-2D24L Three-Compartment Clean Dishtable/Pot Sink with 2 Drainboards and Right-Side Dish Machine Attachment
24" x 24" x 14" Compartments, 10" Boxed Backsplash, 16-Gauge Stainless Steel
Built for efficient high-volume warewashing, this stainless steel sink table combines three large compartments, dual drainboards, and a right-side dish machine attachment in one durable workstation.
- Three 24" x 24" x 14" compartments provide generous wash space for pots, pans, and dishware.
- Two 24" drainboards create dedicated landing areas for sorting and staging ware.
- Right-side dish machine attachment supports an efficient warewashing workflow.
- 16-gauge 300 series stainless steel construction delivers long-lasting commercial durability.
- 10" boxed backsplash with faucet holes helps contain splashes and simplify installation.
- Coved corners, bullnosed edges, and adjustable bullet feet improve cleanliness, safety, and leveling.
Overall Dimensions:
121.63"W x 30.38"D x 44.06"HProduct Weight:

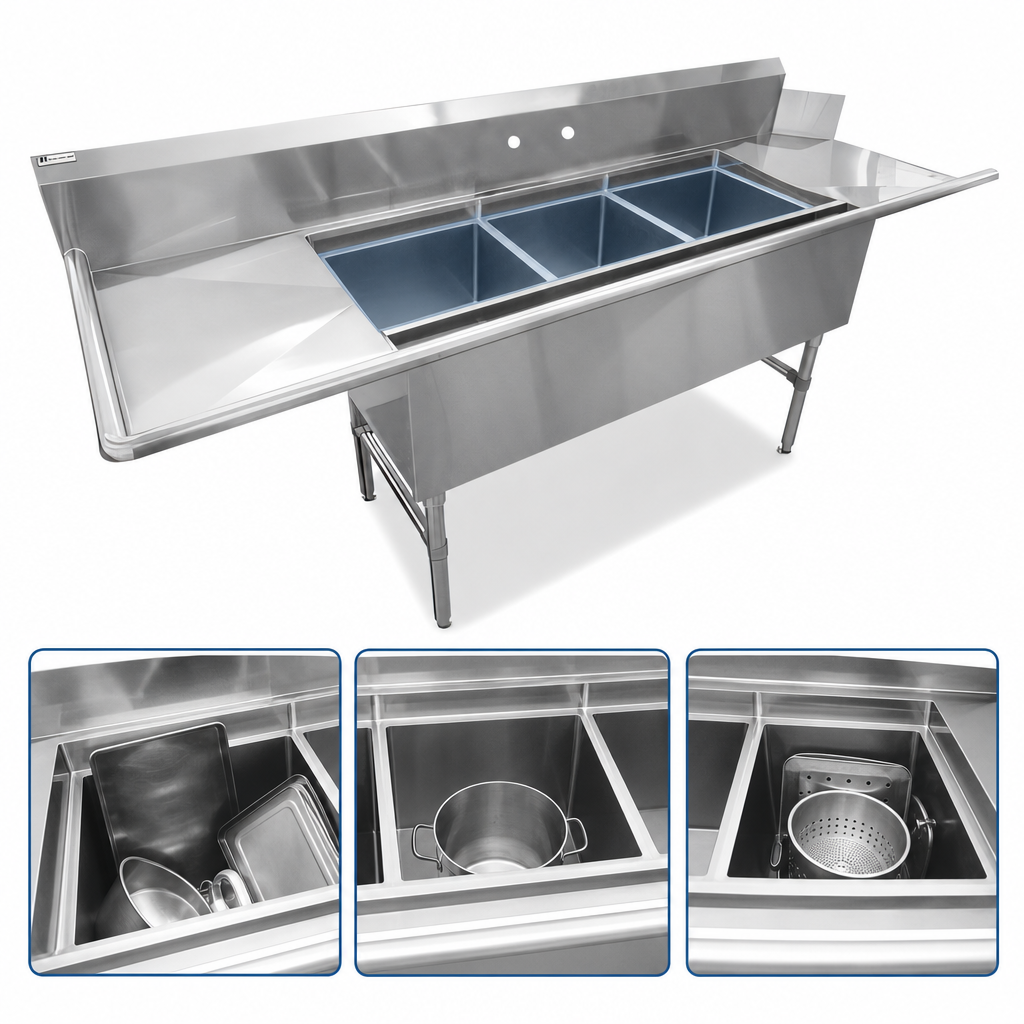

265.0 lbThree-Compartment Layout
Includes three 24" x 24" x 14" deep compartments for washing and soaking large items.
Dual 24-Inch Drainboards
Provides two drainboards for staging clean or dirty items alongside the sink.

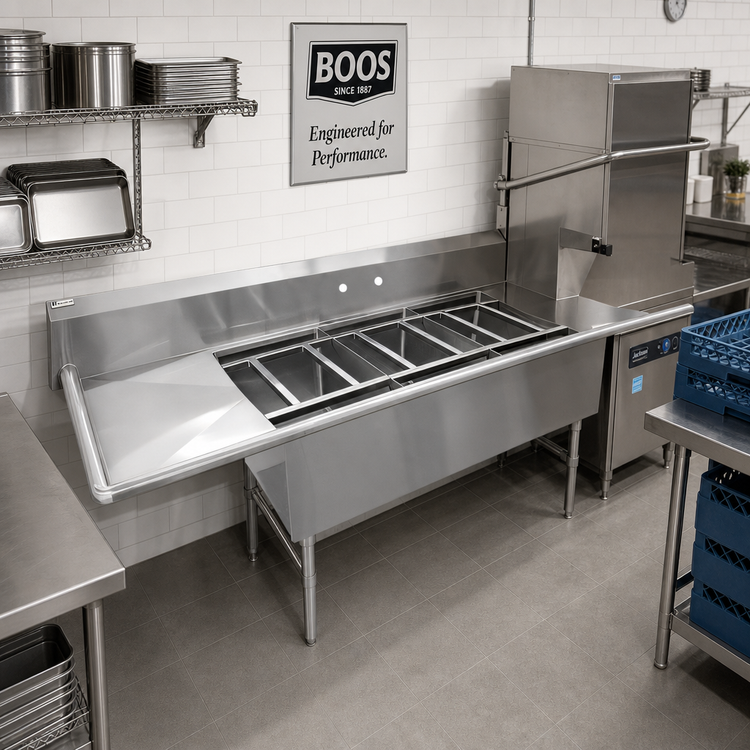

Right-Side Dish Machine Attachment
Designed with the dish machine connection on the right side; the opening may be modified in the field as needed.
16-Gauge 300 Series Stainless Steel
Built from heavy-duty stainless steel with a #4 polish, satin finish for commercial use.
10-Inch Boxed Backsplash
Full-length backsplash includes a 2" return to the wall, 45-degree turn, and 1" turned-down rear lip.
Faucet Hole Pattern
Backsplash includes one set of splash-mount faucet holes spaced 8" on center with 1" holes.
Sanitary Corner Design
All vertical and horizontal corners are coved at a 3/4" radius to support easier cleaning.
Reinforced Welded Construction
TIG-welded sink top and MIG-welded base provide a strong, stable work surface.
Stainless Steel Legs and Bullet Feet
Standard stainless steel legs, bracing, and adjustable bullet feet help support and level the unit.
