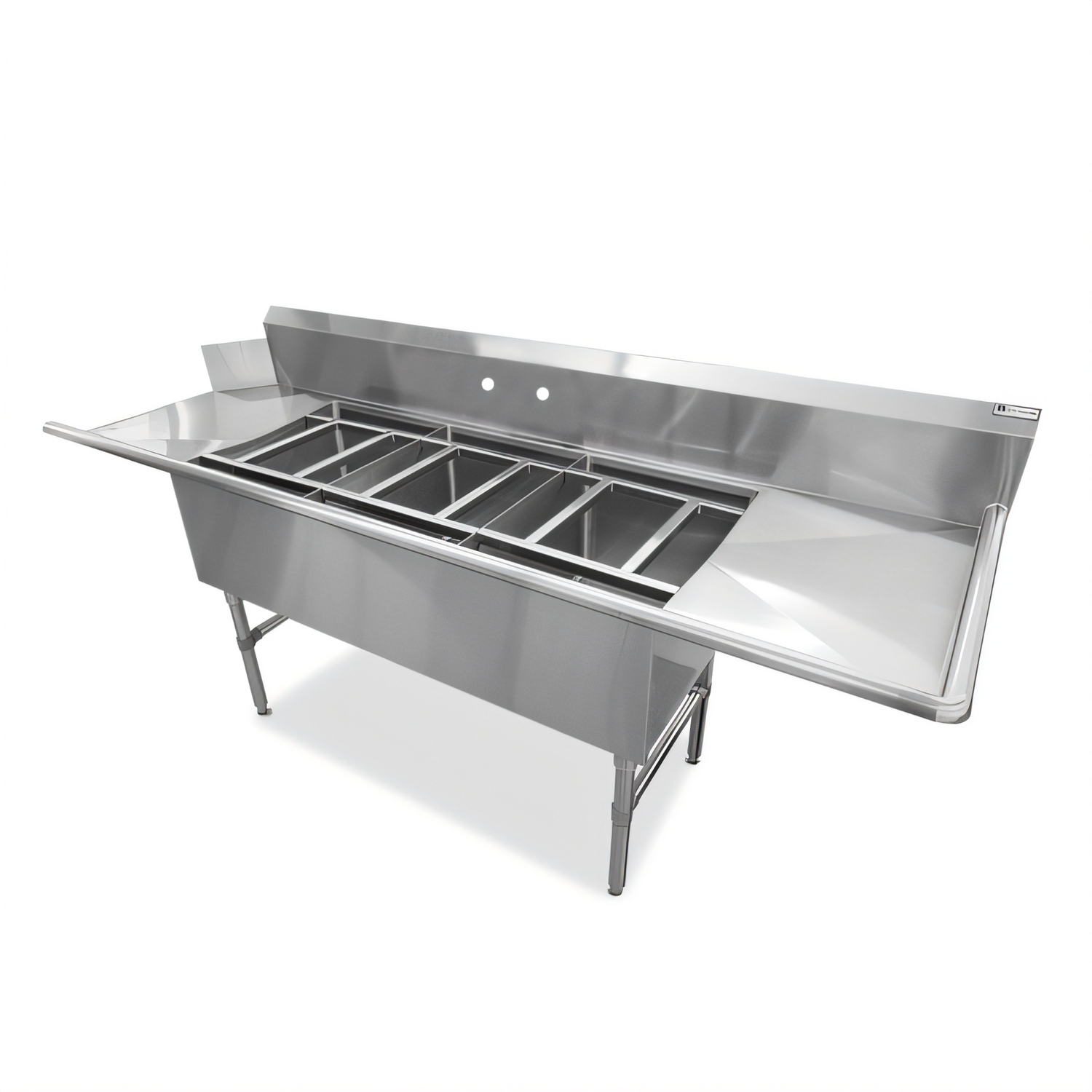

John Boos 3-Compartment Straight Dishtable/Pot Sink with Left-Side Dish Machine Opening, 2 Drainboards, and 10 Inch Backsplash

SKU: DT3PB18244-2D18R
GTIN: 662969734244
$4,097.36
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Compartment Sinks John Boos New Arrivals Restaurant Equipment Sink Tables Sinks & Handwashing Stations Specialty Work Tables

John Boos 3-Compartment Straight Dishtable/Pot Sink with Left-Side Dish Machine Opening, 2 Drainboards, and 10 Inch Backsplash

91-5/8 Inches W x 30-3/8 Inches D x 44-1/16 Inches H; 16-Gauge Type 300 Stainless Steel

Built for heavy-duty dishroom workflows, this straight sink table combines deep 3-compartment capacity, dual drainboards, and a left-side dish machine attachment in rugged stainless steel.

  • Three 18 Inch x 24 Inch x 14 Inch compartments provide ample space for washing pots and wares.
  • Two 18 Inch drainboards create convenient landing areas for sorted dishware.
  • Left-side dish machine attachment supports efficient dishroom layouts.
  • 10 Inch boxed backsplash helps protect the wall and includes splash-mount faucet holes on 8 Inch centers.
  • 16-gauge Type 300 stainless steel construction is built for demanding commercial use.
  • Stainless steel legs, bracing, and adjustable bullet feet add stability and easy leveling.

Overall Dimensions:

91.63"W x 30.38"D x 44.06"H

Product Weight:

231.0 lb

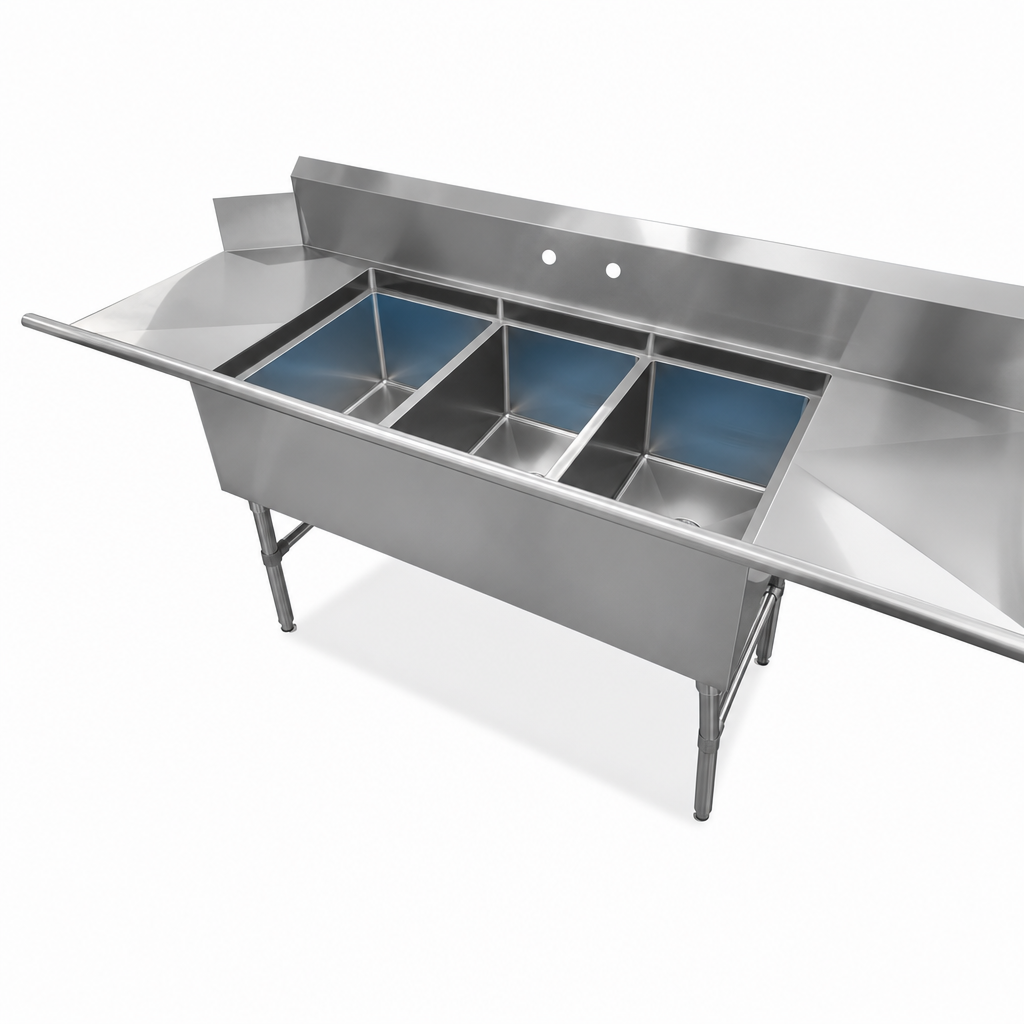

Three Deep Compartments

Includes three 18 Inch x 24 Inch x 14 Inch bowls for washing and soaking larger wares.

Dual Drainboards

Two 18 Inch drainboards provide convenient staging and drying areas.

Left-Side Dish Machine Attachment

Configured with a dish machine attachment on the left side for streamlined workflow.

10 Inch Boxed Backsplash

Full-length backsplash helps protect the wall and includes splash-mount faucet holes on 8 Inch centers.

16-Gauge Stainless Steel Construction

Made from Type 300 stainless steel with a #4 polish and satin finish for durability and easy cleaning.

Coved Bowl Corners

All vertical and horizontal corners are coved with a 3/4 Inch radius to support cleaner wash-up.

Drainage-Formed Bowls

Bottoms are formed for drainage to a 3-1/2 Inch diameter die-stamped opening.

Stainless Steel Support Frame

Includes stainless steel legs, bracing, gussets, and 1 Inch adjustable bullet feet for strength and leveling.

Rack Slides With Storage Bracket

Three rack slides with a storage bracket help organize dish racks and improve handling.

Polished Safety Edges

Outside corners are bullnosed to provide a safer, clean, finished edge.

Welded Construction

Sink tops are TIG welded and bases are MIG welded, with exposed welds polished to match adjacent surfaces.

Type Dishtable/Pot Sink
Style Straight
Installation Type Floor Model
Material Type 300 Stainless Steel
Finish Satin Finish
Compartments 3
Selling Unit Each
Units Per Case 1
Shipping Width 92 Inches
Shipping Depth 31 Inches
Shipping Height 45 Inches
Shipping Weight 231 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Each compartment measures 18 Inches wide x 24 Inches front-to-back x 14 Inches deep.
This model includes two 18 Inch drainboards.
The dish machine attachment is on the left side.
Yes. The full-length 10 Inch boxed backsplash includes splash-mount faucet holes on 8 Inch centers.
It is constructed from 16-gauge Type 300 stainless steel with stainless steel legs, bracing, and bullet feet.
