John Boos DT3PB18244-2D18L Compartment Sinks
Description
John Boos DT3PB18244-2D18R Clean Dishtable / Pot Sink
91-5/8" W x 30-3/8" D x 44-1/16" H • Right-side dish-machine attachmentBuilt for high-volume warewashing, this three-compartment John Boos dishtable/pot sink streamlines the clean-up workflow while standing up to years of daily punishment. Premium 16-gauge, type 300 stainless steel construction, dual 18" drainboards, and NSF / CSA-Sanitation compliance make it a rock-solid choice for restaurants, hotels, and institutional kitchens.
Key features & benefits

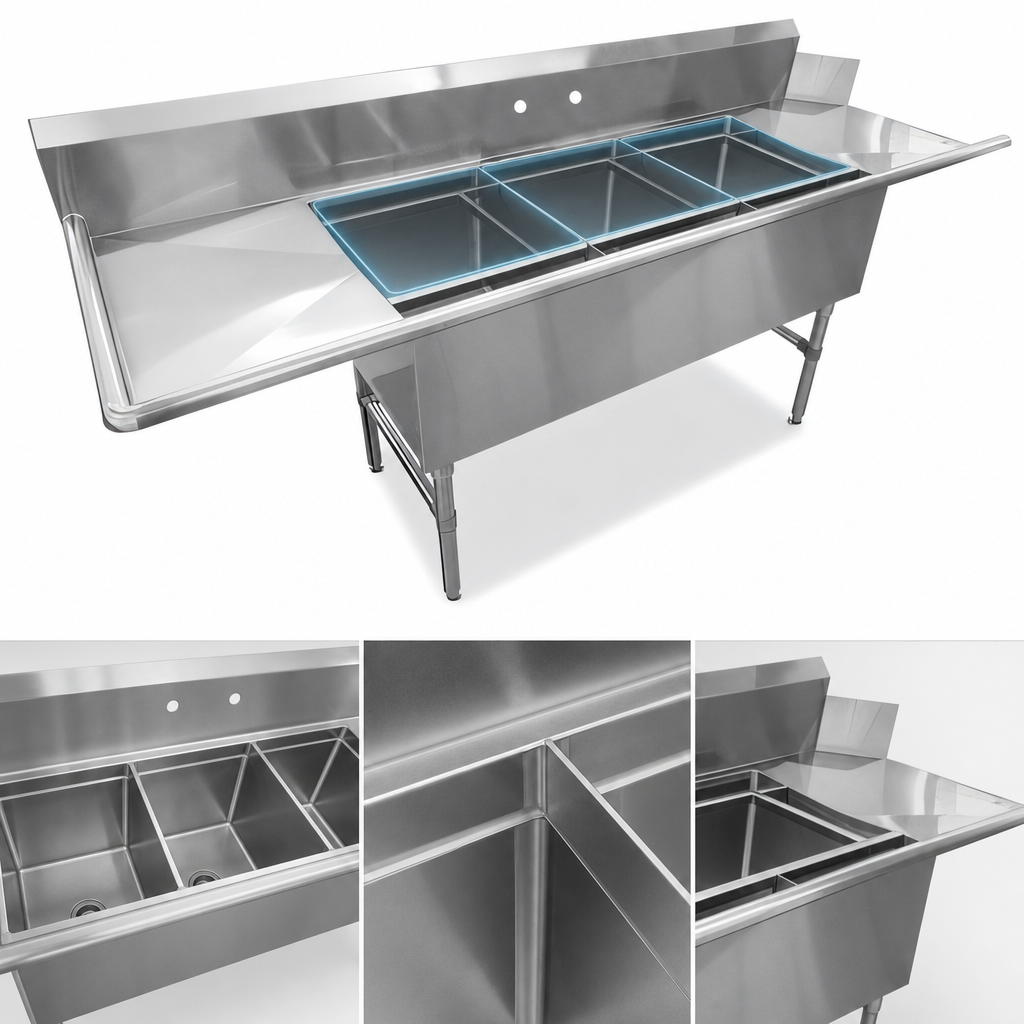

- Three 18" W x 24" front-to-back x 14" deep bowls accommodate large stock pots and sheet pans.
- Two 18" drainboards (clean & soiled) speed loading/unloading and keep counters dry.
- Right-hand dish-machine attachment opening integrates seamlessly with most commercial conveyors / door-type units.
- 10" boxed backsplash with 45° return & 1" turned-down lip protects walls from moisture.
- Pre-punched 8"-on-center splash-mount faucet holes—ready for your choice of faucet or pre-rinse unit (sold separately).
- Three rack slides with storage bracket hold dish racks off the floor for faster drying and safer handling.
- 16-gauge, #4 satin-finish type 300 stainless steel top & bowls—TIG-welded, polished seams for a sanitary surface.
- Heavy-duty 1-5/8" Ø stainless steel legs with 1-1/4" Ø cross bracing maximize stability.
- Adjustable stainless steel bullet feet level the unit on uneven floors.
- All vertical & horizontal corners are 3/4" radius coved for easy wipe-down.
- NSF & CSA-Sanitation listed for worry-free code compliance.
Technical specifications
| Model | DT3PB18244-2D18R |
|---|---|
| Overall dimensions | 91-5/8" W × 30-3/8" D × 44-1/16" H (to top of backsplash) |
| Bowl size (each) | 18" W × 24" F-B × 14" D |
| Number of compartments | 3 |
| Drainboards | Two 18" drainboards (left & right of center bowls) |
| Backsplash height | 10" |
| Faucet mounting | (1) set splash-mount holes, 8" centers |
| Material / gauge | 16 ga type 300 stainless steel, #4 satin finish |
| Legs & bracing | 1-5/8" Ø stainless legs with 1-1/4" Ø S/S cross-bracing |
| Feet | Adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Ships knocked down to reduce freight cost; easy field assembly |
John Boos & Co. continually improves product designs and reserves the right to change specifications without notice. All dimensions are nominal; ±0.5" manufacturing tolerance.
Popular add-ons (sold separately)
- 8"-center deck or splash-mount faucets
- Pre-rinse spray assemblies
- Add-a-faucet swing nozzles
- Lever or twist-waste drains
- Stainless overshelves or pot racks
Our food-service specialists are ready to assist—contact us before ordering to ensure compatibility with your dishwasher and plumbing layout.
