John Boos DT3B244-2D24L-X Compartment Sinks
Description

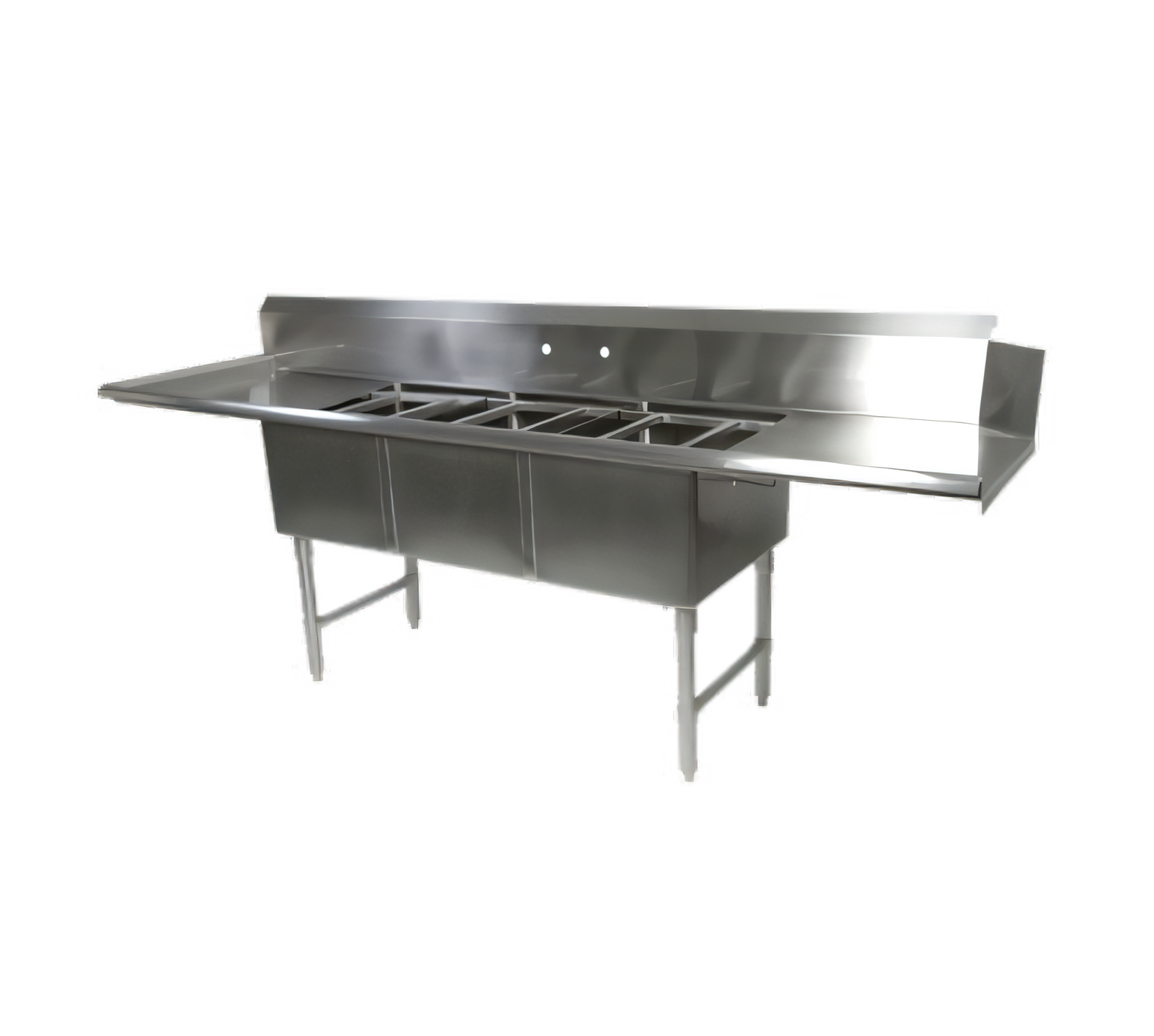

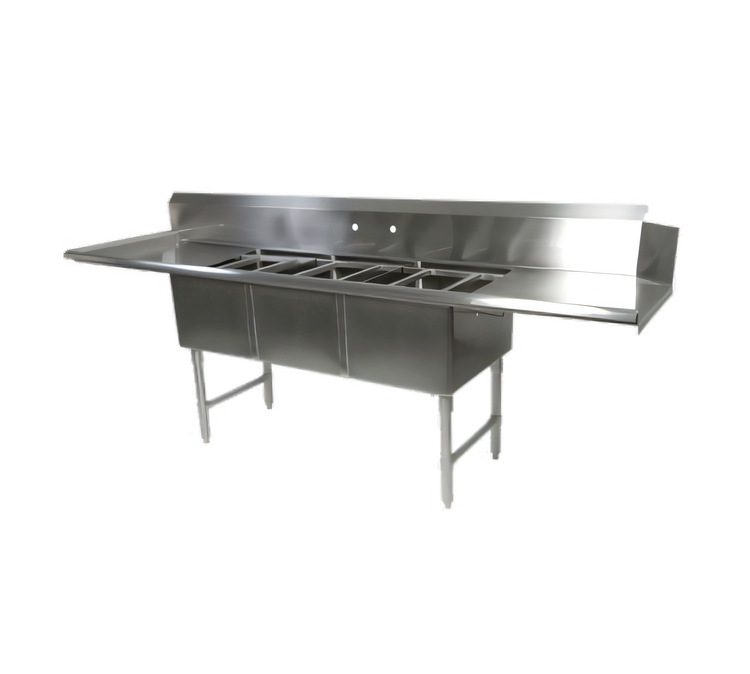

John Boos DT3B244-2D24R Clean Dishtable / Pot Sink
121-5/8" W • 3-Compartment • Twin 24" Drainboards • Right-Side Dish Machine AttachmentEngineered for high-volume kitchens that demand speed, sanitation, and uncompromising durability, the John Boos DT3B244-2D24R combines three spacious 24" x 24" x 14" sink bowls with dual drainboards, a boxed backsplash, and built-in rack slides—all fabricated from heavy-duty 16 gauge, type 300 stainless steel. NSF and CSA-Sanitation listed, this clean dishtable/pot sink is ready to streamline your ware-washing workflow the moment it arrives.
Stand-Out Features
- Overall size: 121-5/8" W x 30-3/8" D x 44-1/16" H (to top of backsplash)
- (3) 24" W x 24" F/B x 14" D compartments—ideal for wash, rinse, sanitize or pot soaking
- (2) 24" drainboards speed up loading/unloading and air-drying
- Right-side dish machine attachment with field-modifiable opening
- Full-length 10" boxed backsplash with 45° 2" return for superior splash protection
- Splash-mount faucet holes on 8" centers (one set)
- (3) Stainless steel rack slides with storage bracket keep dish racks organized and off the floor
- 16 ga type 300 stainless steel top & bowls, TIG-welded and satin-polished
- 1-5/8" Ø stainless steel legs with 1-1/4" Ø bracing for maximum stability
- 1" adjustable stainless steel bullet feet for quick leveling on uneven floors
- Bull-nosed edges on all exposed corners for safety and easy cleaning
- NSF & CSA-Sanitation certified
- Proudly made in Effingham, Illinois, USA
Specifications at a Glance
| Model | DT3B244-2D24R |
|---|---|
| Overall Dimensions | 121-5/8" W x 30-3/8" D x 44-1/16" H |
| Compartment Size (Qty 3) | 24" W x 24" F/B x 14" D |
| Drainboards | (2) 24" L—left & right of center bowls |
| Backsplash | 10" H boxed, 2" return, 1" turned-down rear lip |
| Faucet Hole Centers | 8" |
| Material Thickness | 16 gauge (1.5 mm) type 300 stainless steel |
| Legs / Bracing | 1-5/8" Ø stainless legs / 1-1/4" Ø stainless bracing |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
To protect the satin finish and prevent corrosion, clean regularly with non-chloride stainless steel cleaner and a soft cloth. Avoid abrasive pads or bleach.
Ordering & Options
- Standard configuration ships from Effingham, IL; some units may ship unassembled to reduce freight costs.
- Limited factory options are available for this model (overshelves, faucets, pre-rinse units, etc.). Contact us for details before ordering.
