John Boos DT3B18244-2D18R-X Compartment Sinks
Description

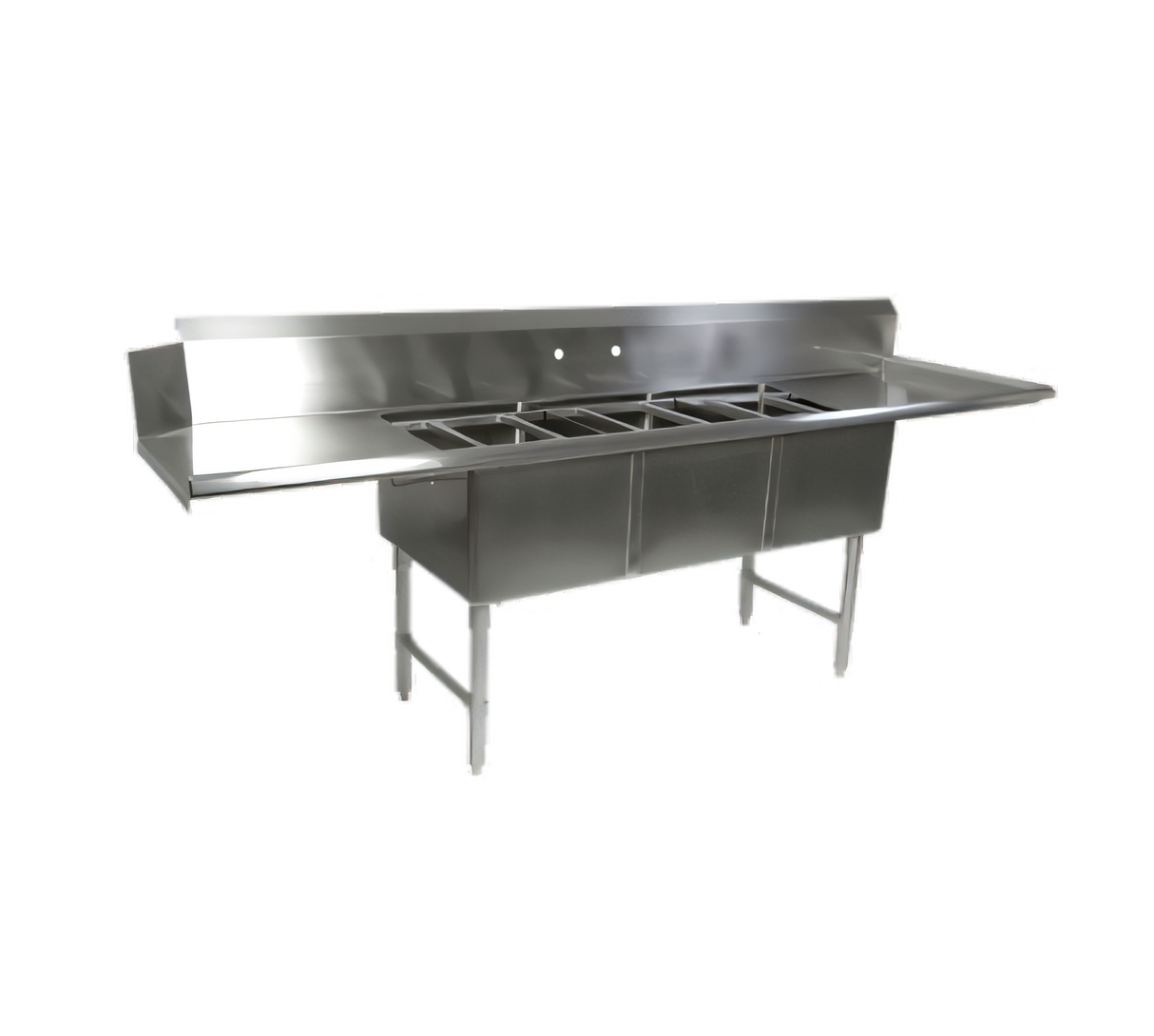

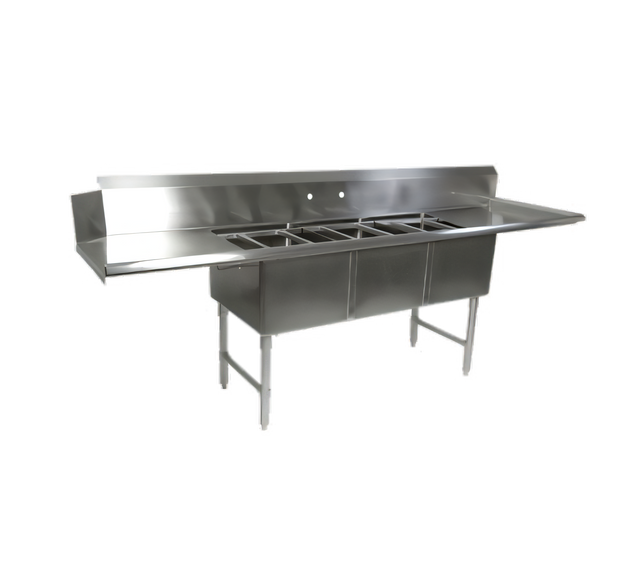

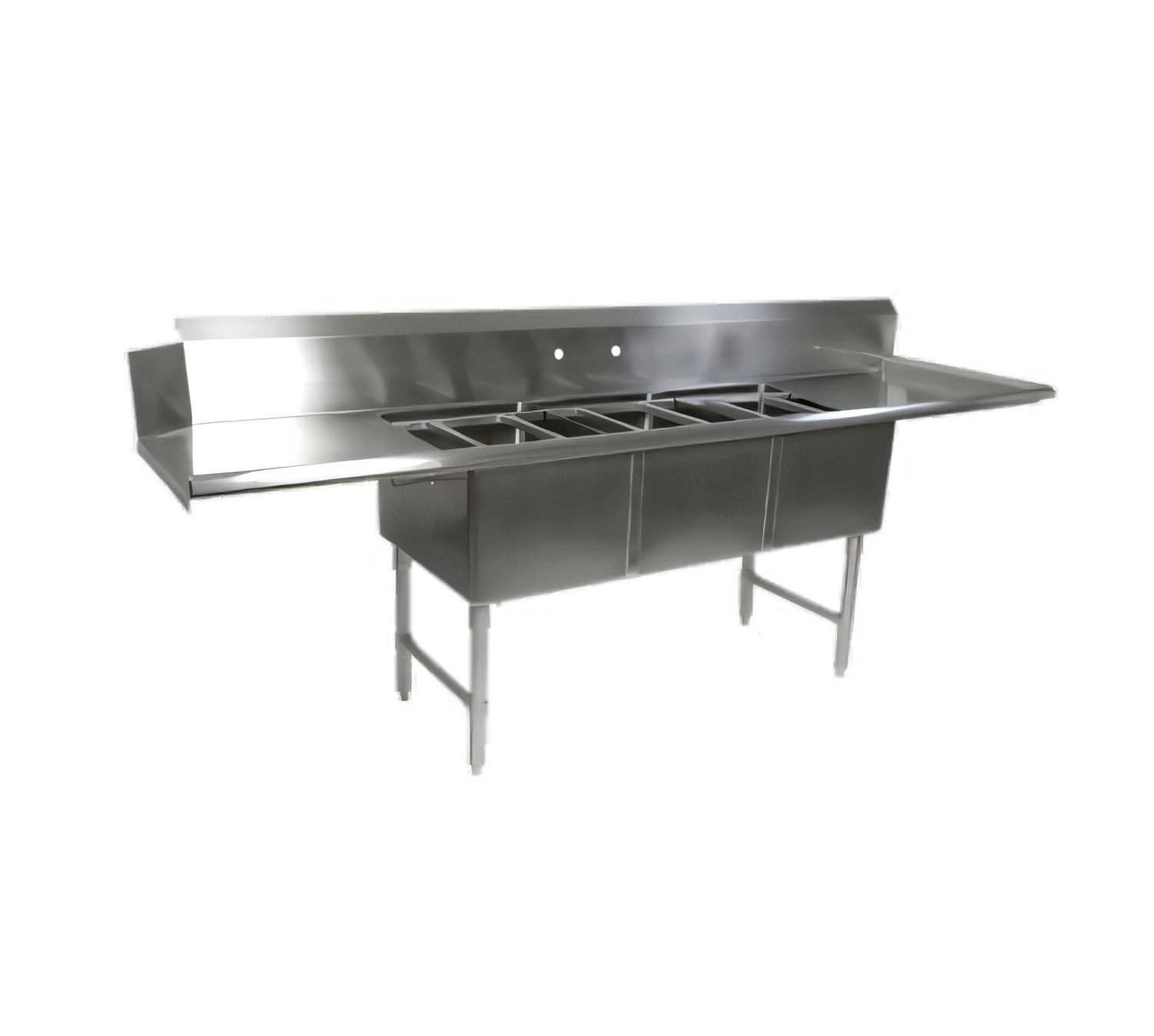

John Boos DT3B18244-2D18L Clean Dishtable / 3-Compartment Pot Sink
91-5/8" W × 30-3/8" D × 44-1/16" H • Left-side dish-machine attachmentEngineered for high-volume warewashing, this John Boos DT3B “B-Series” sink delivers rock-solid performance, rapid workflow, and the legendary durability of 16-gauge, type 300 stainless steel. Three roomy 18" × 24" × 14" compartments handle everything from sheet pans to 80-qt stock pots, while dual 18" drainboards and integrated rack slides keep soiled and clean wares moving in one continuous, sanitary direction toward your dish machine.
Why this sink stands out
- 16 ga. type 300 stainless steel top & bowls with #4 satin polish
- Full-length 10" boxed backsplash with 2" return and 1" turned-down rear edge
- (3) 18" W × 24" F/B × 14" D TIG-welded bowls, 3-1/2" die-stamped drain openings
- (2) 18" drainboards—left drainboard trimmed for dish-machine connection
- Splash-mount faucet holes on 8" centers (single set)
- (3) Heavy-duty rack slides with under-mounted storage bracket
- 1-5/8" O.D. stainless steel legs positioned directly beneath bowls for maximum load support
- 1-1/4" O.D. stainless bracing & 1" adjustable stainless bullet feet for quick leveling
- All edges bull-nosed for operator safety and easy cleaning
- NSF & CSA-Sanitation listed
- Made in the USA – Produced in Effingham, IL & Nevada, MO facilities
At-a-Glance Specifications
| Model | DT3B18244-2D18L |
|---|---|
| Overall dimensions | 91-5/8" W × 30-3/8" D × 44-1/16" H |
| Bowl count / size | (3) 18" W × 24" front-to-back × 14" deep |
| Drainboards | (2) 18" long (clean right, soil left w/ dish-machine cut-out) |
| Backsplash | 10" H boxed style, 2" return |
| Faucet holes | (1) set on 8" centers, splash mounted |
| Material thickness | 16-gauge (0.062") |
| Steel type / finish | 300 series stainless / #4 satin |
| Legs & bracing | Stainless steel, 1-5/8" O.D. legs, 1-1/4" bracing |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Ship status | Ships from Effingham IL or Nevada MO (may ship unassembled) |
Compatible Accessories (ordered separately)
- 8"-center deck or splash-mount faucets
- Add-a-faucet swing nozzles
- Pre-rinse assemblies
- Overshelves & pot-racks
- Lever or twist waste drains
Note: Limited options available for this model—ask your Boos representative for details.
Simple Stainless Care
- Wipe spills promptly with clean water & a soft cloth; never use chlorine bleach.
- For routine cleaning, use non-chloride detergents or Boos Stainless Steel Cleaner.
- Remove stubborn stains with Bar Keepers Friend applied along the grain, rinse, and polish dry.
- Avoid abrasive pads, steel wool, or wire brushes that can break the protective chromium film.
