John Boos CDT6-I60108SBK-L Pro-Bowl Compartment Sinks
John Boos CDT6-I60108SBK-L Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos CDT6-I60108SBK-L Pro-Bowl Compartment Sinks
Description

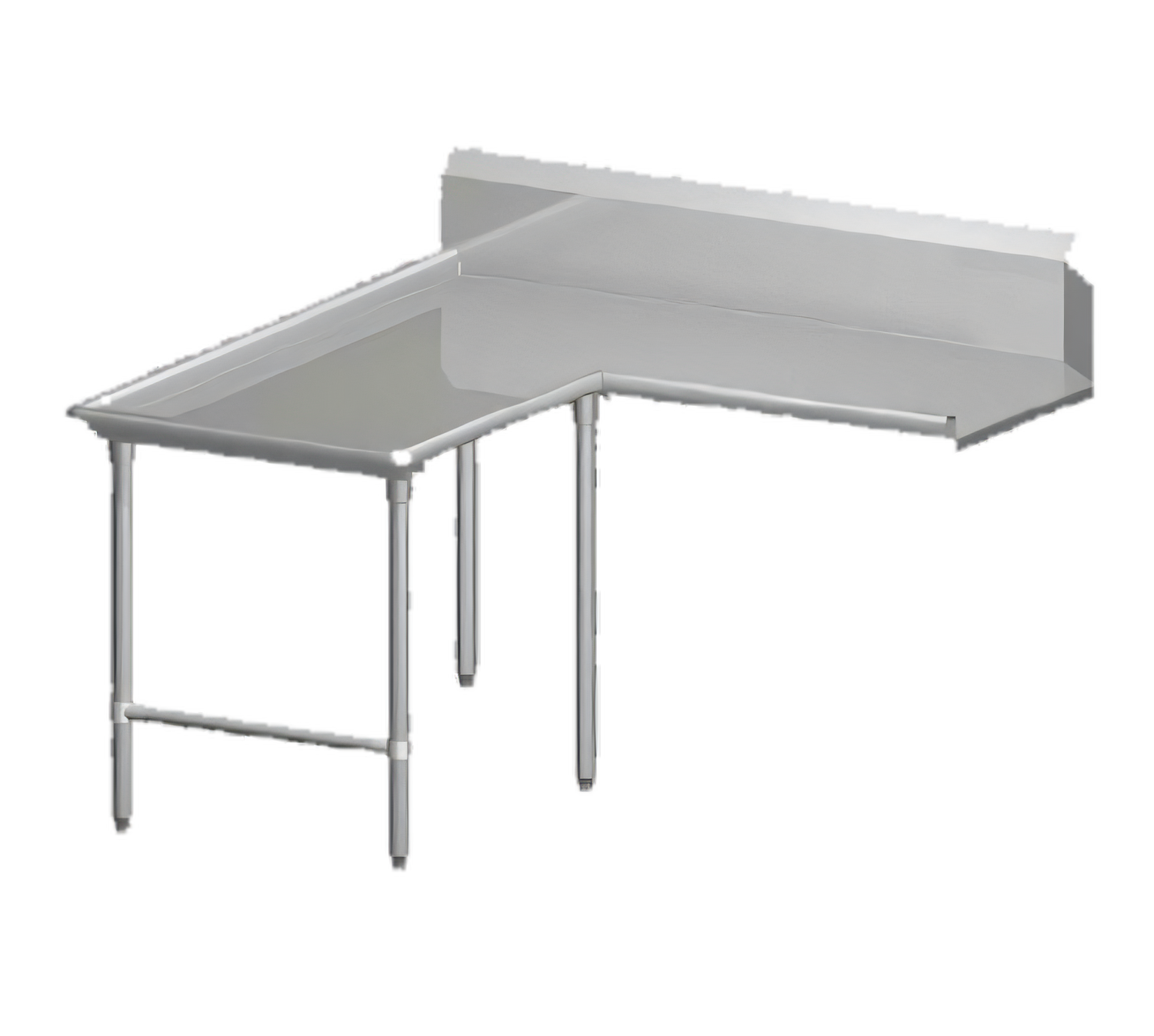

Pro-Bowl Clean Island Dishtable
Model CDT6-I60108SBK-R • 60" x 108" • Right-to-Left OperationDesigned and built in Effingham, Illinois by John Boos, the Pro-Bowl Island Dishtable streamlines the clean-dish side of your ware-washing operation. Its heavy-duty 16 ga #304 stainless steel top, generous 10 inch boxed backsplash, and L-shaped 60" × 108" layout move racks smoothly from the dishmachine to the drying area while keeping walls, floors, and staff safe.
Key Features
- Island design with right-to-left workflow – perfect for central dishrooms.
- L-shape: 60" machine-to-corner x 108" corner-to-end for high-volume capacity.
- 16 ga, Type 300 stainless steel top with #4 satin finish – TIG-welded & polished seams.
- Full-length 10" boxed backsplash with 45° anti-splash top & 2" return to wall.
- 2-1/4" rolled front & end edges with bull-nosed corners for operator safety.
- (6) 1-5/8" Ø 16 ga stainless steel legs with adjustable cross-bracing.
- 1" stainless steel bullet feet – field-adjustable for a level work surface.
- Overall height 44" (to top of backsplash).
- NSF listed for open food-zone use.
Detailed Specifications
| Configuration | Island, L-shaped clean dishtable |
|---|---|
| Dish Flow Direction | Right ➜ Left |
| Machine to Corner | 60" (1524 mm) |
| Corner to End | 108" (2743 mm) |
| Work Height | ≈34-3/4" to deck / 44" to top of backsplash |
| Top Material / Gauge | 16 ga Type 304 stainless steel, #4 satin |
| Backsplash | 10" boxed, 45° top, 2" return, ½" turned-down lip |
| Edge Profile | 2-1/4" rolled front & ends, bull-nosed corners |
| Legs / Bracing | 1-5/8" Ø 16 ga stainless legs with adjustable stainless bracing |
| Feet | 1" dia. adjustable stainless bullet feet |
| Unit Weight | ≈275 lb (standard build) |
| Certifications | NSF |
Engineered for Busy Dishrooms

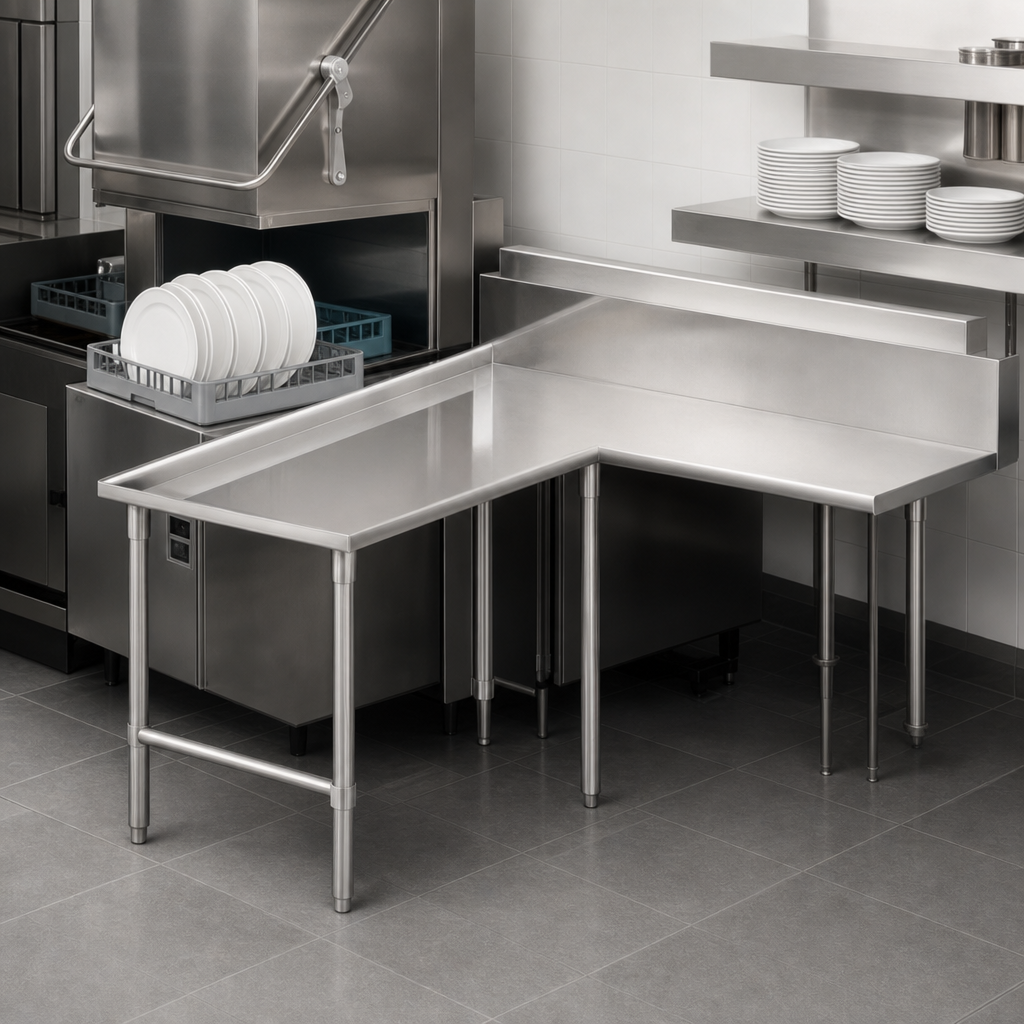

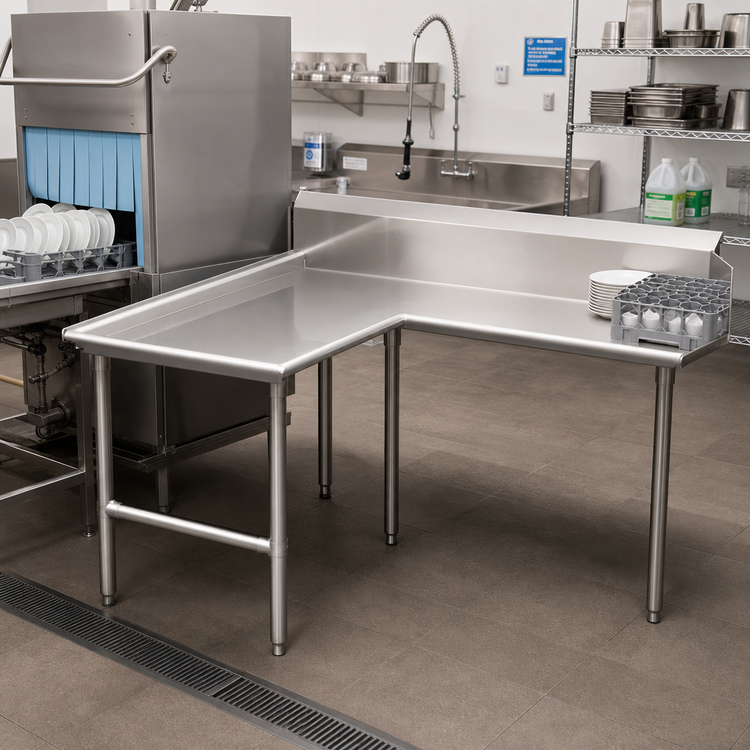

- Island layout eliminates wall mounting, allowing flexible placement in the middle of a dish pit.
- Bull-nosed corners and rolled edges protect racks – and crew – from sharp metal.
- Six-leg support prevents sagging across the 9 ft run and keeps water draining properly.
- No-drip backsplash and sloped top channel water back into the machine, reducing floor cleanup.
Care & Maintenance
- Wipe daily with warm water and a non-chloride detergent.
- Avoid bleach and abrasive pads; use a soft cloth or plastic scouring pad.
- Restore shine periodically with John Boos Stainless Steel Cleaner or Bar Keepers Friend.
- Always clean along the polish lines to preserve the protective chromium oxide layer.
Confirm dishmachine make & model, door swing, and floor drains before ordering. Some units ship knocked-down to reduce freight cost; on-site assembly required.
