John Boos CDT4-I6084SBK-L Pro-Bowl Compartment Sinks
Description

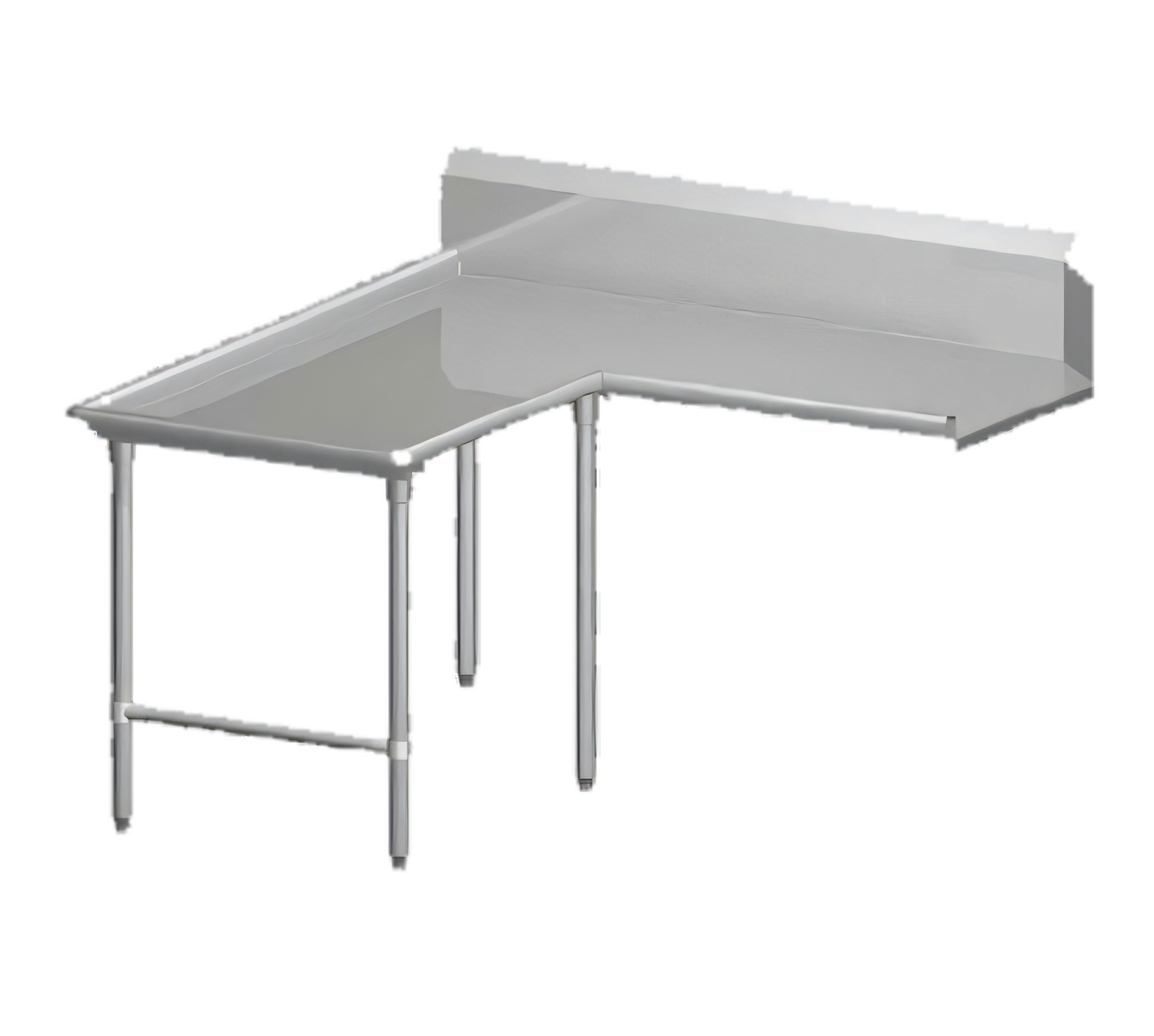

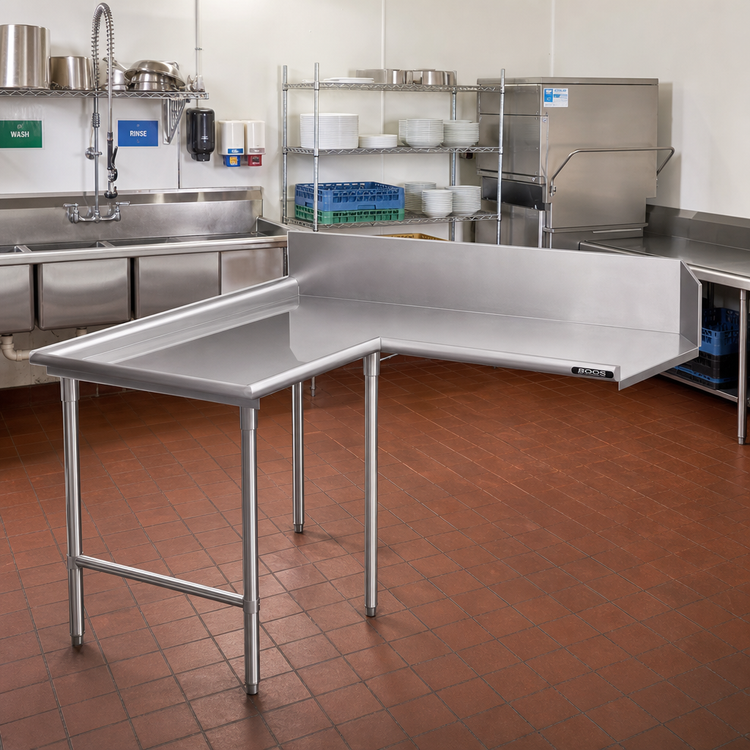

John Boos Pro-Bowl “CDT-I” Clean Island Dishtable
60" machine-to-corner × 84" corner-to-end • Right-to-Left Operation • NSFKeep clean wares flowing and dishrooms spotless with the heavy-duty, L-shaped Pro-Bowl island dishtable from John Boos. Built from premium 14-gauge, type 300 stainless steel, this unit is engineered to sit immediately downstream of your dish-machine, giving staff a generous, ergonomic landing area that’s easy to sanitize and tough enough for the busiest shifts.
Stand-Out Features

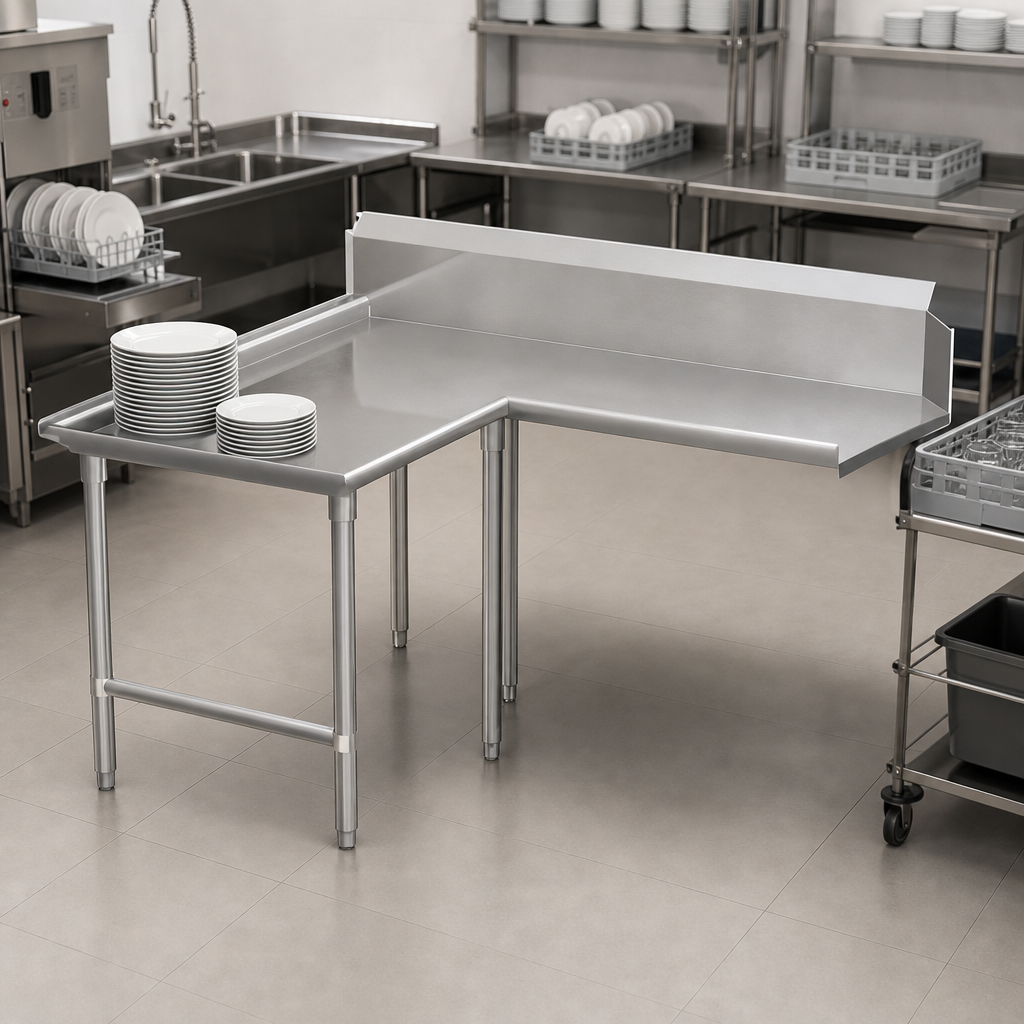

- Island configuration with 60" clean run before the corner and 84" clean run after the corner
- Right-to-left workflow (dish-machine unloads on the right, operator stands on the inside corner)
- 14-ga. #4 satin-finish stainless steel top—50 % thicker than standard 18-ga. tables
- 10" boxed backsplash with 45° sanitary top edge & 2" return keeps water off surrounding walls
- 2-1/4" rolled front & side rims and bull-nosed corners for operator safety and quick wipe-downs
- Fully TIG-welded seams; exposed welds ground & polished to match adjacent surfaces
- (6) 1-5/8" Ø stainless legs with stainless cross-bracing (tables 7' & longer)
- 1" adjustable stainless bullet feet for fast, wobble-free leveling on uneven floors
- 44" overall height (34-3/4" working height + 10" backsplash)
- NSF Listed & proudly manufactured in Effingham, Illinois, USA
Technical Specifications
| Model family | Pro-Bowl CDT-I Clean Island Dishtable |
|---|---|
| Layout | L-shaped, island style |
| Direction of operation | Right-to-Left |
| Machine-to-corner run | 60" (1524 mm) |
| Corner-to-end run | 84" (2134 mm) |
| Top material / gauge | 14-ga. type 300 series stainless steel |
| Edge profile | 2-1/4" rolled rim, bull-nosed corners |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Legs & bracing | 16-ga. stainless tube with adjustable bracing |
| Feet | 1" stainless bullet feet, height adjustable |
| Overall height | 44" (backsplash tip) |
| Certifications | NSF |
Built to Outperform
- Thicker 14-ga. top resists dents from tray drops and heavy racks.
- Bull-nosed corners eliminate catch points for cloths and racks.
- K.D. bracing ships compactly and assembles quickly on-site, reducing freight costs.
- Satin finish hides scratches and matches existing John Boos stainless equipment.
Care & Maintenance
For daily cleaning, wipe with warm water and a non-chloride cleanser such as Bar Keepers Friend. Avoid wire brushes or steel wool so the protective stainless layer stays intact. Rinse thoroughly and dry with a soft towel to maintain the legendary John Boos shine.
