John Boos C2H-60-2-X Condensate Hoods
John Boos C2H-60-2-X Condensate Hoods is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos C2H-60-2-X Condensate Hoods
Description

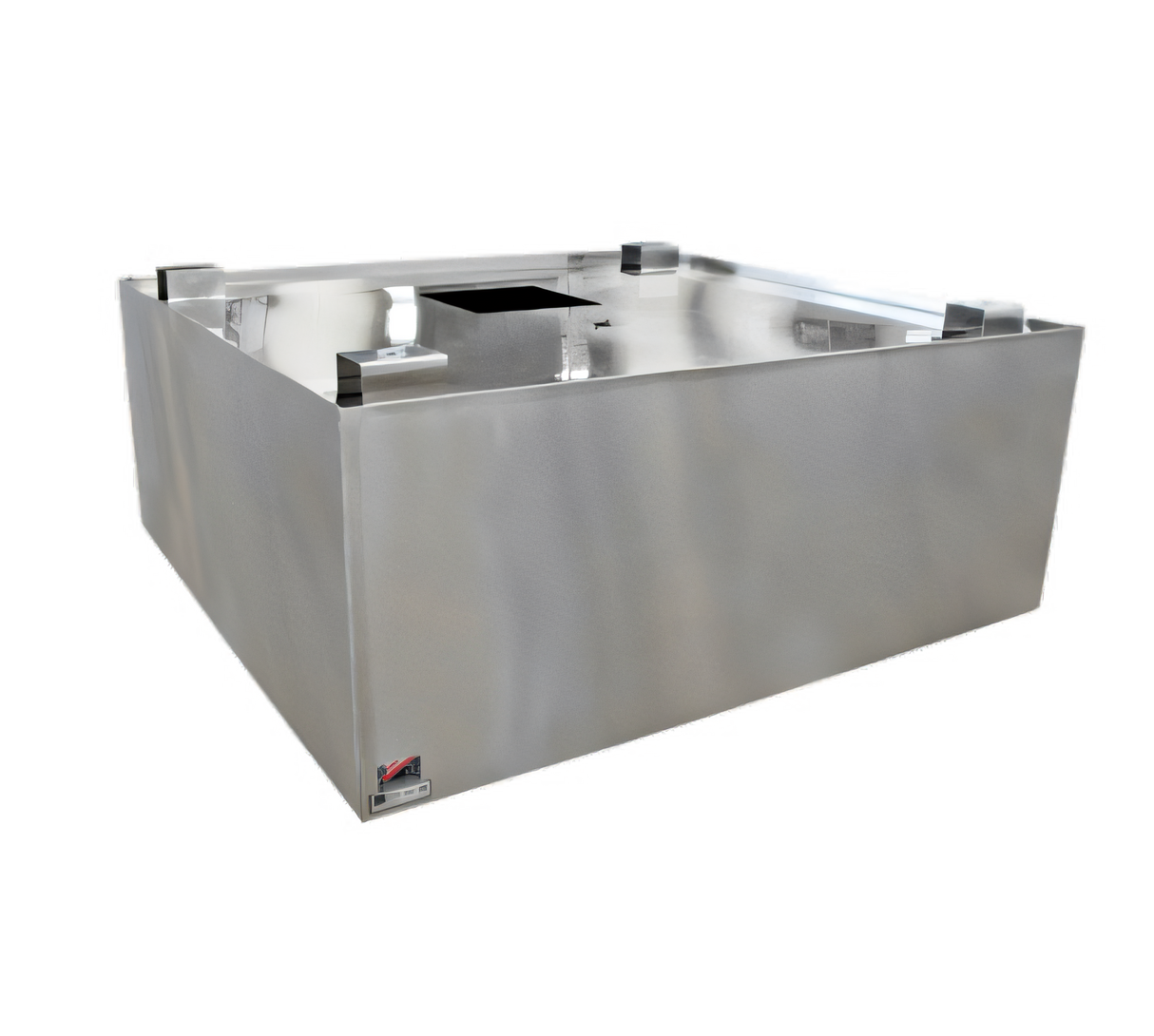

John Boos C2H-60-2 “C2H” Box-Style Condensate Hood
60"W × 42"D × 19"H | NSF Listed | 18 GA 300-Series Stainless SteelPurpose-built to capture steam, heat, and vapor above non-grease-producing equipment, the John Boos C2H-60-2 delivers dependable performance in dishrooms, bakeries, and other high-humidity prep areas. Fabricated from durable 18-gauge, 300-series stainless steel, this 60-inch hood arrives ready to install with welded hangers, a factory-installed exhaust collar, and a full perimeter condensate gutter with rear drain tube.
Key Features
- All-welded 18 GA type 300 stainless steel construction – corrosion resistant & food-safe
- Box-type configuration maximizes capture of steam and vapors

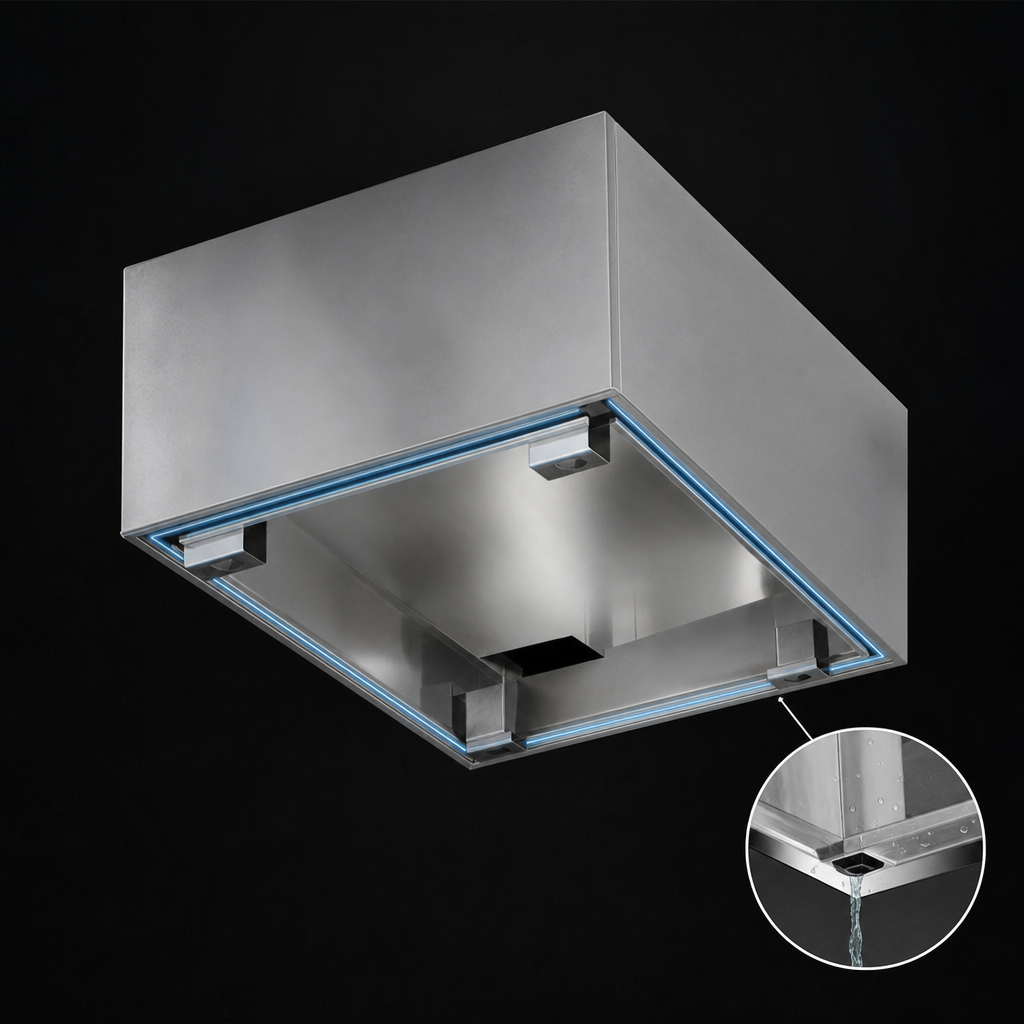

- Full perimeter gutter channels condensate to a 3/8" Ø × 2" rear drain tube
- Factory-cut starting exhaust collar (approx. 10" × 10") speeds installation
- Four heavy-duty welded hanging brackets – no field fabrication required
- Rated at 875 CFM free air volume for ample capture velocity
- NSF certified for sanitation compliance
- Made in Effingham, IL by John Boos & Co.
Specifications
| Model | C2H-60-2 |
|---|---|
| Overall size (W × D × H) | 60" × 42" × 19" (1,524 mm × 1,067 mm × 483 mm) |
| Material | 18 GA, 300-series stainless steel (No. 4 finish) |
| Air volume (CFM) | 875 |
| Exhaust collar (OD) | 10" × 10" square neck (factory welded) |
| Drain connection | 3/8" diameter × 2" long tube, right rear |
| Shipping weight | Approx. 300 lb (136 kg) |
| Tolerances | ±0.5" on all dimensions |
| Certifications | NSF |
Recommended Applications
- Commercial dishwashers & pot sinks
- Steam tables, kettles, pasteurizers, proofers
- Bakeries, breweries, & food-processing areas where moisture control is critical
Care & Maintenance
- Clean regularly with mild soap or a non-chloride stainless cleanser.
- Avoid abrasive pads, wire brushes, or cleaners containing bleach.
- Wipe in the direction of the metal’s polish lines and dry completely to preserve the protective chromium oxide film.
- For restoration and shine, use John Boos Stainless Steel Cleaner or Bar Keepers Friend followed by a fresh-water rinse.
Manufactured in Effingham, Illinois. Lead times may vary; please contact us for current availability.
