John Boos C2H-42-2 Condensate Hoods
Description

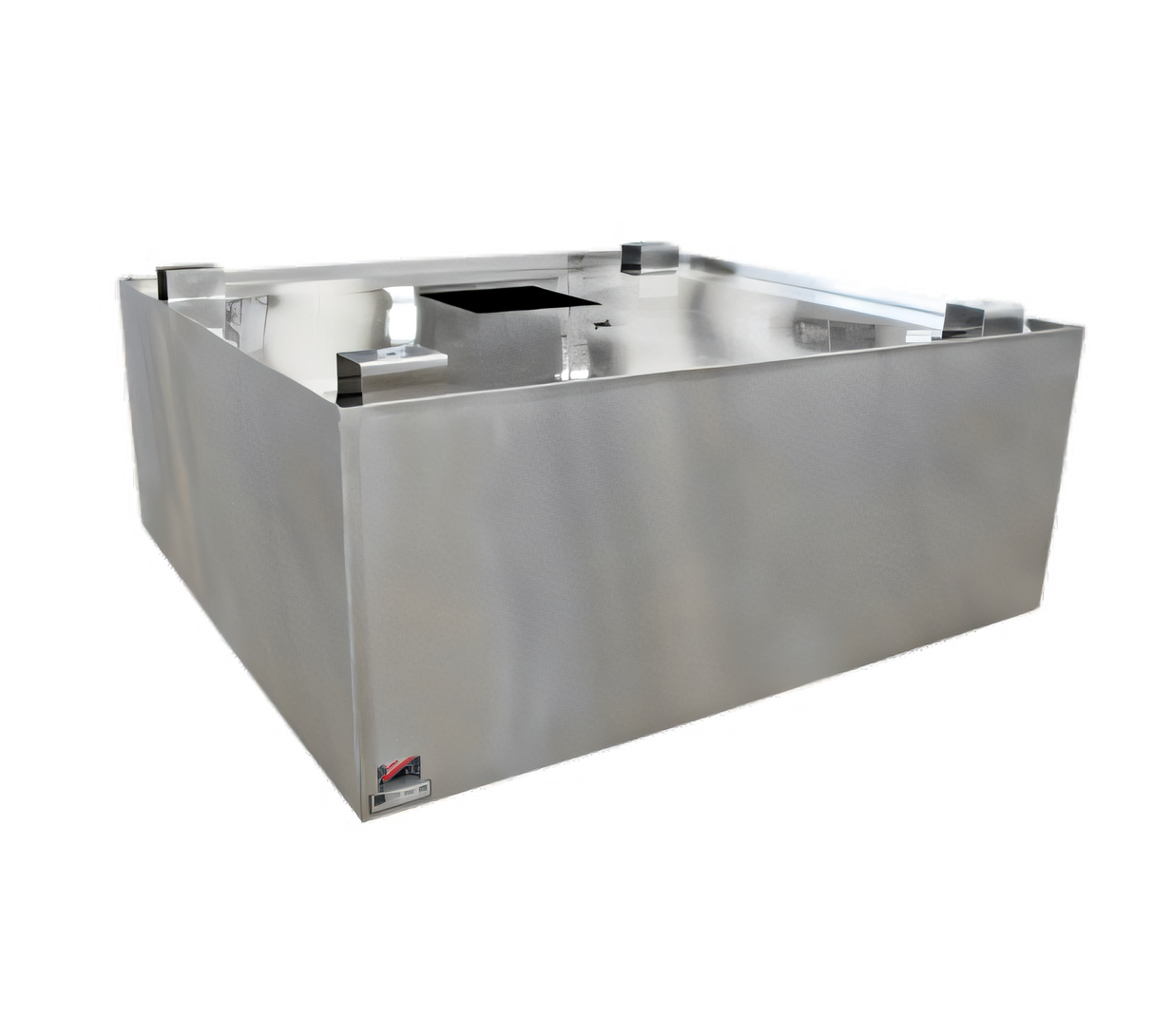

John Boos C2H-42-2 Stainless Steel Condensate Hood
42" W × 42" D × 19" H • 18 GA 300 Series Stainless • NSF ListedControl steam, heat and moisture right at the source with the compact, box-type C2H-42-2 condensate hood from John Boos. Built from tough 18-gauge 300-series stainless steel, this unit protects ceilings, walls and equipment while helping your kitchen stay comfortable and compliant.
Why this hood stands out
- Rugged 18 GA 300-series stainless steel resists corrosion and everyday wear.

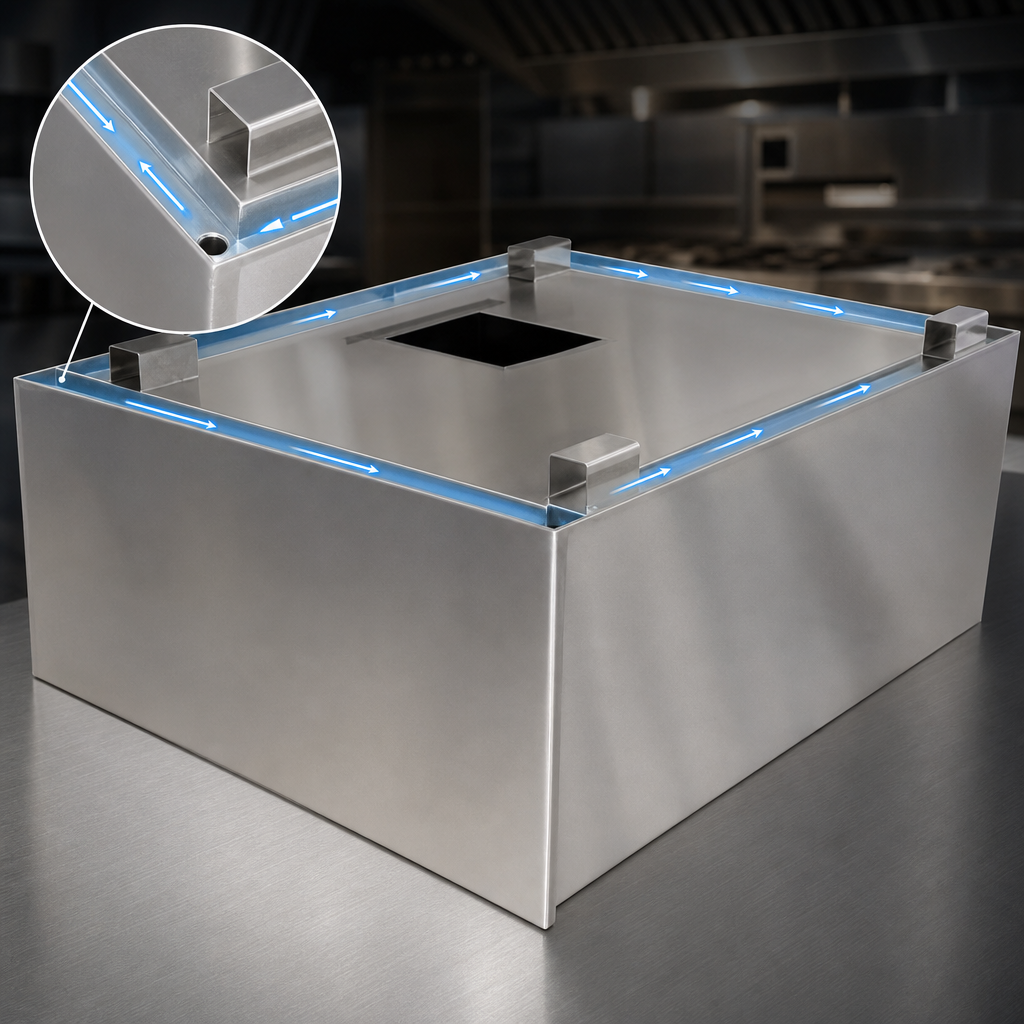

- Full-perimeter gutter channels condensate to a dedicated drain for a cleaner work zone.
- 3/8" Ø × 2" rear drain tube makes plumbing hook-up quick and simple.
- Factory-welded hanging brackets for fast, secure ceiling installation.
- 10" square starting exhaust duct collar centered for balanced airflow.

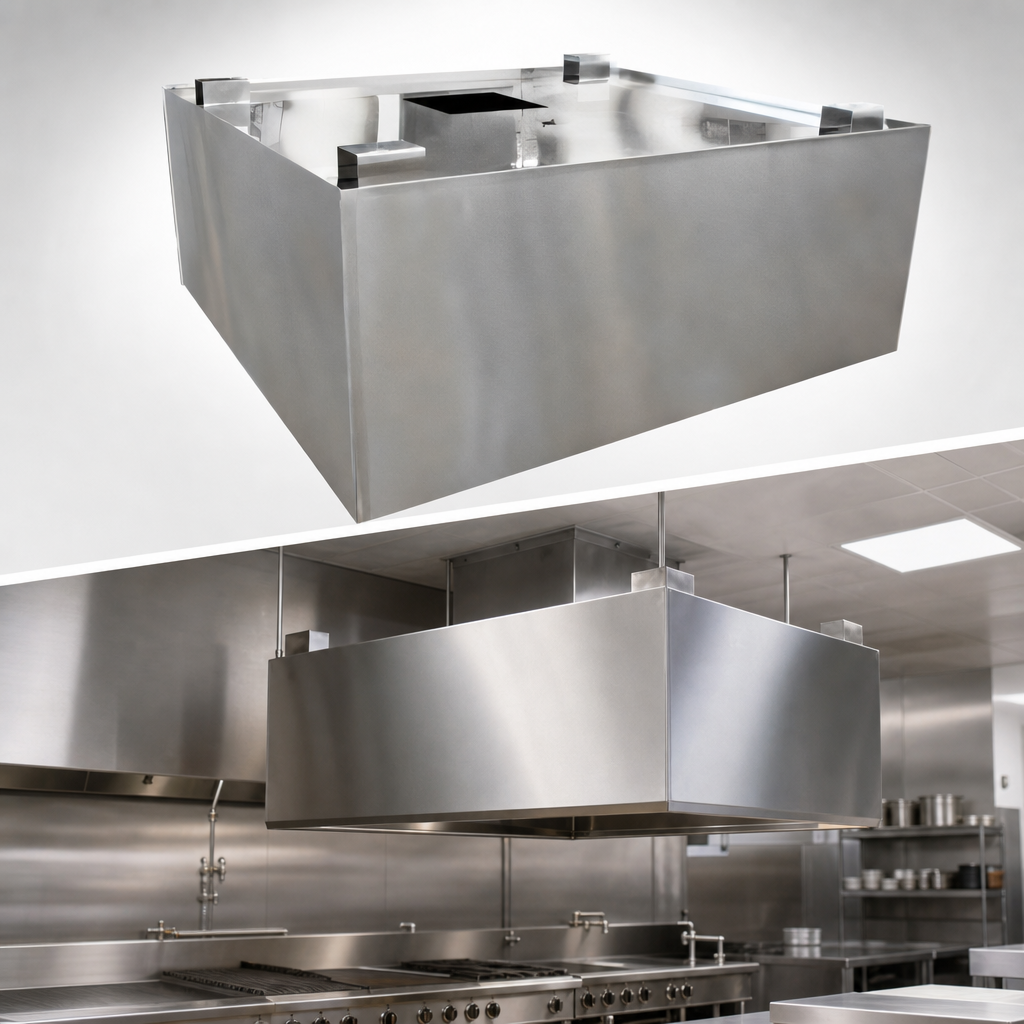

- Box-type profile maximizes capture in a minimal footprint—ideal where space is at a premium.
- NSF certified for safe use in commercial food-service environments.
Technical specifications
| Model | C2H-42-2 |
|---|---|
| Overall dimensions | 42" W × 42" D × 19" H |
| Recommended airflow | 600 CFM |
| Unit weight | 210 lb |
| Drain connection | 3/8" Ø × 2" rear drain tube |
| Exhaust collar | 10" square duct starter (centered) |
| Mounting | Integral welded hanging brackets |
| Construction | 18-gauge, 300-series stainless steel |
| Certification | NSF |
Great for
- High-steam dish machines & pot washers
- Steam tables, kettles and proofers
- Combi & convection steamers (low-grease)
- Other moisture-producing equipment where grease is minimal
Stainless steel care tips
Wipe down daily with a soft cloth or sponge and a non-chloride stainless cleaner such as Bar Keepers Friend. Rinse, then dry following the polish lines to preserve the protective chromium-oxide film. Avoid wire brushes, abrasive pads and chlorine bleach.
