John Boos C2H-36-2 Condensate Hoods
Description

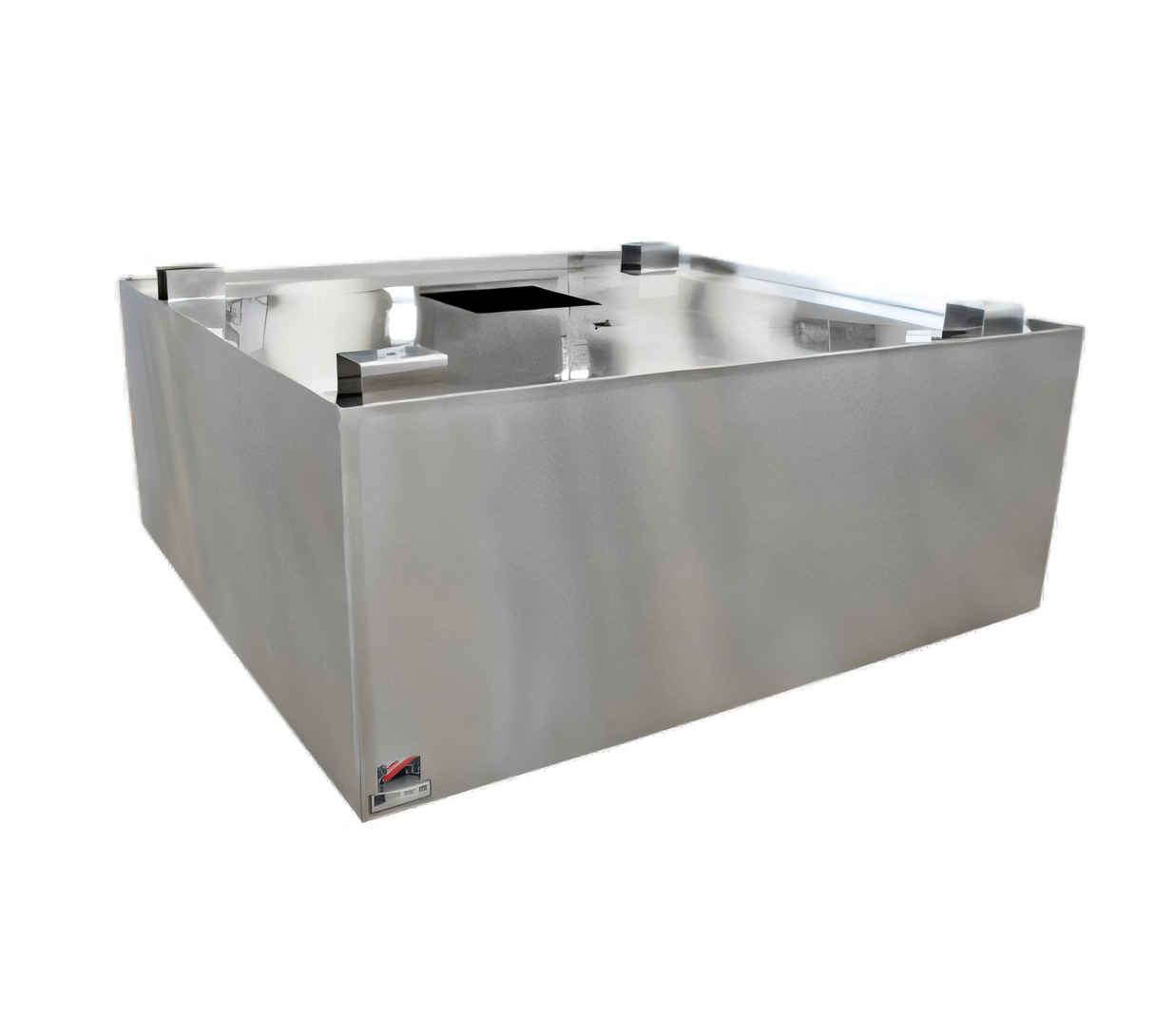

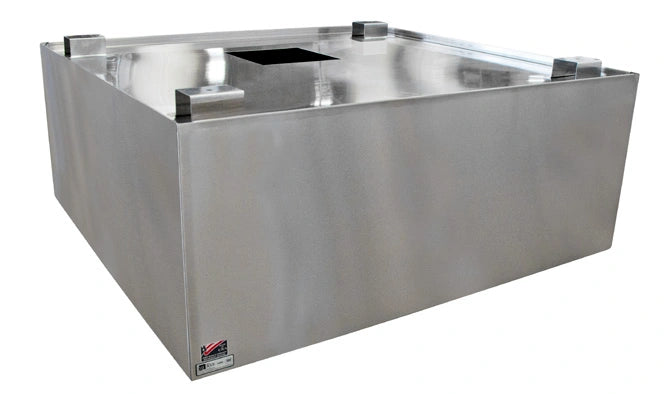

John Boos “C2H” Box-Type Condensate Hood — 36" W x 36" D x 19" H
Model C2H-36-2 | 18 ga 300 Series Stainless Steel | NSF ListedKeep excess steam and moisture where it belongs — away from your ceiling and HVAC system. The John Boos C2H-36-2 condensate hood captures vapors from dishmachines, steam kettles, and other non-grease-producing equipment, channeling condensation into a perimeter gutter with an easy-drain outlet. Built entirely from heavy-duty stainless steel, it delivers lasting performance and sanitation peace of mind in any commercial kitchen.
Key Features & Benefits
- Durable 18 gauge, 300 series stainless steel resists corrosion, pitting, and harsh cleaning chemicals.
- Box-type design efficiently captures steam and heat without the expense of a full grease hood.

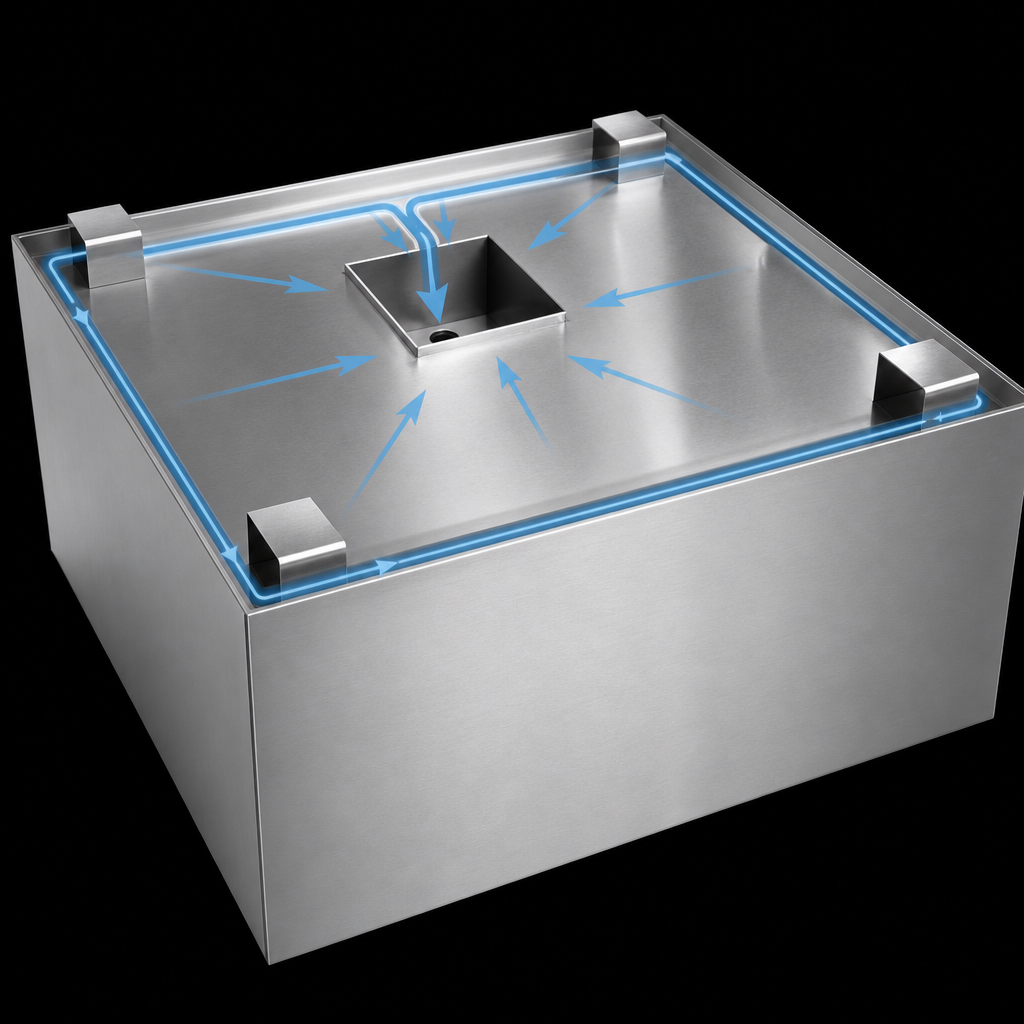

- Full perimeter condensate gutter directs water to a 3/8" Ø x 2" long rear drain tube for mess-free disposal.
- Factory-installed starting exhaust duct collar simplifies connection to your ventilation system.

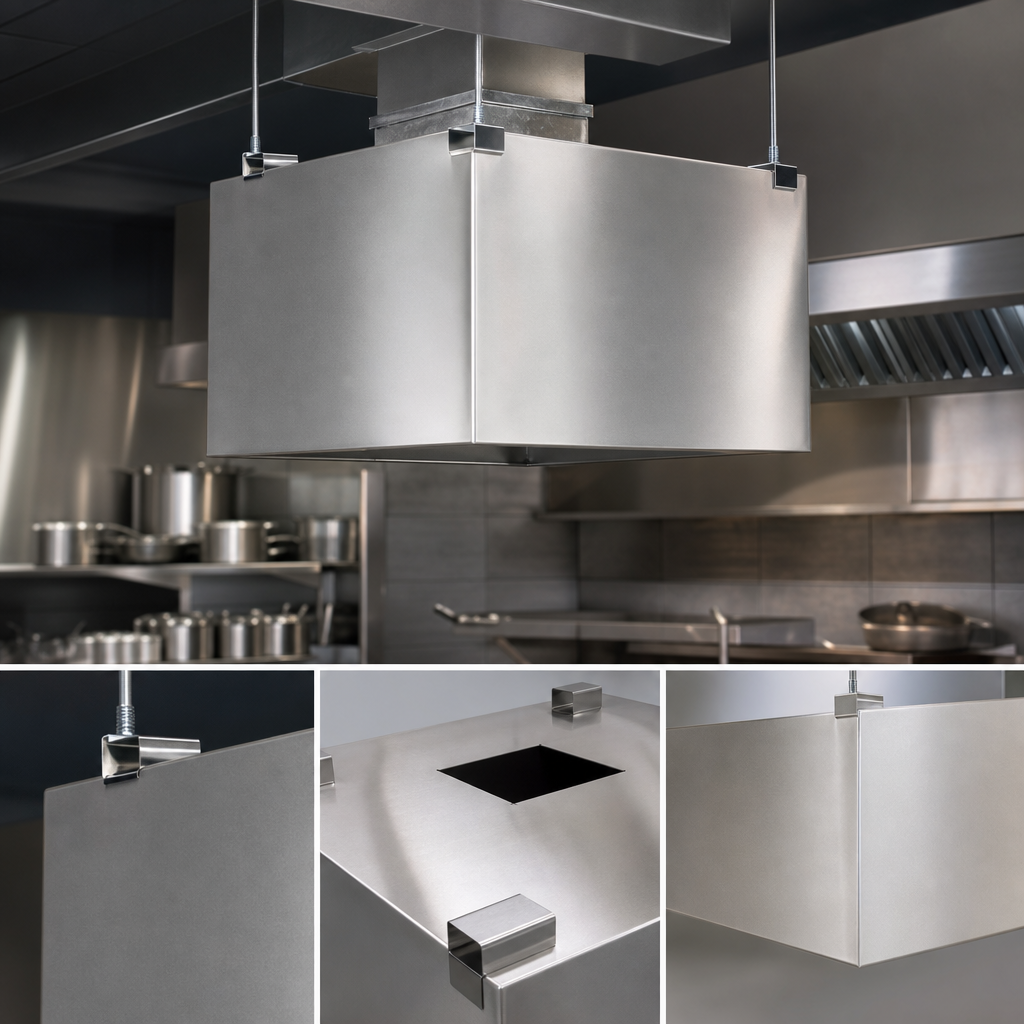

- Four welded hanging brackets provide quick, secure ceiling mounting.
- NSF certified for safe use over food-service equipment.
Technical Specifications
| Model | C2H-36-2 |
|---|---|
| Overall Dimensions (W × D × H) | 36" × 36" × 19" (914 × 914 × 483 mm) |
| Recommended Exhaust Flow | 450 CFM |
| Exhaust Collar | Pre-cut square starting collar (factory welded, ready for field duct connection) |
| Gutter / Drain | Full perimeter gutter with 3/8" Ø × 2" rear drain tube |
| Construction | 18 ga, type 300 stainless steel; smooth welded seams |
| Mounting | 4 welded hanging brackets |
| Weight | 120 lb (54 kg) |
| Certifications | NSF |
Stainless Steel Care Made Easy
- Wipe down after each shift with mild soap or non-chloride detergent and clean water.
- Avoid abrasive pads; use soft towels or plastic scouring pads to protect the stainless finish.
- For tough residues, Bar Keepers Friend® or similar non-chloride cleaners work best—always scrub with the grain.
- Rinse thoroughly and dry to maintain the passive protective film that keeps stainless “stainless.”
Following these simple steps will keep your John Boos condensate hood looking new for years.
