John Boos

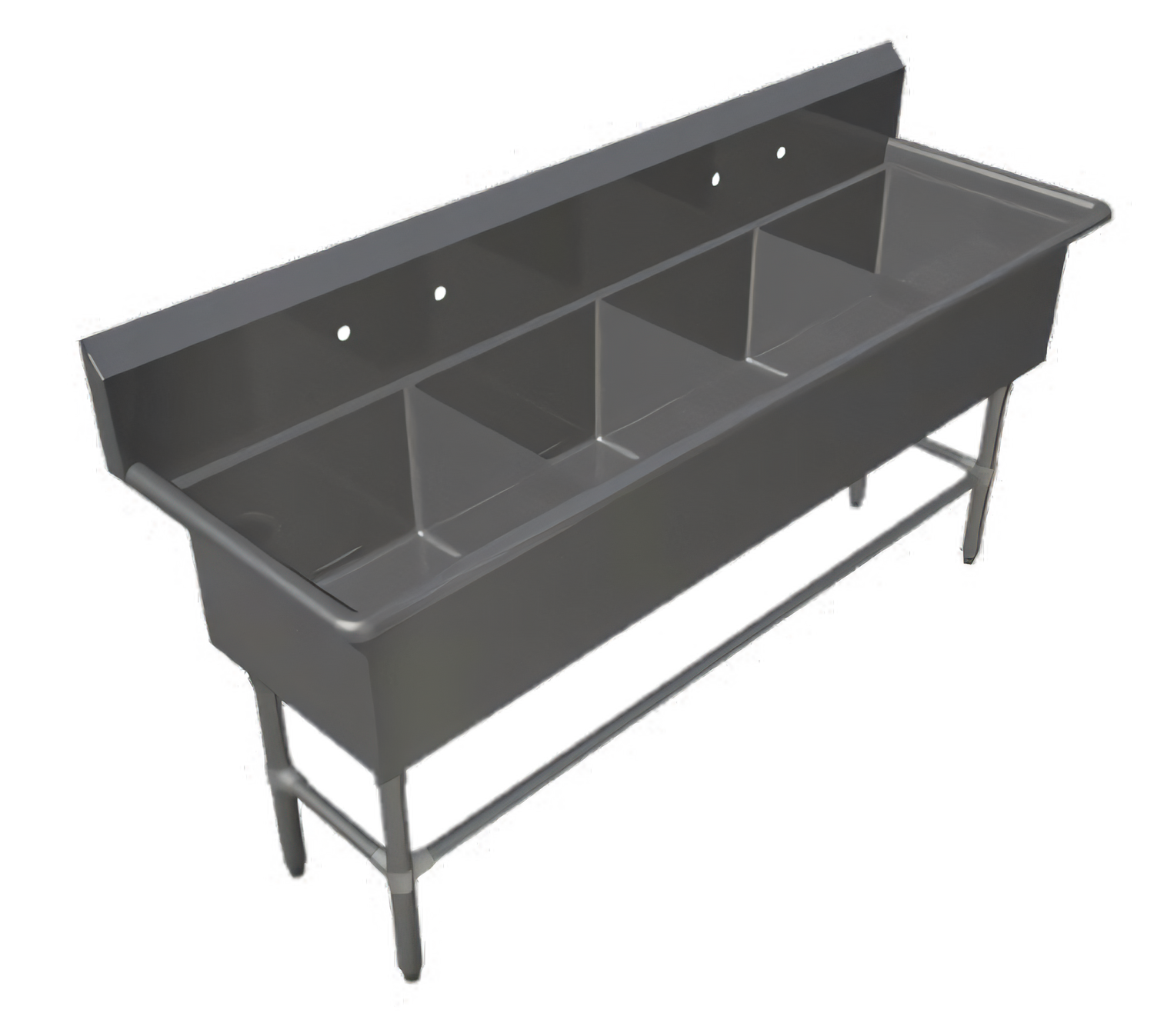

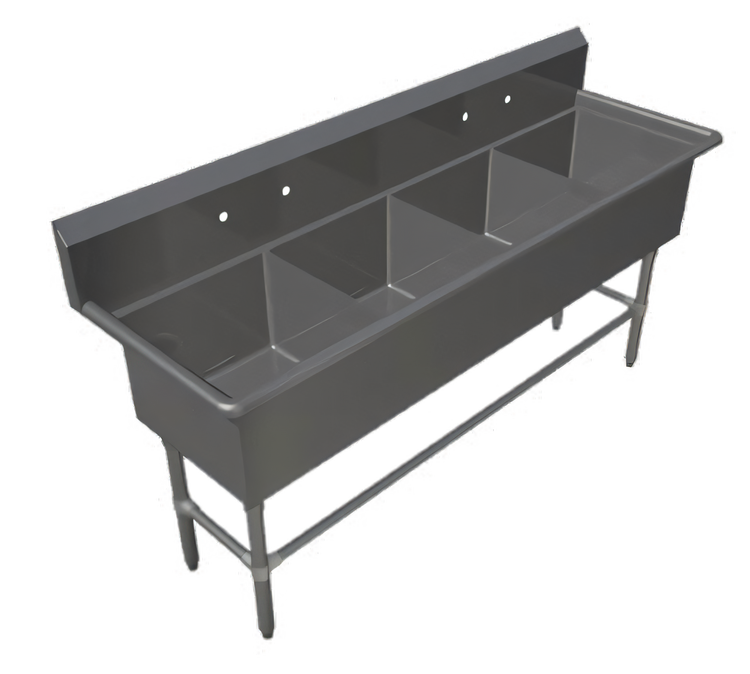

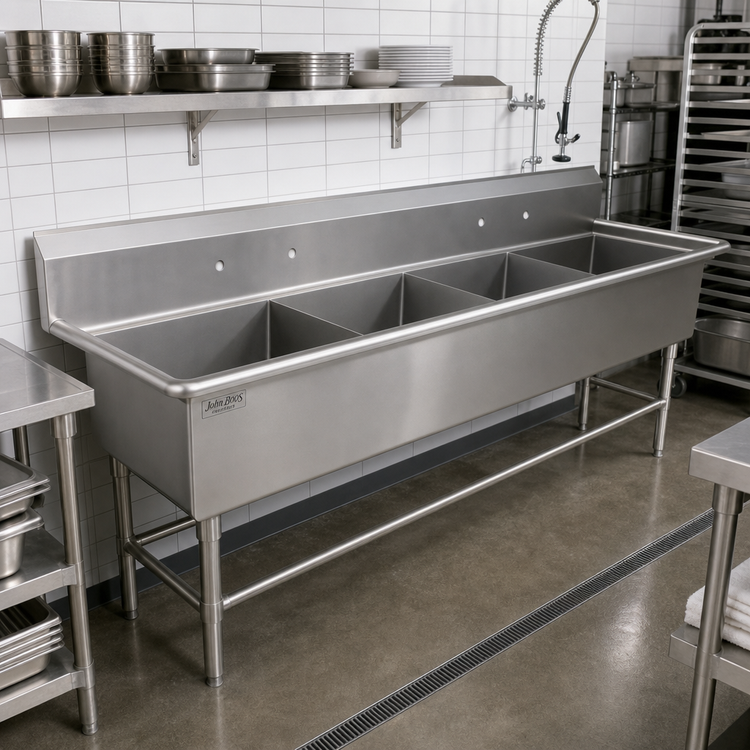

John Boos Pro-Bowl 4-Compartment Stainless Steel Floor Model Sink with Legs, 125-1/8 Inch Wide x 29-1/2 Inch Deep

SKU: 4PB3024
GTIN: 662969683658
$3,988.38
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 4-Compartment Stainless Steel Floor Model Sink with Legs, 125-1/8 Inch Wide x 29-1/2 Inch Deep

16-Gauge Type 300 Stainless Steel, 30" x 24" x 12" Bowls, 10" Boxed Backsplash

This heavy-duty four-compartment sink delivers generous bowl space, sanitary stainless construction, and a tall boxed backsplash for demanding dish and prep areas.

  • Four 30" x 24" x 12" compartments provide ample room for wash, rinse, sanitize, or prep workflows.
  • Built from 16-gauge Type 300 stainless steel with a #4 polish, satin finish for long-lasting durability.
  • 10" boxed backsplash with a 45° top and 2" return helps protect the wall from splashes.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet create a stable floor-mounted base.
  • Two sets of splash-mount faucet holes at 8" centers support easy faucet installation.
  • Knock-down construction makes shipping and installation easier.
  • 3-1/2" die-stamped drain openings and coved bowl corners support drainage and easier cleaning.

Overall Dimensions:

125.13"W x 29.5"D x 44.06"H

Product Weight:

205.0 lb

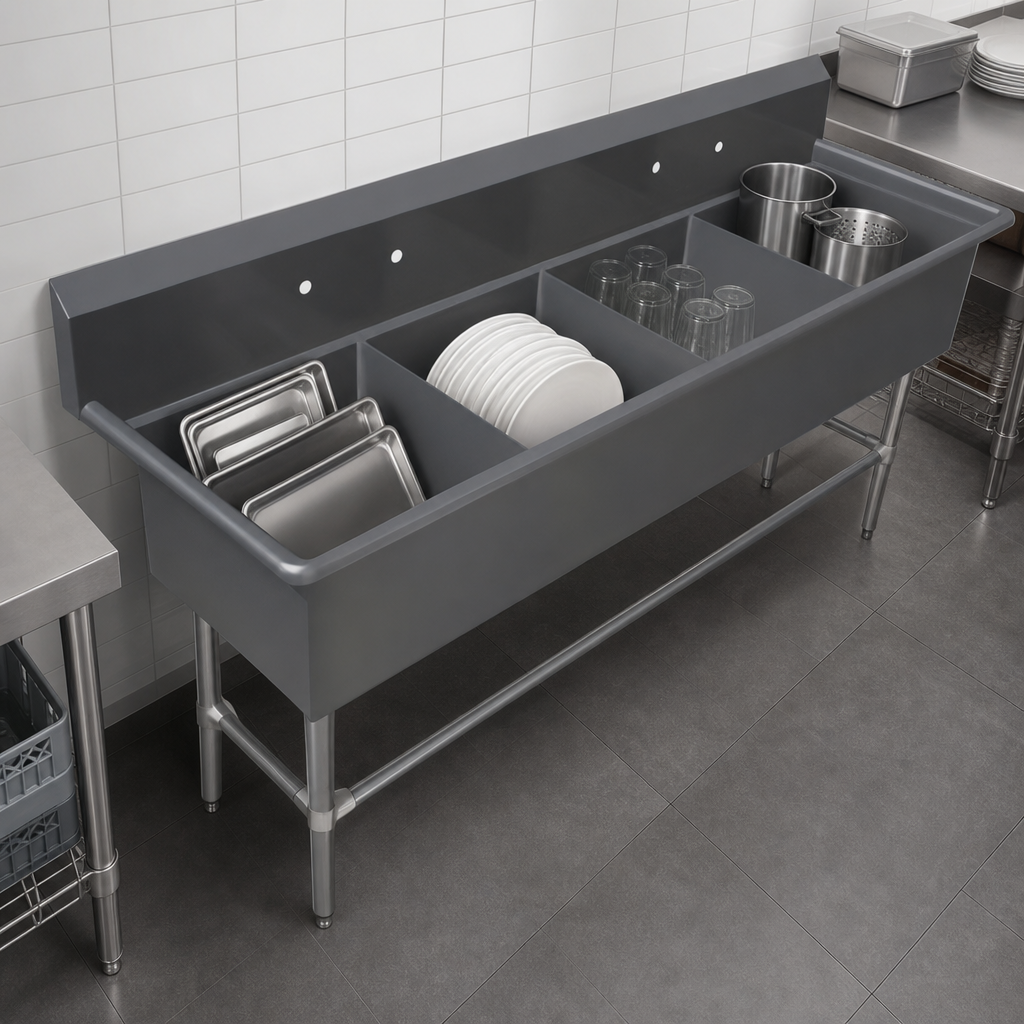

Four-Compartment Layout

Provides four separate sink bowls for multitasking in busy dishroom or prep operations.

16-Gauge Type 300 Stainless Steel

Durable stainless steel construction with a #4 polish, satin finish.

Large Sink Bowls

Each compartment measures 30 inches wide by 24 inches front-to-back by 12 inches deep.

10-Inch Boxed Backsplash

Full-length backsplash includes a 45° top and 2-inch return to the wall for splash protection.

Faucet Hole Provision

Includes two sets of splash-mount faucet holes with 8-inch centers, plus 1-inch holes in the backsplash.

Drainage Design

3-1/2-inch die-stamped drain openings and formed bowl bottoms promote drainage.

Stainless Steel Base

Features stainless steel legs, adjustable front and side bracing, gussets, and adjustable bullet feet.

Coved Corners

All vertical and horizontal bowl corners are coved to help simplify cleaning.

Knock-Down Construction

Ships KD for easier handling and transport.

Type Compartment Sink
Style Pro-Bowl
Installation Type Floor Model (With Legs)
Compartments 4
Material Stainless Steel
Finish Satin Finish
Shipping Width 126 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 205 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The sink includes four compartments, each measuring 30 inches wide by 24 inches front-to-back by 12 inches deep.
Yes. It has a full-length 10-inch boxed backsplash with a 45° top and 2-inch return to the wall.
It includes two sets of splash-mount faucet holes with 8-inch centers, plus 1-inch faucet holes in the backsplash.
Yes. The bowls have 3-1/2-inch die-stamped drain openings.
It ships standard knocked-down (KD) for easier handling and installation.
Documented accessories include end splashes, faucets, add-a-faucets, pre-rinse units, lever waste, overshelves, and a pot rack.
