John Boos  |  Pro-Bowl  |  SKU: 4PB3024-2D30  |  UPC: 662969683801

John Boos 4PB3024-2D30 Pro-Bowl Compartment Sinks

$5,746.99
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

John Boos “Pro-Bowl” 4-Compartment Sink w/ (2) 30" Drainboards

Model 4PB3024-2D30 • 183-1/4"W × 29-1/2"D × 44-1/16"H • NSF & CSA-Sanitation

Make clean-up, rinsing, and prep a seamless part of your workflow. John Boos engineered this extra-large Pro-Bowl series sink from heavy-duty 16-gauge, type 300 stainless steel so you can count on rock-solid durability shift after shift—whether you run a high-volume restaurant, hotel kitchen, school, or commissary.

Key Performance Features

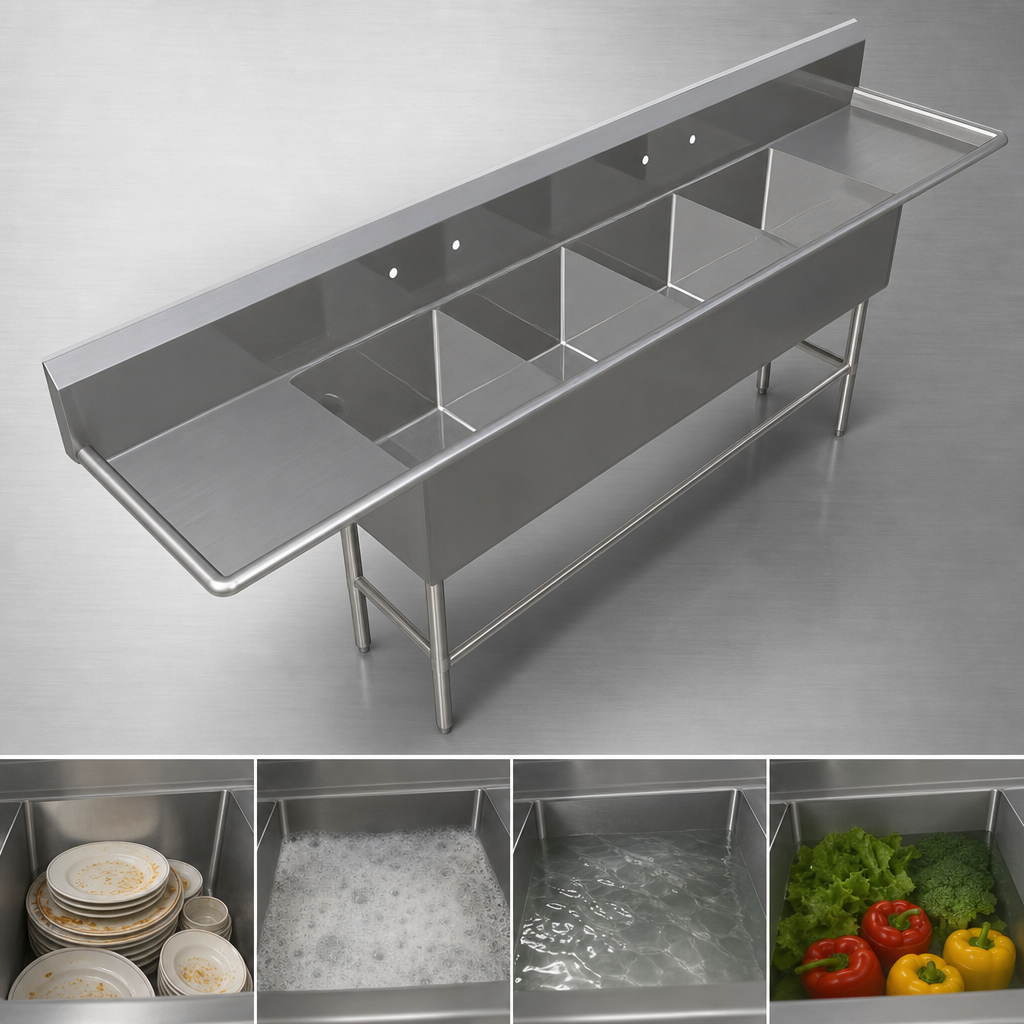

  • Four 30" × 24" × 12" bowls let you create a dedicated wash, rinse, sanitize & prep sequence.
  • (2) 30" left & right drainboards provide generous landing zones for soiled or air-dry items.
  • 10" boxed backsplash with 45° top & 2" return contains splashes and meets health codes.
  • (2) sets of 8" on-center splash-mount faucet holes – ready for pre-rinse or gooseneck faucets (sold separately).
  • 3-1/2" die-stamped drain openings accept industry-standard basket strainers or lever wastes.
  • Fully TIG-welded top; exposed welds are polished to the same satin #4 finish for a clean, professional look.
  • 1-5/8" O.D. stainless legs with adjustable front & side bracing for added rigidity.
  • Adjustable bullet feet level the sink on uneven floors.
  • Ships knocked-down (KD) to reduce freight costs; quick field assembly required.
Technical Specifications
Overall dimensions 183-1/4" W × 29-1/2" D × 44-1/16" H (to top of backsplash)
Compartments (4) 30" W × 24" F-B × 12" D
Drainboards (2) 30" L – left & right
Backsplash 10" H boxed, 45° top, 2" return
Faucet holes (2) sets, 8" centers, 1" Ø (splash-mount)
Drain openings 3-1/2" die-stamped
Material / finish 16-ga 300 series stainless steel, #4 satin
Legs & bracing Stainless steel legs, adjustable front & side bracing, 1" adjustable bullet feet
Approx. weight 249 lb
Certifications NSF, CSA-Sanitation
Ships Knocked-down (assembly hardware included)
Ideal For
  • High-volume restaurants & catering kitchens
  • Hotels & banquet facilities
  • School & university foodservice
  • Commissaries & ghost-kitchens
Stainless Steel Care Tips
  • Clean daily with mild soap or Bar Keepers Friend; always wipe in the direction of the polish lines.
  • Avoid chlorine bleach or harsh, chloride-based cleaners—rinse immediately if exposure occurs.
  • Use soft towels, sponges or plastic scouring pads; never use wire brushes or steel wool.
  • Finish with John Boos Stainless Steel Cleaner to restore the protective sheen.
Important: Faucets, drains, lever wastes, and other accessories are sold separately. Confirm local plumbing codes before installation.

John Boos & Co. reserves the right to modify specifications without notice.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

183.25in

Depth

29.5in

Shipping Weight

249.0lbs

Compartment (front - back)

24"

Compartment Width (side - side)

30"

Overall Length

130" - 198"

Top Stainless Series

300 series

Sink Depth (rim - drain)

12"

Base Construction

stainless steel

Splash Height

10"

Base Type

legs with front & side crossrails

Drainboards

with left & right-hand drainboards

Top Gauge

16 gauge

Specifications

Pro-Bowl Sink, 4-compartment, 183-1/4"W x 29-1/2"D x 44-1/16"H overall size, (4) 30"W x 24" front-to-back x 12" deep compartments, (2) 30" left & right drainboards, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
