John Boos  |  Pro-Bowl  |  SKU: 4PB3024-1D36R  |  UPC: 662969747008

John Boos 4PB3024-1D36R Pro-Bowl Compartment Sinks

$5,331.83
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

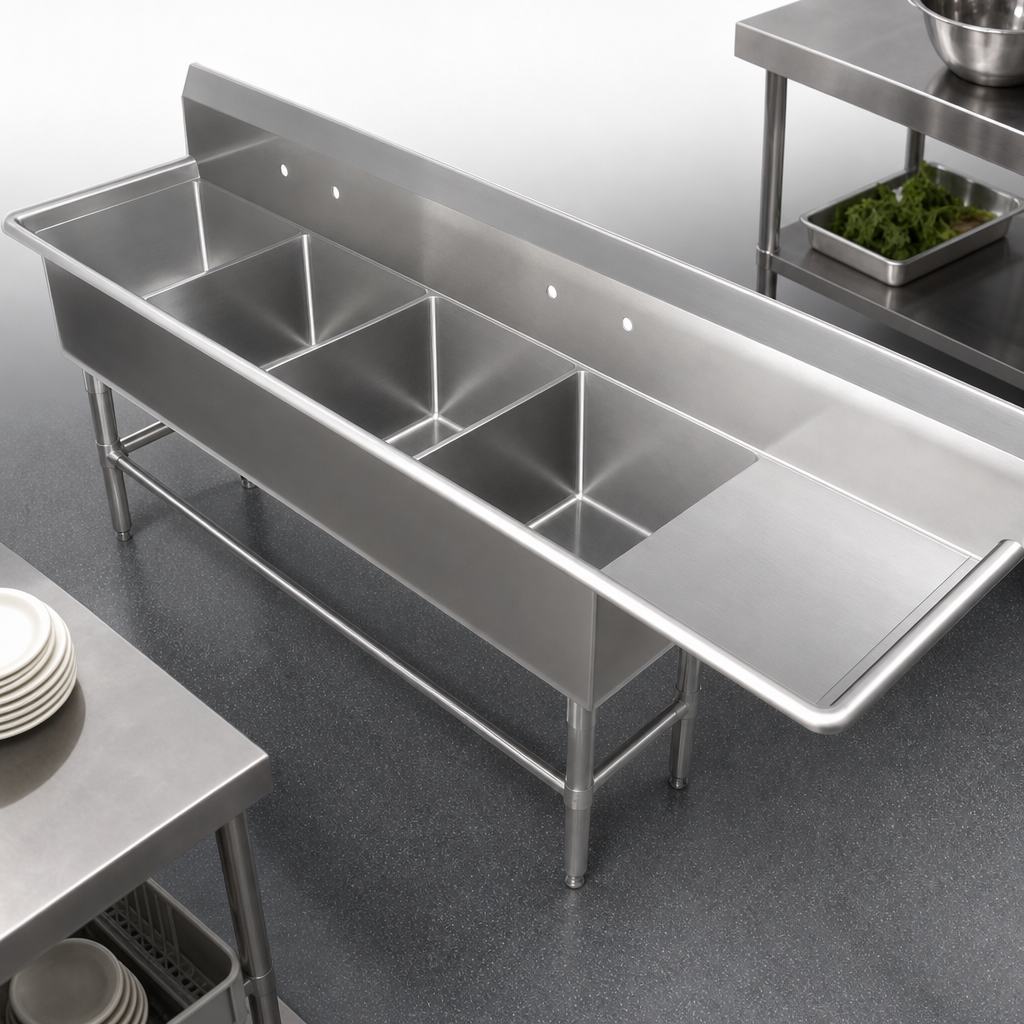

John Boos “Pro-Bowl” 4-Compartment Sink with 36" Right Drainboard

Model 4PB3024-1D36R  |  NSF & CSA-Sanitation Certified

Built for the busiest prep and wash stations, the Pro-Bowl 4-compartment sink delivers uncompromising durability, generous bowl capacity, and reliable sanitation compliance – all in a knock-down package that saves on freight and moves easily through tight doorways.

Why You’ll Love It

  • Four spacious 30" W x 24" F/B x 12" D bowls handle high-volume warewashing and prep.
  • Heavy-duty 16-gauge, type 300 stainless steel with #4 satin polish resists corrosion and cleans up fast.
  • 10" boxed backsplash with 2" return and 45° top helps contain splashes and protects walls.
  • 36" right-hand drainboard speeds drying and staging (embossed channels promote runoff).
  • (2) sets of splash-mount faucet holes, 8" on-center, accommodate pre-rinse or add-a-faucet setups.
  • 3-1/2" die-stamped drain openings in every bowl for a perfect fit with common basket strainers.
  • 1-5/8" O.D. stainless steel legs with adjustable bullet feet level the sink on uneven floors.
  • Front & side adjustable bracing (1-1/4" O.D.) adds rigidity without trapping debris.
  • Ships KD (knocked-down) to lower freight costs; quick bolt-together assembly on site.

Specifications

Overall Size 160-3/16" W x 29-1/2" D x 44-1/16" H
Bowl Count / Size 4 bowls – 30" W x 24" F/B x 12" D
Drainboard 36" right side (integral)
Backsplash 10" boxed, 2" return, 45° top
Faucet Holes (2) sets, 8" centers, 1" diameter
Material & Finish 16 GA type 300 stainless steel, #4 satin polish
Legs / Bracing Stainless steel, 1-5/8" O.D. legs  |  1-1/4" O.D. bracing
Feet 1" adjustable stainless steel bullet feet
Drain Openings 3-1/2" die-stamped (one per bowl)
Certifications NSF, CSA-Sanitation
Shipping Knocked-down (assembly required)

Perfect For

  • High-volume restaurants & commissaries
  • Catering and banquet kitchens
  • Food processing & packaging plants
  • School, hospital, and corporate cafeterias

Care & Maintenance

  • Clean daily with non-chloride, non-abrasive cleansers such as Bar Keepers Friend.
  • Avoid wire brushes or steel wool – use soft towels or plastic scouring pads.
  • Always wipe in the direction of the polish lines to maintain the satin finish.
  • Rinse away any chlorine bleach immediately and dry with a clean cloth.

Proper care preserves the chromium oxide “passive” layer that makes stainless steel resist corrosion.

Assembly Required: Unit ships knocked-down to reduce freight cost and risk of damage. All hardware is included; professional installation is recommended.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

160.19in

Depth

29.5in

Shipping Weight

231.0lbs

Drainboards

with right-hand drainboard

Base Construction

stainless steel

Overall Length

130" - 198"

Top Stainless Series

300 series

Compartment (front - back)

24"

Compartment Width (side - side)

30"

Splash Height

10"

Top Gauge

16 gauge

Sink Depth (rim - drain)

12"

Base Type

legs with front & side crossrails

Specifications

Pro-Bowl Sink, 4-compartment, 160-3/16"W x 29-1/2"D x 44-1/16"H overall size, (4) 30"W x 24" front-to-back x 12" deep compartments, (1) 36" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
