John Boos

John Boos Pro-Bowl 4-Compartment Stainless Steel Sink with Left Drainboard, 30 x 24 x 12 Inch Bowls

SKU: 4PB3024-1D30L
GTIN: 662969746971
$4,789.62
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

4-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 4-Compartment Stainless Steel Sink with Left Drainboard, 30 x 24 x 12 Inch Bowls

16-Gauge Type 300 Stainless Steel, 10 Inch Boxed Backsplash, Stainless Steel Base

A durable four-station sink with a roomy left drainboard, built-in backsplash protection, and heavy-duty stainless steel construction for high-volume prep areas.

  • Four 30" x 24" x 12" compartments support washing, rinsing, sanitizing, and prep workflows.
  • 30" left drainboard provides extra landing space for draining, staging, or drying items.
  • 16-gauge Type 300 stainless steel construction is built for daily commercial use.
  • 10" boxed backsplash with a 45° return helps protect walls from splashes.
  • Two sets of 8" on-center splash-mount faucet holes simplify fixture installation.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet help keep the sink stable and level.

Overall Dimensions:

154.19"W x 29.5"D x 44.06"H

Product Weight:

227.0 lb

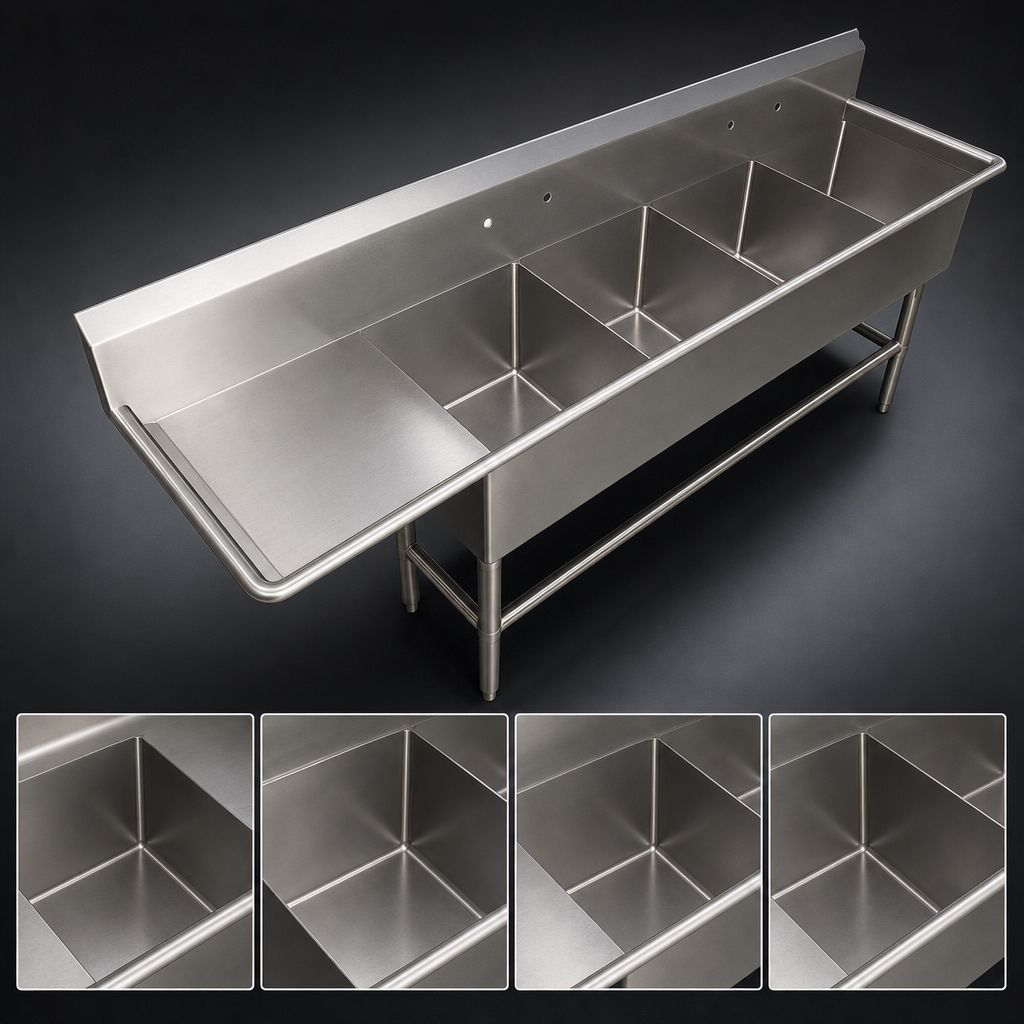

Four Compartment Layout

Provides four separate 30" x 24" x 12" bowls for organized warewashing and prep tasks.

Left-Hand Drainboard

Includes a 30" drainboard on the left side for staging, draining, or drying items.

16-Gauge Type 300 Stainless Steel Construction

Heavy-duty stainless steel top and bowls are designed for long-lasting performance.

10-Inch Boxed Backsplash

Full-length backsplash includes a 45° return to the wall and a turned-down rear lip to help contain splashes.

Dual Faucet Hole Sets

Two sets of splash-mount faucet holes at 8" centers plus 1" backsplash faucet holes support installation flexibility.

Stainless Steel Base and Support

Stainless steel legs, front and side bracing, and gussets provide sturdy support for the sink assembly.

Adjustable Bullet Feet

1" adjustable stainless steel bullet feet make it easier to level the sink on uneven floors.

Coved Corners and Die-Stamped Drain Openings

Rounded bowl corners and 3-1/2" die-stamped drain openings promote drainage and easier cleaning.

Type 4-Compartment Sink
Style Left Drainboard
Installation Type Floor Model
Compartments 4
Compartment Width 30 Inches
Compartment Depth 24 Inches
Bowl Depth 12 Inches
Material Stainless Steel
Finish Satin Finish
Splash Height 10 Inches
Shipping Width 155 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 227 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This model, 4PB3024-1D30L, is the left-hand drainboard version.
Each of the four compartments measures 30" wide x 24" front-to-back x 12" deep.
The overall dimensions are 154-3/16" W x 29-1/2" D x 44-1/16" H.
It is built with 16-gauge Type 300 stainless steel and stainless steel legs and bracing.
It includes two sets of splash-mount faucet holes with 8" centers, plus 1" faucet holes in the backsplash.
Yes, the sink includes 1" adjustable stainless steel bullet feet for leveling.
