John Boos 4PB244-1D24R Pro-Bowl Compartment Sinks
Description
John Boos “Pro-Bowl” 4-Compartment Sink w/ Right Drainboard
Model 4PB244-1D24R | 124-3/16" W × 29-1/2" D × 44-1/16" HEngineered for non-stop, high-volume service, the John Boos Pro-Bowl 4-compartment sink combines rugged 16 gauge, type 300 stainless steel construction with thoughtful, operator-friendly details that speed up every step of your ware-washing routine.
Key Performance Features

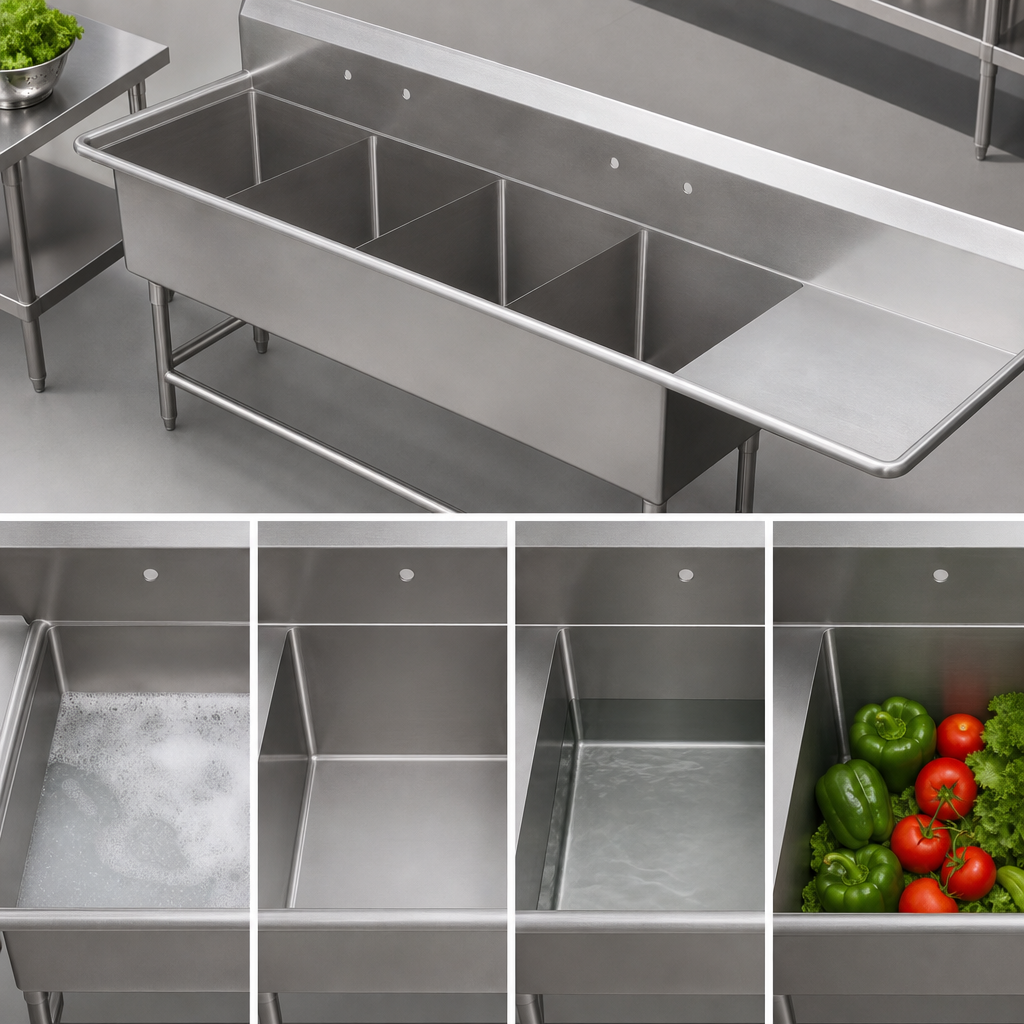

- Four 24" × 24" × 14" deep sink bowls—ideal for wash, rinse, sanitize & soak set-ups.
- Integrated 24" right-side drainboard with positive slope for fast water run-off.
- 10" high boxed backsplash with 2" return & 45° top edge to keep water in the sink, not on the wall.
- TIG-welded seams; all exposed welds polished to match the #4 satin finish.
- 5/8" radius interior corners for easy cleaning and superior hygiene.
- (2) sets splash-mount faucet holes on 8" centers—ready for pre-rinse and fill faucets.
- 3-1/2" die-stamped drain openings compatible with standard basket strainers & lever wastes.
- 1-5/8" O.D. stainless steel legs with adjustable side & front bracing for rock-solid stability.
- Adjustable stainless steel bullet feet level the sink on uneven floors.
- Ships knocked-down (KD) to cut freight costs—straightforward field assembly.
At-a-Glance Specifications
| Overall width (left-to-right) | 124-3/16" |
|---|---|
| Overall depth (front-to-back) | 29-1/2" |
| Bowl count & size | (4) 24" W × 24" F/B × 14" D |
| Drainboard | 24" right side, integrally welded |
| Backsplash height | 10" boxed, 2" return, 45° top |
| Material & thickness | 16 GA type 300 stainless steel, #4 satin polish |
| Faucet holes | (2) sets on 8" centers, 1" Ø |
| Drain openings | 3-1/2" die-stamped |
| Working height | 36-5/16" to sink roll (44-1/16" overall including backsplash) |
| Certifications | NSF, CSA-Sanitation |
| Shipping configuration | Knocked-down (KD) |
Why Choose John Boos?
- American-made quality—manufactured in Effingham, Illinois since 1887.
- Full TIG-welded stainless base outlasts galvanized alternatives for years of rust-free service.
- Every outside edge is bull-nosed for a safer, more professional finish.
Compatible Accessories (sold separately)
- 8"-centers splash-mount faucets & pre-rinse units
- Lever waste assemblies or basket strainers
- End splashes & overshelves
- Pot racks and add-a-faucet adapters
Care & Maintenance
For maximum service life, clean daily with a non-chloride stainless steel cleaner, rinse, and wipe dry. Avoid bleach or abrasive pads that can damage the protective stainless film.
